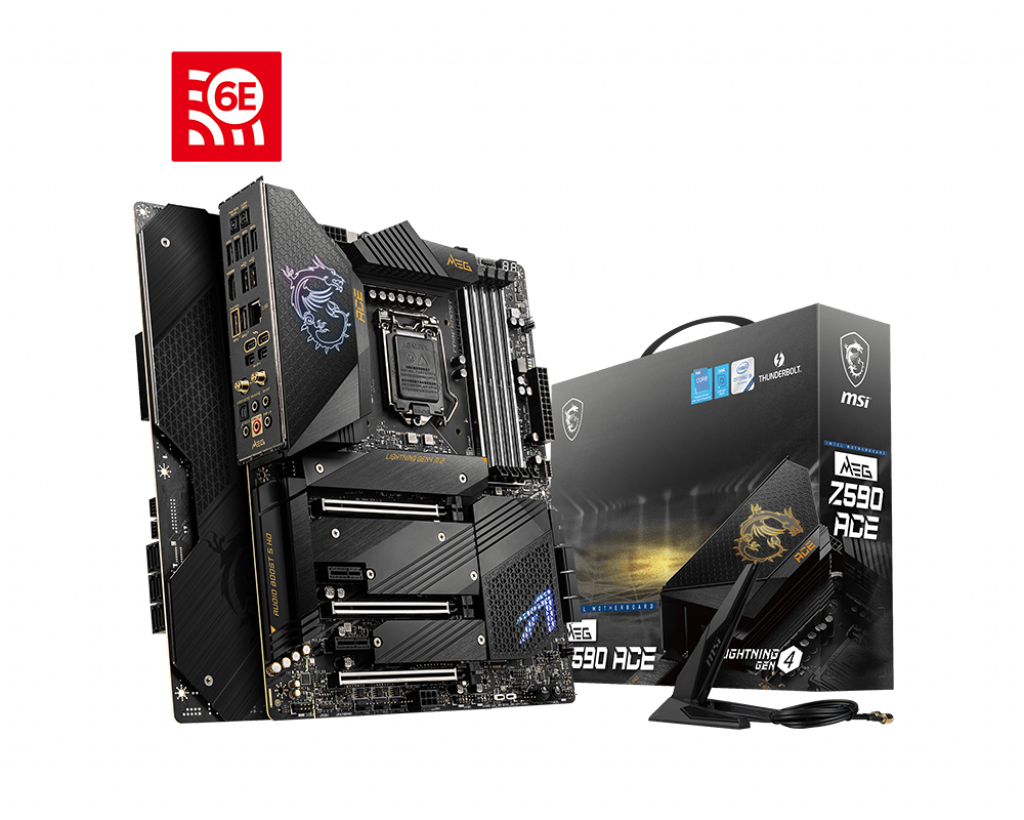

MEG Z590 ACE

• Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5600(OC) MHz
• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
• Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
• Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
• 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
• Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
• 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
• Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.







Specifications:

PROCESSOR

• Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
• Processor socket LGA1200

1. Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel® Z590 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5600 MHz
  • 1DPC 2R Max speed up to 4800+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

See supported memory

EXPANSION SLOTS

• 3x PCIe x16 slots
  • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
  • PCI_E1 & PCI_E3 slots (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • PCI_E5 slot (From Z590 chipset)
    • Supports up to PCIe 3.0
• 2x PCIe 3.0 x1 slots (From Z590 chipset)

MULTI-GPU

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology

ONBOARD GRAPHICS

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1

1. Available only on processors featuring integrated graphics.

THUNDERBOLT 4

Intel®JHL8540 Thunderbolt™ 4 Controller

• 2x Thunderbolt™ 4 (USB-C) ports on the back panel
  • Support up to 40Gbps transfer rate with Thunderbolt devices
  • Support up to 20Gbps transfer rate with USB4 devices
  • Support up to 10Gbps transfer rate with USB 3.2 devices
  • Support up to 5V/3A ,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

STORAGE

• 6x SATA 6Gb/s ports (from Z590 chipset)
• 4x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    • Available only on 11th Gen Intel® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_21, M2_32, M2_4 slots (from Z590 chipset)
    • M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x43
    • M2_2 & M2_3 support up to SATA 6Gb/s
    • M2_4 slot supports PCIe only.
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready4
• Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.
3. M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is inserted.
4. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• Intel® Z590 Chipset
  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
  • 2x USB 2.0 Type-A ports on the back panel
• Hub-GL850G
  • 4x USB 2.0 ports through internal USB connectors

AUDIO

Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Intel® I225V 2.5Gbps LAN controller

WIFI & BLUETOOTH

Intel® Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.22, FIPS, FISMA

1. Wi-Fi 6E 6GHz depend on country regulations support and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Tuning Controller connector

BACK PANEL PORTS

1. Clear CMOS Button
2. USB 3.2 Gen1 5Gbps (Type-A)
3. USB 2.0
4. 2.5G LAN
5. Thunderbolt 4 40Gbps (Type-C)
6. Wi-Fi / Bluetooth
7. HD Audio Connectors
8. Flash BIOS Button
9. HDMI
10. USB 3.2 Gen2 10Gbps (Type-A)
11. Mini DisplayPort Input (for Thunderbolt passthrough)
12. Optical S/PDIF-Out

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
