Дънна платка MSI MEG Z490 GODLIKE, Z490, LGA1200, DDR4, PCI-E 3.0, 6x SATA 6Gb/s, 3x M.2, Thunderbolt 3, Wi-Fi, Bluetooth, E-ATX

MEG Z490 GODLIKE

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5000(OC) MHz
• Ready 4 the Future: Support Lightning Gen 4 Solution for the future
• Dual Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
• Dynamic Dashboard II: Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off your own personality.

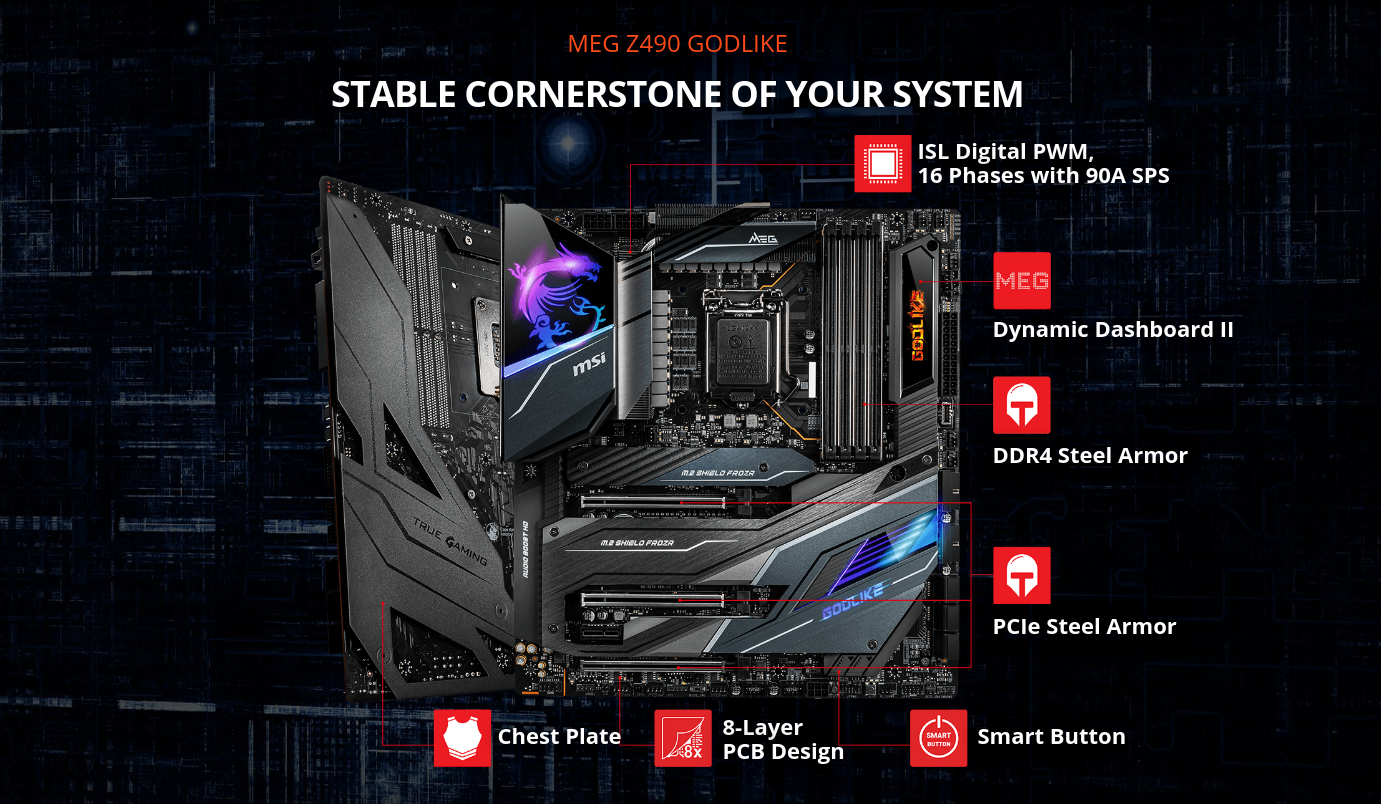

• Extreme Power Design: INTERSIL digital PWM, 16+1+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.

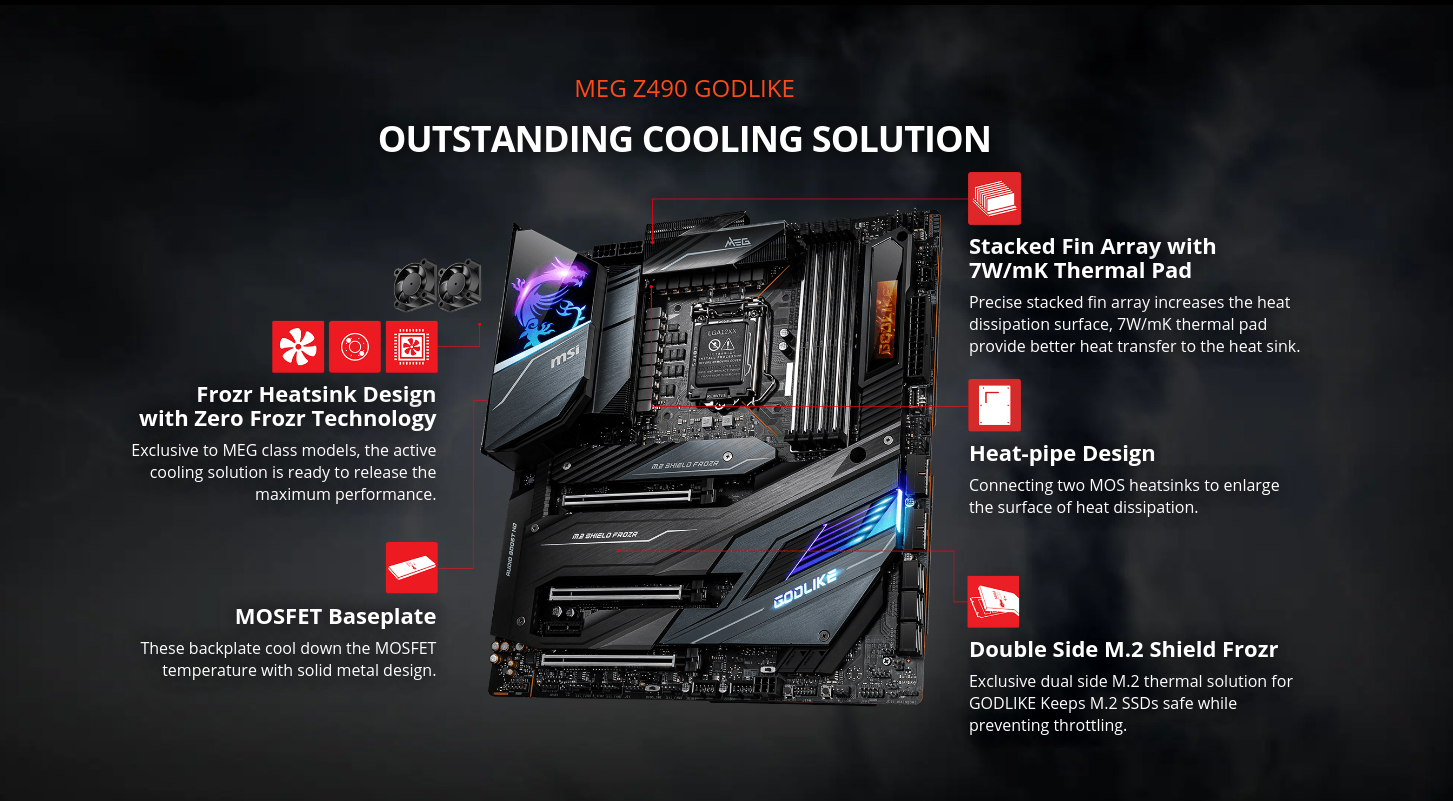

• Outstanding Cooling Solution: Stacked Fin Array, VRM Heat-pipe, Frozr Heatsink, MOSFET Baseplate and M.2 Shield Frozr ensure the extreme performance with low temp.

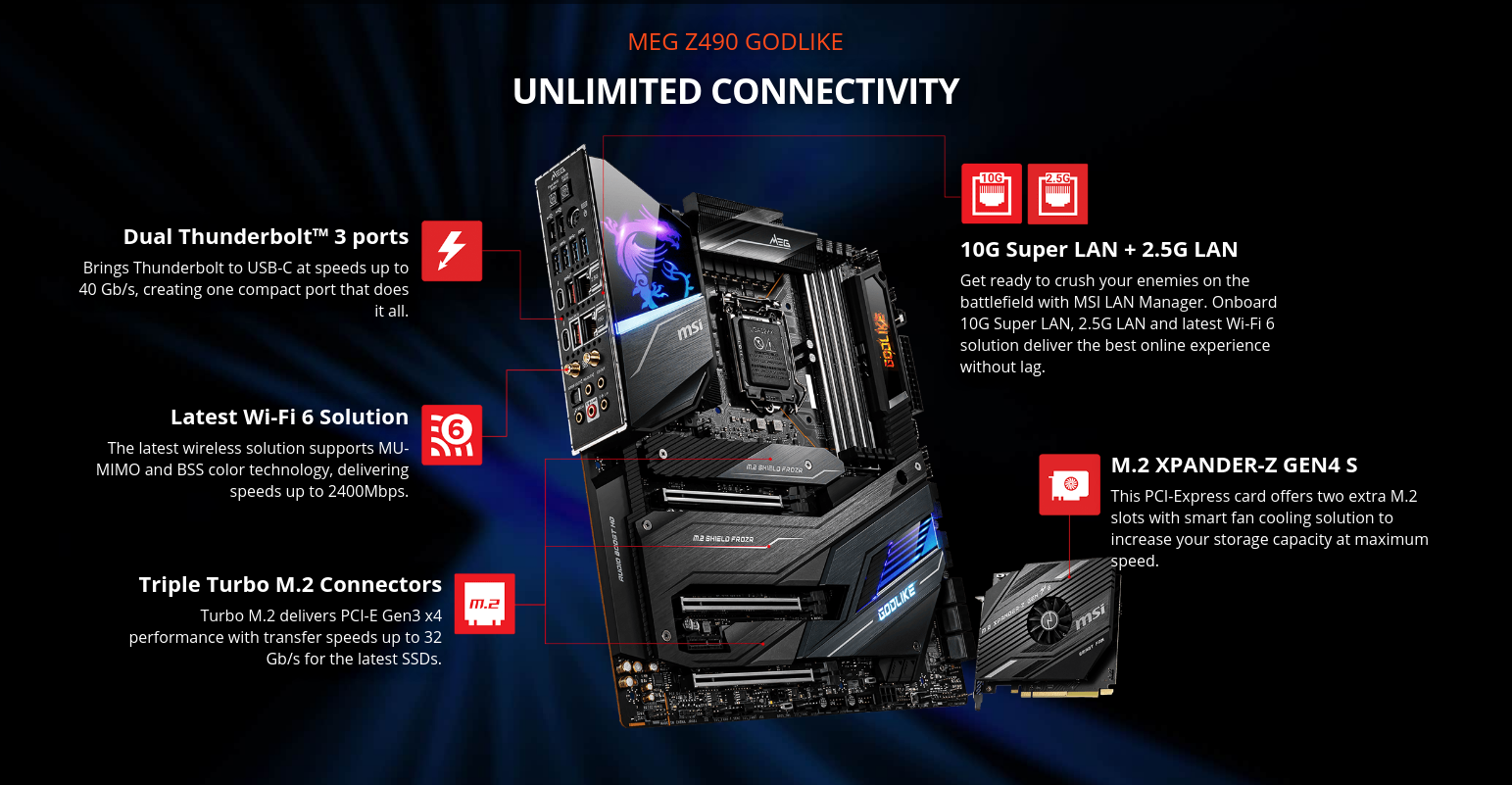

• Latest Network Solution: Onboard 10G Super LAN, 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
• Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
• M.2 XPANDER-Z GEN 4 S: This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed.

MASTER THE GAME

The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.

Specifications:

PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket1
Onboard graphics output are disabled when using F SKU processors.

CHIPSET
Intel® Z490 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOTS
3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode1
1x PCIe 3.0 x1 slot
Please refer to page 33 for details.

MULTI-GPU
Supports 2-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology

ONBOARD GRAPHICS
Intel® JHL7540 Thunderbolt™ 3 Controller
2x Thunderbolt™ 3 (Type-C) ports on the back panel
Supports Thunderbolt™ 3 with a maximum resolution of 5120x2880 @60 Hz1
Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
Maximum shared memory is 1GB
Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution.

STORAGE
Intel® Z490 Chipset
6x SATA 6Gb/s ports1,2
3x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready3
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z490 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® ASM1074 Chipset
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors)
Intel® JHL7540 Thunderbolt™ 3 Controller
2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel

AUDIO
Realtek® ALC1220 Codec + ESS E9018 combo DAC
7.1-Channel High Definition Audio
Supports Optical S/PDIF output

THUNDERBOLT 3™
Intel® JHL7540 Thunderbolt™ 3 Controller
2x Thunderbolt™ 3 (USB Type-C) ports on the back panel
Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices
Supports up to 5V/3A , 15W power charging
Supports Daisy-chain up to six ThunderboltTM 3 devices

LAN
1x Aquantia® AQC107 10G LAN controller
1x Realtek® RTL8125B 2.5G LAN controller

WIFI & BLUETOOTH
Intel® AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot
Only support windows 10 64-bit

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x 3-pin Water Flow connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1x TPM module connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector

BACK PANEL PORTS
Clear CMOS Button
PS/2 Keyboard / Mouse Port
USB 3.2 Gen1 5Gbps (Type-A)
2.5G LAN
10G Super LAN
Wi-Fi /Bluetooth Antenna Connectors
HD Audio Connectors
Flash BIOS Button
USB 2.0
Thunderbolt 3 (40Gbps)
USB 3.2 Gen2 10Gbps (Type-A)
Optical S/PDIF-Out
MEG Z490 GODLIKE

DIMENSIONS
12 in. x 10.9 in. (30.5 cm x 27.7 cm)
E-ATX Form Factor

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
