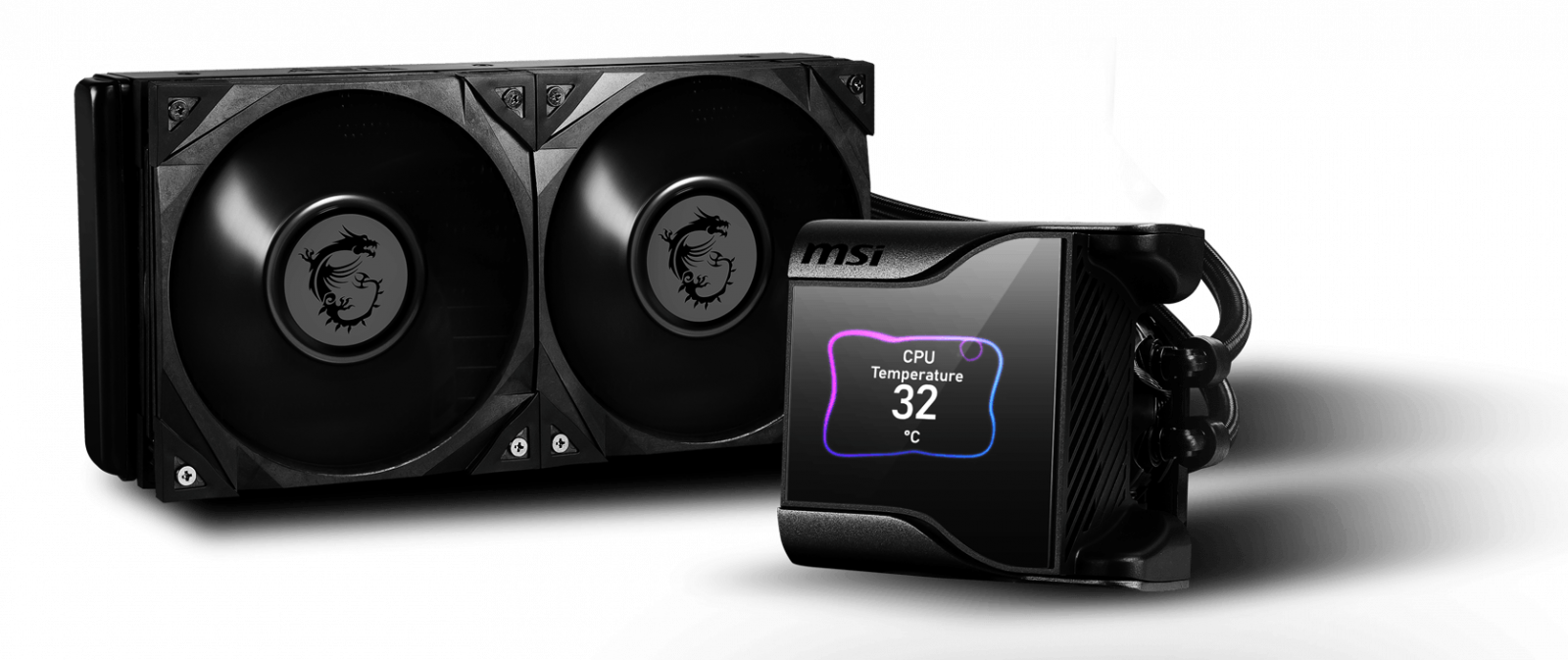

MSI MEG Coreliquid

MEG SILENT GALE P14

The MEG SILENT GALE P14 is MSI’s innovative silent fan designed to generate the most silent airflow.

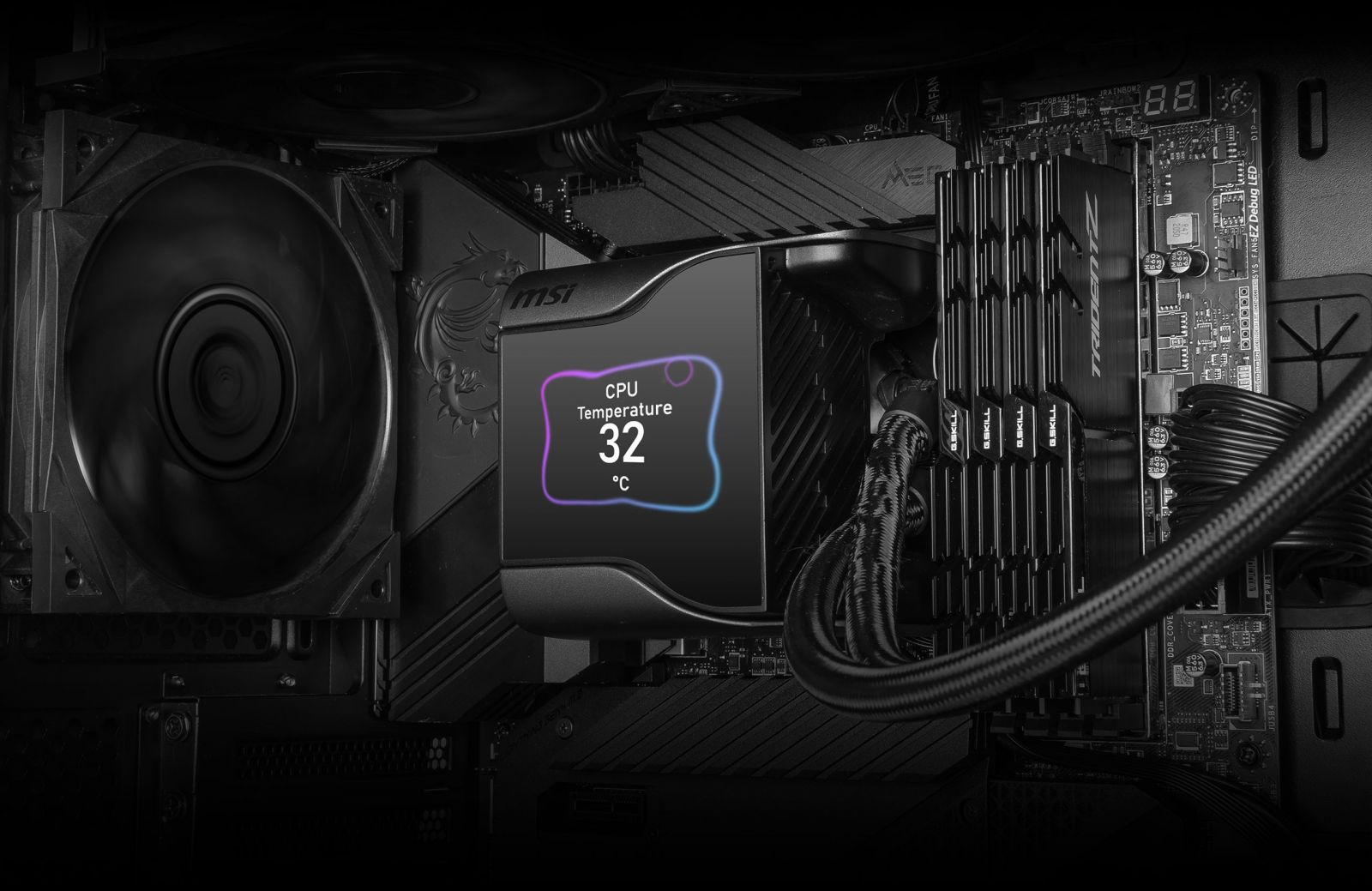

2.4” CUSTOMIZABLE IPS DISPLAY

The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.

Specifications:

Radiator Info
Radiator Material	Aluminum
Radiator Dimensions (W x D x H)	314.8 x 140 x 27mm / 12.39 x 5.51 x 1.06 inches
Cold Plate Material	Copper
Water Cooling Pipe Material	Black Rubber + Mesh
Water Cooling Pipe Length	400mm / 15.75 inches

Pump/Block Info
Block Dimensions (W x D x H)	95 x 95 x 54 mm
Panel Size	2.4”
Panel Type	IPS
Panel Resolution	320 x 240
Panel Color bit	16 bits
Panel Brightness	500 nits
Pump Life Expectancy	50,000 hours
Pump Noise Level	21.2 dBA
Pump Load Current	0.33 A
Pump Power Consumption	4 W
Pump Speed	PWM controlled; 100% duty cycle w/ 2800 +/-300 RPM
SATA Power Cable	650mm x 1
USB 2.0 Cable	750mm x 1
Radiator Fan Cable	400mm x 1
Pump / CPU Fan Cable	400mm x 1

Socket Info
Intel Socket	LGA 1150/1151/1155/1156/1200/1700 LGA 2011/2011-3/2066
AMD Socket	AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

Fan info
Number of Fans	2
Fan Dimensions	140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
Fan Speed	0 ~ 1800 RPM
Fan Air Flow	82.27 CFM
Fan Noise Level	24.9 dBA
Fan Air Pressure	2.2 mm-H2O
Fan Bearing	Hydro-Dynamic Bearing (HDB)
Fan Life Expectancy	50,000 hours, 40oC
Fan Rated Current	0.5 A (Max)
Fan Power Consumption	6 W (Max)
PWM Mode	Yes
Cable Length (PWM cable)	350mm; 13.78 inches
