MSI MPG Z690 TORPEDO
MPG Z690 TORPEDO
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

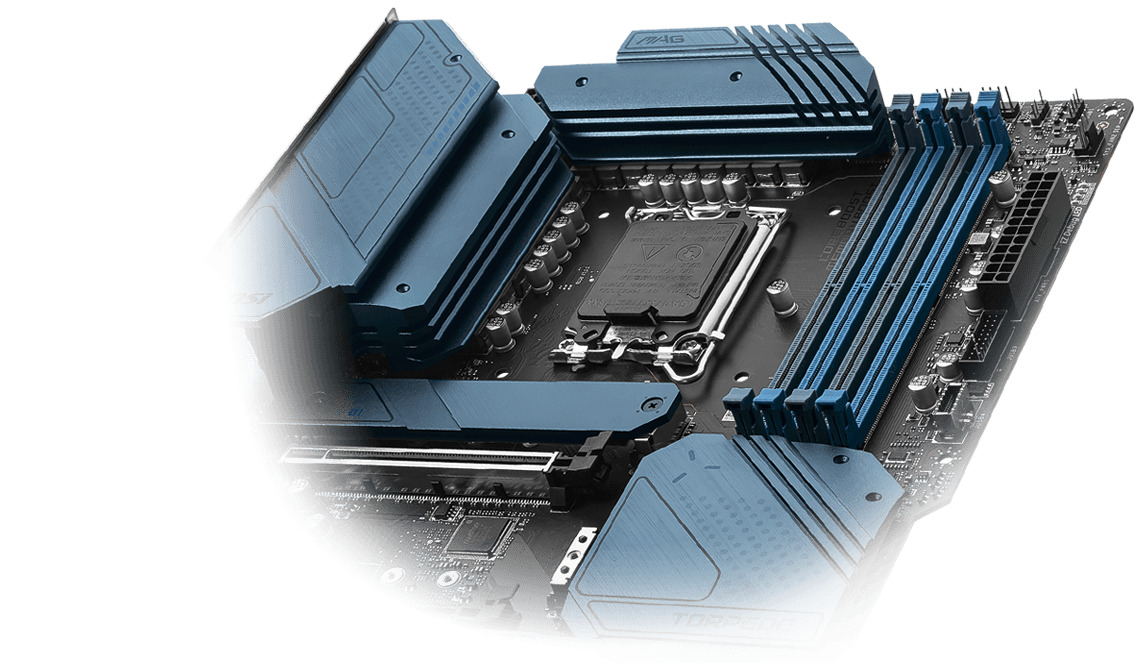

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

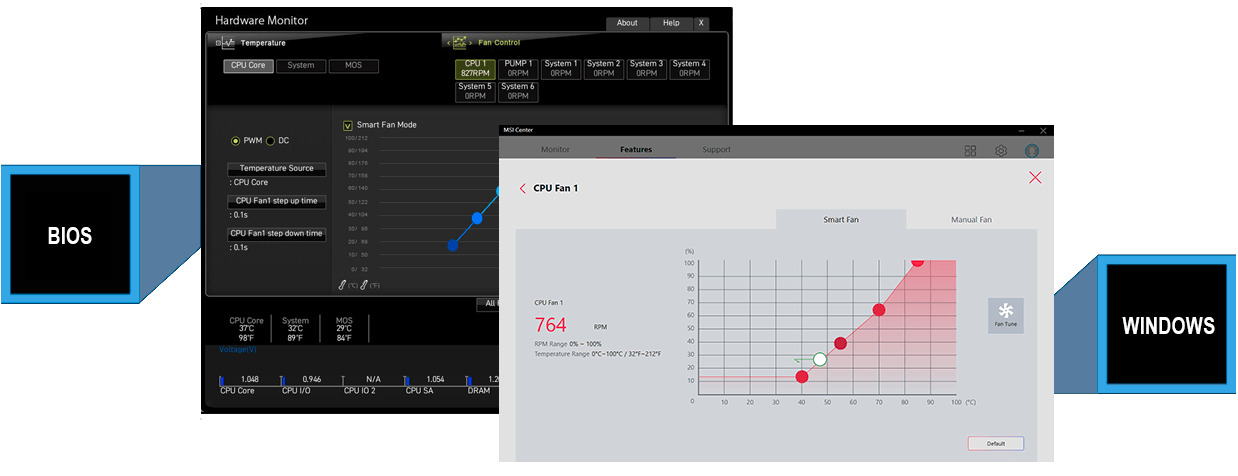

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Processor
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Processor socket LGA1700
- Please go to msi.com to get the newest support status as new processors are released
Chipset
Intel® Z690 Chipset
Memory
- 4x DDR5 memory slots, supporting up to 128GB
- Supports 1R 4800 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 6400+ MHz
- 1DPC 2R Max speed up to 5400+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Intel® XMP 3.0 OC
- Supports Dual Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
- 3x PCIe x16 slots
- PCI_E1 (From CPU)
- Support up to PCIe 5.0 x16
- PCI_E3 (From Z690 chipset)
- Support up to PCIe 3.0 x4
- PCI_E4 (From Z690 chipset)
- Support up to PCIe 3.0 x1
- PCI_E1 (From CPU)
- 1x PCIe 3.0 x1 slot (From Z690 chipset)
Multi-GPU
- Supports AMD® CrossFire™ Technology
Onboard Graphics
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
Storage
- 6x SATA 6Gb/s ports (From Z690 chipset)
- 4x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (From Z690 chipset)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_4 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (From CPU)
- Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset
- Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
Intel® Z690 Chipset
- 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
- 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
- 1x USB 2.0 Type-A port on the back panel
Hub-GL850G
- 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Audio
Realtek® ALC4080 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1x Intel® I225V 2.5Gbps LAN controller
Internal connectors
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 4x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Clear CMOS jumper
- 1x TBT connector (supports RTD3)
- 1x Tuning Controller connector
LED Feature
- 1x EZ LED Control switch
- 1x 4-pin RGB LED connectors
- 3x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED

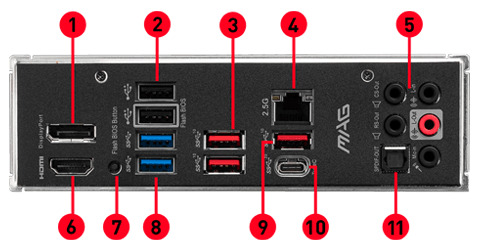

Back panel ports
- DisplayPort 1.4
- USB 2.0 Port
- USB 3.2 Gen 2 10Gbps Type-A
- 2.5G LAN Port
- HD Audio Connectors
- HDMI 2.1 Port
- Flash BIOS Button
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2 10Gbps Type-A
- USB 3.2 Gen 2x2 20Gbps Type-C
- Optical S/PDIF OUT
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1700 |
|---|---|
| Чипсет: | Z690 |
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | CrossFire |
| Видео изход: | DP HDMI |
| Форм фактор: | ATX |
