Водно охлаждане за процесор MSI MAG CORELIQUID 280R, съвместимост със сокети LGA 1150/1151/1155/1156/1200/1366/2011/2011-3/2066 & AMD AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

NEXT-GEN AMD SOCKET AM5 SUPPORT
AMD Socket AM5 (LGA 1718) is the next-generation socket designed to support next-generation AMD Ryzen™ 7000 desktop processors (Zen 4). AMD Socket AM5 uses the same liquid cooler bracket as Socket AM4*. This allows you to upgrade to and enjoy AM5 without buying a new liquid cooler.

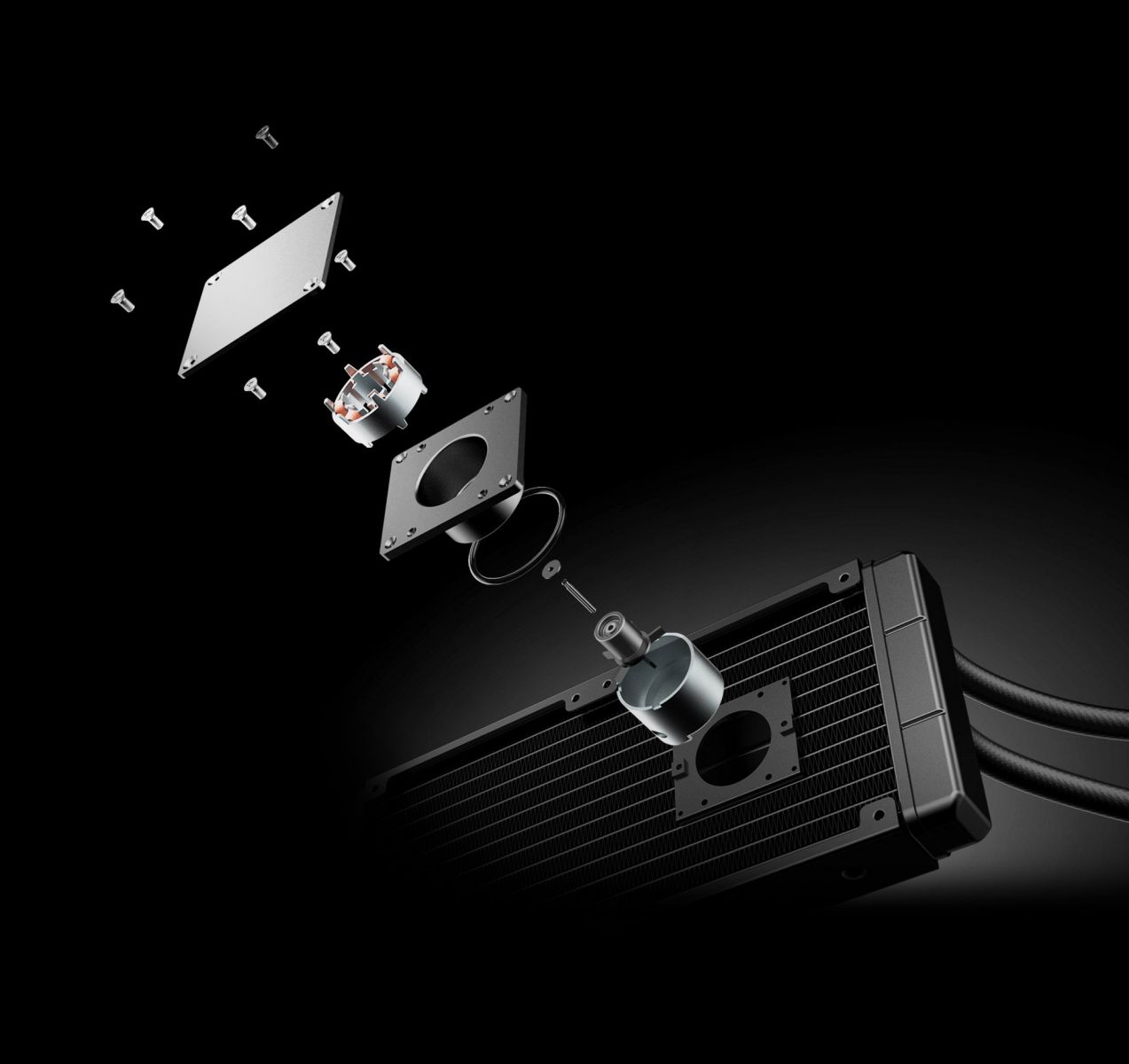

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

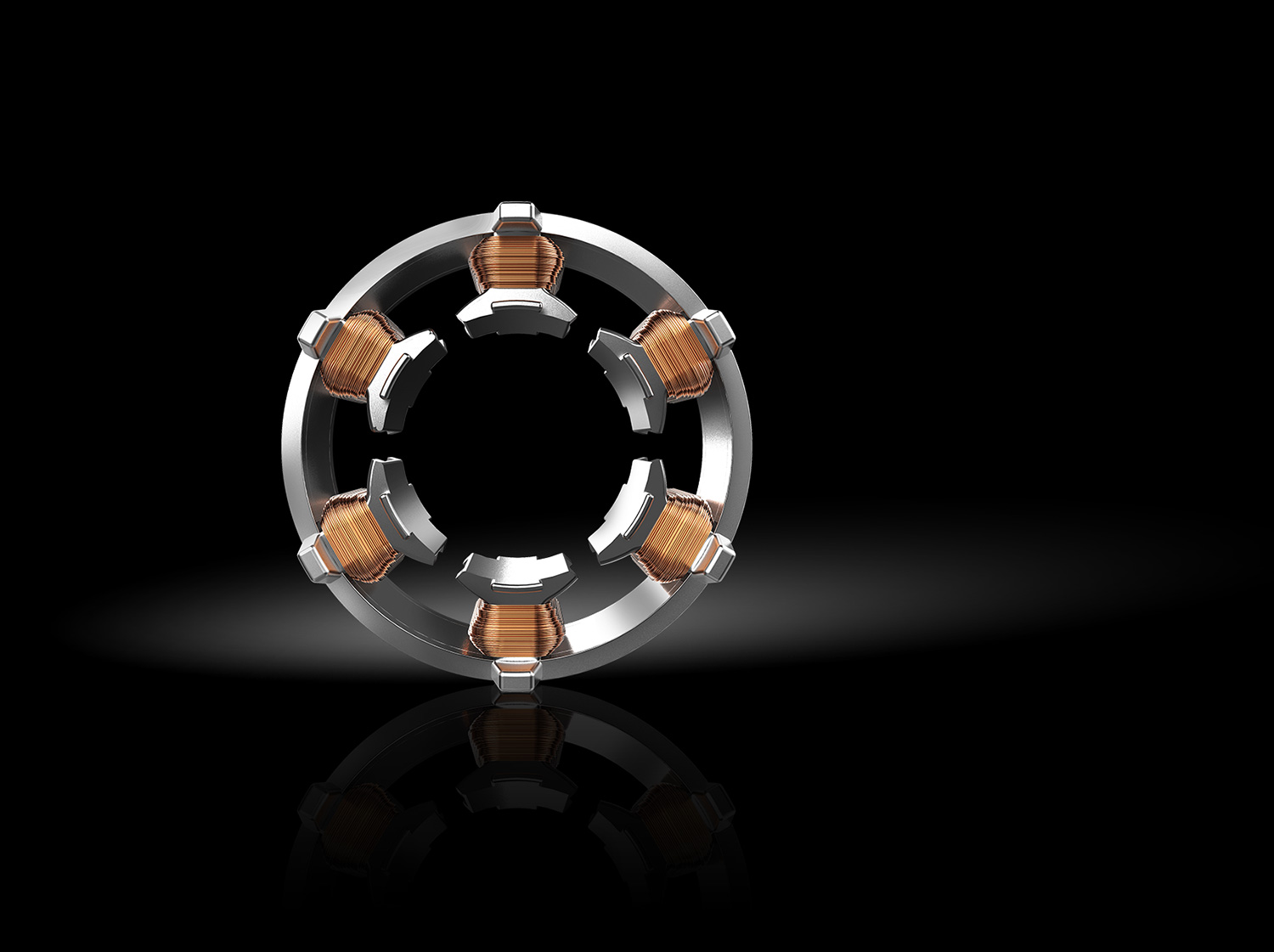

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

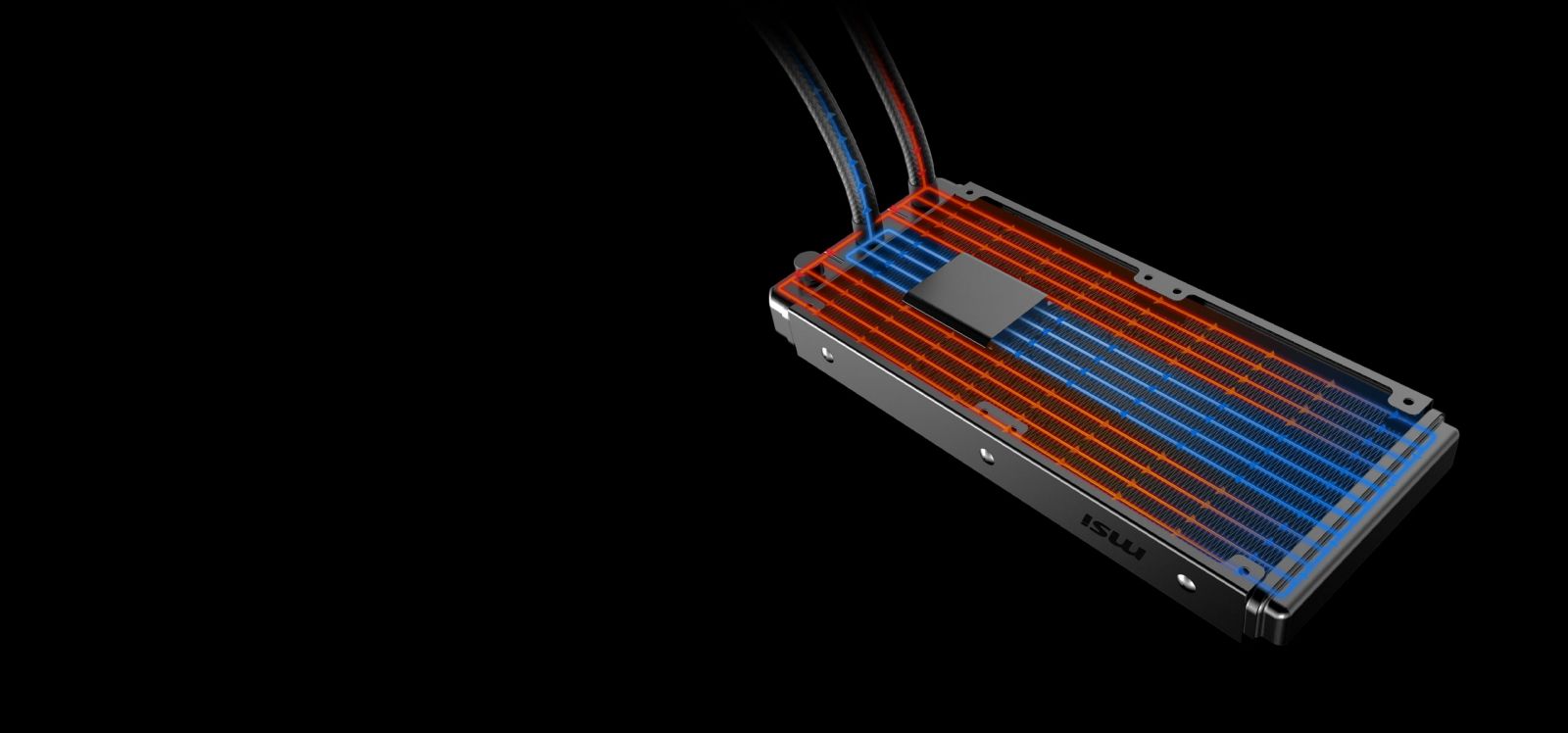

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.









Number of Fans: 2
Fan Dimensions: 140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
Fan Speed: 500 ~ 1800 RPM

Fan Power
Consumption: 2.28 W
Fan Rated Current 0.19 A
Fan Rated Voltage 12V DC
Fan Bearing Two Ball Bearing
Fan Air Pressure 2.29 mm-H2O
Fan Noise Level 14.8~33.28 dBA
Fan Air Flow 84.36 CFM
Fan Lighting: ARGB
Fan ARGB Cable
Connector Pin + Socket
PWM Mode: Yes
Fan Cable Length (5V
ARGB / PWM cable) 550 / 350mm; 21.65 / 13.78 inches
Radiator Material Aluminum
Radiator Dimensions 312 x 140 x 27mm / 12.28 x 5.51 x 1.06 inches
Radiator Water
Cooling Pipe Length 400mm / 15.75 inches
Block Dimensions 80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
Block Lighting ARGB
Block ARGB 5V Cable
Length 400mm / 15.75 inches
Block ARGB Cable
Connector Pin + Socket
Pump Load Current 0.34 A
Pump Rated Voltage 12V DC
Pump Speed 4200±10%RPM
Pump Power
Consumption 4.08W

Intel Socket LGA 1150/1151/1155/1156/1200
LGA 1366/2011/2011-3/2066
AMD Socket AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Accessories 1 to 2 Fan PWM cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
