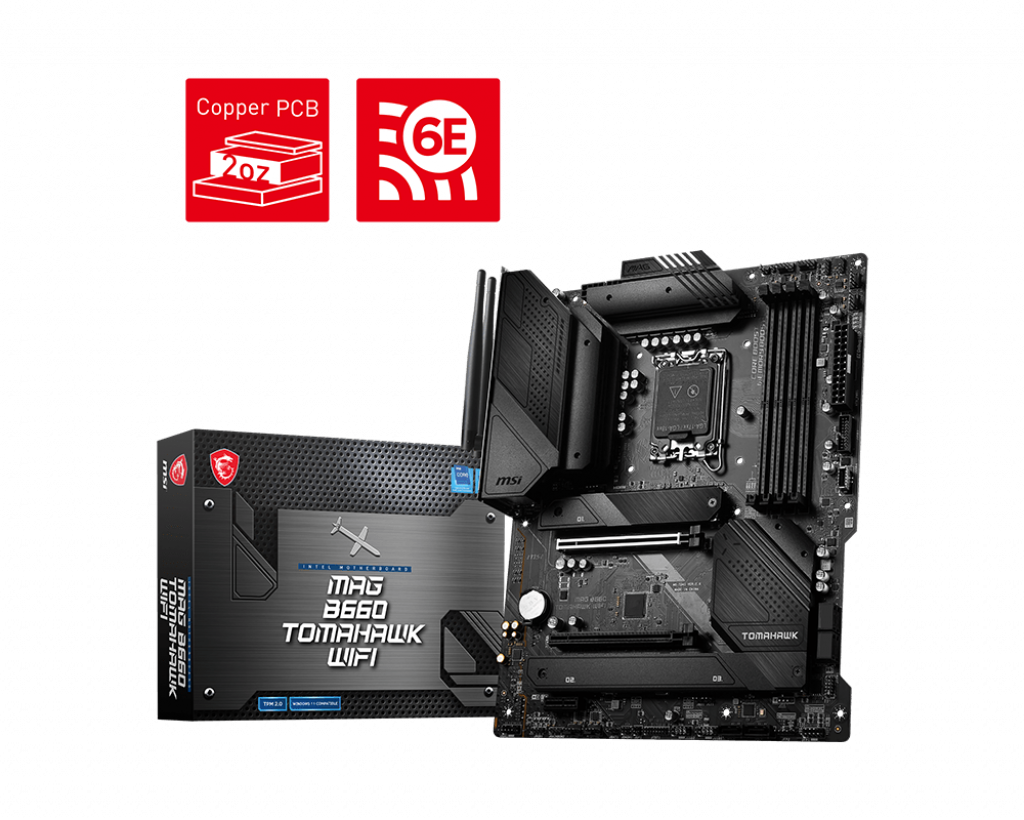

Дънна платка MSI MAG B660 TOMAHAWK WIFI, B660, LGA1700, DDR5, PCI-E 4.0(DP&HDMI)(CF), 6x SATA 6Gb/s, 3x M.2 slots, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, Bluetooth 5.2, ATX

MSI MAG B660 TOMAHAWK WIFI

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

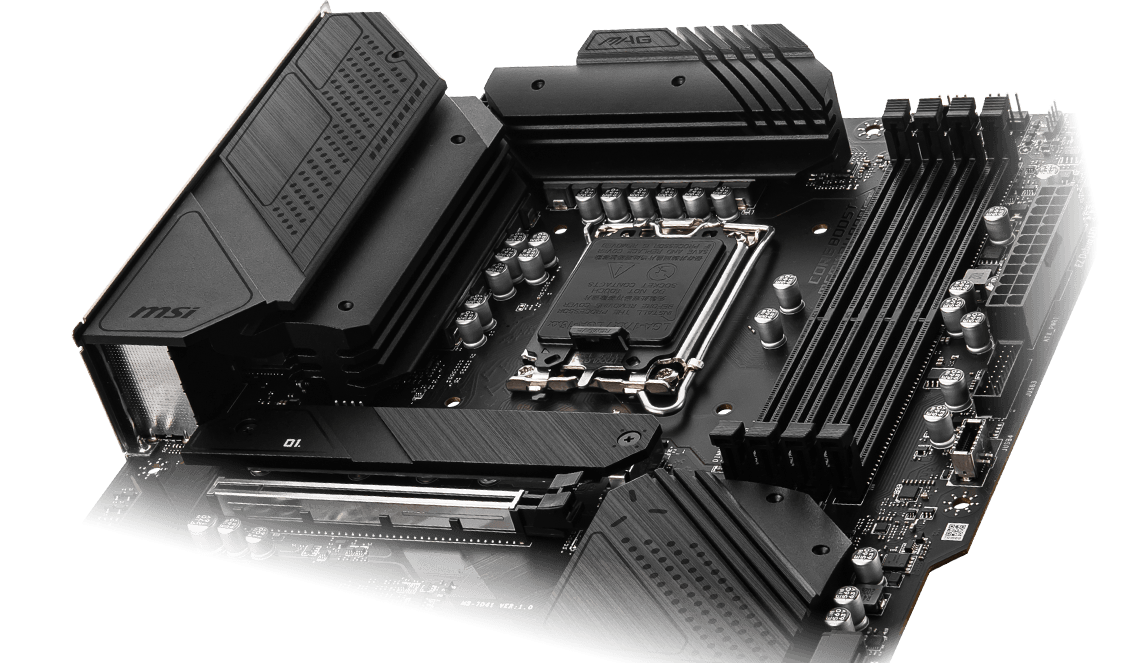

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

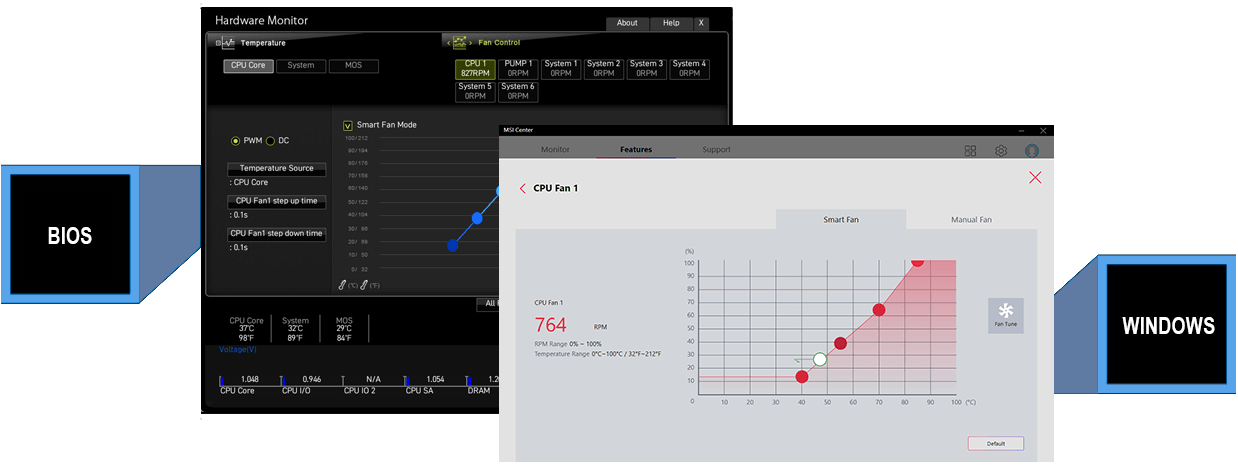

	FULLY CONTROLLABLE IN BIOS AND SOFTWARE   MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

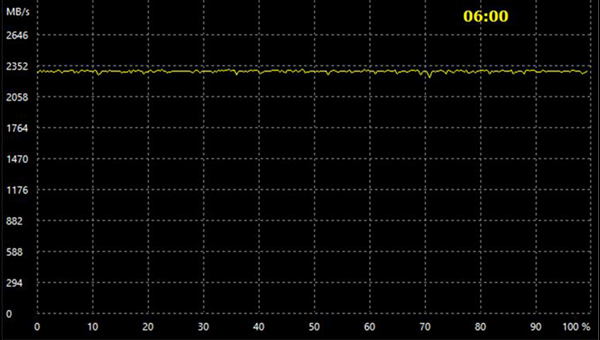

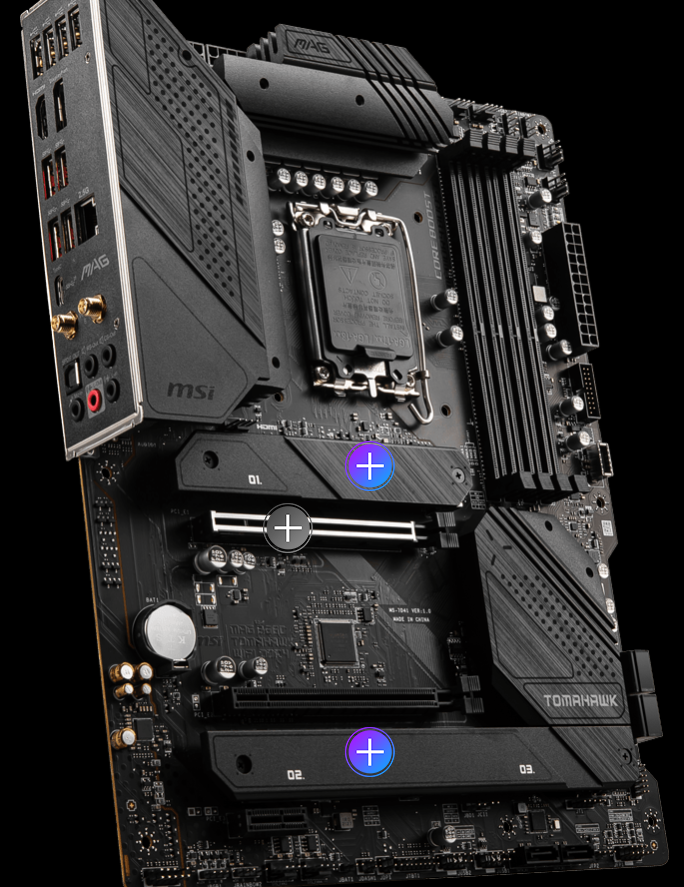

M.2 SHIELD FROZR   World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.  Prevents throttling Maximizes drive performance  Higher maximum SSD speeds



DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

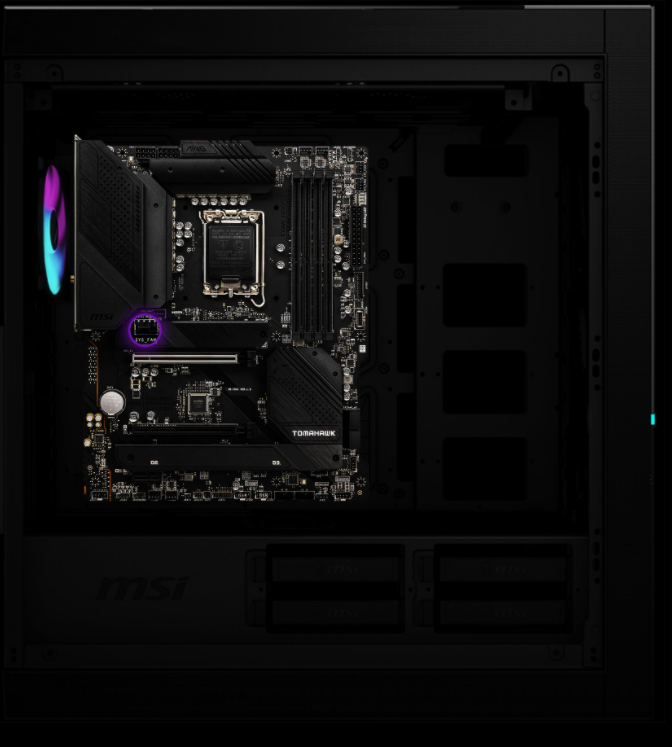

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

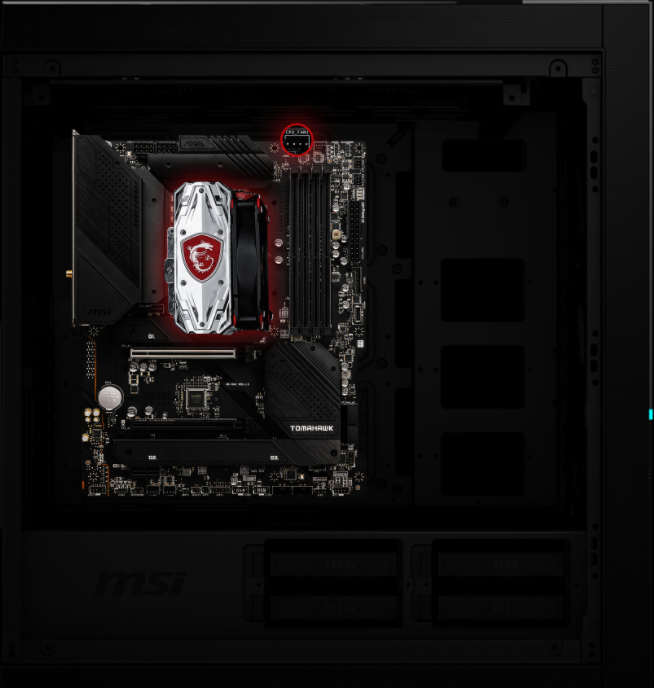

FOR CPU                       COOLER

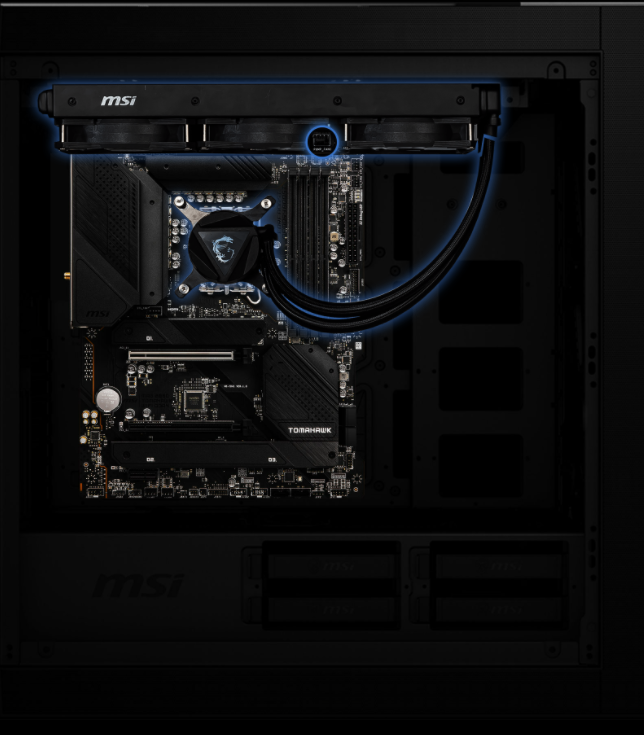

	FOR WATERBLOCK COOLER
FOR REAR SYSTEM FAN



POWER SOLUTION

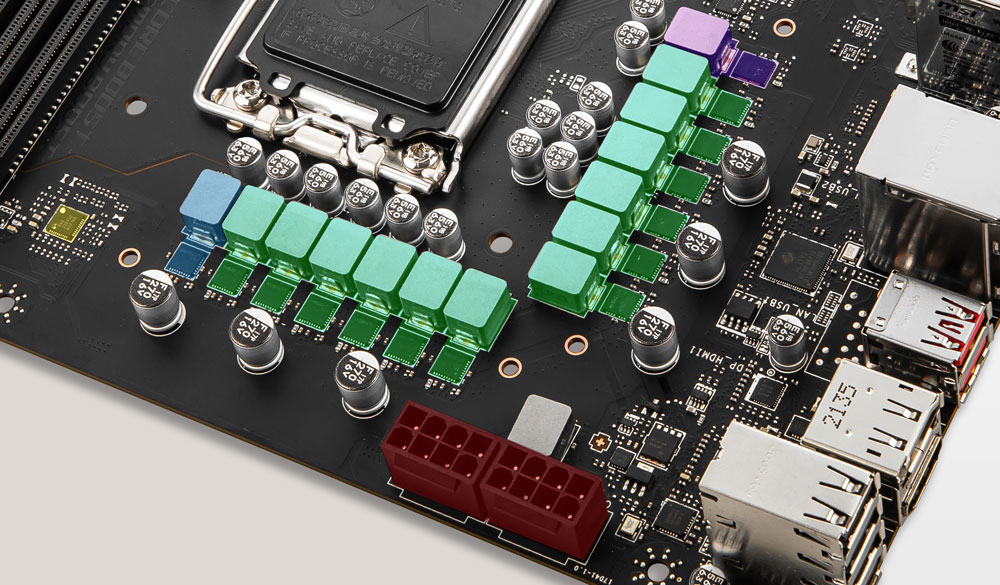

12 + 1 +1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings. 8+8 Pin CPU Power connectors 12 Duet Rail CPU Power System 1 phase GT Power 1 phase AUX Power Digital PWM IC



Protection

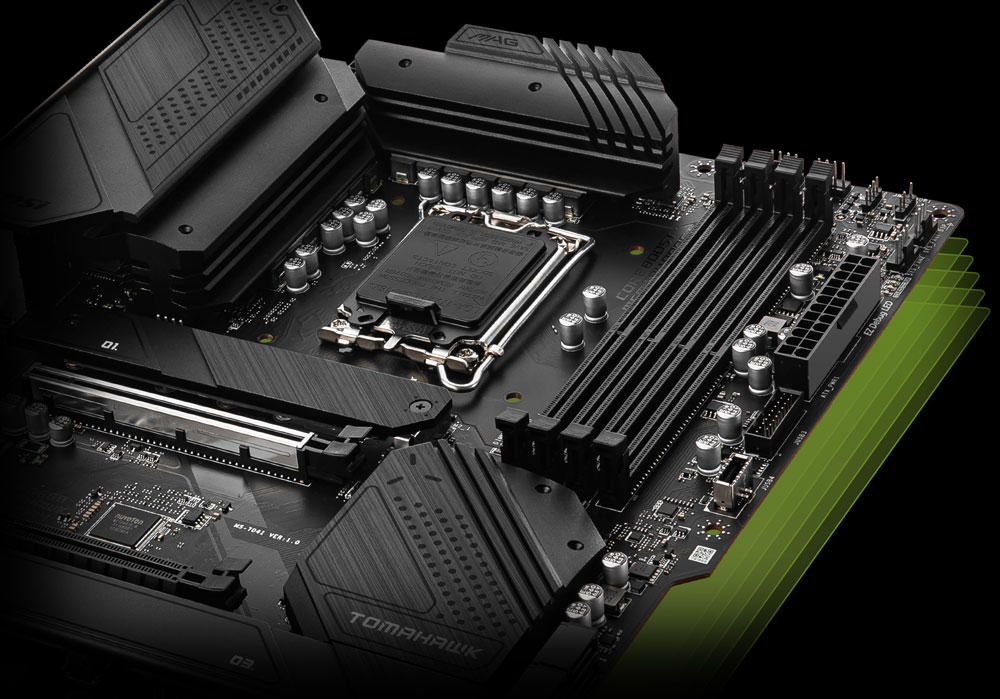

PCB DESIGN The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.



LIGHTNING SPEED



LIGHTNING GEN 4 M.2 Utilizing 12th Gen Intel processors, MSI B660 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed



Memory



EXTREME STABILITY & COMPATIBILITY TESTING   MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

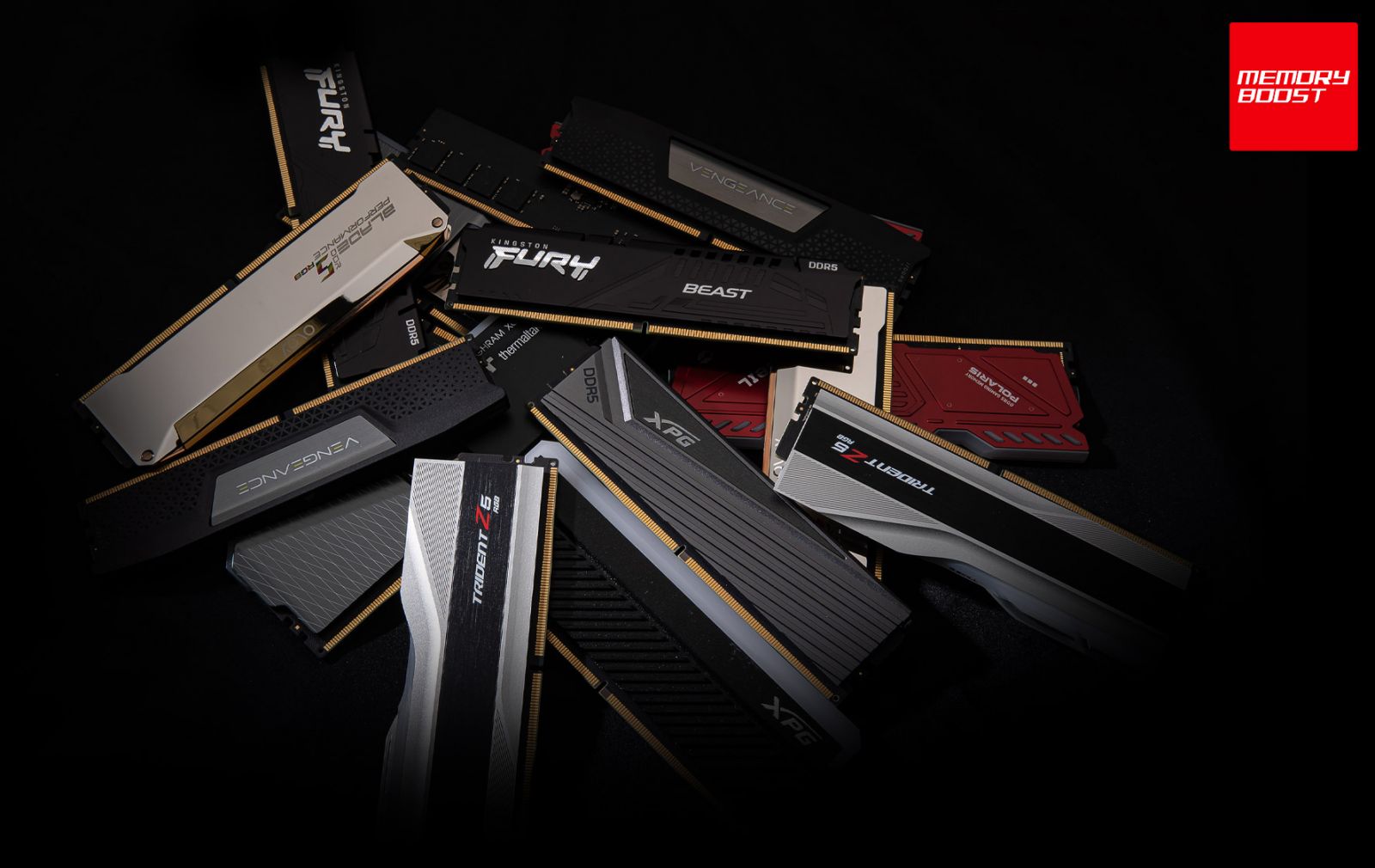

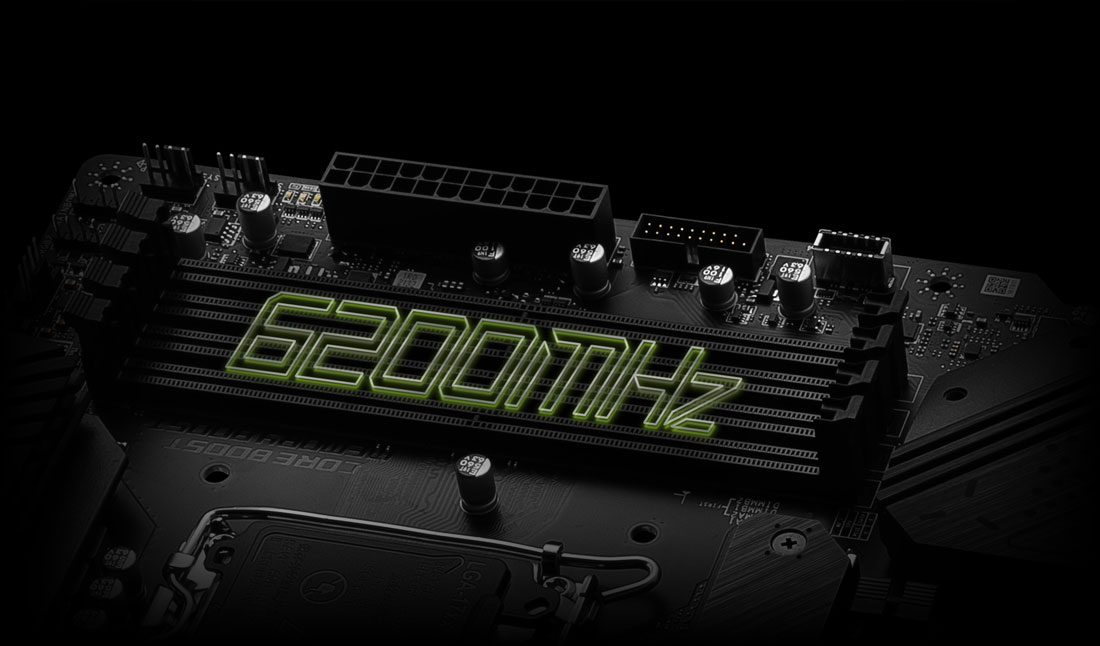

	LATEST DDR5 MEMORY   A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B660 TOMAHAWK WIFI is ready to deliver the world class memory performance.

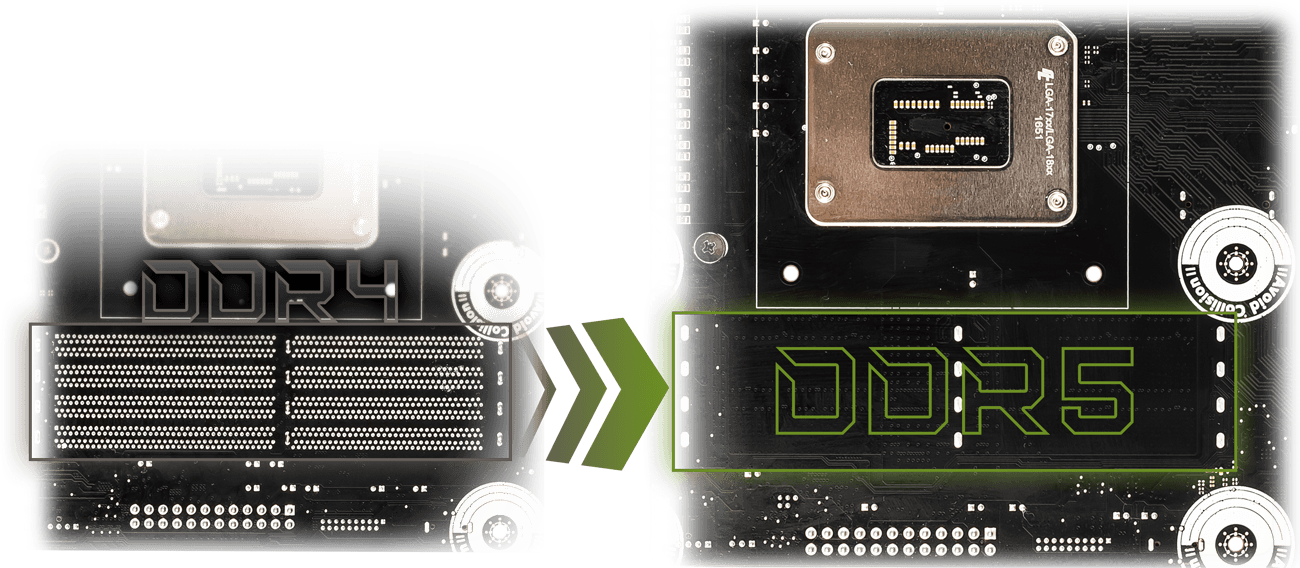

SMT DDR5 MEMORY SLOT The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

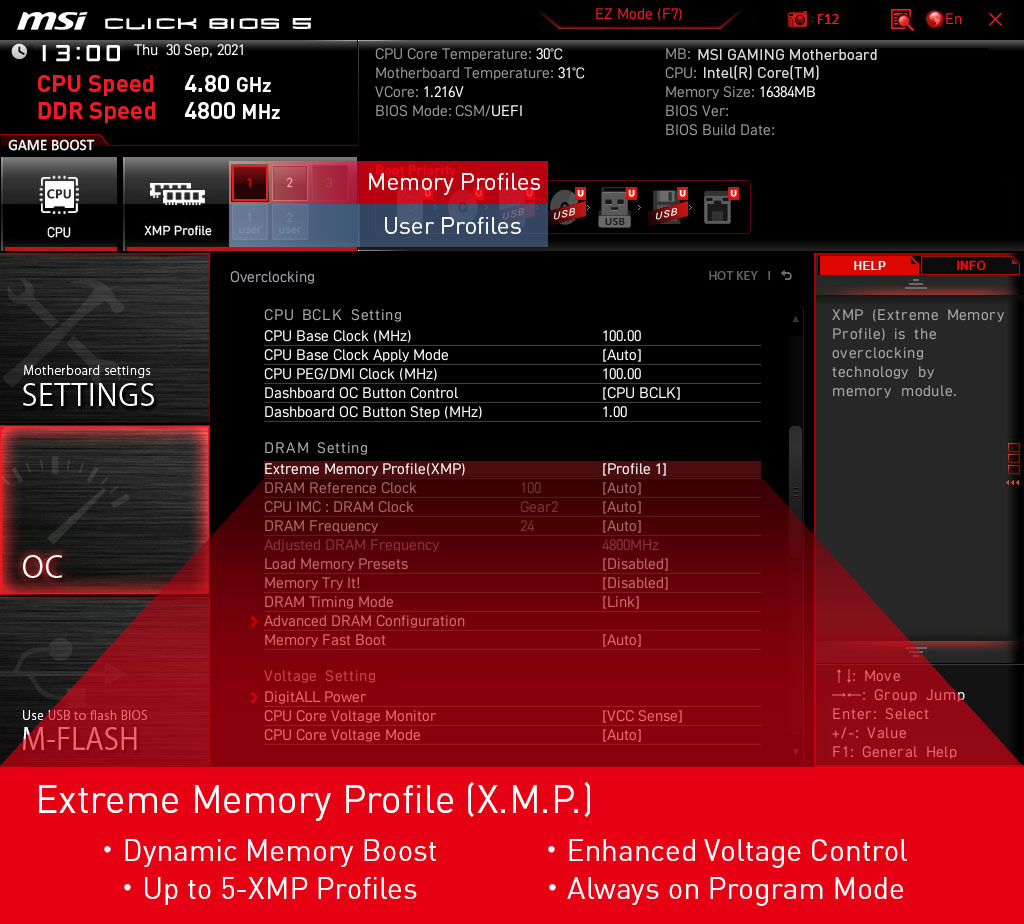

	EASY OVERCLOCKING WITH XMP PROFILE The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Specification



PROCESSOR
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
Processor socket LGA1700

Please go to msi.com to get the newest support status as new processors are released.

CHIPSET
Intel® B660 Chipset

MEMORY

4x DDR5 memory slots, support up to 128GB
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6200+ MHz
1DPC 2R Max speed up to 5200+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT
2x PCIe x16 slots

• PCI_E1 (From CPU)

  • Support up to PCIe 4.0

• PCI_E2 (From B660 chipset)

  • Support up to PCIe 3.0 x4

1x PCIe 3.0 x1 slot (From B660 chipset)

MULTI-GPU
Supports AMD® CrossFire™ Technology


ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

STORAGE
6x SATA 6Gb/s ports

• SATA5~8 (From B660 chipset)
• SATAA~B (From ASM1061)

3x M.2 slots (Key M)

• M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 & M2_3 slots (From B660 chipset)
  • M2_2 supports up to PCIe 4.0 x4
  • M2_3 supports up to PCIe 4.0 x2
  • Supports SATA up to 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® B660 Chipset
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

AUDIO
Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1x Realtek® RTL8125B-CG 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2, FIPS, FISMA
Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector

LED FEATURE
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

BACK PANEL PORTS
USB 2.0 Port
DisplayPort 1.4
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI 2.1 Port
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT

DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
