Захранване MSI MAG A850GL PCIE5, 850W, Active PFC, 80 PLUS Gold, 120mm вентилатор

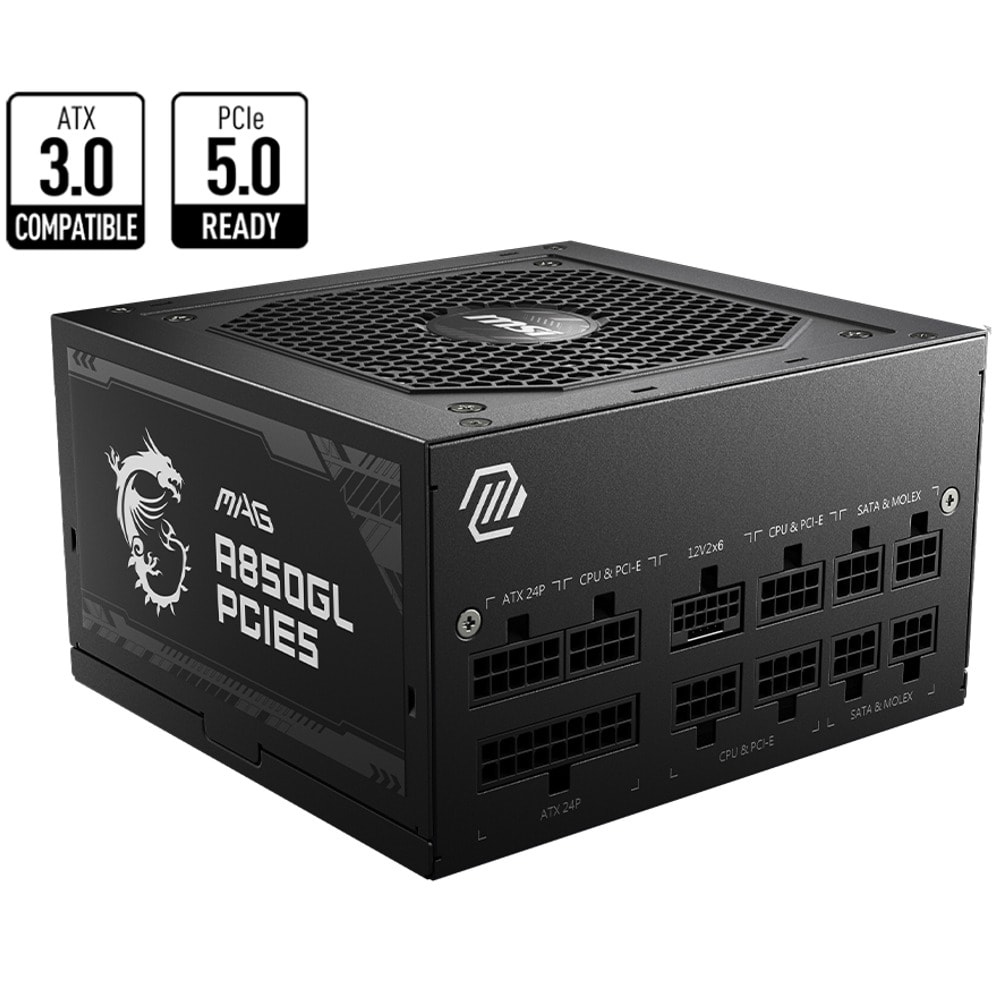

MSI MAG A850GL PCIE5

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

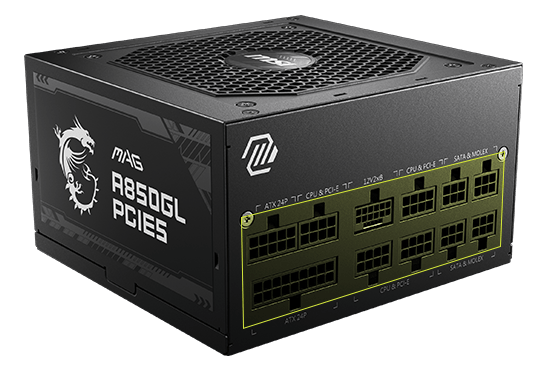

ATX 3.0 compatible

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.

Specifications:

• Efficiency Rating - 80 PLUS Gold (up to 90%)
• Modular - Yes (full modular)
• Fan Size - 120 mm
• Fan Bearing - Fluid Dynamic Bearing
• Dimensions (DxWxH) - 140 x 150 x 86 mm
• PFC Type - Active PFC
• Input Voltage Range - 100~240 VAC
• Power Watt - 850W
• Power Excursion - 1700W (*up to 200% of the PSU's rated power for 100μs)
• Input Frequency Range - 47-63Hz
• Protection - OCP / OVP / OPP / OTP / SCP / UVP
• ATX (24 pin) - 1
• EPS (4+4 pin) - 2
• PCI-E 5.0 (16 pin) - 1 (600W)
• PCI-E (6+2 pin) - 4
• SATA (15 pin) - 8
• MOLEX (4 pin) - 4
• FDD (4 pin) - 1
