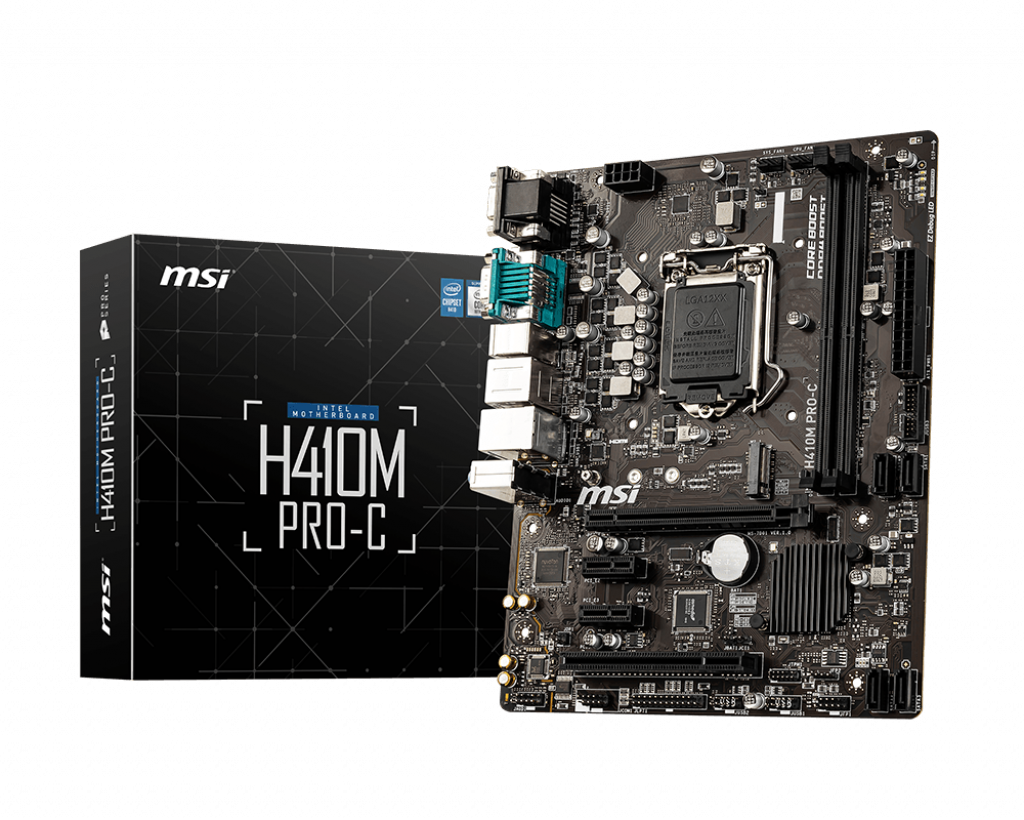

Дънна платка MSI H410M PRO-C, H410, LGA1200, DDR4, PCI-E 3.0 (DP/HDMI/DVI/VGA), 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen 1, Micro ATX

H410M PRO-C​

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933(Max) MHz
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost: Reward your ears with studio grade sound quality







Specifications:

PROCESSOR

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

1. Please go to www.intel.com for more compatibility information.
2. Onboard graphics output are disabled when using F SKU processors.

See supported processors

CHIPSET

Intel® H410 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB1
• Intel® Core™ i7/ i9
  • Supports up to DDR4 2933 MHz
• Intel® Core™ i5 and below
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (From CPU)
• 2x PCIe 3.0 x1 slots (From PCH)
• 1x PCI slot(From PCH)1

1. When installing devices in PCI_E2 and PCI1 slots at the same time, PCI_E2 slot will be unavailable.

ONBOARD GRAPHICS

• 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
  Support for HDMI™ 1.4 version, HDCP 2.3
• 1x DisplayPort port, supports a maximum resolution of 4096x2304 @60Hz
  Support for DisplayPort 1.4 version, HDCP 2.3 and HDR
• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz

STORAGE

Intel® H410 Chipset

• 4x SATA 6Gb/s ports1
• 1x M.2 slot (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • M2_1 slot supports 2242/ 2260 /2280 storage devices1
  1. SATA1 will be unavailable when installing M.2 SATA SSD in the M.2_1 slot.

USB

Intel® H410 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AUDIO

Realtek® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel® I219V Gigabit LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x front panel audio connector
• 2x system panel connectors
• 1x parallel port connector
• 1x serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

BACK PANEL PORTS

1. VGA
2. COM Port
3. Mouse
4. USB 2.0
5. LAN
6. DVI-D
7. DisplayPort
8. Keyboard
9. HDMI
10. USB 3.2 Gen 1 5Gbps Type-A
11. Audio Connectors

DIMENSIONS

• mATX Form Factor
• 9.6 in. x 7.6 in. (24.4 cm x 19.3 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
