MSI GeForce RTX 4070 Gaming Trio 12G
.png)
|
The Ultimate Platform for Gamers and Creators Powered by GeForce RTX 40 Series and DLSS 3 |
.png) |
|
.png) |
|

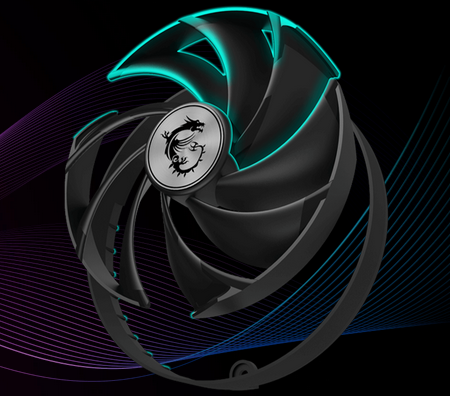

TORX FAN 5.0 TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan. |
.png) |
|

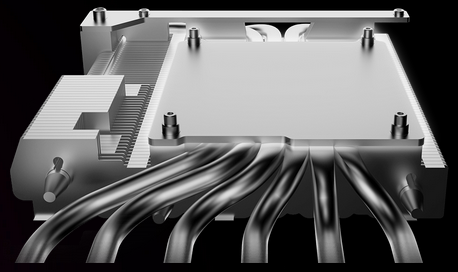

COPPER BASEPLATE FACING THE HEAT HEAD-ON Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency. |
.png) |
|

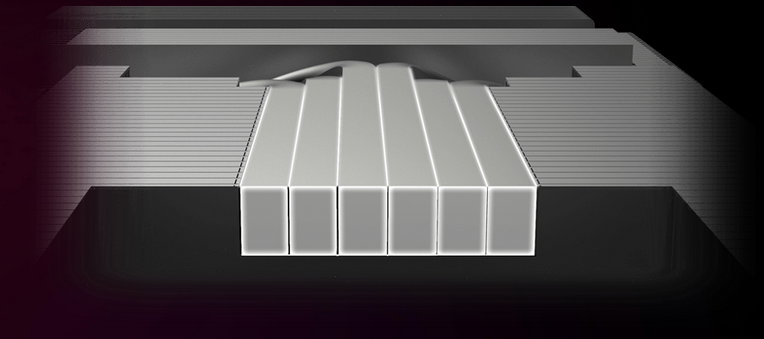

Keeping the core cool Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink. |
.png) |

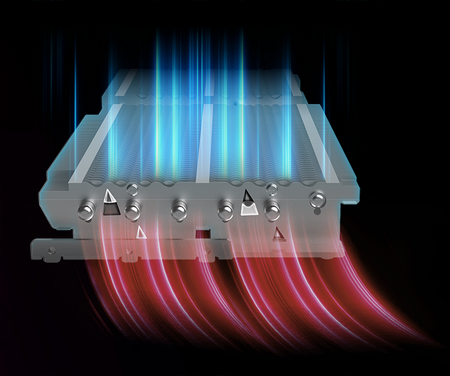

| Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics. | .png) |
.png)
.png)
.png)
.jpg)
| Model Name | GeForce RTX 4070 GAMING TRIO 12G |
| Graphics Processing Unit | NVIDIA GeForce RTX 4070 |
| Interface | PCI Express Gen 4 |
| Core Clocks | Extreme Performance: 2490 MHz (MSI Center) Boost: 2475 MHz |
| CUDA CORES | 5888 Units |
| Memory Speed | 21 Gbps |
| Memory | 12GB GDDR6X |
| Memory Bus | 192-bit |
| Output | DisplayPort x 3(v1.4a) HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
| HDCP Support | Y |
| Power consumption | 200W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 650W |
| Card Dimension (mm) | 338 x 141 x 52 mm |
| Weight (Card / Package) | 1214 g / 2143 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти MSI
Виж всички Видео карти в категорията
| GPU производител: | nVidia |
|---|---|
| Капацитет: | 12 GB |
| Тип памет на видеокарта: | GDDR6X |
| Битове (BUS памет): | 192 Bit |
| Интерфейс: | DP HDMI |
