Рутер Mikrotik RB960PGS, 5x LAN 100/1000, 1x SFP, 128MB RAM

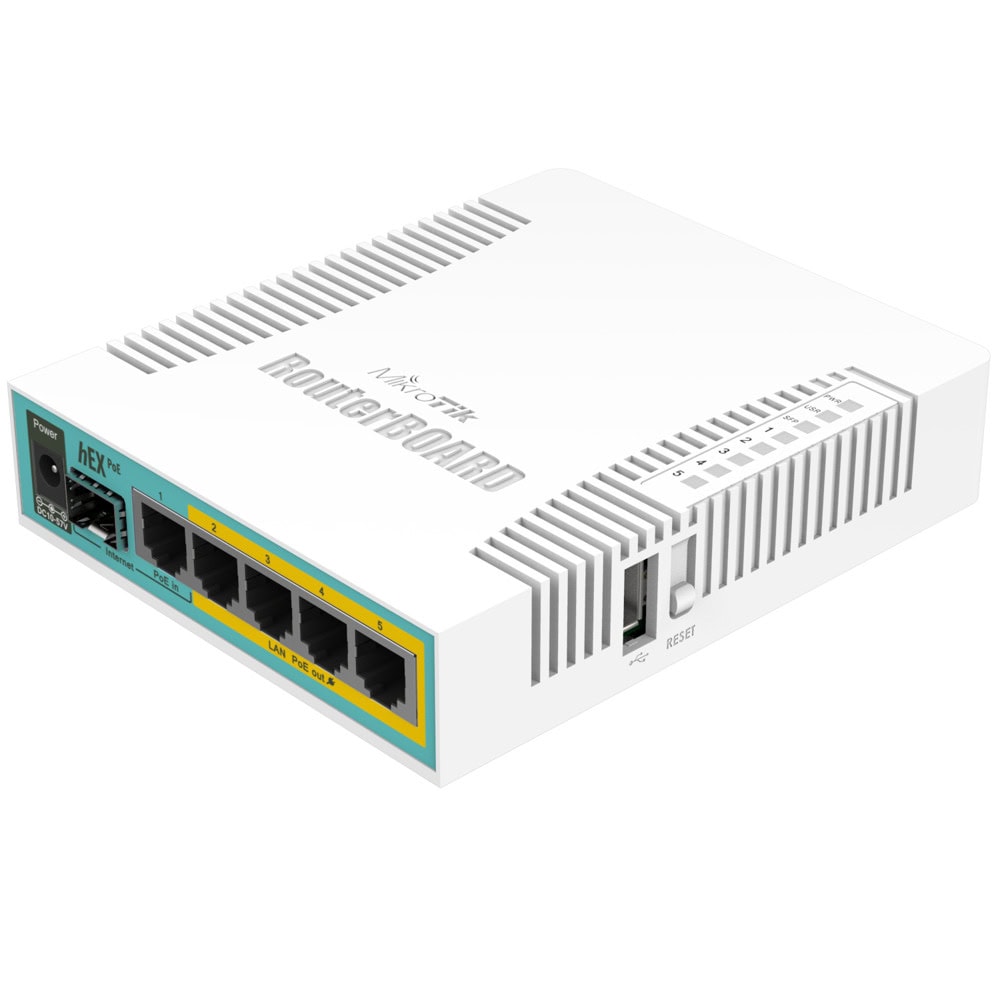

Mikrotik RB960PGS - hEX PoE

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

Content of delivery:

RB960PGS (hEX PoE)
24V power supply

Technical details:

Product code RB960PGS
CPU nominal frequency 800 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 5
Number of USB ports 1
Power Jack 1
Supported input voltage 12 V - 57 V
PoE in Passive
PoE out 802.3at
Voltage Monitor Yes
PCB temperature monitor Yes
Tested ambient temperature -40 + 70 C
License level 4
CPU QCA9557
Max Power consumption 9W
SFP ports 1
USB slot type USB type A
USB Power Reset Yes
Storage type FLASH
Storage size 16 MB

Ethernet details:

RB960PGS QCA9557 (800Mhz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 161.9 1,966.1 401.5 1,644.5 542.3 277.7
Bridging 25 bridge filter rules 143.2 1,739.0 145.5 596.0 146.2 74.9
Routing none (fast path) 161.9 1,966.1 396.3 1,623.2 521.7 267.1
Routing 25 simple queues 161.9 1,966.1 217.2 889.7 216.0 110.6
Routing 25 ip filter rules 74.6 905.9 78.0 319.5 76.5 39.2
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
