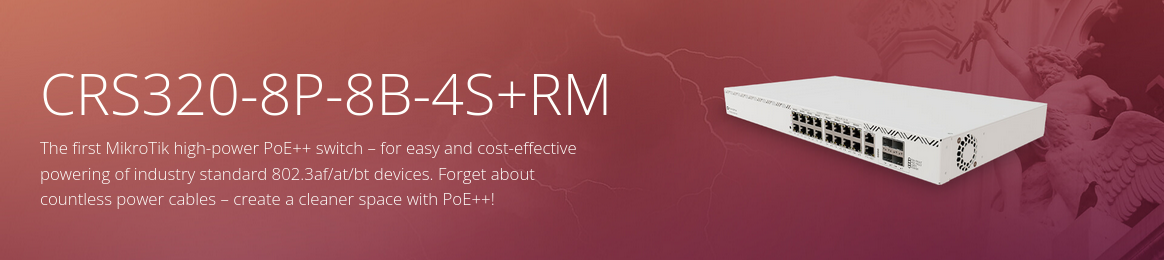

CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.
There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios.
A hot-swappable PSU is included.
Specifications
Details | |
---|---|
Product code | CRS320-8P-8B-4S+RM |
Architecture | ARM 32bit |
CPU | 98DX226S |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
Switch chip model | 98DX226S |
RouterOS license | 5 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 32 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -10°C to 50°C |
Powering
Details | |
---|---|
Number of AC inputs | 1 |
AC input range | 100-240 |
Number of PSU slots | 2 |
Frequency (Hz) | 47-63 |
Max power consumption | 600W (1150W with additional PSU) |
Max power consumption without attachments | 36 W |
Cooling type | 3 fans |
PoE-out
Details | |
---|---|
PoE-out ports | Ether9-Ether16 (bt) |
PoE out | 802.3af/at/bt |
Max out per port output (input 30-57 V) | 560 (af/at) / 1667 (bt) mA |
Max total out (A) | 17.82 A |
Total output current | 17.82 |
Total output power | 963 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 17 |
Number of 1G Ethernet ports with PoE-out | 16 |
Fiber
Details | |
---|---|
SFP+ ports | 4 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
