Мрежеста система Mercusys Halo H47BE(2-pack), 9300Mbps, 2.4GHz (574Mbps)/ 5GHz (2880bps)/ 6GHz (5760Mbps), Wireless BE, 3x LAN/WAN 100/1000/2500Mbps

Halo H47BE

New Comers

BE9300 Whole Home Mesh Wi-Fi 7 System

• Blazing-Fast 9214 Mbps Tri-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Newest WiFi 7: Armed with the 320 MHz channels, 4K-QAM, MLO,  the 6 GHz band, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
• Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
• 3× 2.5G Ports: 3× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.
• Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 6,000 ft2/550 m2 (2-pack).
• Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

*Please note that the Halo H series and S series cannot work together.



Build an Amazing Mesh Network and Bring it to a New World

BE9300 Whole Home Mesh WiFi 7 System

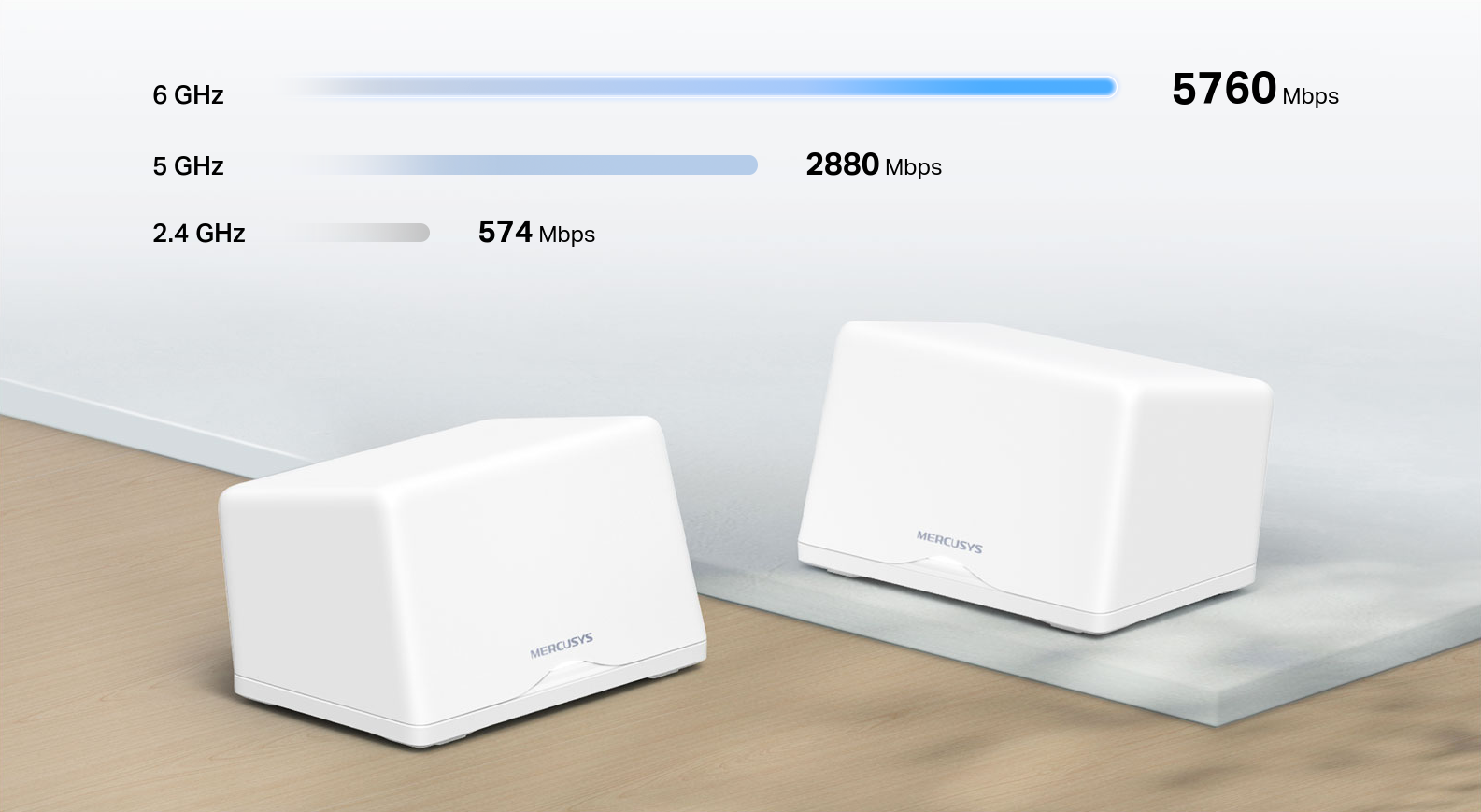

Amazing 9.3 Gbps Tri-Band WiFi 7 Leads to An Amazing Experience

WiFi 7 updates the QAM from 1024 to 4096, uses the wider 320 MHz channels and the new 6 GHz band to make Halo H47BE reach a 9214 Mbps speed. You can enjoy the smooth network with this fast speed and specially clean band.

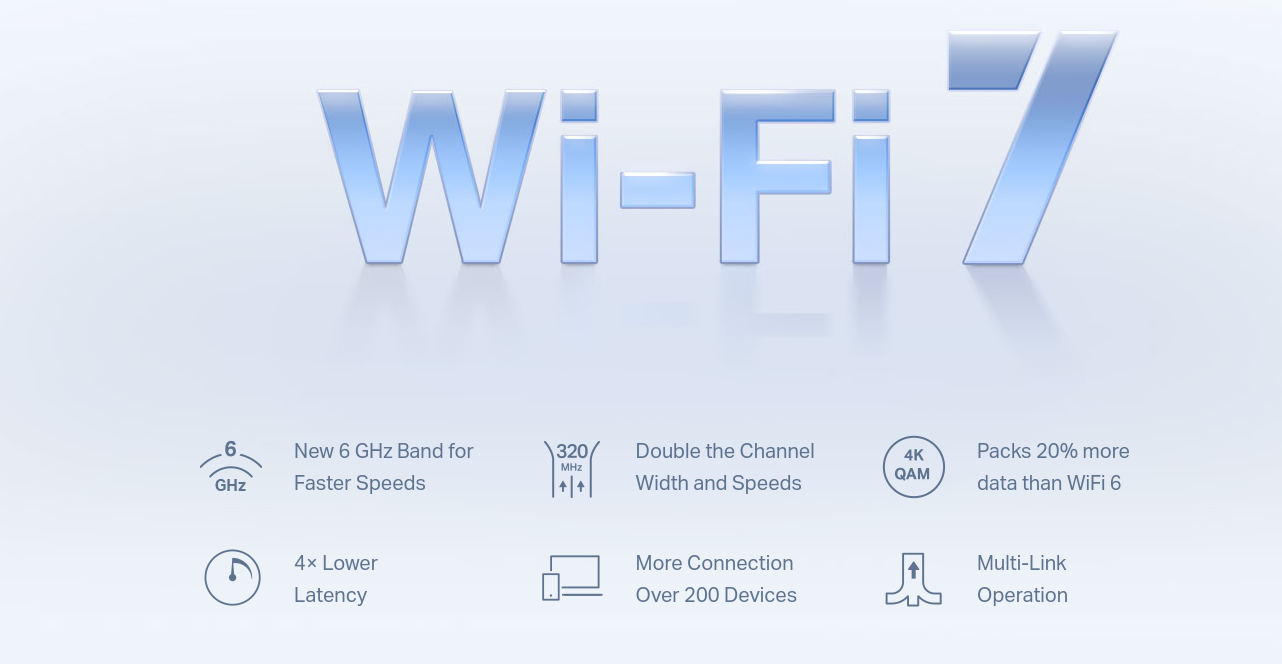

WiFi 7 Brings Your Network to a Next Level

WiFi 7, the latest WiFi standard, has arrived with jaw-dropping performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the pros and experience the sheer performance of the next generation of WiFi.

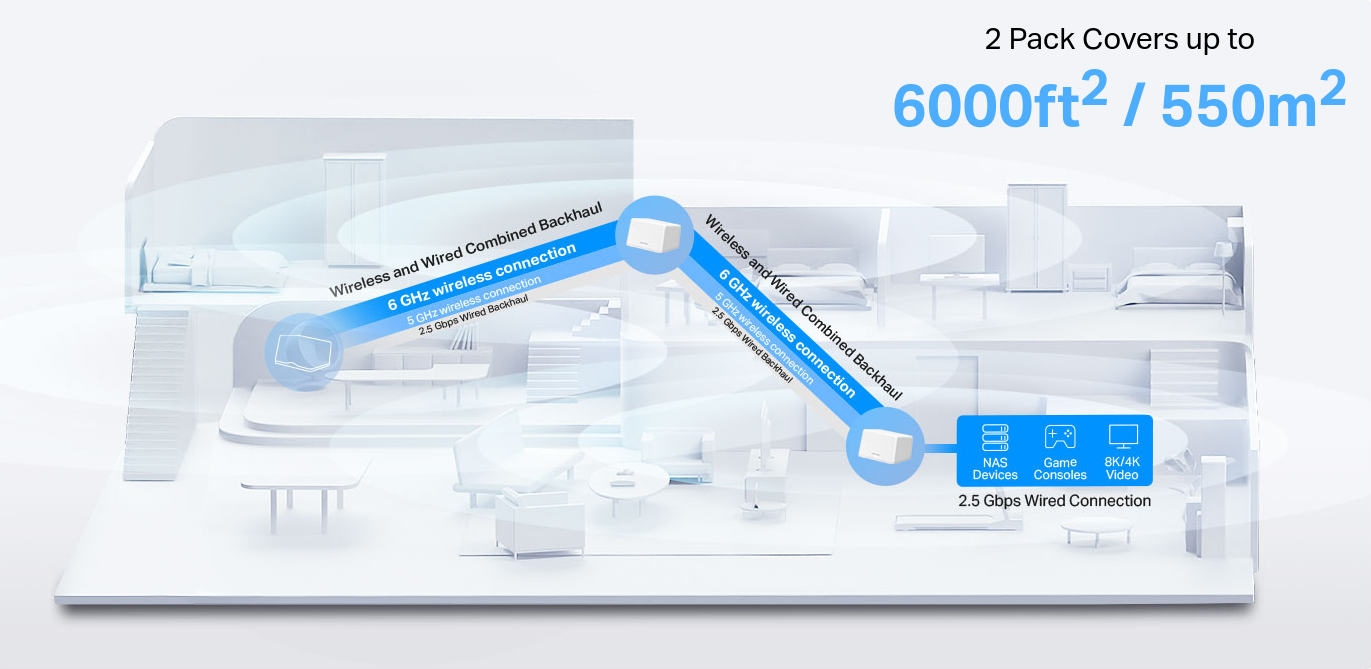

Build A Multi-Gigabit Mesh Network to Fully Cover Your Home

Halo mesh units work as a unified network with a single network name and password to eliminate weak signal areas. It can choose the best signal and enjoy the best connections.† Halo H47BE matches 2.5G ISP network access with 3× 2.5 Gbps WAN/LAN autosensing ports. The other port can be utilized as a LAN port connection for devices or as a wired backhaul between Halo H units. In this approach, it offers the best 2.5 Gbps connectivity for a real 2.5G era, whether it is wired or wireless.

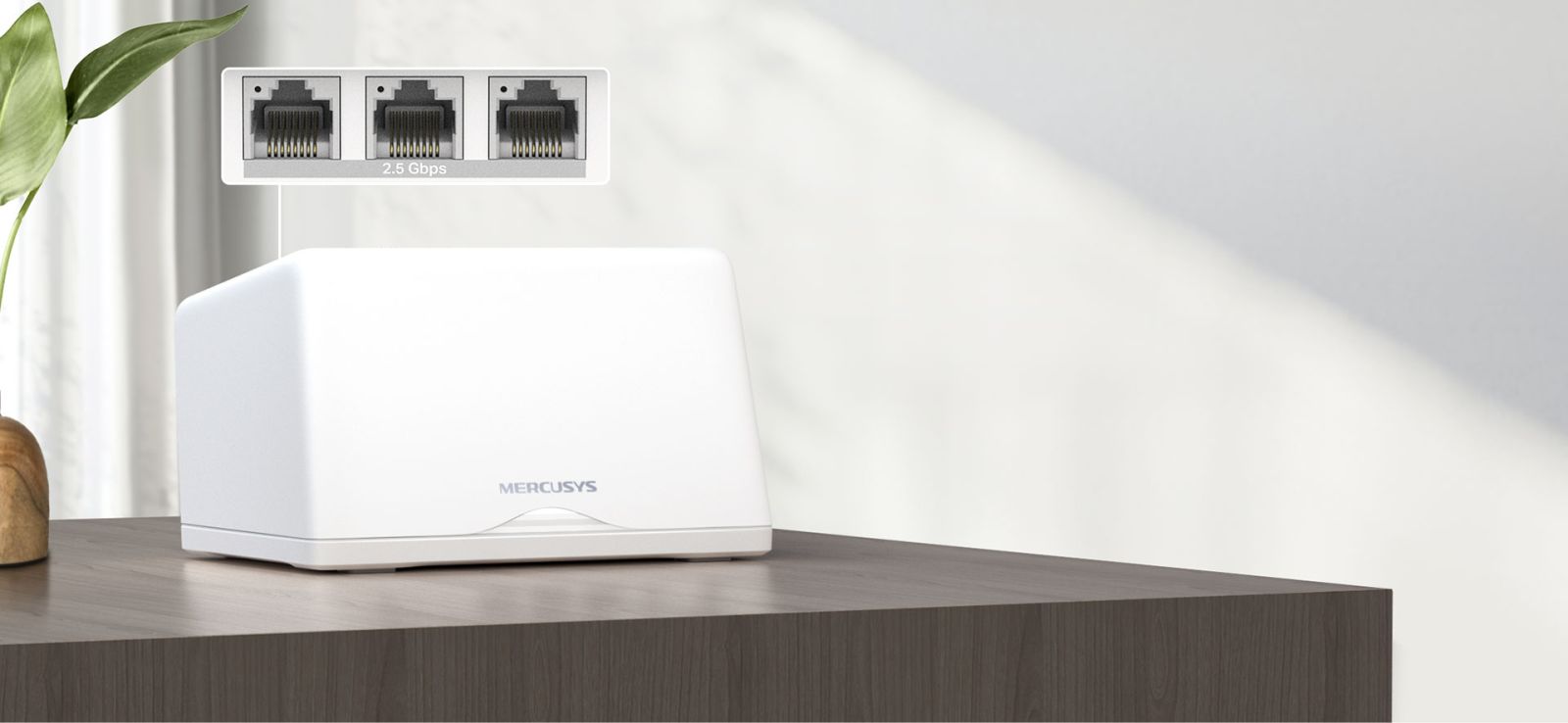

Full 2.5 Gbps Ports for a Higher Network Performance

Equipped with 3× 2.5 Gbps WAN/LAN auto-sensing ports. Halo H47BE allows you to take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.





Easily Extend Your Coverage

The Halo Whole Home WiFi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh WiFi coverage anytime by simply adding more Halos.





Wireless

Wireless Standards

6 GHz: IEEE 802.11be

5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed

2.4 GHz: IEEE 802.11b/g/n/ax mixed

WiFi Speeds

5760 Mbps at 6 GHz

2880 Mbps at 5 GHz

574 Mbps at 2.4 GHz

Reception Sensitivity

2.4G: -96dBm

5G: -95dBm

6G: -96dBm

Transmission Power

5G band1 band2<23dBm

5G band3<30dBm

6G<23dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh protocol

802.11k/v/r



Hardware

Dimensions

6.69 × 4.82 × 4.07 in (170 × 122.4 × 103.5 mm))

Interfaces

3× 2.5 Gbps Ports (WAN/LAN auto-sensing)

Button

Reset button



Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

6 GHz Guest Network
