Конферентен дисплей Logitech Tap Scheduler Graphite, 10.1" (25.65 cm) IPS дисплей, 1280 x 800, покритие против пръстови отпечатъци, сензор за околна светлина и акселерометър, Bluetooth, Wi-Fi, RJ45

Logitech Tap Scheduler

Right place, right time

Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space.

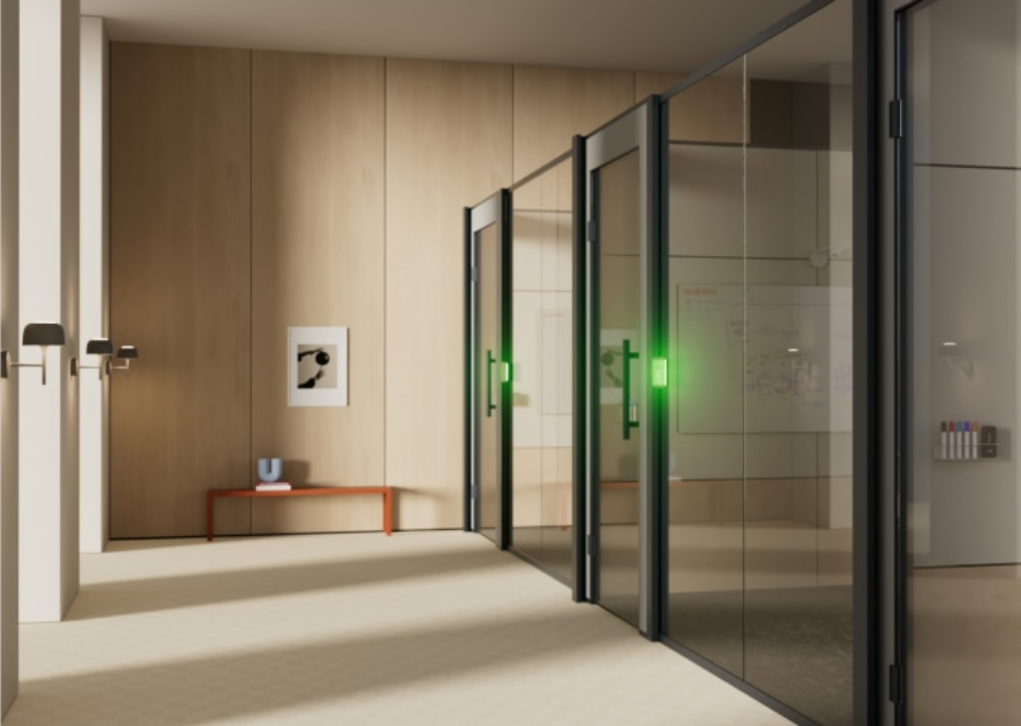

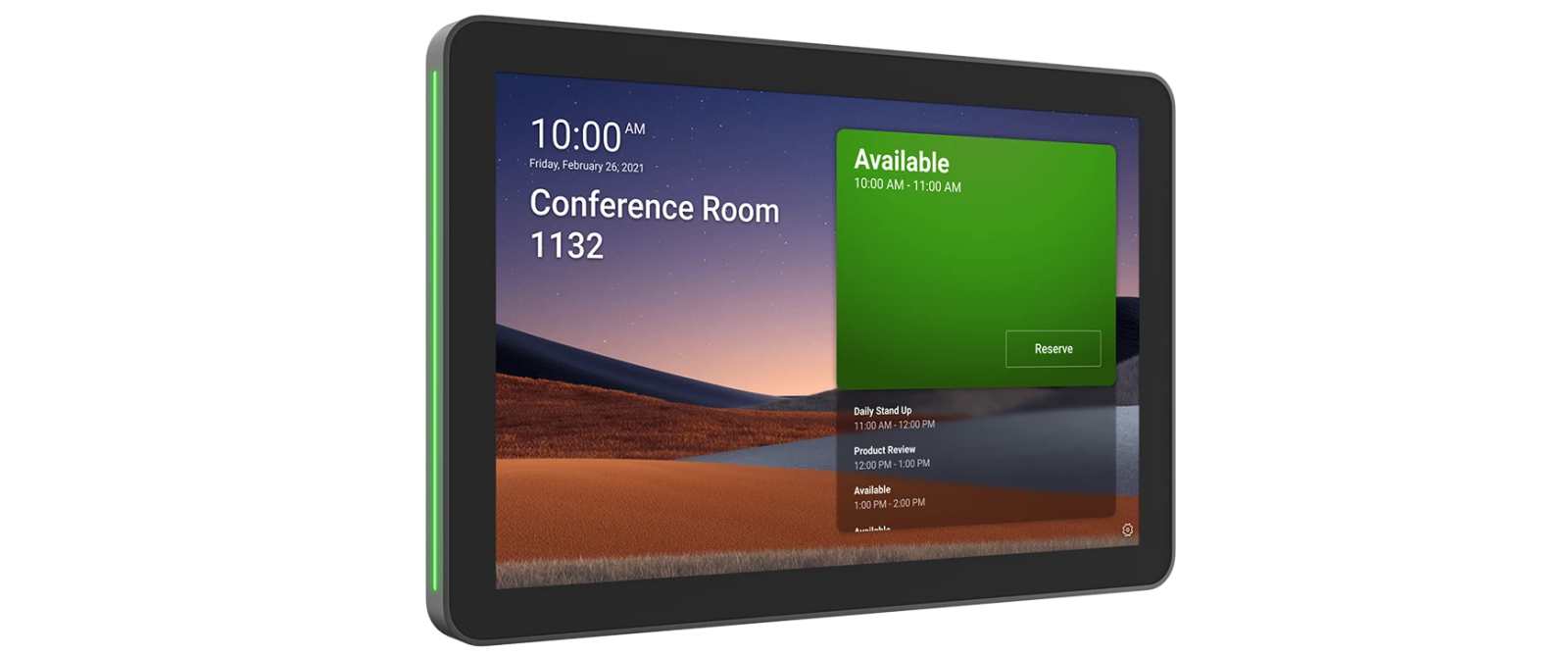

Green means go

Quickly find an open room through colored LED lights that show availability at a distance.

Clean and easy install

Included mounts and clean cabling help ensure a tidy and professional setup.

Glass Mounting Secure Tap Scheduler while maintaining a clean look on both sides of the glass.

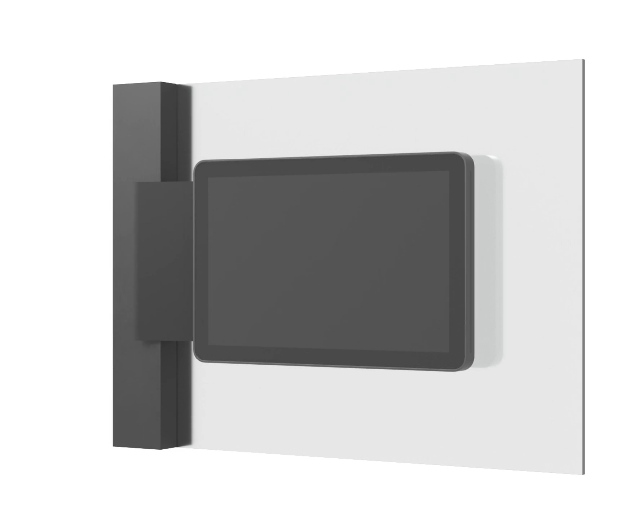

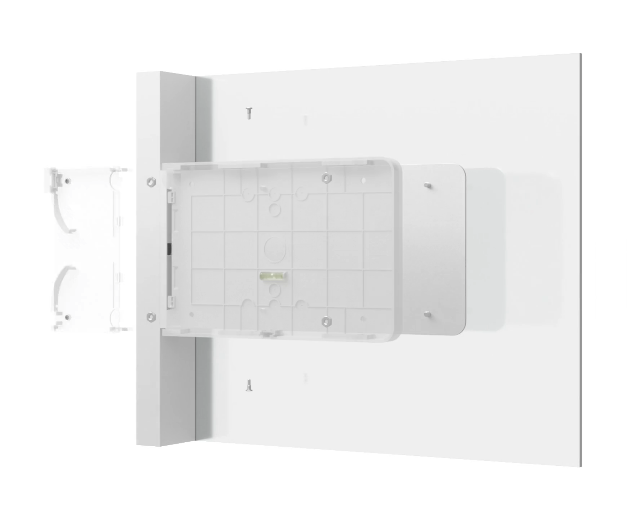

Mullion Mounting Secure Tap Scheduler to a door or window frame for greater visibility using the included mount.

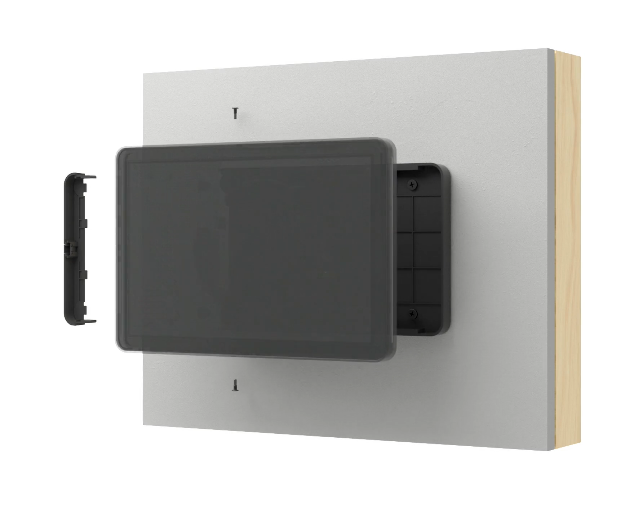

Wall Mounting Place and secure Tap Scheduler anywhere on a wall.

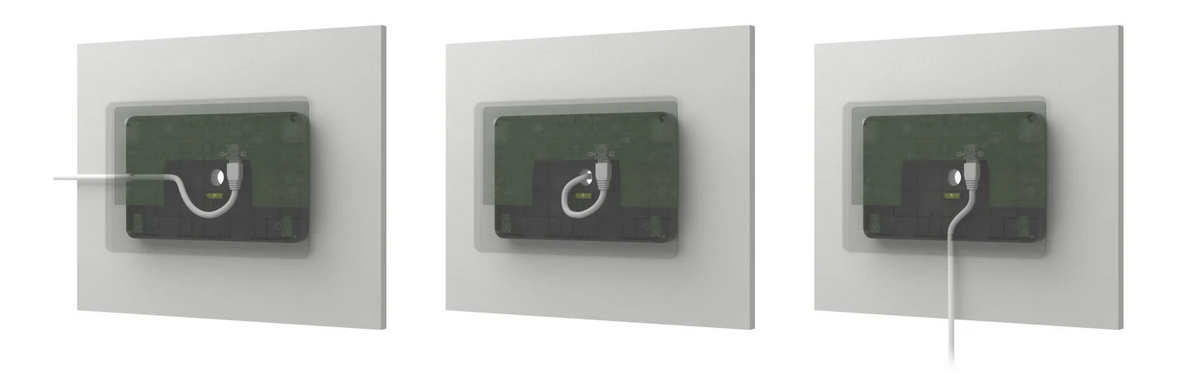

Cable Management

Hide cables in the wall, mullion, or in other directions, with multiple routing options.

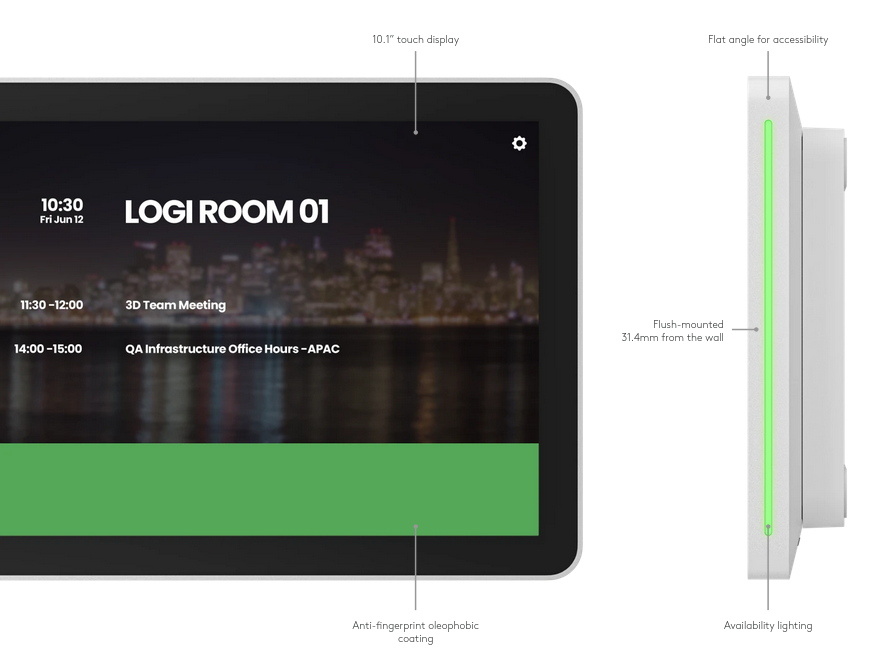

Purpose-built as a scheduling panel

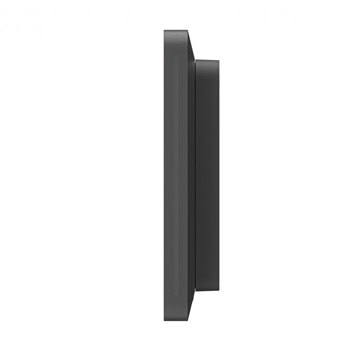

Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last.

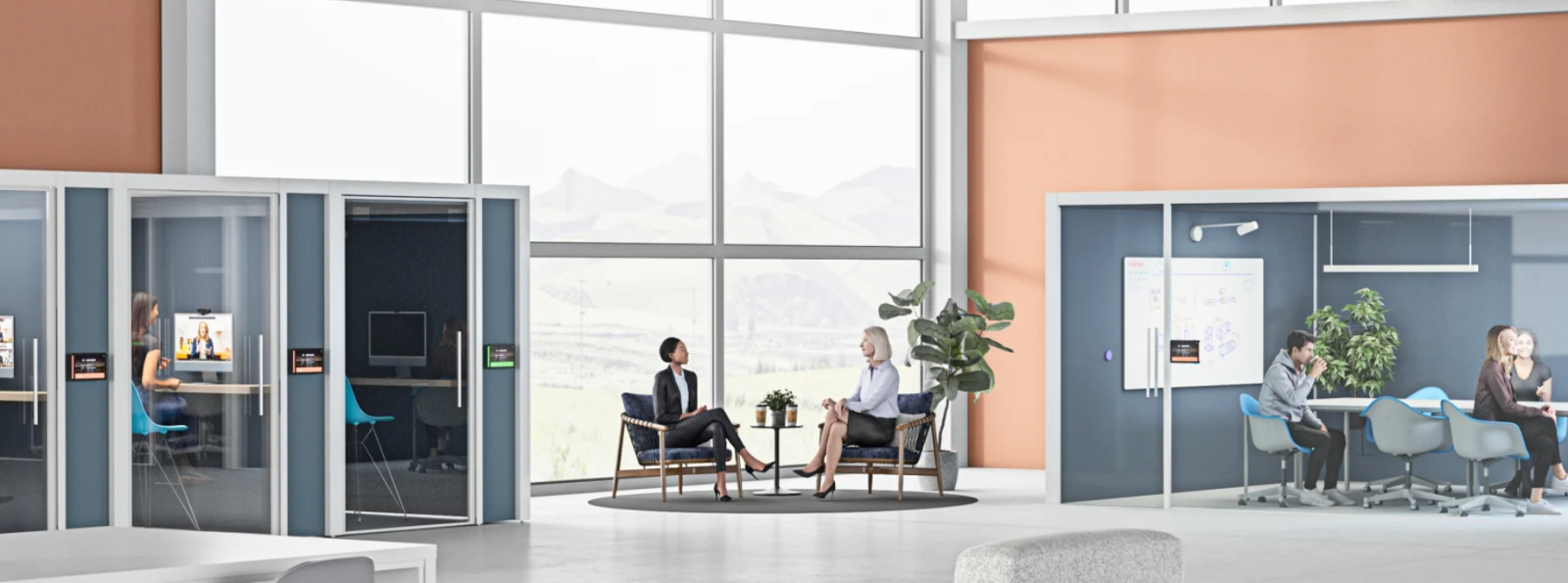

Make the most of your space

With Logitech’s suite of workspace solutions, including Tap Scheduler, Logi Dock Flex, and our room- and desk-booking services, we help you keep your spaces, devices, and people seamlessly connected.

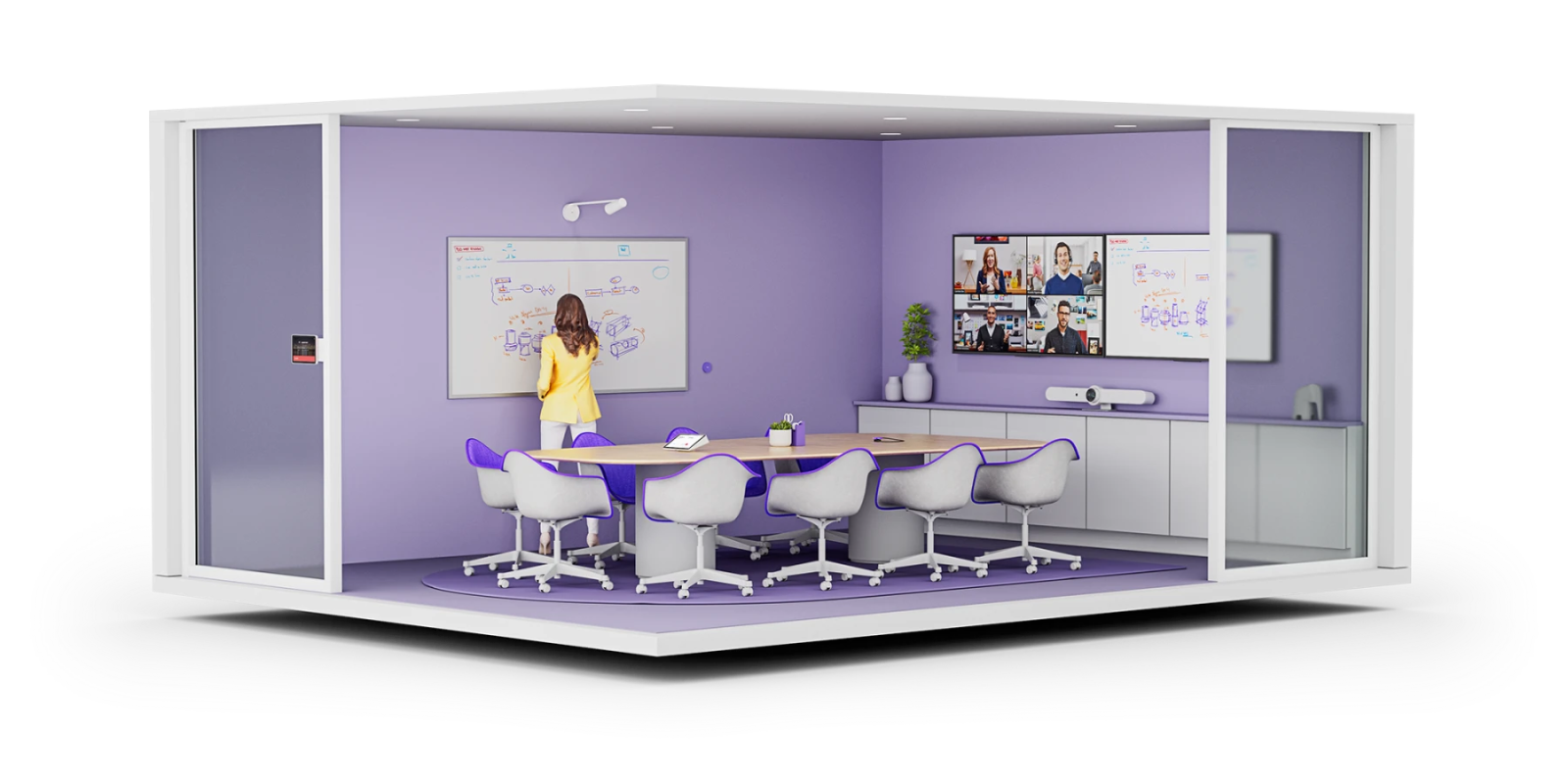

Pick your platform

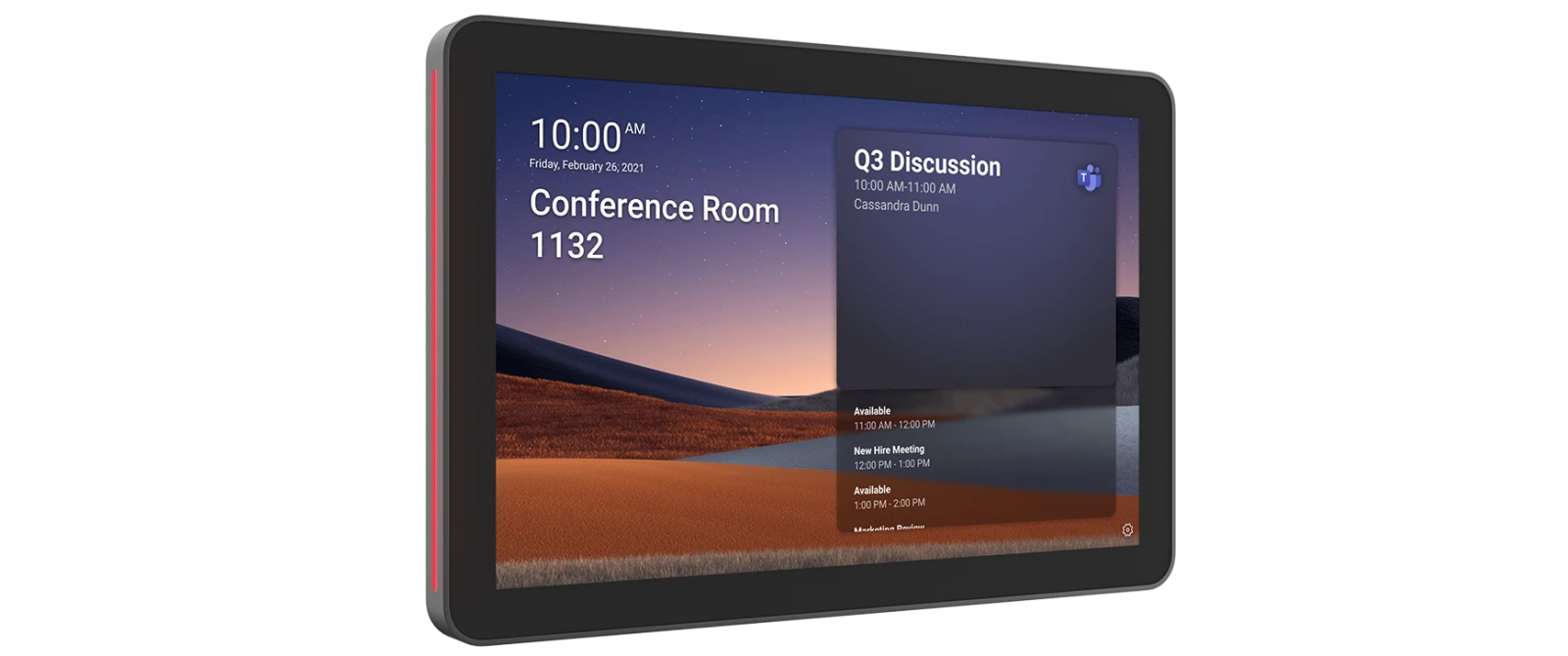

Enable a seamless meeting experience through Tap Scheduler and Logitech’s suite of room solutions, which integrate with Microsoft Teams, Zoom Rooms, and other service providers to raise the bar on collaboration.*

Ensure Business Continuity with Select Service Plan

Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

Specifications

Dimensions

Device-only
6.5 x 9.69 x 1.12 in
165 x 246.2 x 28.5 mm
0.7 kg (1.5 lbs)
Surface mounted
6.5 x 9.69 x 1.24 in
165 x 246.2 x 31.4 mm
Mullion mounted
6.5 x 11.52 x 1.75 in
165 x 292.6 x 44.5 mm

Display

Touchscreen
Size: 10.1” diagonal
Display Type: IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Resolution: 1280 x 800
Viewing Angle: 85° (up/down/left/right)
Capacitive, 10 points multi-touch
Brightness: 400 nits
Contrast: 1000:1
Anti Fingerprint: Oleophobic coating
Position Angle: 0 degrees (flat on mounting
surface)

General Specifications
Sensors: Accelerometer, Ambient light
Mounting Pattern: 100mm x 100mm VESA FDMI
Cable exits: horizontal / vertical / center

Power & Cables

Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device
*Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

Ports & Interfaces

Ethernet: 10/100mbps
WiFi: 802.11a/b/g/n/ac
Bluetooth 5.0 (inactive, reserved for future use)

Device management

Monitor and manage with Logitech Sync remote management, Microsoft Teams Admin Center, and Zoom Device Management platforms.

Compatibility & Certifications

Logitech Tap Scheduler is certified for or compatible with leading room scheduling solutions, such as:
- Microsoft Teams Panel
- Zoom Rooms Scheduling Display
- Robin room display
- Appspace meeting room display
- Ricoh Spaces
- Envoy Rooms
- Korbyt
- Comeen
- Logitech Room Booking

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70°C
Humidity: 10 to 95%

Security

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Key Protection: Arm TrustZone, RPMP
