Контролер Logitech Swytch, 4K/UHD (3840x2160@60fps), 2x HDMI, 2x USB-C, 1x USB-A

SWYTCH Connect a laptop to a room system’s AV equipment for use with any video meeting or webinar.

Join any meeting in every room

With an innovative design that maximizes compatibility and incorporates DisplayLink Plug-and-Display technology, Logitech Swytch offers a one-cable laptop link to a room’s conference camera and display, making it easy for teams to meet, present and stream over any service.

The flexible room solution

With Swytch, you can deploy video conferencing room solutions from providers like Microsoft or Zoom, while also allowing people to use meeting rooms with other video services.

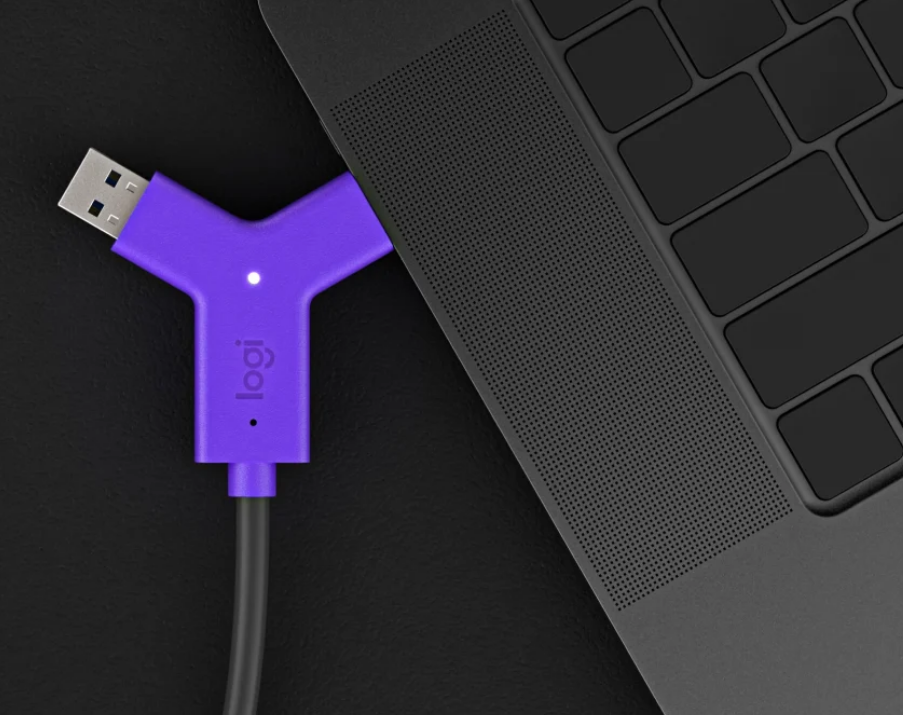

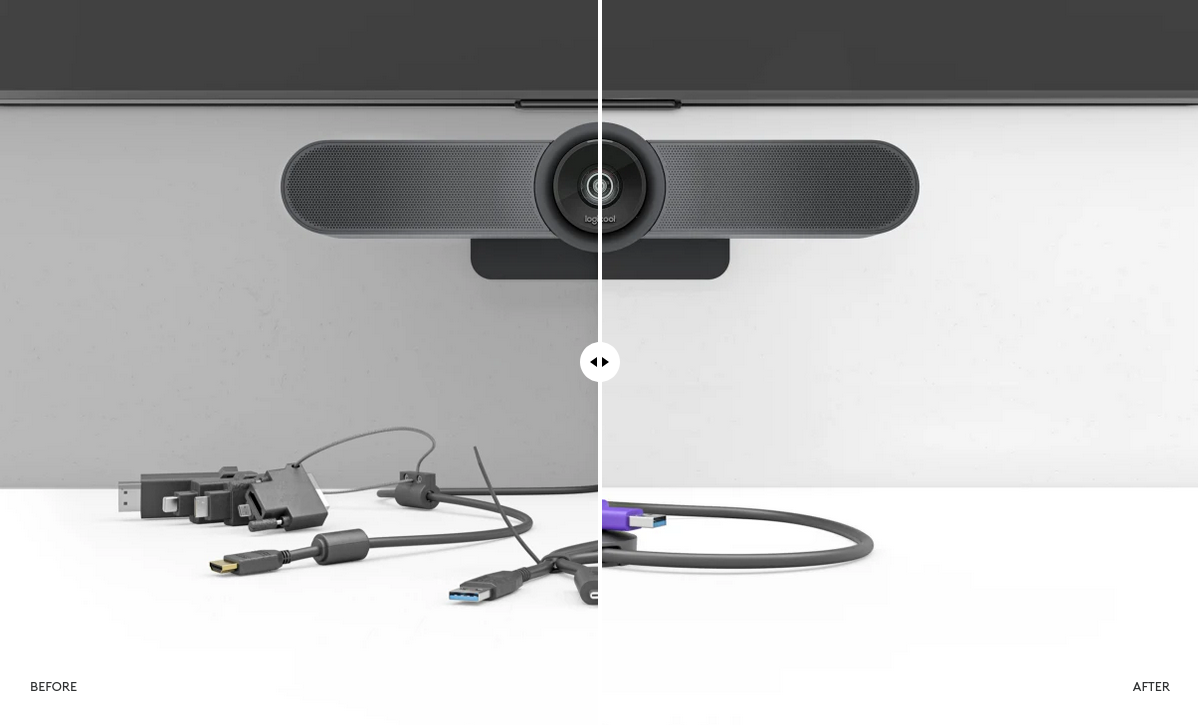

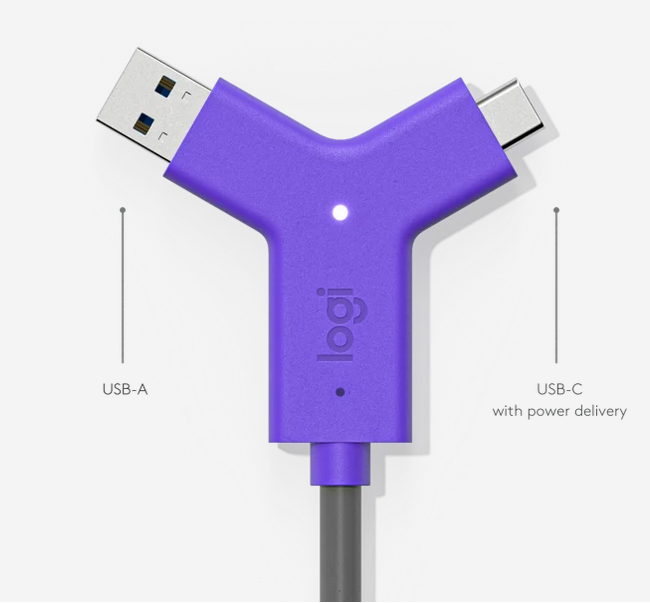

Say yes to easy To join or host a video meeting, simply plug the iconic Swytch Connector into any laptop with a USB 3.0 or higher Type A or Type C port. No dongles, no splitters, no HDMI required.

Simple setup

It’s easy to deploy Swytch in rooms that use USB-connected conference cameras, video bars, or modular cameras. Simply connect the Swytch Hub to the meeting room equipment, place the Swytch Connector within easy reach and use your video conferencing service of choice.

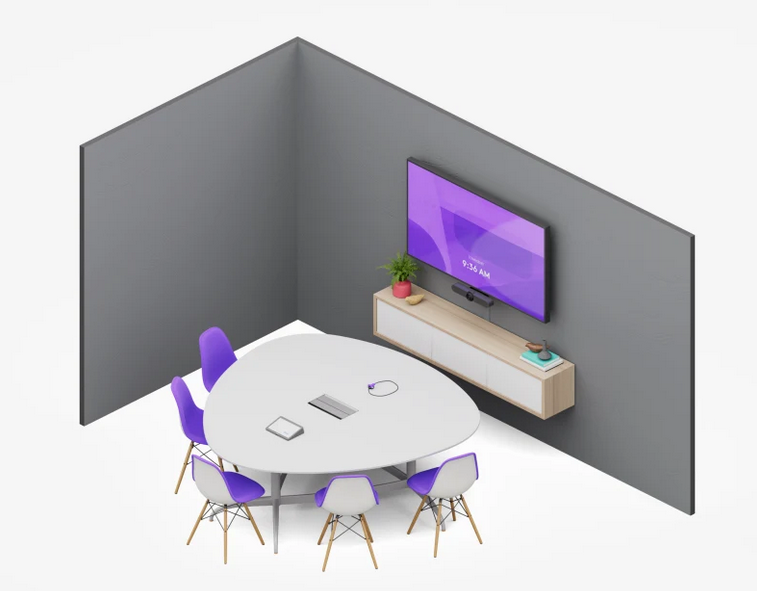

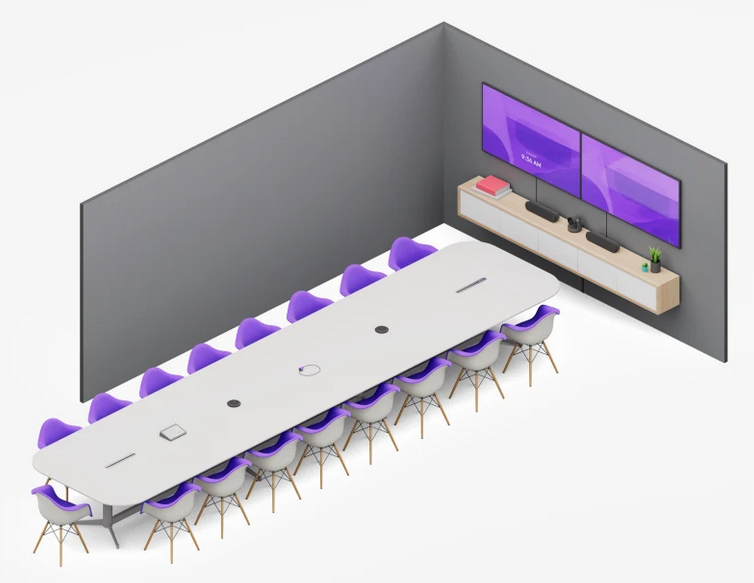

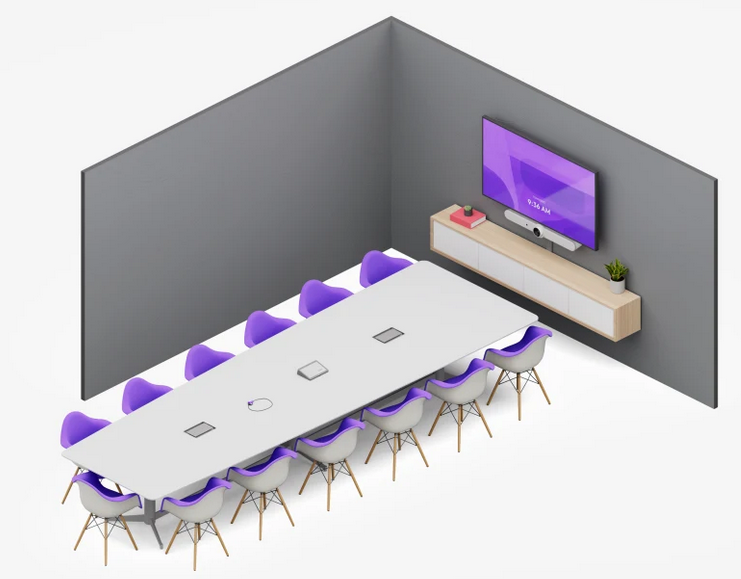

SWYTCH + MeetUp In rooms using USB cameras such as MeetUp, simply connect the Swytch Hub to the camera and place the Swytch Connector within reach.	SWYTCH + Rally Bar In rooms using video bars such as Rally Bar or Rally Bar Mini, run the Swytch Hub into the video bar and place the Swytch Connector within reach of participants.	SWYTCH + Rally Plus In large rooms using modular video conferencing systems such as Rally Plus, connect Swytch to your conference camera using the Swytch Extender.
USB Conference Cameras	All-in-one Video Bars	Modular Conference Cameras

Everything in its place

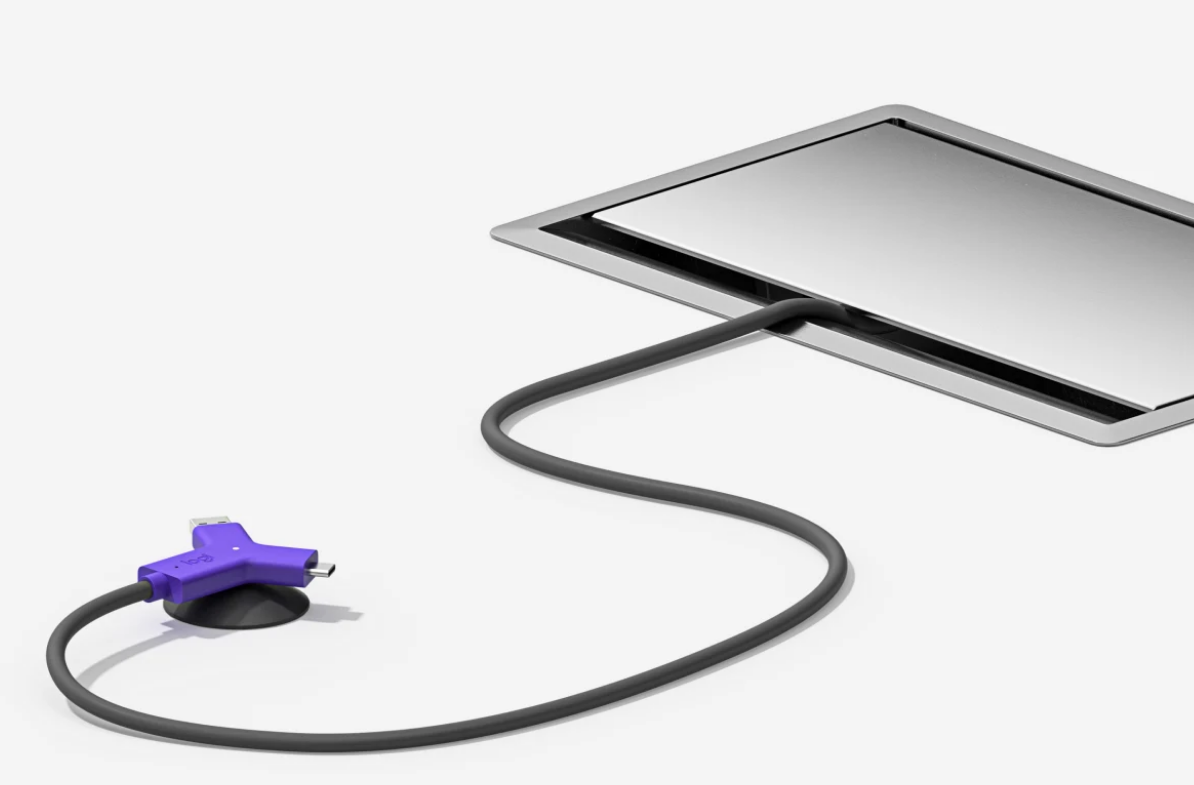

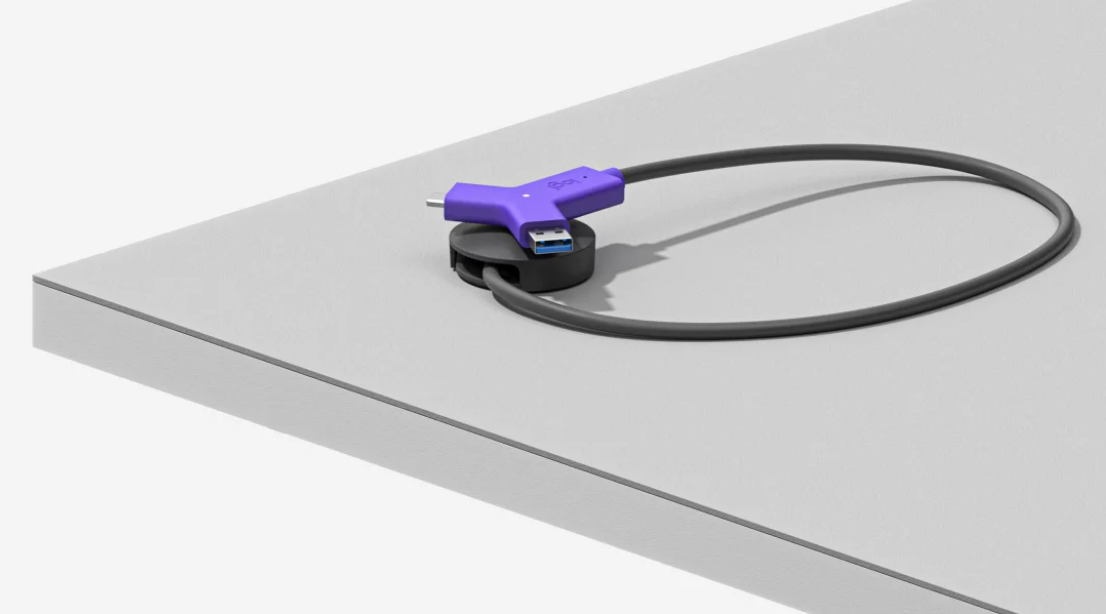

Swytch integrates beautifully with your meeting rooms. Keep the tabletop clean and organized with the included magnetic dock, or route the Swytch Connector through an existing cable well. Either way, robust cable retention keeps connections tight.

Magnetic Dock	Cable Retention	Cable Well-Ready

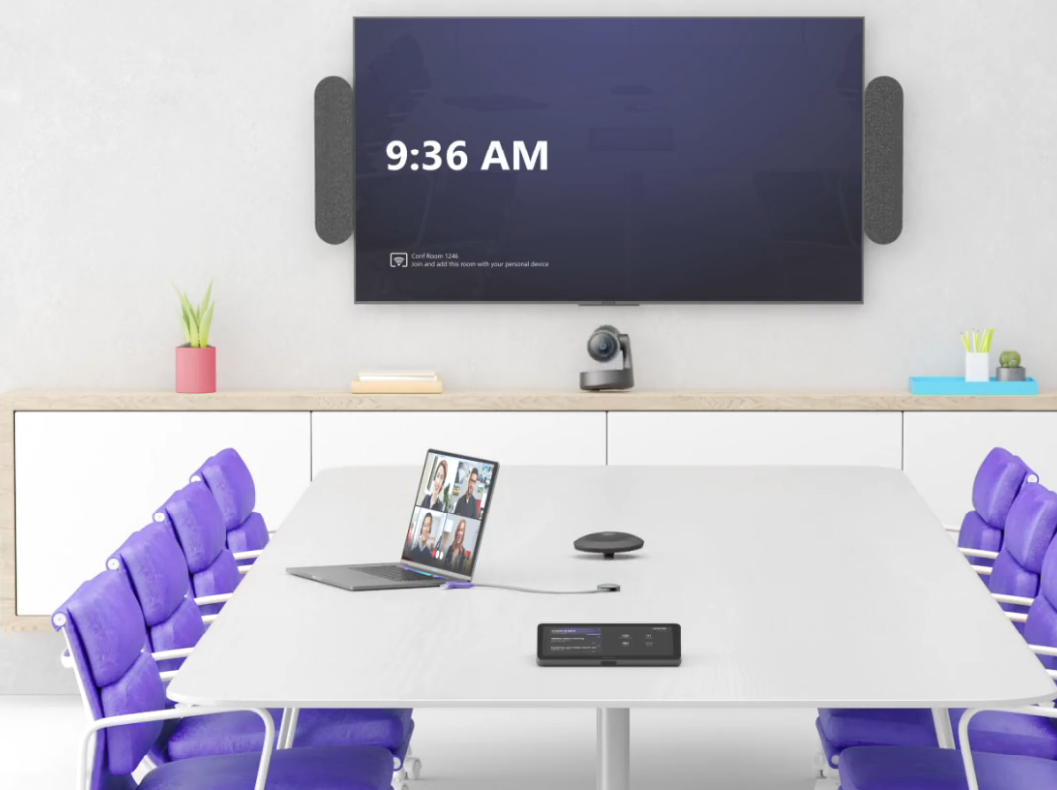

Turns laptops into room solutions

Thanks to hidden cabling and a convenient magnetic dock, Swytch keeps every room tidy and organized, even those without dedicated computers. A single connection and straightforward user experience make it easy for anyone to use their personal laptop for team collaboration.

Specifications

DIMENSIONS
Swytch Hub
Height: 27.4 mm (1.08 in)
Width: 164 mm (6.46 in)
Depth: 90 mm (3.54 in)
Swytch Extender
Height: 27.4 mm (1.08 in)
Width: 120 mm (4.72 in)
Depth: 120 mm (4.72 in)

SYSTEM REQUIREMENTS
Meeting Room Equipment
Display: HDMI input
Conference Camera: USB conference camera with speakerphone
Laptop Computers
USB 3.0 Port: Type A or Type C
USB Power Delivery: Up to 60 watts for compatible laptops that charge via USB Type C
Operating Systems with DisplayLink Plug and Display Drivers: Windows 10, macOS 10.15 and later, and Chrome OS™ 75 or later.

COMPATIBILITY
Conference Cameras
Compatible with conference cameras that connect via USB, such as Logitech Rally, MeetUp, and GROUP. Compatible with appliance based cameras such as Rally Bar and Rally Bar Mini.
Room Solutions
Microsoft Teams Rooms
Zoom Rooms
Also compatible with other room solutions that use USB-connected conference cameras and an HDMI-connected display.

PORTS AND INTERFACES

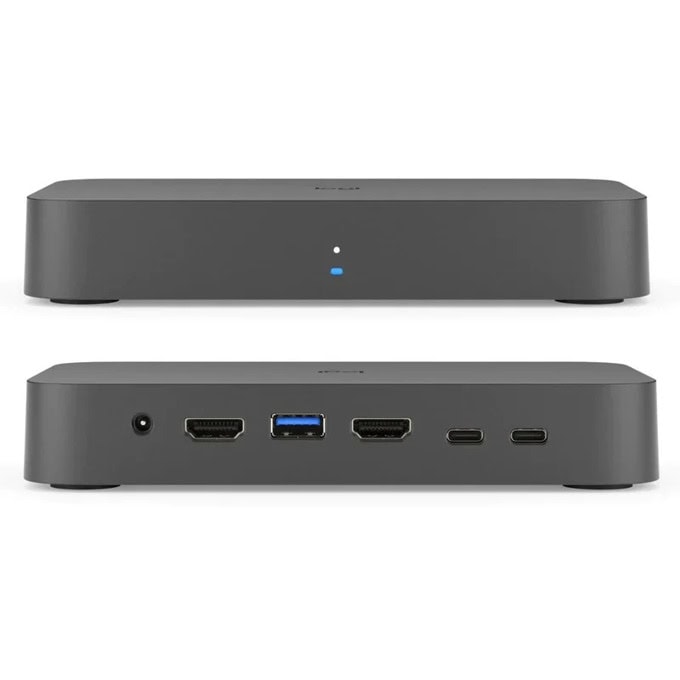

Swytch Hub
Power
HDMI 2.0 to Display
HDMI 2.0 to Meeting Room Computer
USB 3.0 Type A to Conference Camera
USB 3.0 Type C to Meeting Room Computer
USB 3.0 Type C to Swytch Extender
Swytch Extender
Power
USB 3.0 Type A to Swytch Hub
USB 3.0 Type C to Swytch Connector
USB 3.0 Micro B to Swytch Connector
Swytch Connector
USB 3.0 to laptops with Type A or Type C ports

MOUNTS
Swytch Hub
Compatible with Logitech PC Mount (not included)
Swytch Extender

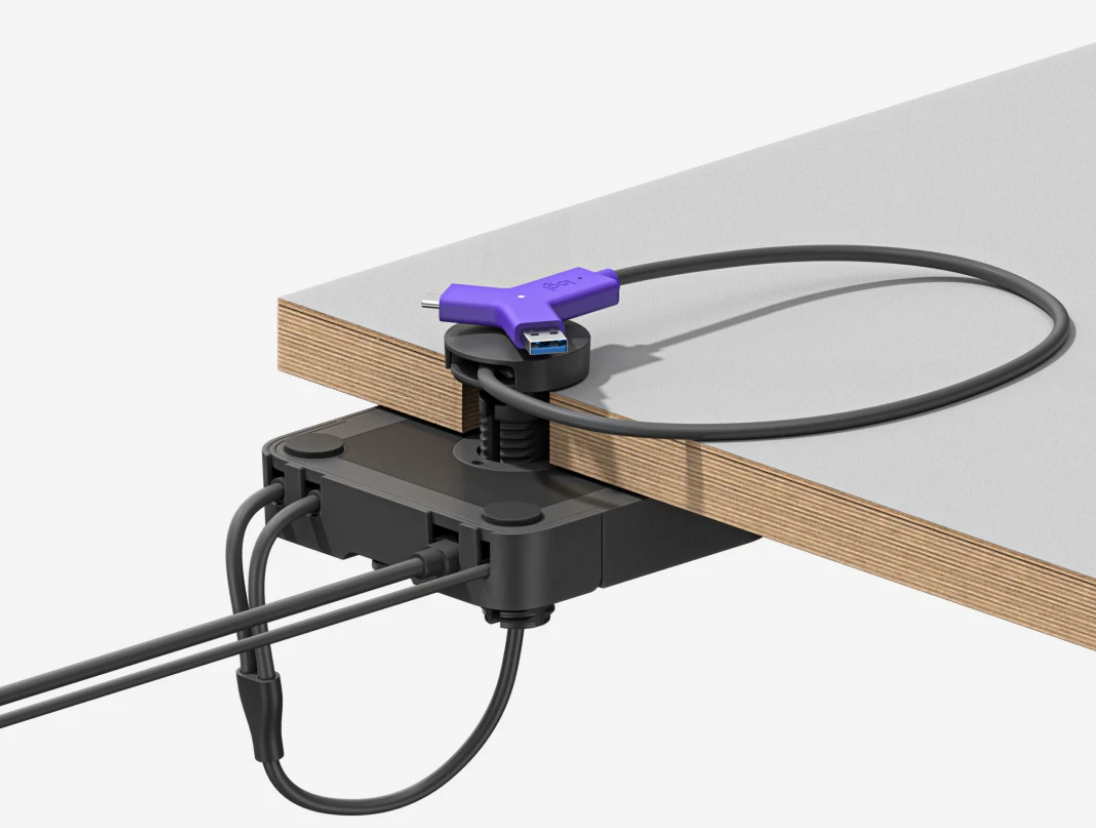

Mount through a 25 mm (1 in) grommet hole or attach below the table with included hardware.
Swytch Connector
Magnetic dock included

GENERAL SPECIFICATIONS
Number of Meeting Room Displays: 1
Maximum Resolution and Frame Rate: Display: 4K/60 fps, Camera: 4K/30 fps
Laptop Audio for Local Sharing: Yes
Laptop Audio for Online Meetings: Yes (with services that support content sharing with system audio)
Device Management: Logitech Sync
