Конферентна камера Logitech Rally Plus Ultra-HD ConferenceCam, 4K/UHD, вграден микрофон, управляема (PTZ), LAN, HDMI, USB











ALL TOGETHER NOW

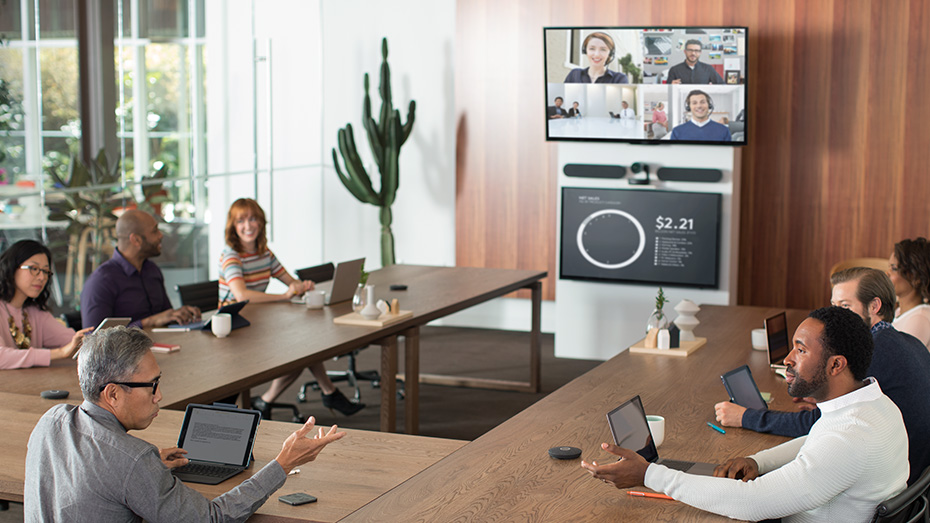

Logitech Rally delivers studio-quality video, unmatched voice clarity, and RightSense® automation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skype® for Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management and premium finishes, Rally integrates beautifully into medium and larger rooms.











ADVANCED MODULAR AUDIO Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound

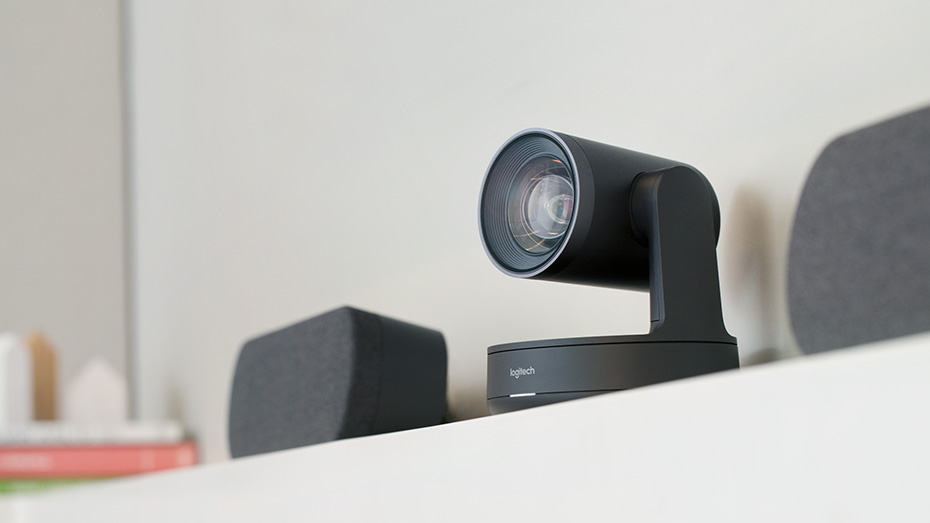

SLEEK INDUSTRIAL DESIGN Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room











ENHANCED USER EXPERIENCE Logitech RightSense™ is a suite of technologies built into Rally that automate a better user experience. RightSight™ perfectly auto-frames participants no matter their distance from the lens. RightLight™ prioritizes faces over environment to render natural-looking skin tones while RightSound™ enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings automatically

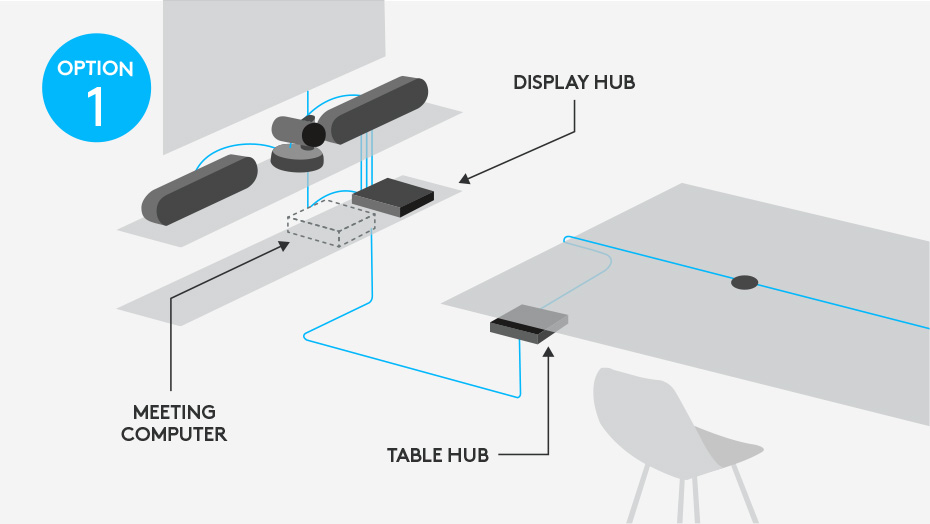

SMART CABLING AND CONTENT SHARING With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.









SPECS & DETAILS



DIMENSIONS

Rally Camera
Height x Width x Depth:  182.5 mm x 152 mm x 152 mm
Rally Speaker
Height x Width x Depth::  103 mm x 449 mm x 80 mm
Rally Mic Pod
Height x Width x Depth::  21 mm x 102 mm x 102 mm
Rally Display Hub
Height x Width x Depth::  40 mm x 206 mm x 179 mm
Rally Table Hub
Height x Width x Depth::  40 mm x 176 mm x 138 mm



SYSTEM REQUIREMENTS

Operating Systems
Windows® 7, Windows 8.1 or Windows 10
macOS 10.10 or higher
Chrome OS
Resolutions higher than 1080p
Windows 8.1 or higher or macOS 10.10 or higher
USB 3.0 port and Type C cable
Compatible software



RIGHTSENSE TECHNOLOGIES

RightLight with WDR:
Low-light compensation
Video noise reduction
Low-light saturation optimization
Renders natural skin tones for each participant on camera
Reduces backlighting and glare without darkening the entire image.

RightSight:
Human figure detection
Auto-frame participants at meeting start
Auto-frame participants on-demand
Auto-reframe participants during meetings 1

RightSound
Machine learning AI trained to distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices

RightSound Mic Matrix:
Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
Beam focus refresh rate: 8ms (125 times/second)

Anti-Vibration Suspension:
A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion



TECHNICAL SPECIFICATIONS

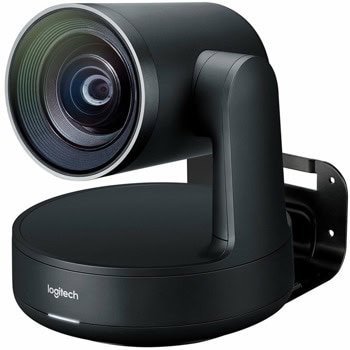

RALLY CAMERA

Ultra-HD imaging system supports:
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
1080p, 720p at 30fps and 60 fps

Smooth motorized pan, tilt and zoom
Pan: ±90°
Tilt: +50° / -90°
15x HD zoom

Field of View:
Diagonal: 90°
Horizontal: 82.1°
Vertical: 52.2
Autofocus
3 camera presets
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
Lens parks at -90° in sleep mode for assured privacy

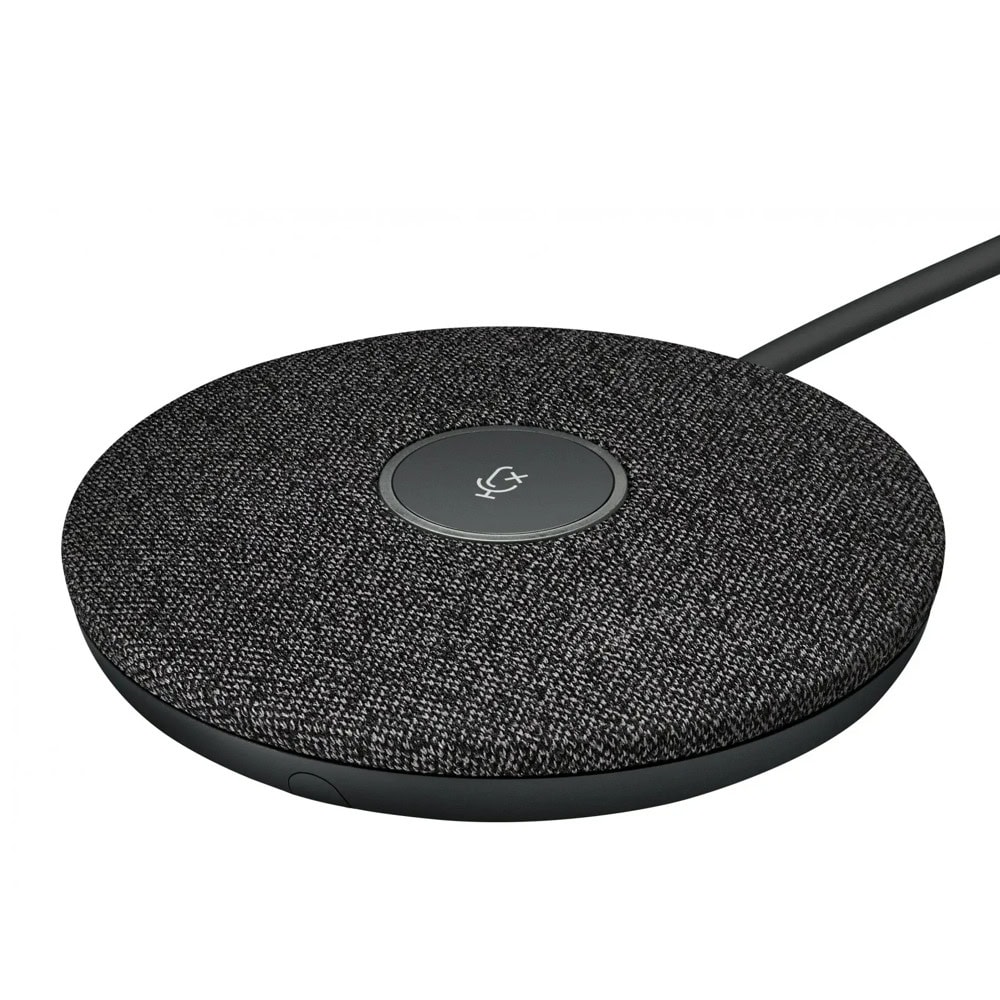

RALLY MIC POD

Pickup range: 4.5m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Mute button with LED status indicator
Captive 2.95m 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency response: 90Hz – 16kHz
Sensitivity: >-27dB +/-1dB @ 1Pa
Microphone data rate: 48 kHz

Recommended # of participants:
Rally (one Mic Pod): 10
Rally Plus (two Mic Pods): 16
Additional participants per Mic Pod: 6
Recommended participants for Rally with 7 Mic Pods: 46

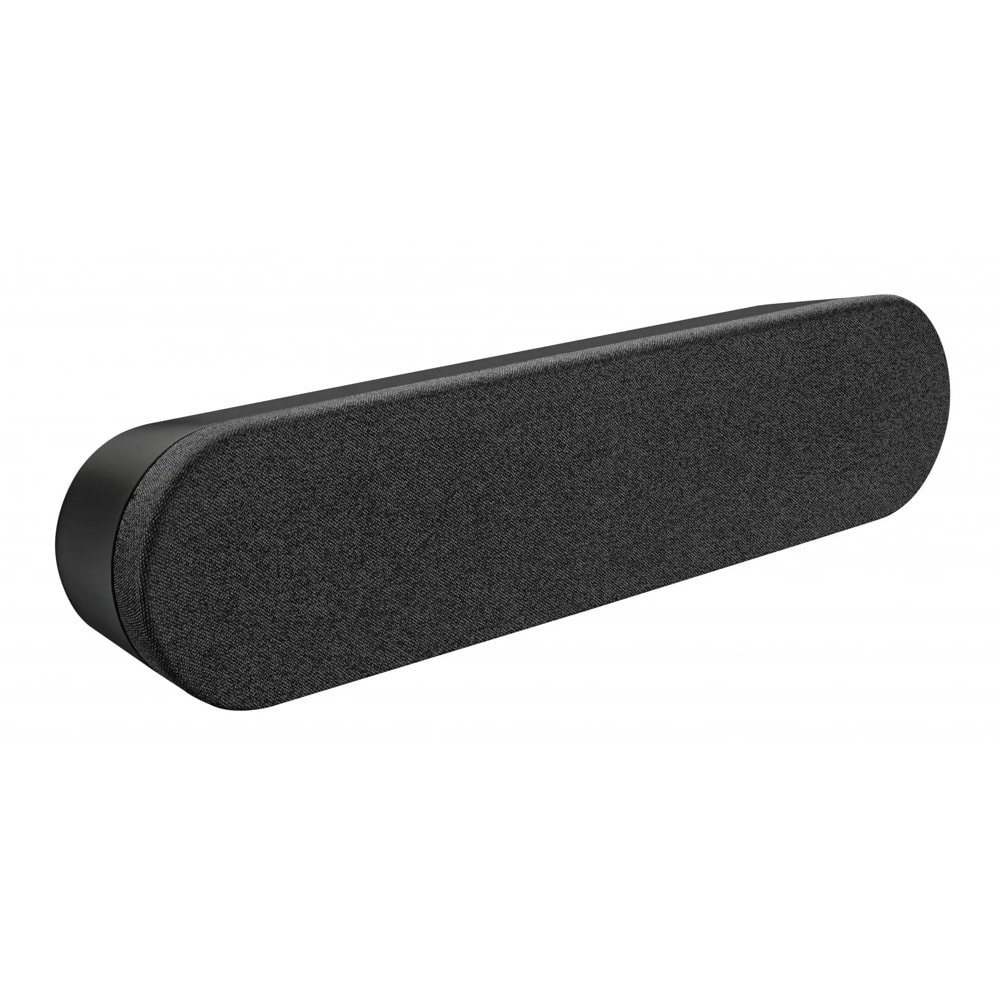

RALLY SPEAKER

High-performance 3" (76mm) driver with rare-earth magnet
Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
Mini XLR cable connects to Rally Display Hub for both signal and power
Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
Sensitivity: 95+/-2dB SPL at ½ meter
Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W
Speaker sampling rate: 48 kHz



RALLY TABLE HUB

Single CAT6A cable connection to Rally Display Hub ( 5m cable included, supports customer-supplied cables up to 50 m)
Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
12 Pin connector for Rally Mic Pod
HDMI Type A passthrough to Display Hub (x2)
USB Type C
USB Type A (reserved for future capability)
USB Type B (connects to meeting room computer)
RJ45 (reserved for future capability)
Power input



RALLY DISPLAY HUB

HDMI Type A (x2) (connects to displays)
USB C (connects to Rally Camera)
USB Type B (connects to meeting room computer)
RJ45 (connects to Table Hub)
Mini XLR (x2)
Powers one or two Rally Speakers
Power input



REMOTE CONTROL

RF remote control (line of sight not required)
CR2032 batteries (included)



CABLES / POWER

Camera to Display Hub:  2m USB 3.1 Type C to USB Type C 3.1

Conference Room Computer to Display or Table Hub:  2m USB 3.1 Type A to USB Type B

Display Hub to Table Hub:  5m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

Display Hub to Speaker (x2):  2.95m Mini XLR (supports customer-supplied extension cables up to 3m

Conference Room Computer to Displays (x2):  2m HDMI A

Mic Pod:  2.95m: Hardwired with 12 pin connector

Power Outlets to Power Supplies (x2):  1m

Power Supplies to Table Hub / Display Hub (x2):  1.5m



COMPATIBILITY AND CERTIFICATIONS

Plug-and-play USB connectivity
Certified for Skype for Business and ready for Teams
Zoom Certified
Fuze Certified
Certified for Google Hangouts Meet Hardware
Microsoft Cortana® certified
Cisco Jabber® and WebEX Compatible
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

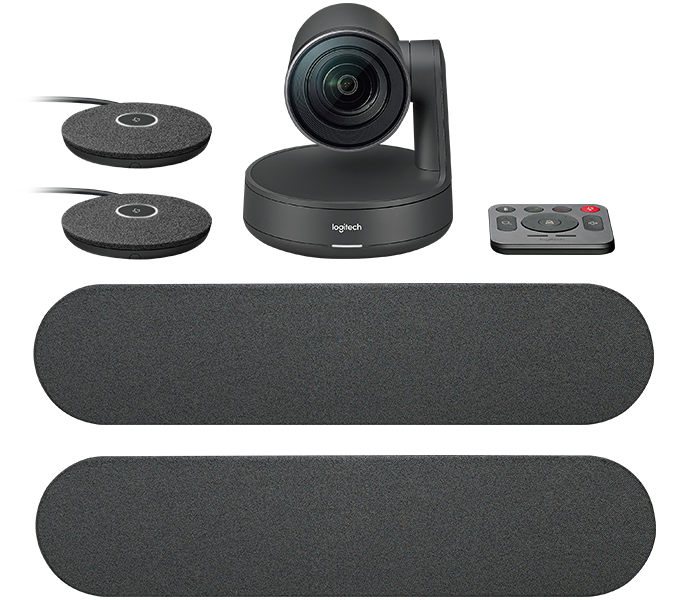

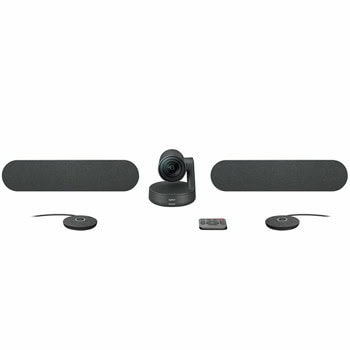

PACKAGE CONTENTS

Logitech Rally Plus
Rally Camera
Rally Display Hub
Rally Table Hub
Rally Speaker (x2)
Rally Mic Pod (x2)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power Supplies (x2)
Documentation
