Конферентна камера Logitech MeetUp 2, 4K/UHD, 6 MEMS микрофона, IPv6, HDMI-In, HDMI-Out, USB-C, RJ45, Wi-Fi, Bluetooth

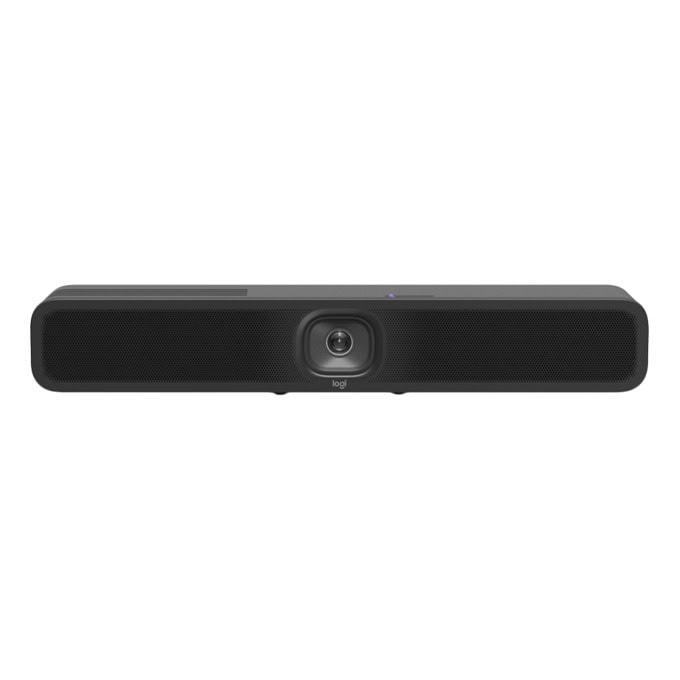

Logitech MeetUp 2

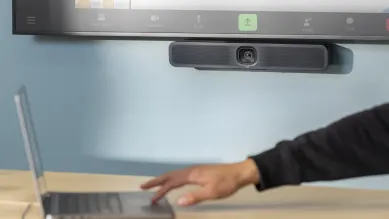

AI-driven experiences in small USB rooms Meetup 2 brings intelligent audio and video experiences to USB-based deployments in small rooms. Regular updates continuously enhance MeetUp 2's performance, expand its capabilities, and foster deeper integrations.

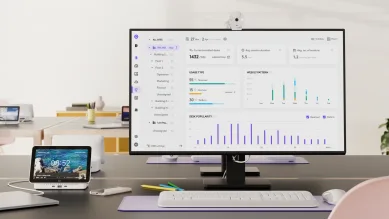

Simple to manage and deploy at scale MeetUp 2 is easy to set up and manage in small spaces thanks to multiple mounting options, clean cabling, and remote management through Logitech Sync.

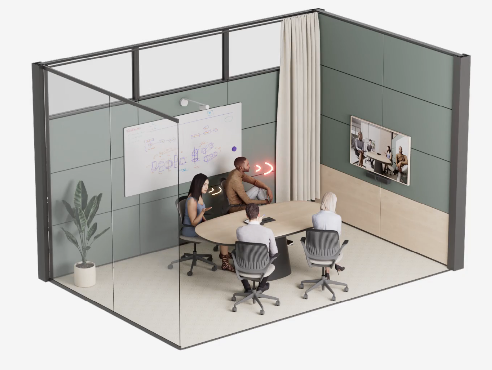

Unlock the potential of AI in your BYOD and PC-based small rooms Upgrade your small meeting rooms with MeetUp 2, a video bar that simplifies the meeting experience for employees and IT. MeetUp 2 brings a simple setup, advanced AI-enabled audio and video features, and easy remote management to PC and BYOD-based deployments.

Simple and flexible deployments in small rooms

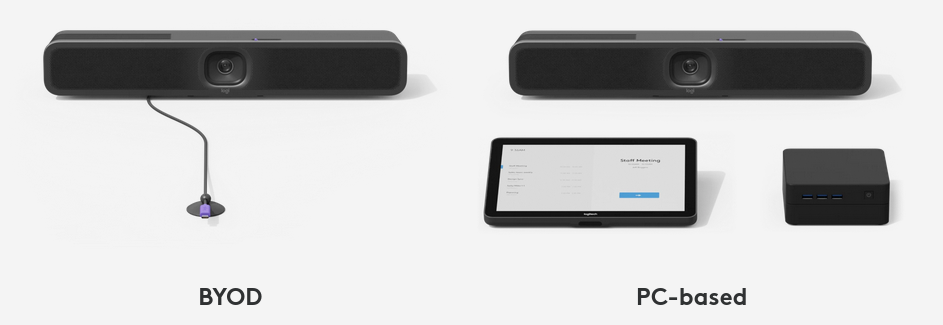

MeetUp 2 connects to a meeting room system or directly to a laptop for BYOD meetings. Enable BYOD laptop connections with a standard two-cable setup, or connect with a single cable via Logitech Active USB Cable (as shown here). Manage and set up MeetUp 2 for both deployments easily in Logitech Sync.

AI-enhanced meetings Unlock AI video and audio features through the built-in CollabOS operating system. Additionally, users can experience integrations with Microsoft, Zoom, and Google for a more intelligent meeting experience.
RightSound 2 Removes the unwanted effects of echo or poor acoustics in larger spaces or in rooms with hard surfaces, to make voices more clear and crisp.   Voice Equalization AI Noise Suppression AI Echo Suppression

One mount, three ways

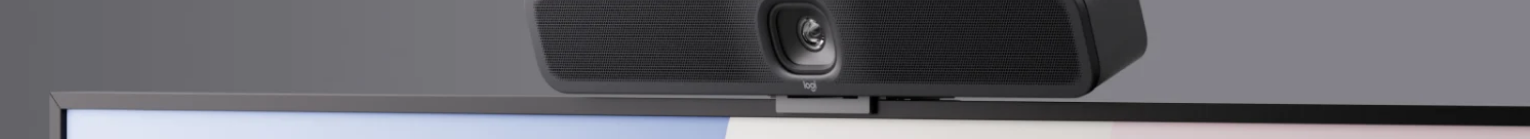

Achieve flexible placements and simple installations with the included multi-mount and attach MeetUp 2 to a display, table, or wall. Plus, there is a built-in threaded insert so it is compatible with tripods.

Single-Cable BYOD Use the optional accessory, Active USB Cable, to leverage DisplayPort Alt Mode and experience single-cable simplicity for BYOD-only deployments. Drivers, dongles, and multiple cables are not required.

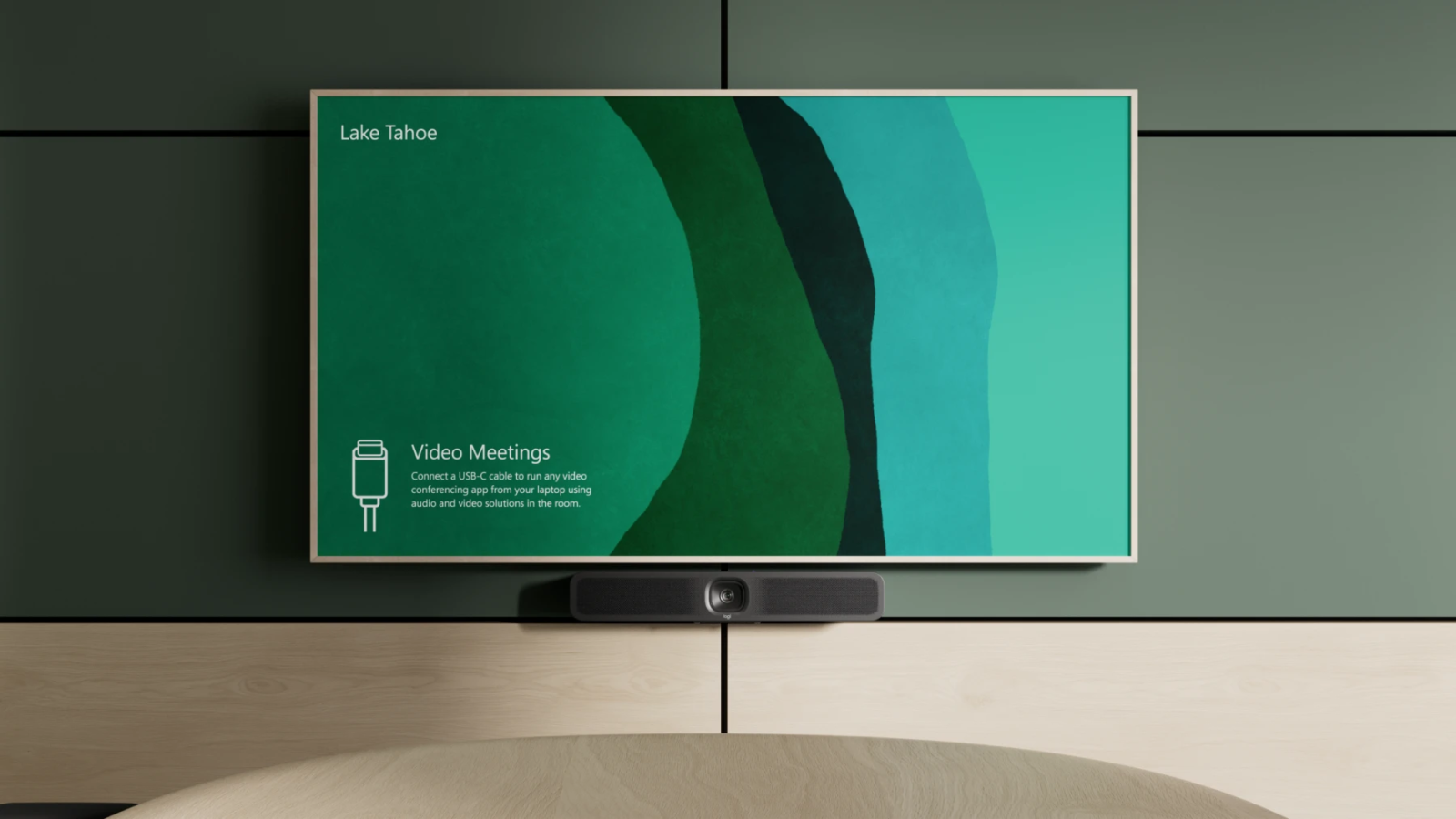

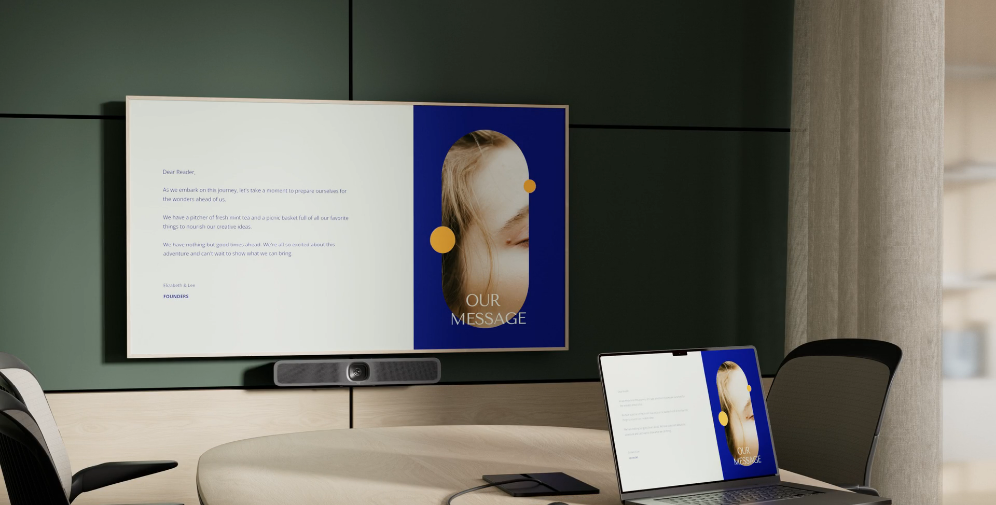

Digital signage Display information on monitors in your rooms by enabling digital signage with Logitech Sync, Appspace, and other platforms*.
Remotely Manage Quickly connect MeetUp 2 to your network and unlock remote management capabilities via the ethernet or through Wi-Fi connection.
Works with your preferred platform Leverage the video conferencing platforms and features you already use. MeetUp 2 works with leading video platforms like Microsoft Teams, Zoom, and Google Meet.

Specifications

Dimensions

Height: 73.3 mm

Width: 469.2 mm

Depth: 73 mm

Weight: 1.8 kg

Technical Specifications

Overview

• Built-in Components
• 6 DMIC microphone array
• Digital PTZ camera
• 1 full range ported speaker
• Cable management & retention system
• Multi-mount
• Logitech CollabOS platform
• Logitech RightSight 2
• Logitech RightSound 2

General Specifications

• Enclosure: All-in-one enclosure
• Device Management: Logitech Sync
• Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
• Display Resolution: 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
• RoomMate Compatibility: Not compatible with Logitech RoomMate, MeetUp 2 can be deployed in PC and BYOD mode only.

Camera

• Digital pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80°
• Resolution: 4K

Speakers

• Driver: 55 mm with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
• Rated Power: 8W THD at 1W, 1kHz : <2%
• Speaker Sampling Rate: 48KHz
• Impedance: 4 Ohms

Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: -36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48 kHz
• Pickup Range: Up to 7m

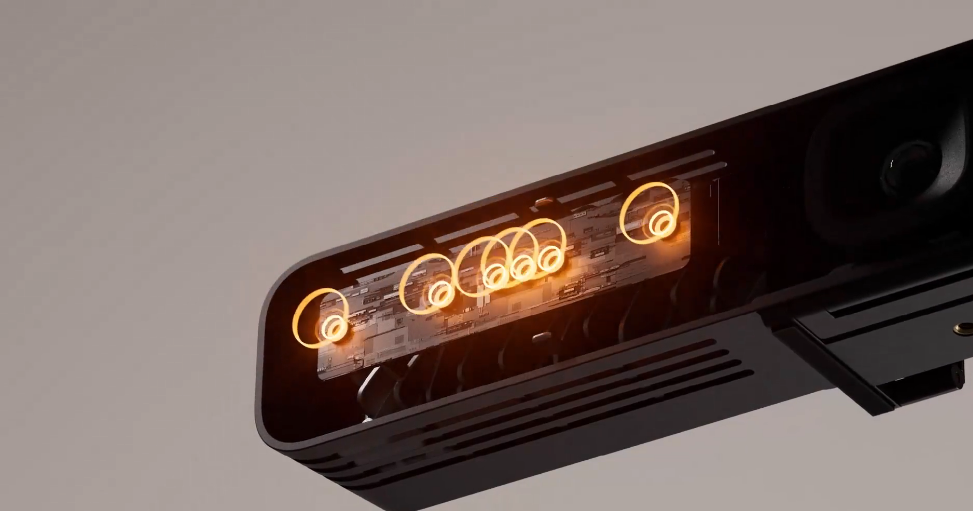

• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm

Interfaces

• HDMI Out: 1
• HDMI In: 1
• USB: 1 x Type C USB 3.1
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth® Low Energy

Power and Cables

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 2.1A
• Power Supply Dimensions: 114 x 47 mm x 32.3 mm
• DC Cable: 3 m
• USB C to USB C 3.0 Cable: 3 m

Environmental

• Operating temperature: 0 to 40°C
• Storage temperature: -25-70°C
• Humidity: 10 to 90%

Security

• File Based Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
• Physical Security: Kensington security slot

Compatibility

Windows 10 and higher

macOS: two most recent versions

Network Connection: wired or wireless
