Комплект конферентна камера и дисплей Logitech Rally Bar Huddle + Tap IP, 4K/30fps резолюция на камерата, 10.1" (25.65 cm) IPS дисплей, 1280 x 800, покритие против пръстови отпечатъци, HDMI, Bluetooth, USB, Wi-Fi, RJ45

Logitech Rally Bar Huddle

ALLURINGLY SIMPLE

Featuring a sleek design and robust technology - Rally Bar Huddle is a straightforward and powerful solution for small spaces.

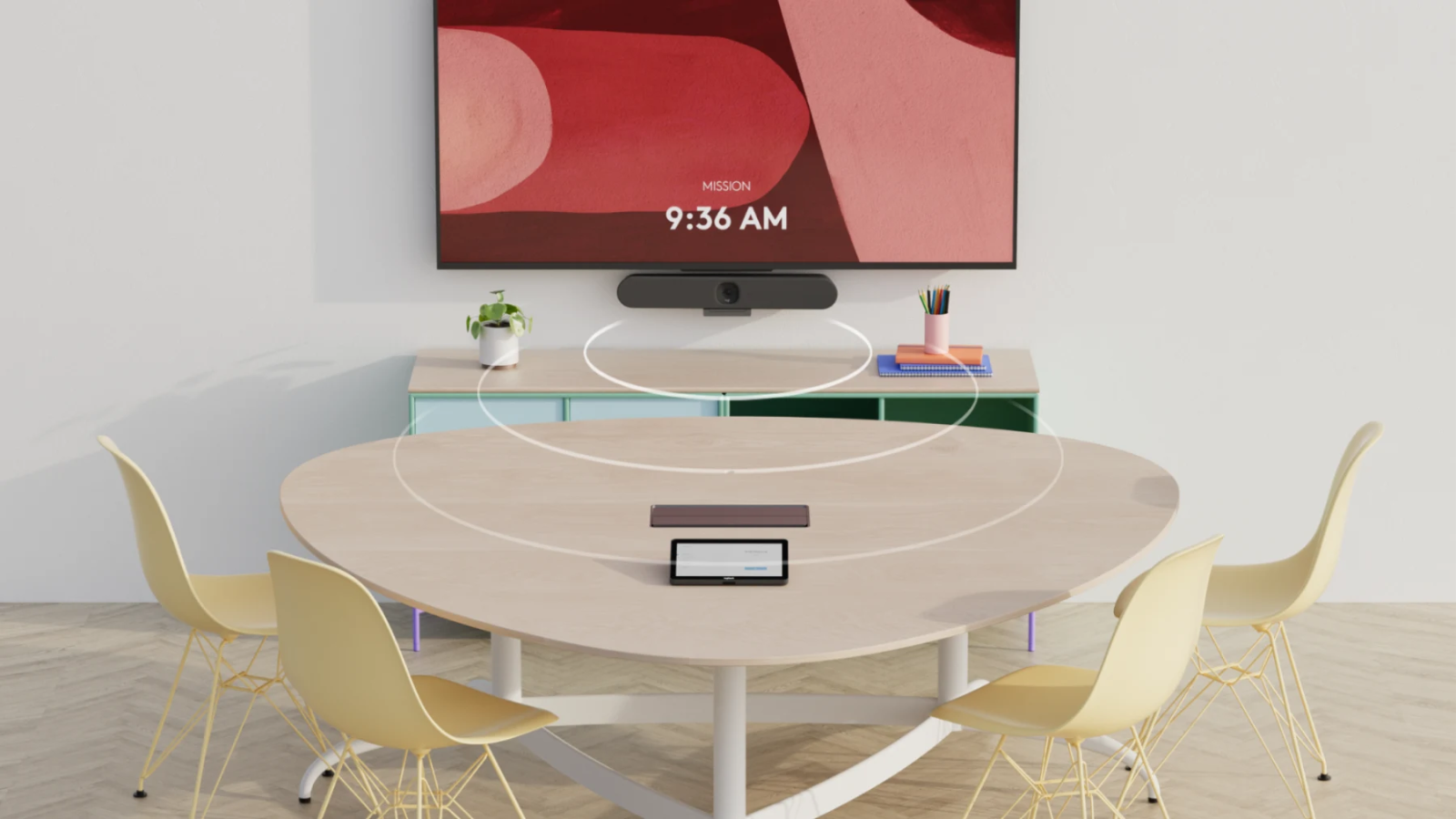

ENABLE EQUITABLE MEETINGS

Ensure everyone can be seen and heard clearly during hybrid meetings. AI video intelligence, advanced sound pickup, noise suppression, and ongoing software improvements provide a clear and natural meeting experience for remote workers.

3 WAYS TO DEPLOY

Use Rally Bar Huddle as a meeting room appliance, in USB mode connected to a meeting room PC, or connect via laptop.

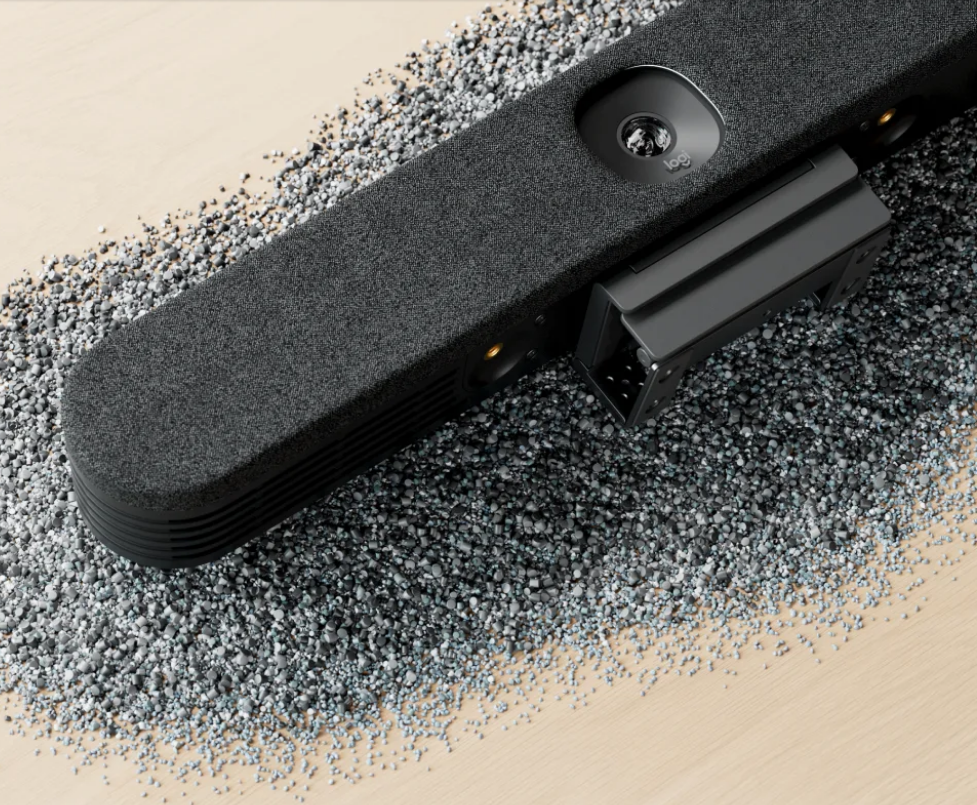

OUR FIRST VIDEO BAR MADE WITH RECYCLED PLASTIC

Logitech is committed to creating a more sustainable world. The plastic parts in Rally Bar Huddle include up to 42% certified post-consumer recycled plastic.

Simple to Manage Easily manage your Logitech video collaboration devices with Logitech Sync. Monitor room health, deploy updates, and modify settings all from a single cloud-based platform. And with Sync Insights, you can see how meeting spaces are utilized over time.
Easy Clean Cover Cleanable cover ideal for healthcare or education. Replace the default graphite cover with a cleanable version and use Rally Bar Huddle in spaces that require sanitization.
Off-White Fabric Cover Change the color of your video bar to suit your space. Replace the Rally Bar Huddle default graphite cover with an off-white version for a look that suits your space.

Logitech Tap IP

CLEAN AND CONVENIENT SETUP

Just the Right Presence

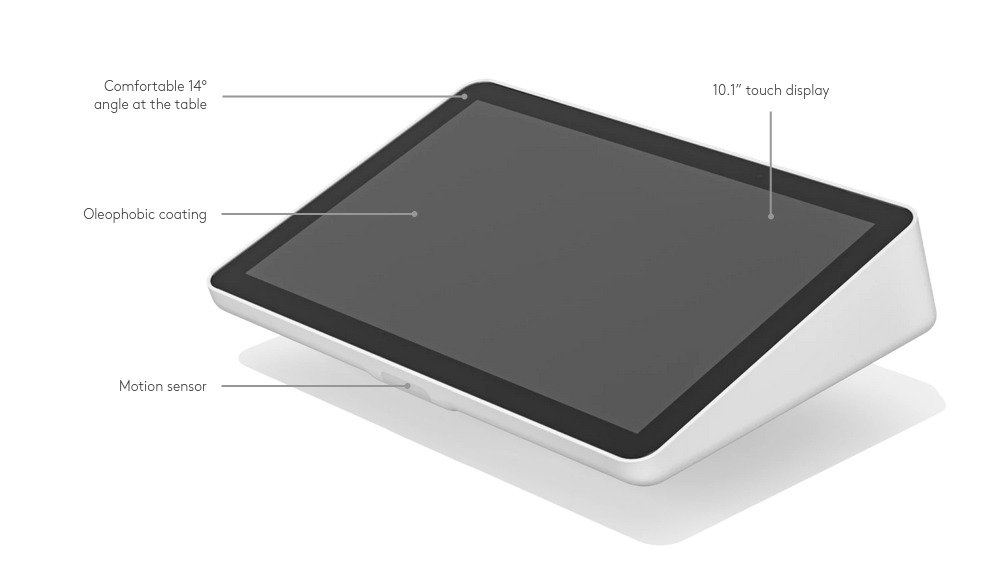

With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.

CLEAN AND CONVENIENT SETUP

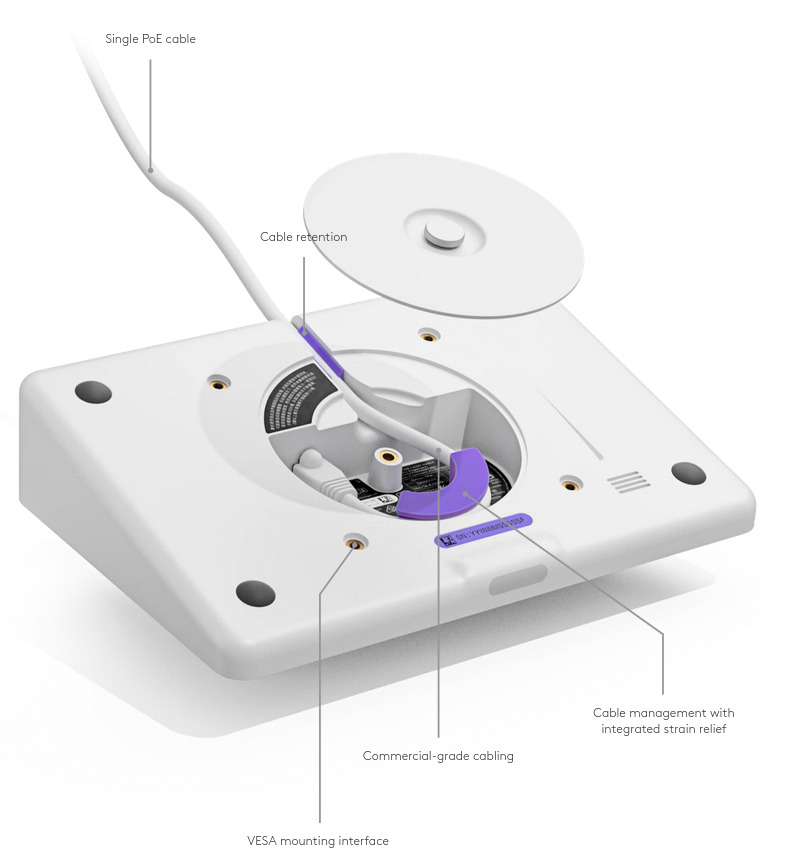

Simple and Secure Cabling

Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.

CLEAN AND CONVENIENT SETUP

Single cable simplicity

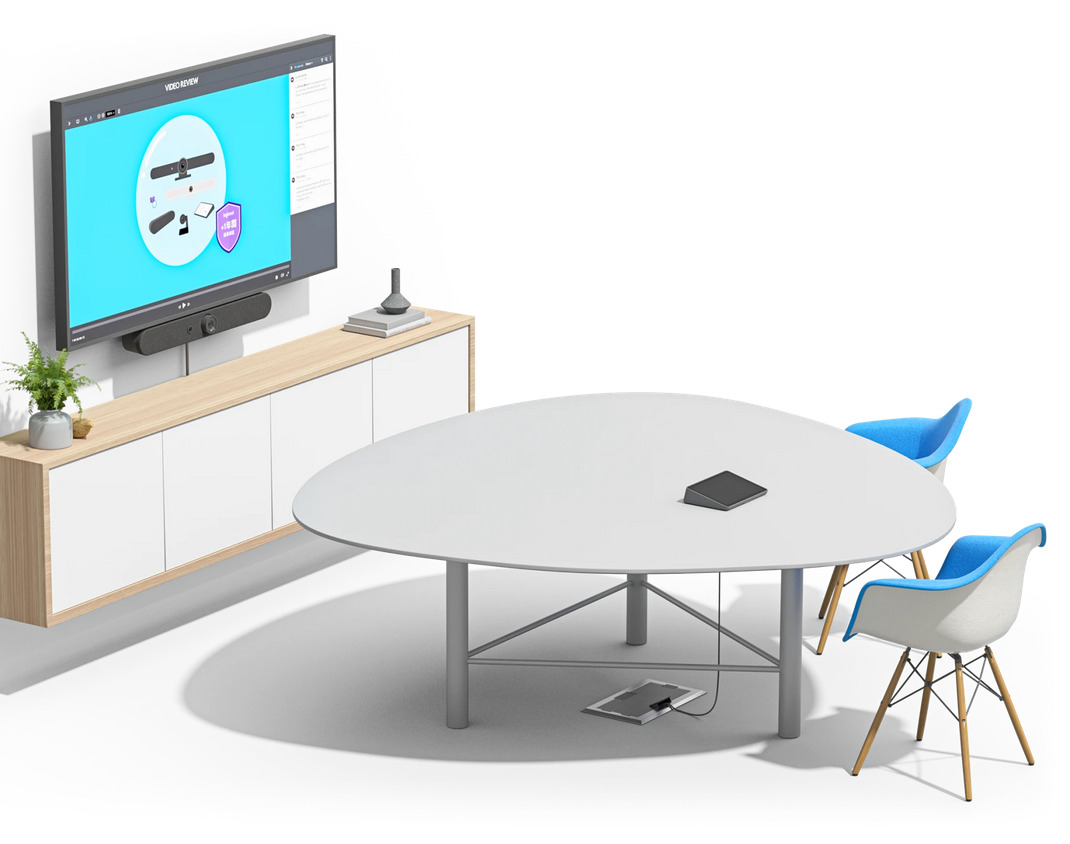

With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.

Pairs well with partners

Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.

Specifications for Logitech Rally Bar Huddle

Dimensions
Width: 549.6 mm
Height: 78.9 mm
Depth: 76.0 mm
Weight: 1.8 kg
Compatibility
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software license (not included)
Technical Specifications
Certifications and Compatibility

   For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications.

General Specifications

   Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
   Enclosure: All-in-one enclosure with field replaceable front cover
   Device Management: Logitech Sync
   Displays Supported: 1 (2nd display support is coming soon)
   Display Resolution: 1080p
   Network Protocol Support: IPv4, IPv6
   Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

   Digital Pan: ±48° at 4x zoom
   Digital Tilt: ±32° at 4x zoom
   Zoom: 4X HD digital zoom
   Diagonal Field of View: 120°
   Horizontal Field of View: 113°
   Vertical Field of View: 80°
   Resolution: 4K

Speakers

   Driver: 55 mm with bass reflex enclosure and patented suspension design
   Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
   Rated Power: 8W
   THD at 1W, 1kHz: <2%
   Speaker Sampling Rate: 48KHz
   Impedance: 4 Ohms

Microphones

   Frequency Response: 90Hz – 16kHz
   Sensitivity: -36dBFS +/-1 dB @ 1Pa
   Microphone data rate output: 48 kHz
   Pickup Range: Up to 7m
   Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
   Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
   Noise suppression: AI based de-noising algorithm

Interfaces

   HDMI Out: 1
   HDMI In: 1
   USB: 1x Type A USB 3.1, 1x Type C USB 3.1
   Network: 10/100/1G Ethernet
   WiFi: 802.11a/b/g/n/ac
   Bluetooth: Bluetooth Low Energy

Power and Cables

   Power supply: Auto-sensing
   Operating Voltage/Power: 100-240V, 19V, 2.1A
   Power Supply Dimensions: 114 mm x 47 mm x 32.3 mm
   DC Cable: 1.5 m
   AC Cable: 1 m
   HDMI 1.4 Cable: 2 m
   USB A to USB C 3.0 Cable: 2.2 m

Environmental

   Operating Temperature: 0 to 40°C
   Storage Temperature: -25 to 70°C
   Humidity: 10 to 90%

Security

   File Based Encryption: AES-128
   Data Encryption: Symmetric Keys, PKI
   Device Identity: Protected by device attestation
   Device Access: Authenticated using API
   Key Protection: Arm TrustZone, RPMP

Specifications for Logitech Tap IP

Device
Total Height x Width x Depth
2.21 x 9.69 x 6.74 in
56.1 x 246.2 x 171.3 mm
1 .0 kg (2.2 lbs)

Touchscreen
10.1” diagonal screen
Display Angle: 14°
Viewing Angle: 85° (up/down/left/right)
Resolution: 1280 x 800
Display Type: IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Capacitive, 10 points multi-touch
Brightness: 400 nits
Contrast: 1000:1
Anti Fingerprint: Oleophobic coating

Power & Ports
Power over Ethernet (PoE), IEEE 802.3af Type 1,
Class 3 device
Ethernet: 10/100mbps
WiFi: 802.11a/b/g/n/ac
Bluetooth 5.0

Interfaces
Internal cable retention and strain relief system
Integrated ultrasonic speaker
Integrated PIR Motion Sensor
Integrated accelerometer
Integrated ambient light sensor
100mm x 100mm VESA FDMI
