Lian Li EG1000G

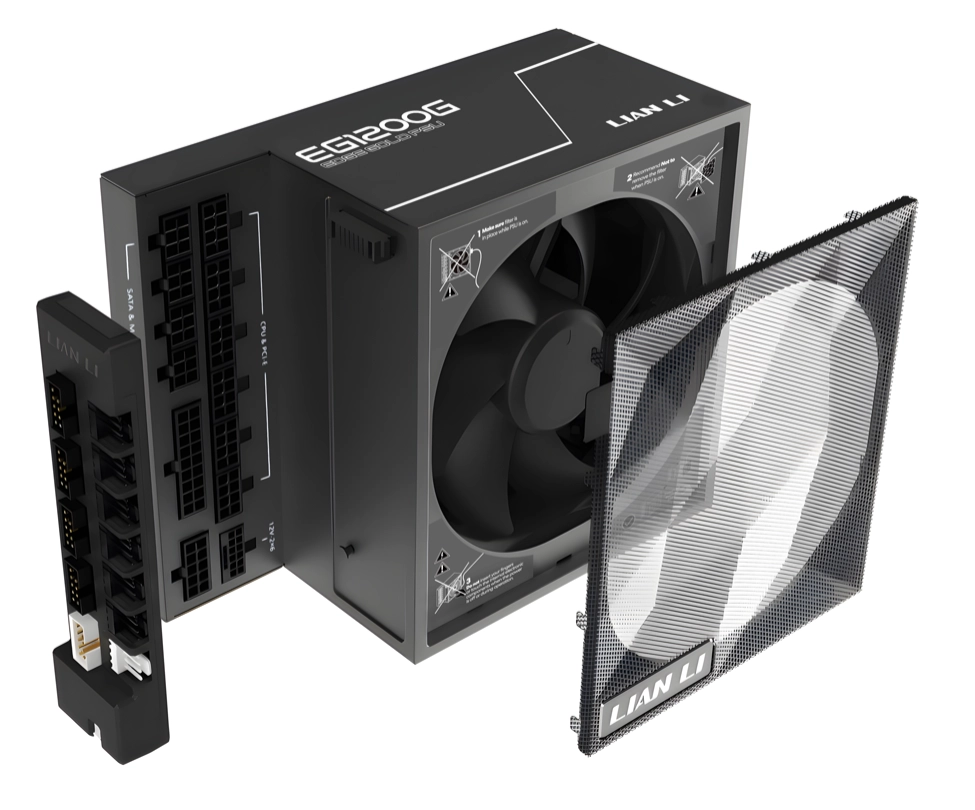

MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.
CONVENIENT CABLE MANAGEMENT

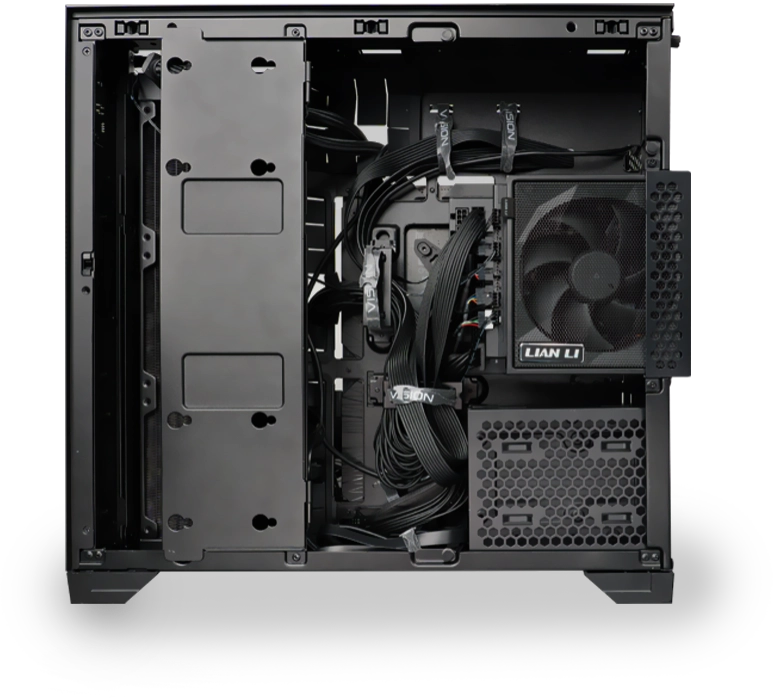

Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
Specifications
| MAX. DC OUTPUT | 1000W |
|---|---|
| COMBINED +3.3V & +5V | 120W |
| COMBINED +12V | 996W |
| INPUT VOLTAGE | 100-240Vac |
| INPUT FREQUENCY RANGE | 12-6A 50-60Hz |
| EFFICIENCY | 91.24%MAX |
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm |
|---|---|
| POWER SUPPLY DESIGN | Fully modular |
| COLOR | White |
| MATERIAL | Steel |
| FORM FACTOR | ATX 3.1 |
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP |
| FAN TYPE | 120mm FDB Fan |
| FAN SPEED | 2400RPM |
| FAN NOISE LEVEL | 39.3dBA |
