Кутия Xigmatek Endorphin Air V2, E-ATX/ATX/mATX/Mini-ITX, 2x USB 3.0, с прозорец, черна, без захранване

Xigmatek Endorphin Air V2

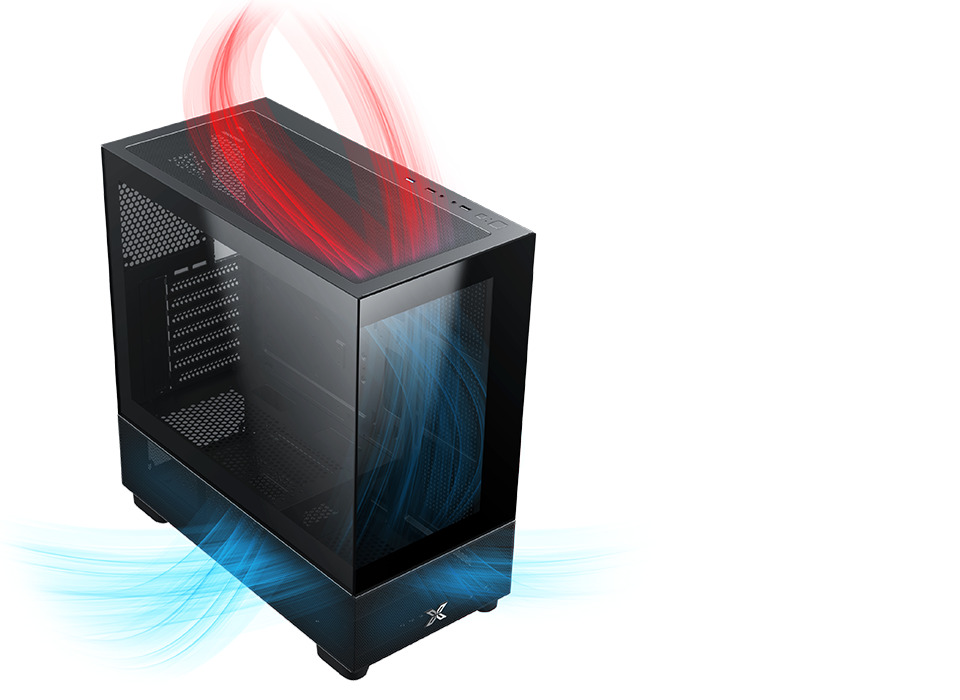

Superior Airflow and Ventilation Design

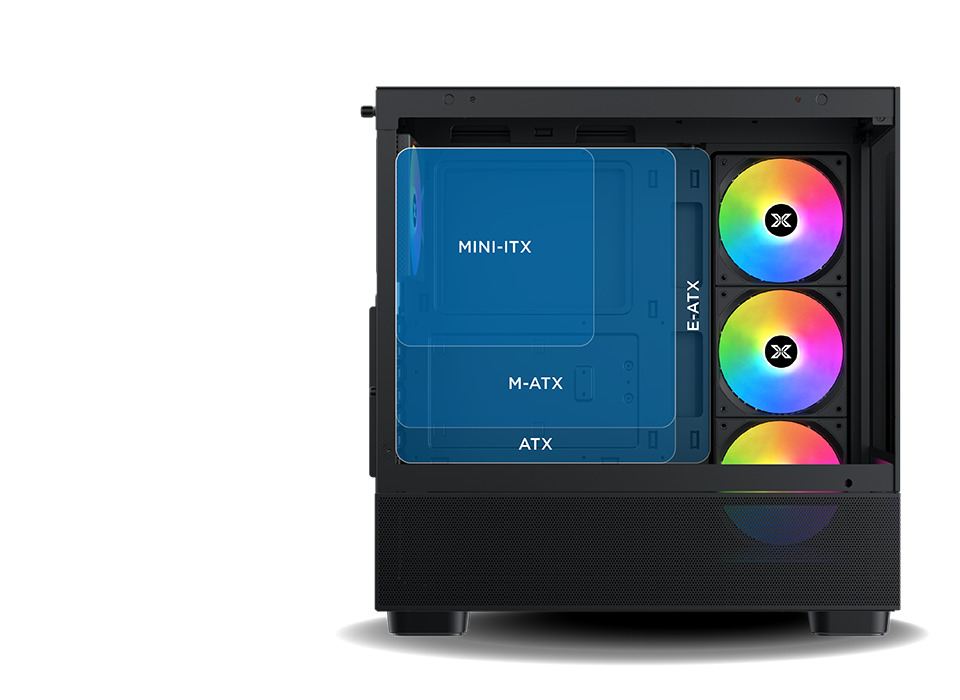

	Support Motherboard up to E-ATX ※MB: 120mm x3 (EATX MB Width ≤280mm)

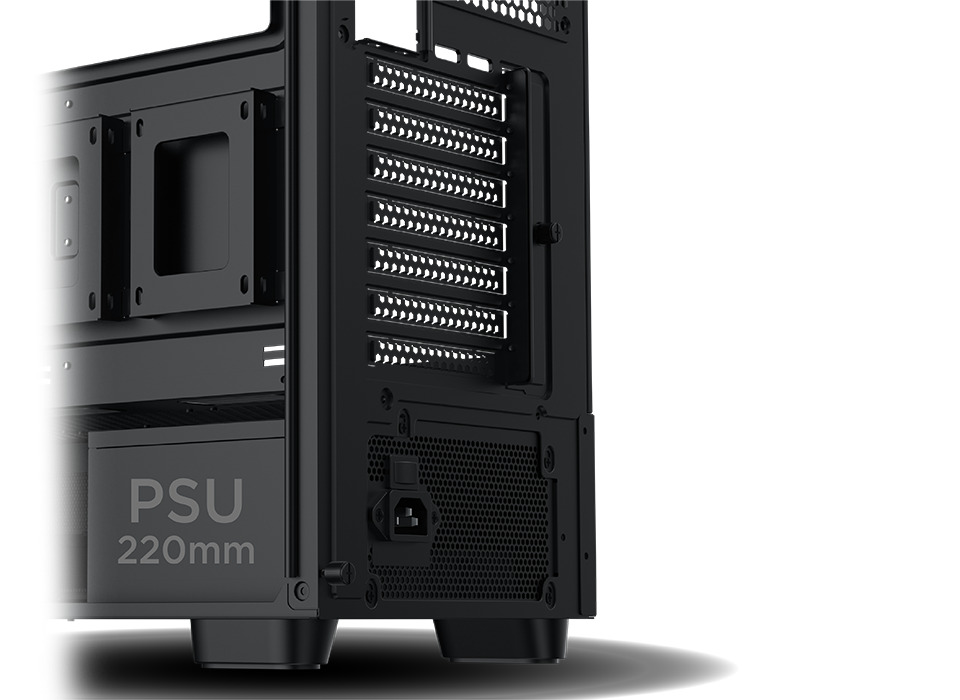

PSU Limitation up to 220mm

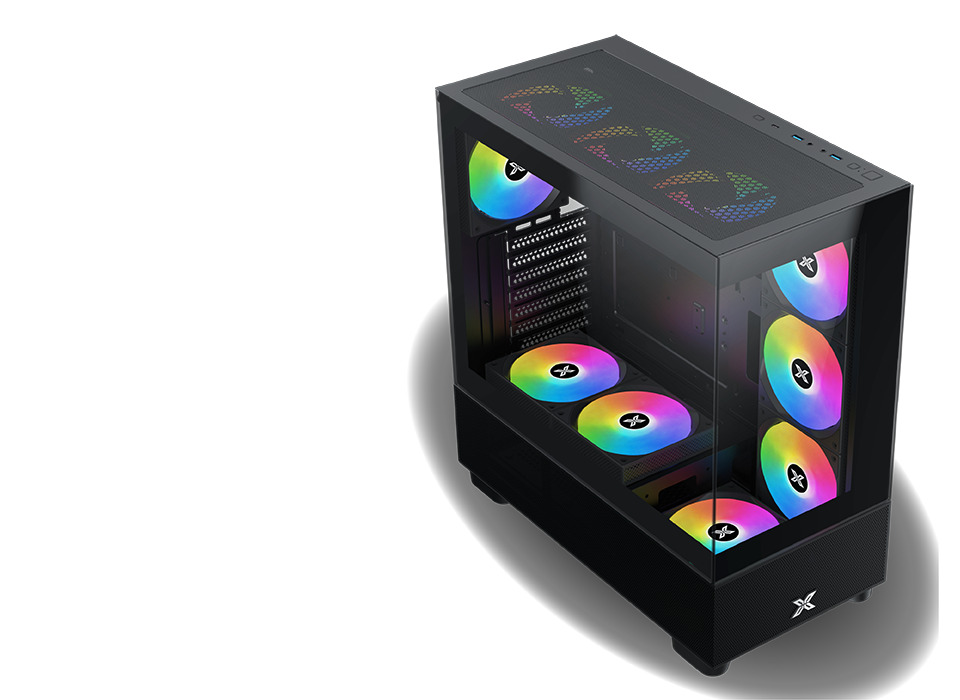

	Effective Heat Dissipation Fan Cooling System： • Top: 120mm x3 or 140mm x2 • MB: 120mm x3 (EATX MB Width ≤280mm) • HDD Cage: 120mm x1 • PSU Shroud: 120mm x2 • Rear: 120mm x1

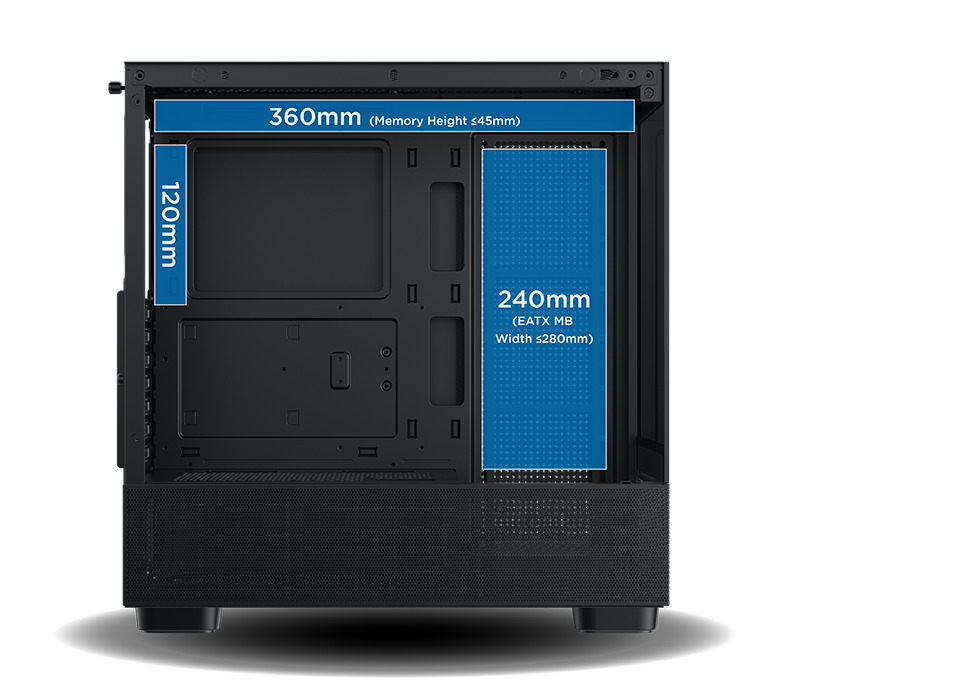

Effective Heat Dissipation Liquid Cooling System：  • Top: 360 (Memory Height ≤45mm)  • MB Panel: 240mm (EATX MB Width ≤280mm)  • Rear: 120mm x1

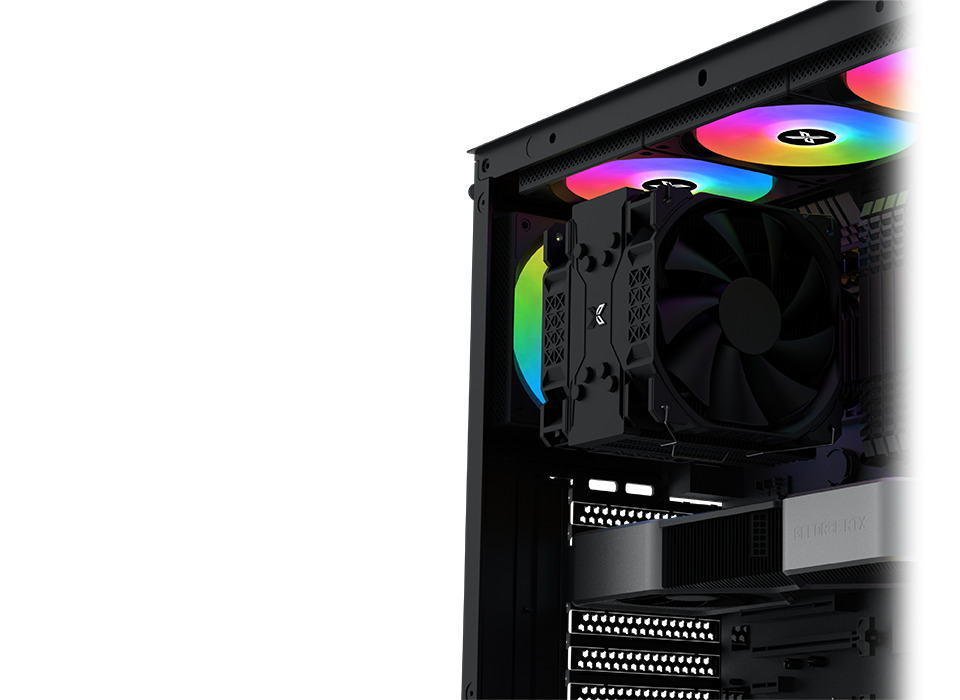

	CPU Cooler up to 170 mm

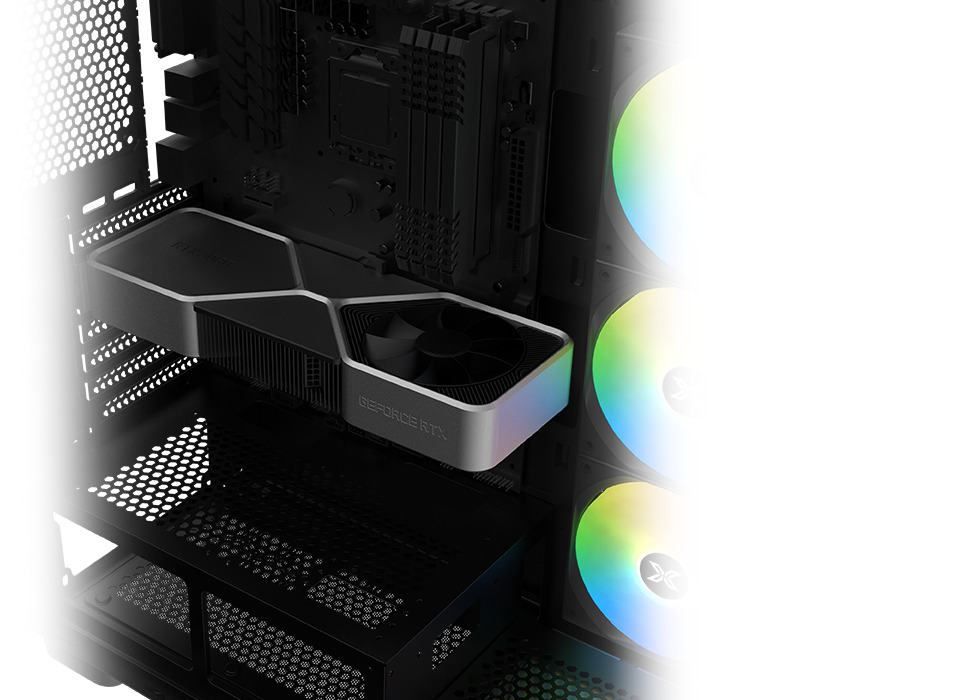

Support Graphics Card up to 285 mm (Fan on MB Panel) 420 mm (No Fan on MB Panel)

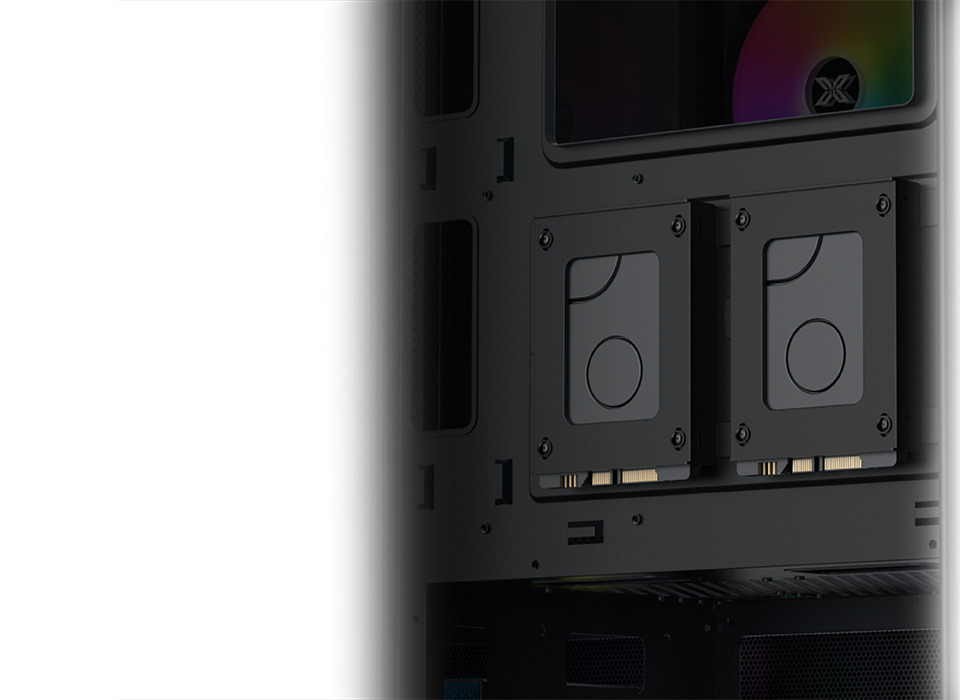

	SSD Bracket: 2.5″ x2

Specifications



Material

Steel



Dimensions

435x218x456mm(LxWxH)



Drive Bays

HDD Cage(Bottom): 3.5″ x1
HDD Cage(Top): 3.5″ & 2.5″ Combo x1
SSD Bracket: 2.5″ x2



Expansion Slots

7 Standard Slots



Motherboard Support

E-ATX, ATX, M-ATX, Mini ITX



Power Supply

Standard PS2 ATX PSU



Fan Support

Top: 120mm x3 or 140mm x2
MB: 120mm x3 (EATX MB Width ≤28cm)
HDD Cage: 120mm x1
PSU Shroud: 120mm x2
Rear: 120mm x1



Radiator Support

Top: 360mm
(Memory Height ≤45mm)
MB Panel: 240mm
(EATX MB Width ≤28cm)
Rear: 120mm



I/O Panel

USB 3.0 x2
Type C x1
HD Audio



CPU Cooler Clearance

170mm



VGA Length Limitation

285mm
(Fan on MB Panel)

420mm
(No Fan on MB Panel)



PSU Length Limitation

220mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
