- Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
- Capability to support an EEB motherboard and an ITX motherboard

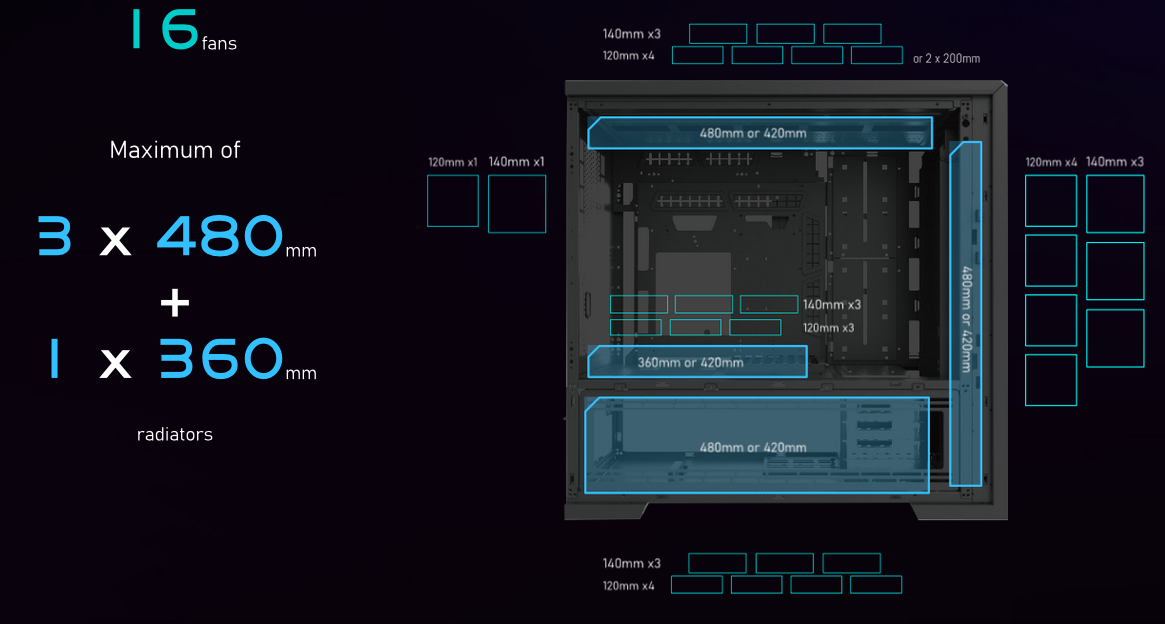

- Supports up to 3×480 + 1×360 radiators and a maximum of 16 fans
- Two reservoir plates accommodate large D5/ DDC pump

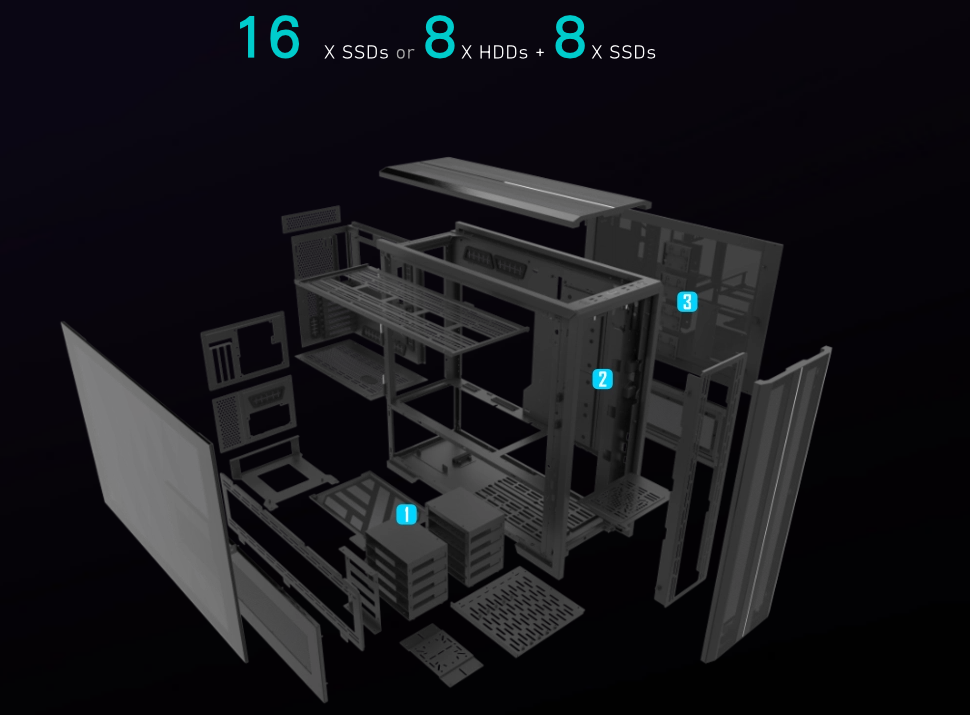

- Stores up to 16 storage drives at drive cages and trays
- Modular removable brackets offer flexibility for builds
- Cable management friendly with 7 Velcro straps
- Available in black and white (GGF Edition)
IDENTIFY YOUR MODE V3000 PLUS is designed with flexibility and possibilities in mind. Thanks to a removable motherboard tray and an adaptable PSU shroud compartment, the V3000 PLUS can be set in Mode 1 as a standard build, Mode 2 for a rotated motherboard with a unique look, or Mode 3, as a dual system.
SPECIFICATIONS
| PRODUCT NAME | LIAN LI V3000 PLUS | LIAN LI V3000 PLUS White GGF Edition |
|---|---|---|
| MODEL | V3000PX | V3000PW |
| DIMENSIONS | (D) 678.5mm x (W) 279mm x (H) 674mm | |
| COLOR | Black | |
| MOTHERBOARD SUPPORT | Standard EEB/E-ATX/ATX/Micro-ATX/Mini-ITX Rotated EEB/E-ATX/ATX/Micro-ATX/Mini-ITX Dual System System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX System 2 – Mini-ITX |
|
| FAN SUPPORT | Standard Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Above PSU Chamber：3 x 120mm or 3 x 140mm Bottom side：4 x 120mm or 3 x 140mm Rear: 1 x 120mm or 1 x 140mm Rotated Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Bottom side：4 x 120mm or 3 x 140mm Rear: 3 x 120mm or 2 x 140mm Above PSU Chamber: 1 x 120mm or 1 x 140mm Dual System Front：4 x 120mm or 3 x 140mm Top：4 x 120mm or 3 x 140mm or 2 x 200mm Above PSU Chamber：2 x 120mm or 2 x 140mm Bottom side：4 x 120mm or 3 x 140mm (without System 2 GPU) Rear: 1 x 120mm or 1 x 140mm |
|
| RADIATOR SUPPORT | Standard Front：480mm or 420mm Top：480mm or 420mm Above PSU Chamber：360mm or 420mm Bottom side：480mm or 420mm Rotated Front：480mm or 420mm Top：480mm or 420mm Bottom side：480mm or 420mm Rear: 360mm or 280mm Dual System Front：480mm or 420mm Top：480mm Above PSU Chamber：240mm or 280mm Bottom side：480mm or 420mm (without System 2 GPU) |
|
| PSU SUPPORT | System 1 – ATX (Max 220mm) System 2 – SFX-L/SFX |
|
| GPU LENGTH CLEARANCE | Standard Max 589mm Rotated Max 358mm Dual System System 1 – Max 589mm System 2 – Max 320mm (Width max 125mm) |
|
| CPU COOLER HEIGHT CLEARANCE | System 1 – Max 198mm System 2 – Max 80mm |
|
| DRIVE SUPPORT | Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD Side：4 × 2.5” SSD Behind MB tray: 4 × 2.5” SSD |
|
| EXPANSION SLOT | System 1 – 8 System 2 – 3 (at PSU shroud, with optional riser cable) |
|
| I/O PORTS | System 1 1 x Power Button 1 x Reset Button 1 x Light Color Button (C) 1 x Light Mode Button (M) 2 x USB 3.0 1 x USB Type C 1 x Audio System 2 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
|
| DUST FILTER | 1 x Bottom | |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Lian Li
Виж всички Компютърни кутии в категорията
Технически характеристики
| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Черен |
