be quiet! Dark Base 701
MAXIMUM AIRFLOW Performance all the way For all who strive for maximum airflow – be it with water-cooled or air-cooled systems – Dark Base 701 White with its extremely air-permeable front and top cover is the right choice. | |

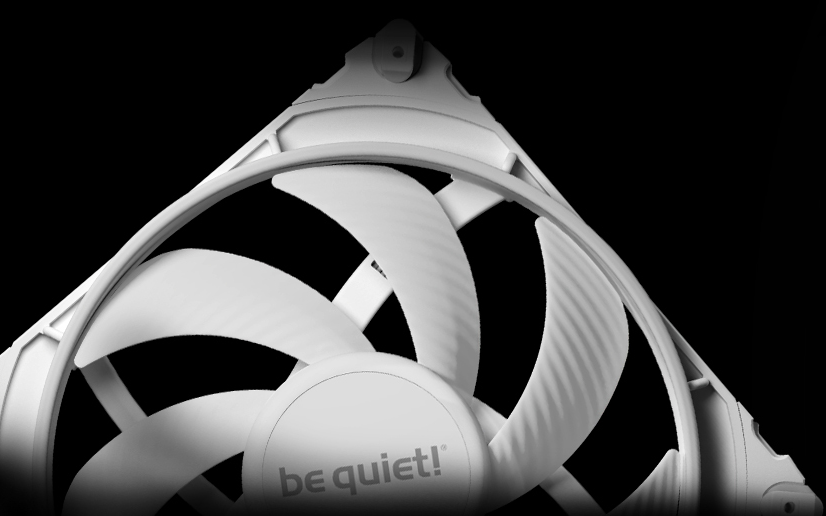

SILENT WINGS 4 PWM HIGH-SPEED FANS 3 pre-installed fans for maximum cooling Silent Wings 4 140mm PWM high-speed makes no compromise between maximum performance and virtually inaudible operation. Its extraordinary air pressure significantly increases the cooling performance of | |

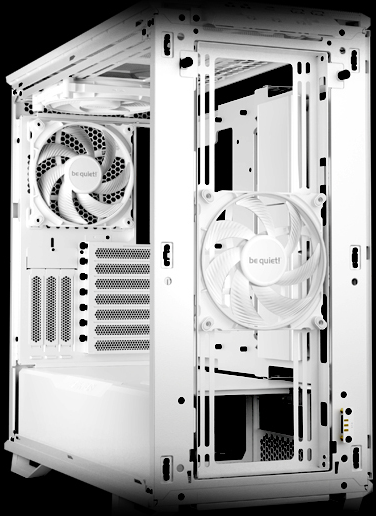

USABILITY AT ALL LEVELS Versatility for everyone Dark Base 701 White is designed for users of all experience levels. The case features a bracket on the top and front for a convenient installation of fans and radiators. Drives can be installed tool-less with just a few steps. Both PC building veterans and first-time builders will appreciate the time-saving inversion of the system, while admirers of a neat interior will embrace the smart cable routing options. Enjoyers of vertical graphics card installation can use one of the vertical PCI slots with an optional riser cable. | |

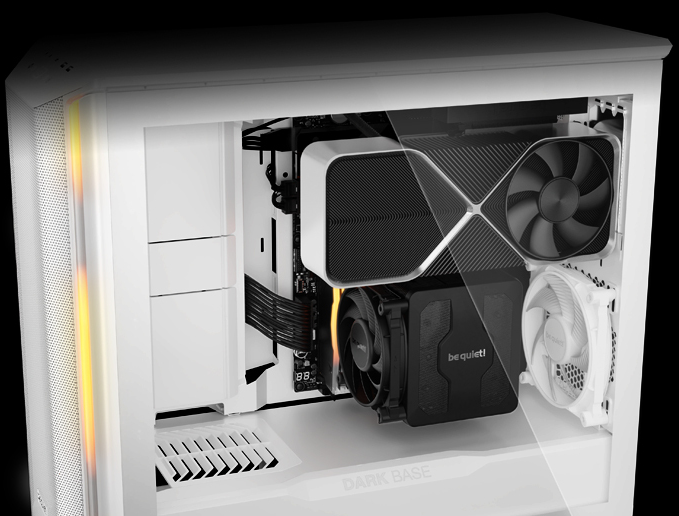

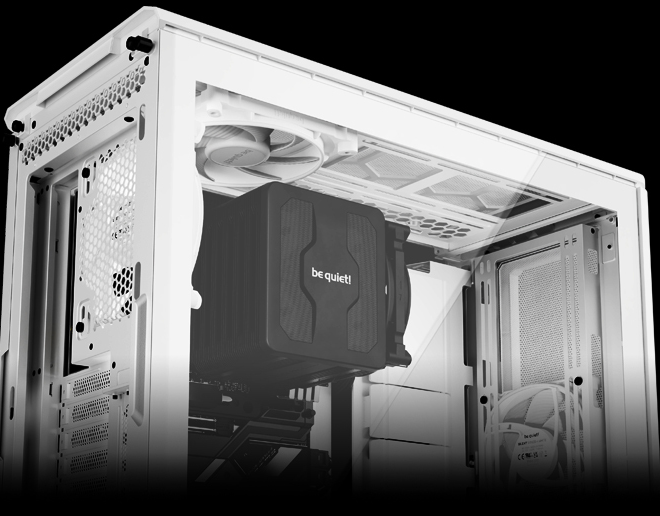

MADE FOR CUSTOM LOOPS Your water-cooling playground Dark Base 701 White sets almost no limits to your creativity. With its huge dimensions and radiator compatibility up to 360mm, you can consider Dark Base 701 White your playground – and home for your individual custom water-cooling loop. | |

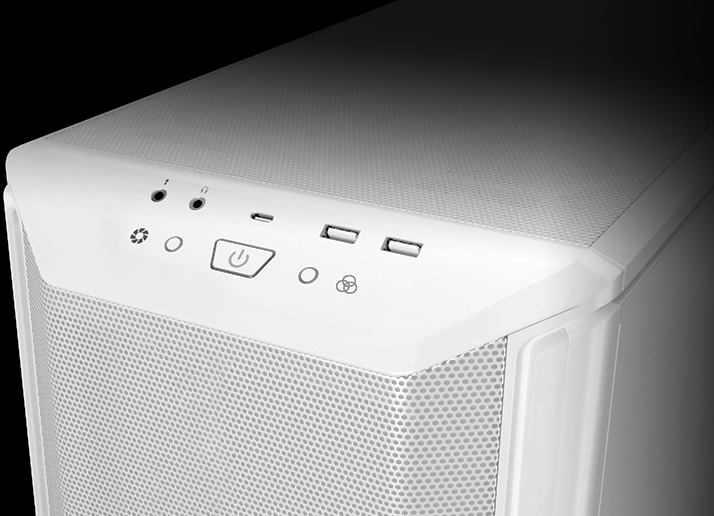

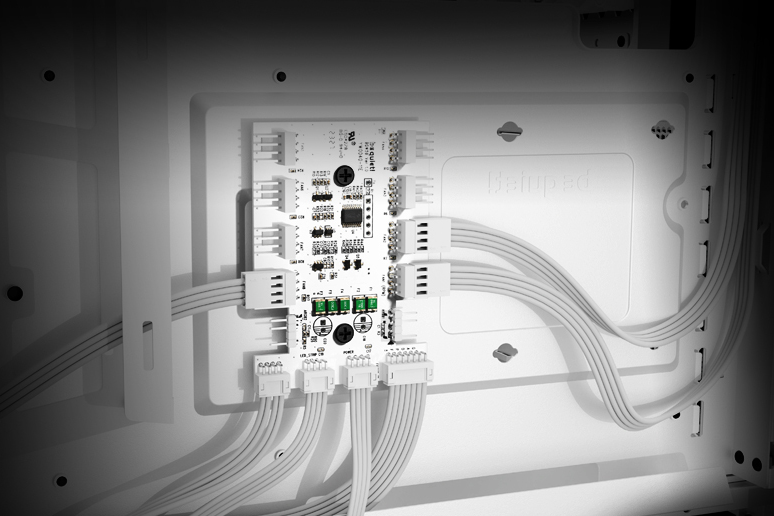

CONVENIENT CONNECTIVITY Hubs for fans and ARGB devices Dark Base 701 White features a combined PWM and ARGB hub for up to 8 PWM fans and 2 additional ARGB devices. This PCB is located behind the motherboard tray and connects to the front I/O panel’s fan and ARGB controllers. The pre-installed fans are connected to the fan hub by default, so you have the case’s cooling setup under your control without having to rewire any cables. | |

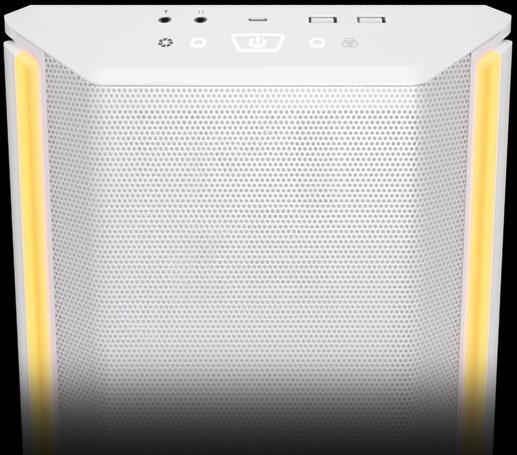

TIMELESS DESIGN WITH ARGB ILLUMINATION A case that comes to stay Dark Base 701 White can be recognized as a be quiet! high-end case at first glance. Its bulky design sets a statement in each gaming room and makes clear: Dark Base 701 White is here to stay. ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller. | |
TEMPERED GLASS WINDOW A perfect view inside your PC The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars. |
Specifications
General data
Color option | White |
Motherboard compatibility | E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX |
Case size excl. stands (L x W x H), (mm) | 565 x 249 x 495 |
Case size incl. stands (L x W x H), (mm) | 565 x 249 x 523 |
Volume (l) | 69.64 |
PSU form factor | ATX PS/2 |
Expansion slots | 7 + 3 |
Pre-installed fans
Fan at top | 1x Silent Wings 4 140mm PWM high-speed White |
Fan at front | 1x Silent Wings 4 140mm PWM high-speed White |
Fan at side | - |
Fan at rear | 1x Silent Wings 4 140mm PWM high-speed White |
Fan at bottom | - |
Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 |
Fan speed at 100% PWM / 12V (rpm) | 1900 |
Airflow at 100% PWM / 12V (CFM / m3/h) | 78.4 / 133.2 |
Air Pressure at 100% PWM / 12V (mm H2O) | 2.36 |
Noise level at 100% PWM / 12V (dB(A)) | 29.3 |
Voltage range (V DC) | 5 - 13.2 |
Input power (W) | 4.8 |
Input current (A) | 0.4 |
Connector | 4-pin PWM |
Lifespan (h / 25°C) | 300,000 |
Fan controller | ✓ |
Maximum fan installation
Maximum fans | 8 |
Top (mm) | 3x 140 / 3x 120 |
Front (mm) | 3x 140 / 3x 120 |
Side (mm) | - |
Rear (mm) | 1x 140 / 1x 120 |
Bottom (mm) | 1x 140 / 1x 120 |
PSU shroud | - |
Optional radiator installation
Top (mm) | 120 / 140 / 240 / 280 / 360 |
Front (mm) | 120 / 140 / 240 / 280 / 360 |
Side (mm) | - |
Rear (mm) | 120 |
Bottom (mm) | - |
PSU compatibility
Maximum dimensions excl. bottom fan (mm) | 250 |
Maximum dimensions incl. bottom fan (mm) | 250 |
Graphics card
HDD cage (in height of graphics card) installed (mm) | 415 |
HDD cage (in height of graphics card) removed (mm) | 415 |
Maximum PCIe slots with vertical graphics card (pcs.) | 3 |
Drive bay capacity
5.25 bays (pcs.) | - |
3.5 slots (scope of delivery) | 2 |
3.5 slots (max.) | 3 |
2.5 slots (scope of delivery) | 3 |
2.5 slots (max.) | 5 |
Cooling
Max.construction height of CPU cooler unit (mm) | 185 |
Airflow channel | Front / Top / Rear / Bottom |
Lighting
LED illumination | ✓ |
LEDs (pcs.) | 48 |
LED type | ARGB - 5V |
LEDs synchronizable with controller/motherboard | ✓ |
I/O Panel
USB 3.2 Gen. 2 Type C | 1 |
USB 3.2 Type A | 2 |
USB 2.0 | - |
HD Audio I/O | Mic + Audio |
Qi charger / Quick Charging Option (W) | - |
Insulation and damping
Top panel insulation mats | - |
Front panel insulation mats | - |
Side panel insulation mats | ✓ |
Anti-vibration decoupled HDD | ✓ |
Anti-vibration decoupled fan | ✓ |
Anti-vibration decoupled PSU | ✓ |
Anti-vibration decoupled motherboard-tray | - |
Removeable dust filters
Top | - |
Front | 1 |
Side | - |
Bottom | 1 |
Material
Top cover | Steel |
Front panel | Steel |
Side panel | Glass |
Side panel window | Steel |
Stands | ABS |
Safety certification
Approvals | CE, UKCA |
