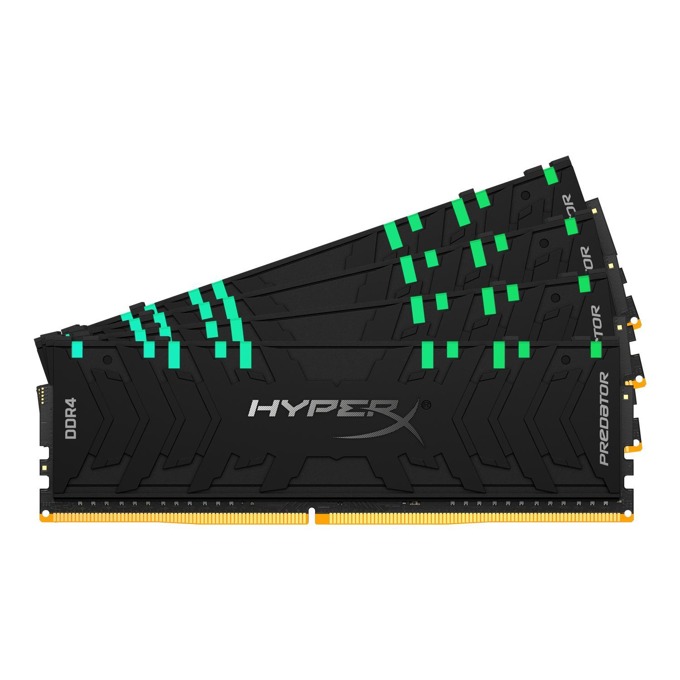

Памет 64GB (4x16GB) DDR4 3200Mhz, Kingston HyperX Predator RGB (HX432C16PB3AK4/64), 1.35 V

HyperX HX432C16PB3AK4/64 is a kit of four 2G x 64-bit
(16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8,
memory module, based on sixteen 1G x 8-bit FBGA
components per module. Each module kit supports Intel®
Extreme Memory Profiles (Intel® XMP) 2.0. Total
capacity is 64GB. Each module has been tested to run at
DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin
DIMM uses gold contact fingers. The JEDEC standard
electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.4V to 3.3V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• HyperX Infrared Sync working distance 18mm
• Factory preset RGB wave lighting effect
• Height 1.661” (42.20mm)
