j5create JVA01

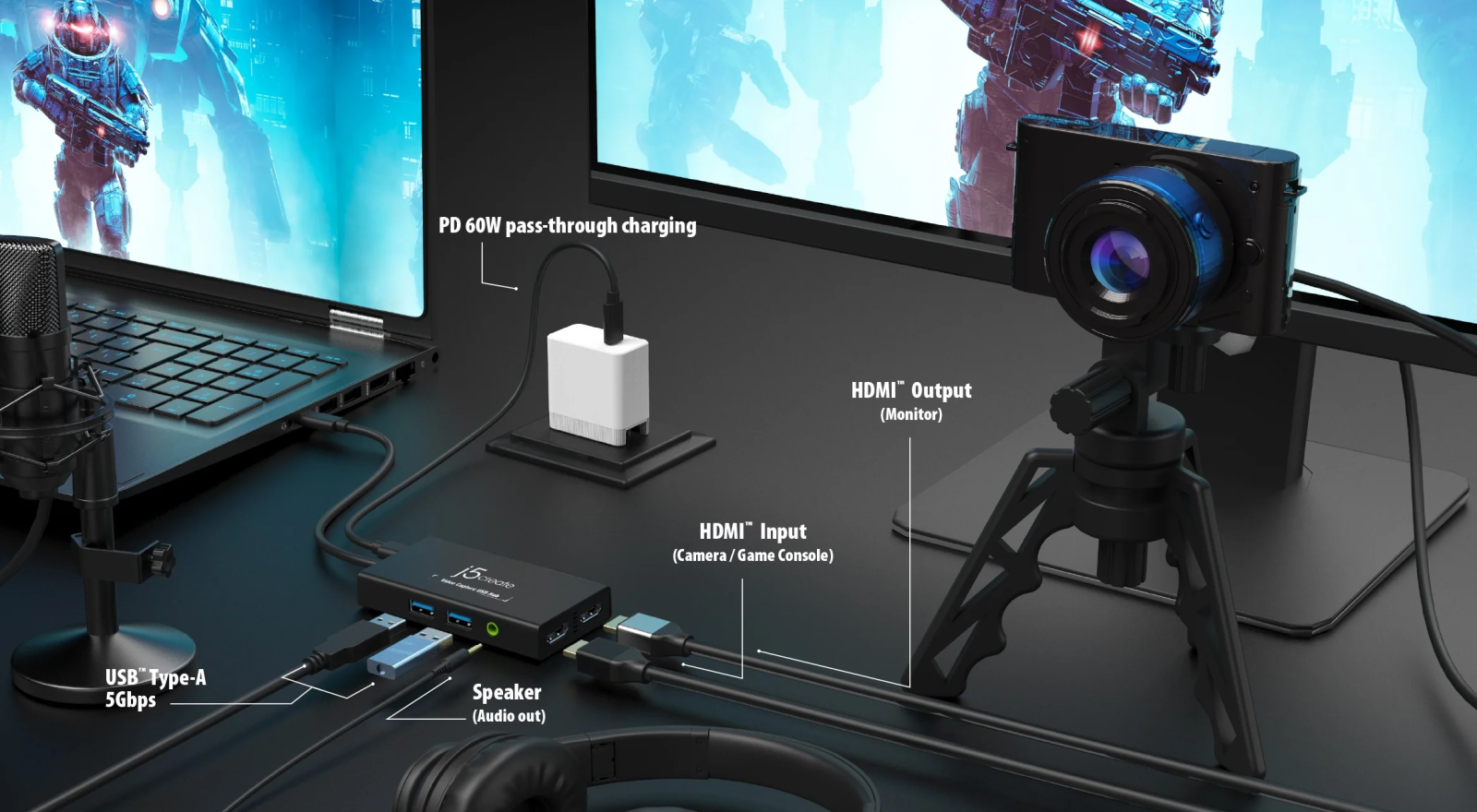

The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.



Features:

  • UVC Capture

    • HDMI™ to USB-C® with 60W Power Delivery
    • Power Delivery 3.0 lets you stream live without interruption
    • Ultra-low latency stream through USB-C® 3.2 connection
    • 3.5 mm audio jack allows you to connect headphones or speakers
    • 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
    • UVC standard - No driver installation required
    • Field production made easy with its compact size
  • USB-C® Hub with 4K HDMI™

    • Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz
    • USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
    • 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
    • 3.5 mm audio jack allows you to connect headphones or speakers
    • No driver installation required for Windows® or macOS®

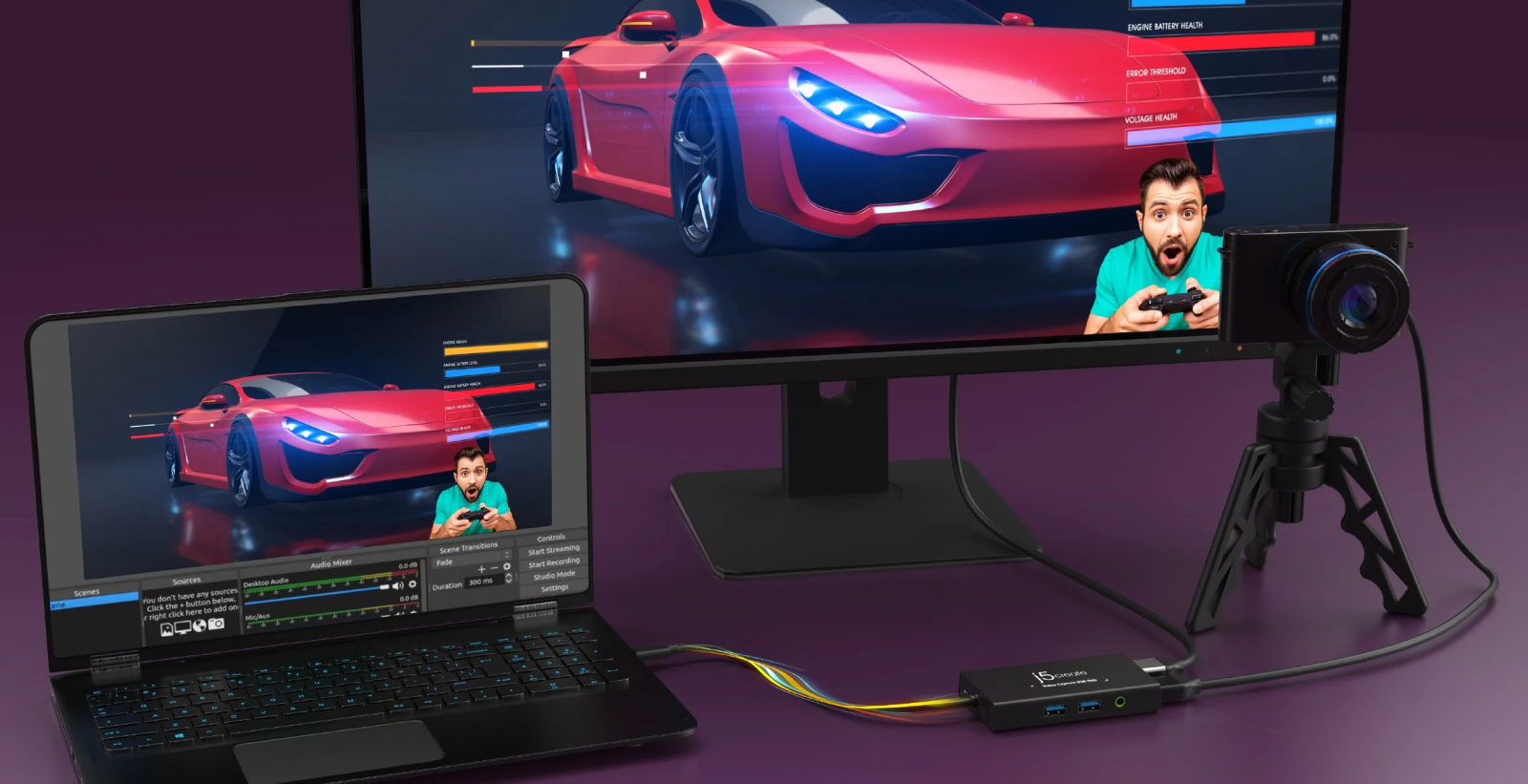

A unique USB-C® hub with video capture function, perfect for mobile live streaming from your phone or laptop





1080p video capture with ultra-low latency

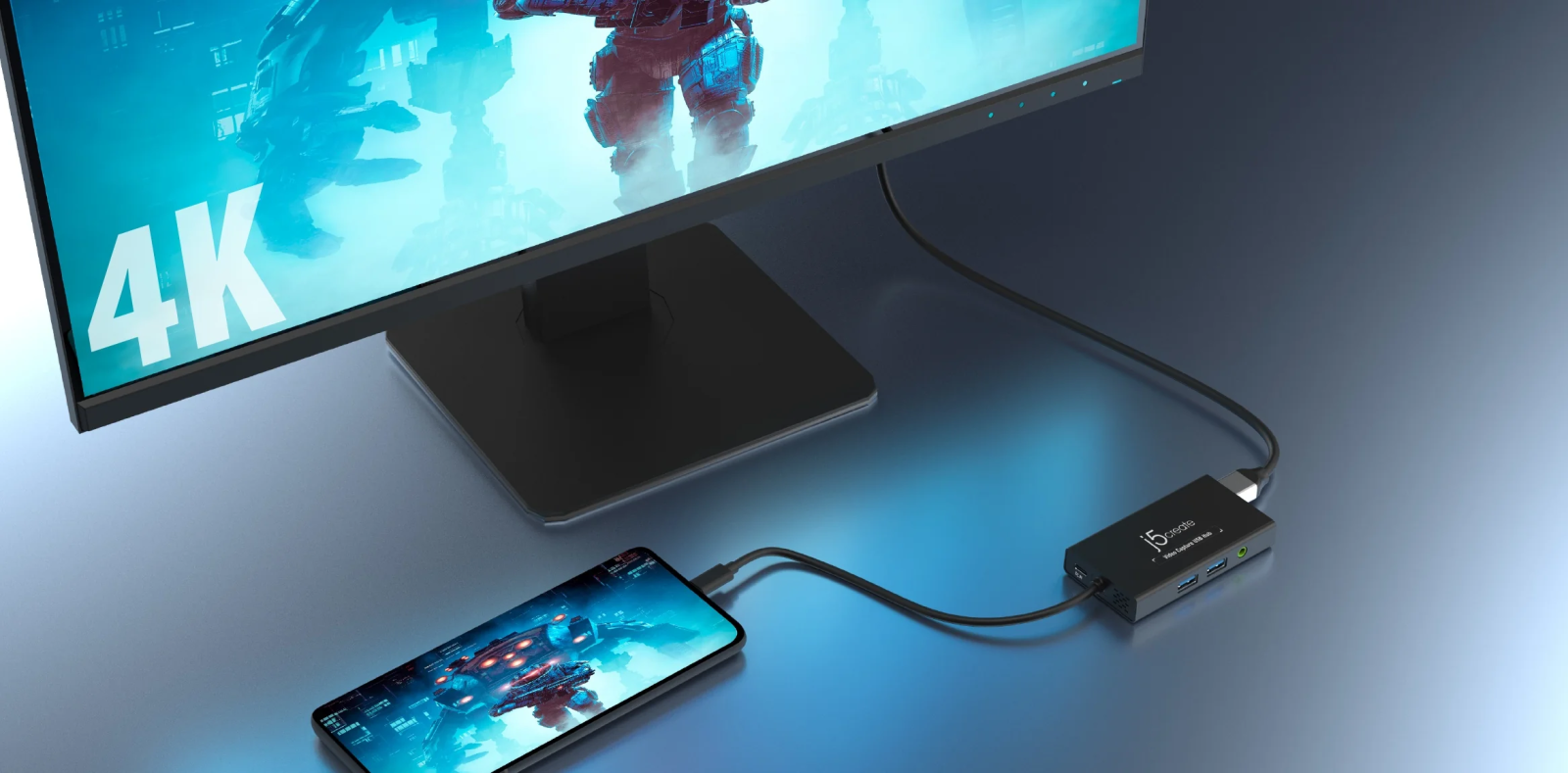

Easily add an HDMI™ display with resolutions up to 4K

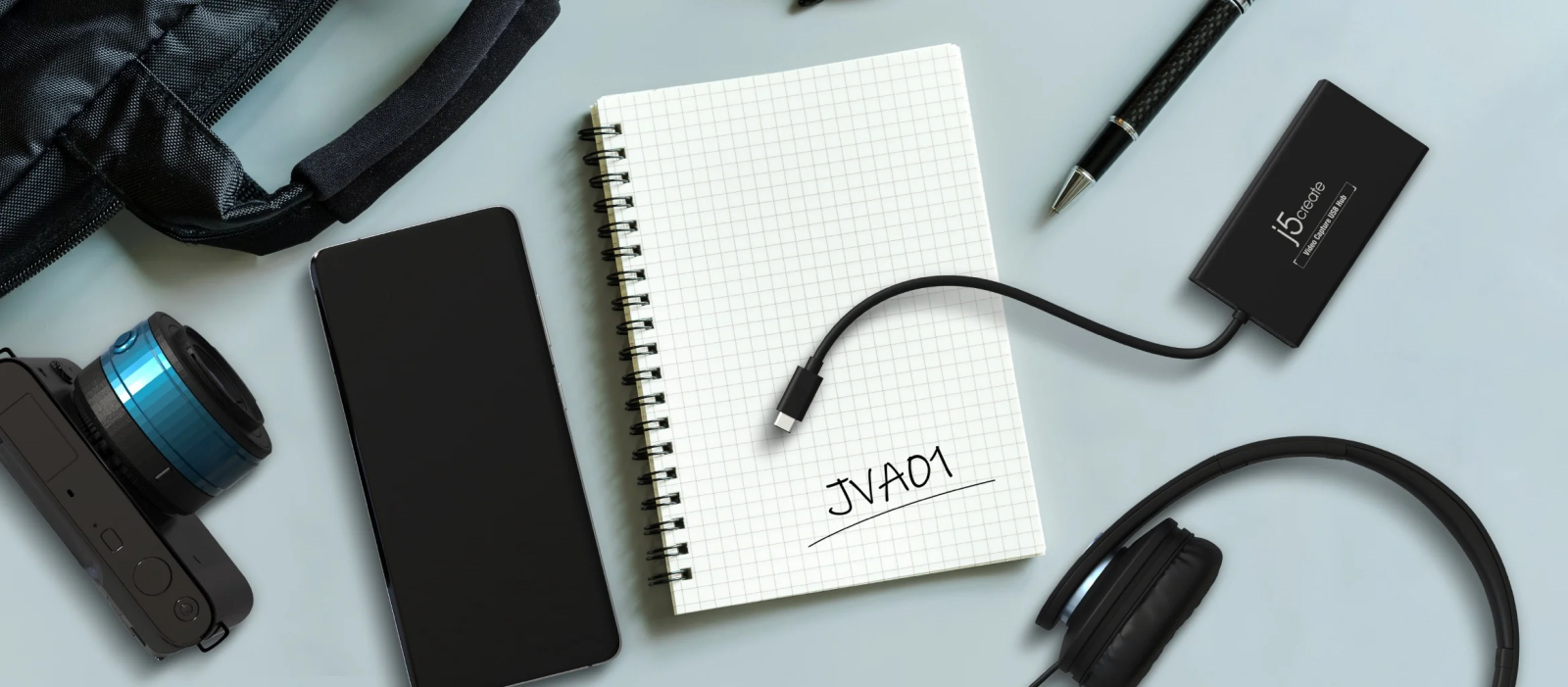

Perfect for on-the-go

Its compact and portable size make it a great tool for eld production





Specifications:



Host Connector1 - USB-C 3.2 FemalePower DeliveryUp to 60W via USB-C
Video Input1 - HDMI FemalePower Consumption≤ 450 mA
Video Output1 - HDMI FemaleInput Current3A
Audio InputNoInput Voltage20V
Audio Output1 - 3.5mm AUXOutput Current3A
Video SwitcherNoOutput Voltage20V
Audio SwitcherNoColorBlack
Power SourceBus-powered or self-powered (USB-C PD power)Enclosure TypePlastic
Ports1 - USB-C PD 3.0
1 - HDMI Input
1 - 4K HDMI Output
1 - 3.5 mm audio jack
2 - USB Type-A (5Gbps)
Cable Length11.8 in. (30 cm)
Supported Resolutions

HDMI In: 3840 x 2160

USB-C display: 3840 x 2160

Capture/Record: 1920 x 1080

Product Height0.59 in. (15 mm)
Maximum Display Refresh Rate30 HzProduct Width1.98 in. (50.5 mm)
Audio Channel2.1 via HDMIProduct Depth3.79 in. (96.5 mm)
Audio Frequency48 kHzProduct Weight2.43 oz (69g)
MicrophoneN/AStorage Temperature14 to 149°F (-10 to 65°C)
Headset2.1 StereoStorage Humidity< 85% non-condensing
CompressionUSB 2.0: MJPEGOperation Temperature32 to 104°F (0 to 40°C)
Encode FormatMJPEGOperation Humidity< 80% non-condensing




    Виж още Аудио Видео oбработка j5create
    Виж всички Аудио Видео oбработка в категорията
    Технически характеристики
    Монтаж:  Външен
