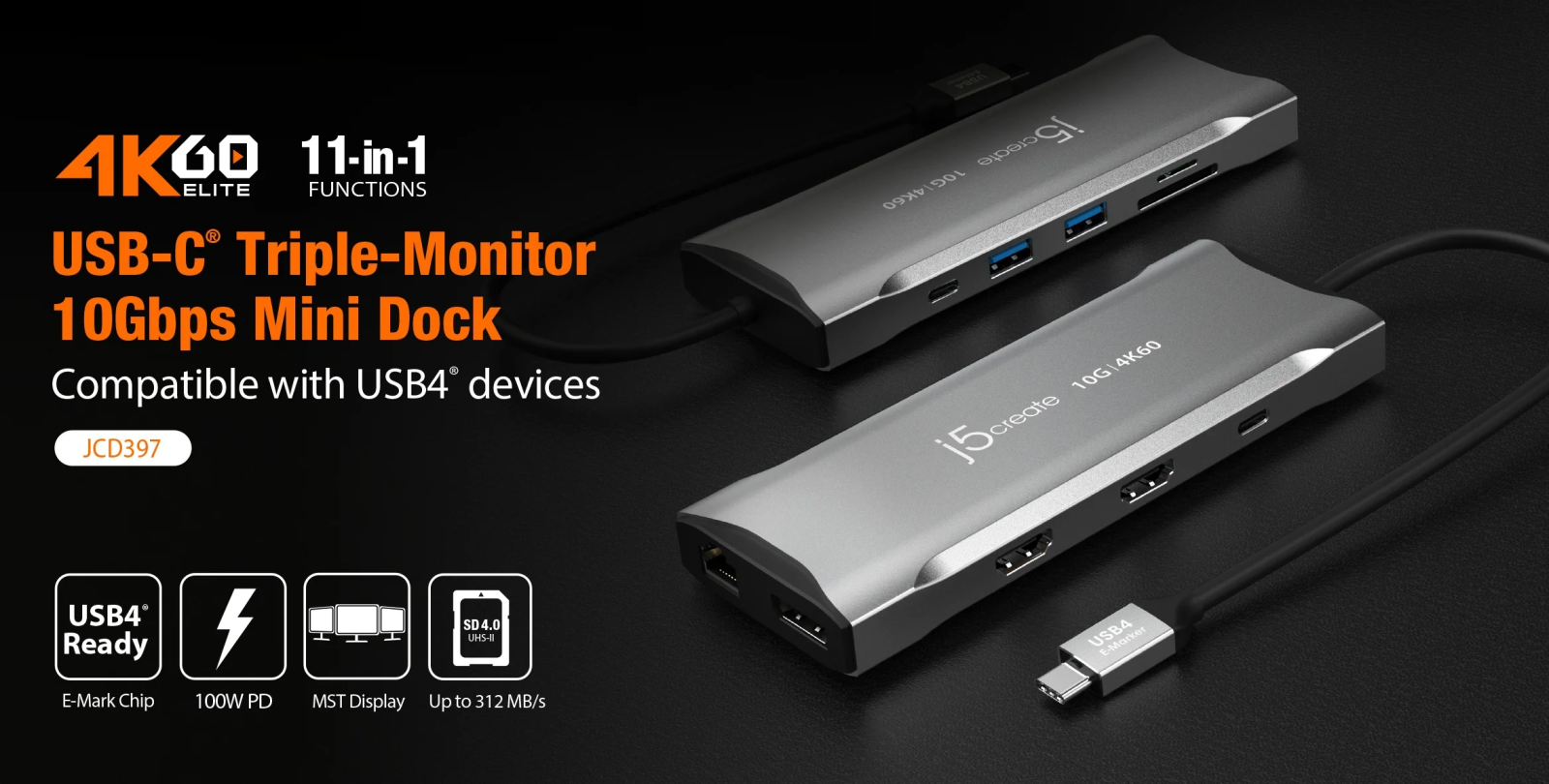

j5create JCD397
![](/images/custom/site/JCD397_web_01.png)
Equipped with an advanced USB-C E-Mark chip, this multi-monitor mini dock is compatible with USB4 hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB ports, as well as 100W Power Delivery pass-through charging.

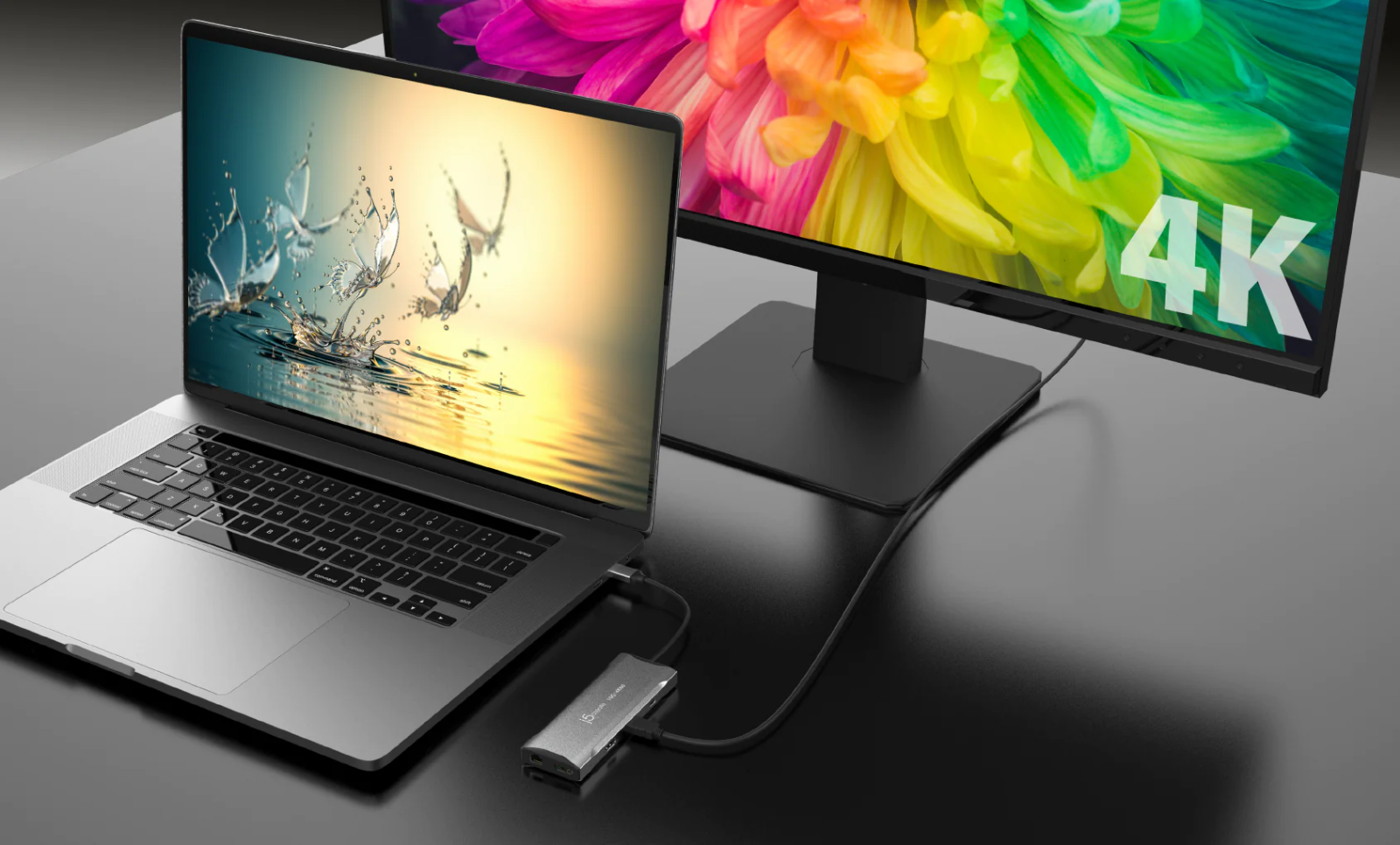

This USB-C mini dock supports DisplayPort 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI and a DisplayPort output. It provides three USB SuperSpeed 10 Gbps ports (1 USB-C and 2 USB Type-A) for peripheral connectivity or downstream charging, an SD & microSD 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C power adapter.
![](/images/custom/site/JCD393_web_002(1).png)
![](/images/custom/site/JCD397_web_03.png)

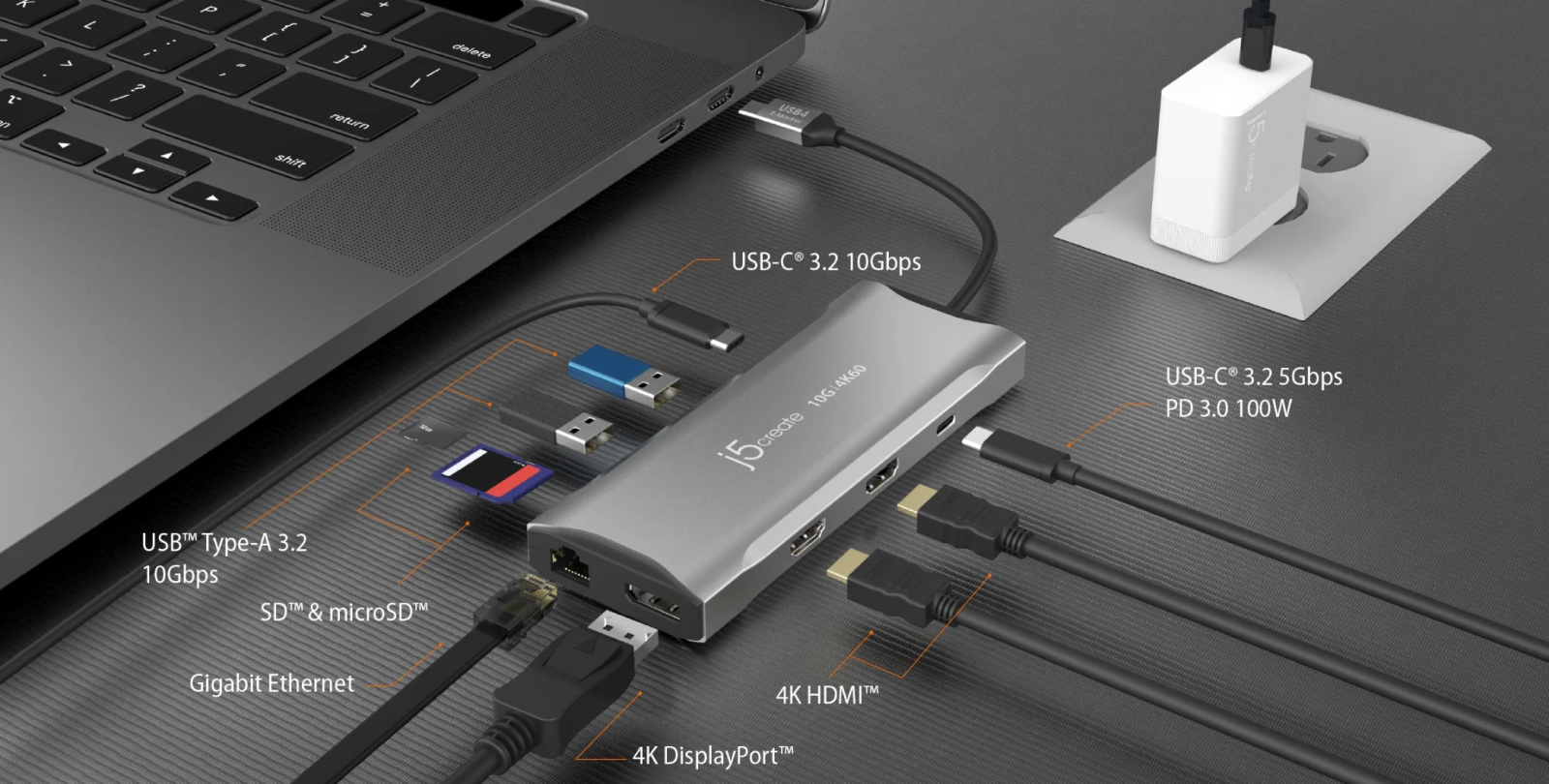

11-in-1 Functions
All the connections you need for maximum productivity
4K HDMI Output Mirror or extend your screen and directly output resolutions up to 4K UHD @ 60 Hz | ![]() |

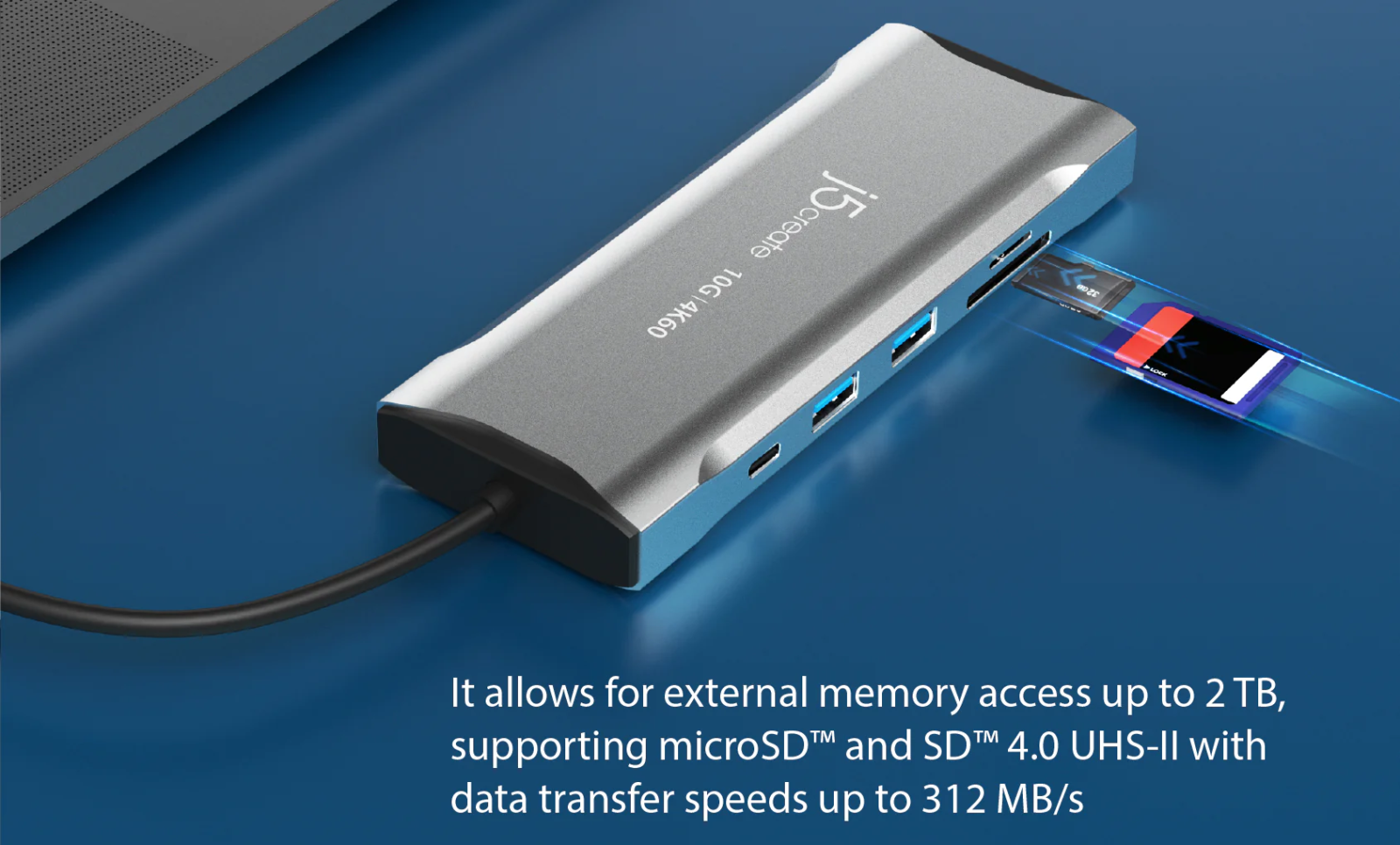

![]() | SD & microSD 4.0 Memory Card Reader/Writer |

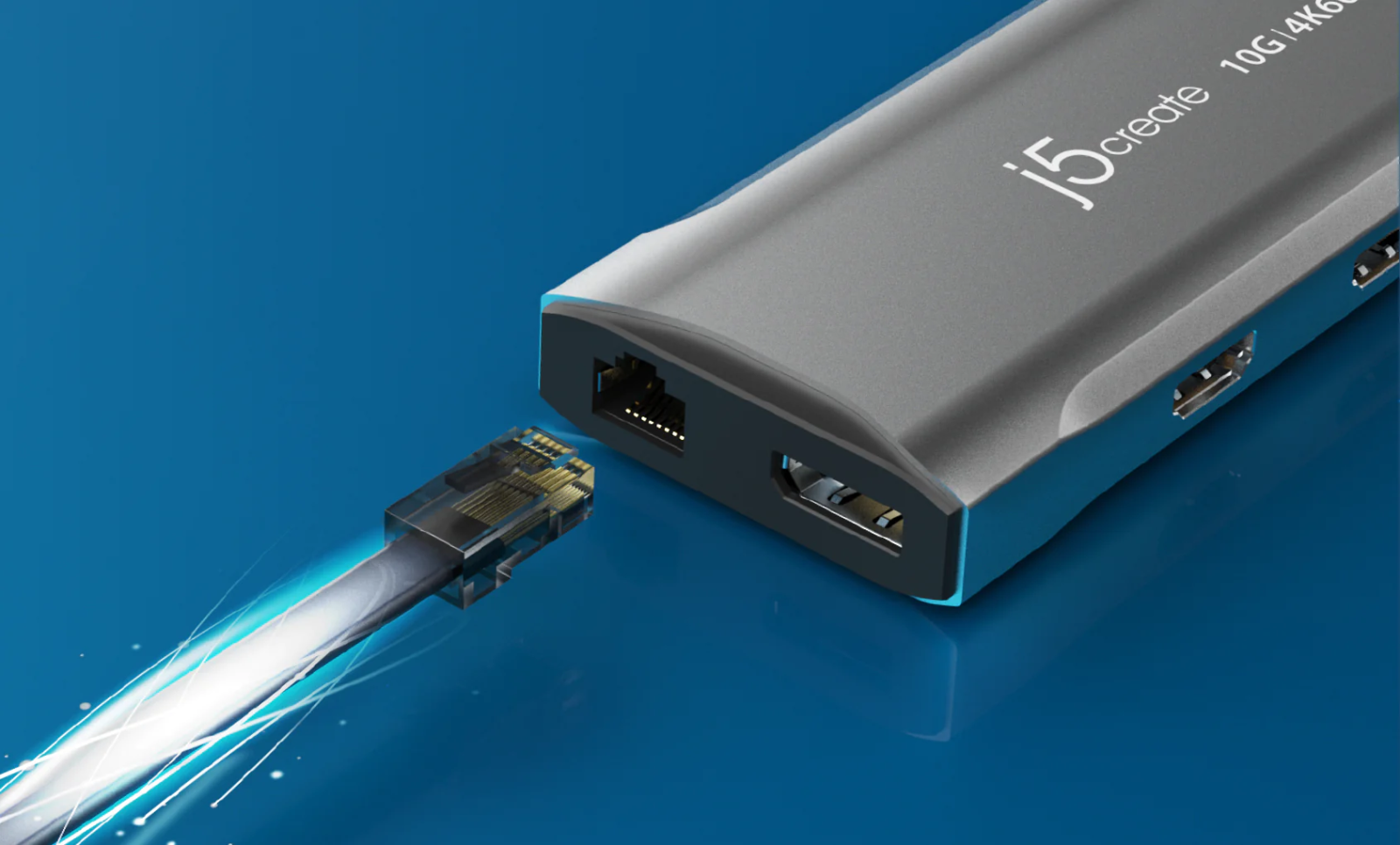

High-Speed Ethernet Port | ![]() |
Tech specs:
Hardware | |
Host Connector | 1 - USB-C Male |
Video Output | 2 - HDMI Female 1 - DisplayPort Female |
Power Source | Bus-powered or self-powered |
Network Interface | RJ45 (Gigabit Ethernet) |
Audio Supported | Yes |
Ports |
|
Performance | |
Maximum Display Resolution | 3840 x 2160 |
Maximum Display Refresh Rate | Windows (MST) 3840 x 2160 @ 60 Hz 2560 x 1440 @ 120 Hz 1920 x 1080 @ 144 Hz |
Maximum Data Transfer Rate | 10Gbps |
Displays Supported | 3 |
Compatible Networks | 10/100/1000 Mbps |
Audio Channel | 2.1 via HDMI |
Power | |
Power Delivery | Up to 100W via USB-C |
Power Consumption | ≤ 650 mA |
Input Current | Up to 5A |
Input Voltage | Up to 20V |
Output Current | Up to 4.25A |
Output Voltage | Up to 20V |
Physical Specifications | |
Color | Space Grey |
Enclosure Type | Aluminum |
Cable Length | 20 cm |
Product Height | 148 mm |
Product Width | 55 mm |
Product Depth | 17 mm |
Product Weight | 123.5g |
Виж още Докинг станции j5create
Виж всички Докинг станции в категорията
Технически характеристики
USB Type-А: | Да |
---|---|
USB Type-C: | Да |
Lightning: | Не |
USB 2.0: | Не |
USB 3.X: | Да |
Thunderbolt: | Не |
DisplayPort: | Да |
Mini DisplayPort: | Не |
HDMI: | Да |
DVI: | Не |
VGA (D-Sub): | Не |
RJ45: | Да |
Аудио изход: | Не |
Четец на карти: | Да |
Тип: | Laptop |
---|---|
Съвместимост: | Универсална |
От какъв интерфейс: | USB C |
