Интерактивен дисплей IIYAMA TF1633MSC-B1, 15.6" (39.62cm) Full HD IPS сензорен дисплей, DisplayPort, HDMI, USB

IIYAMA TF1633MSC-B1

15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology

The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail.

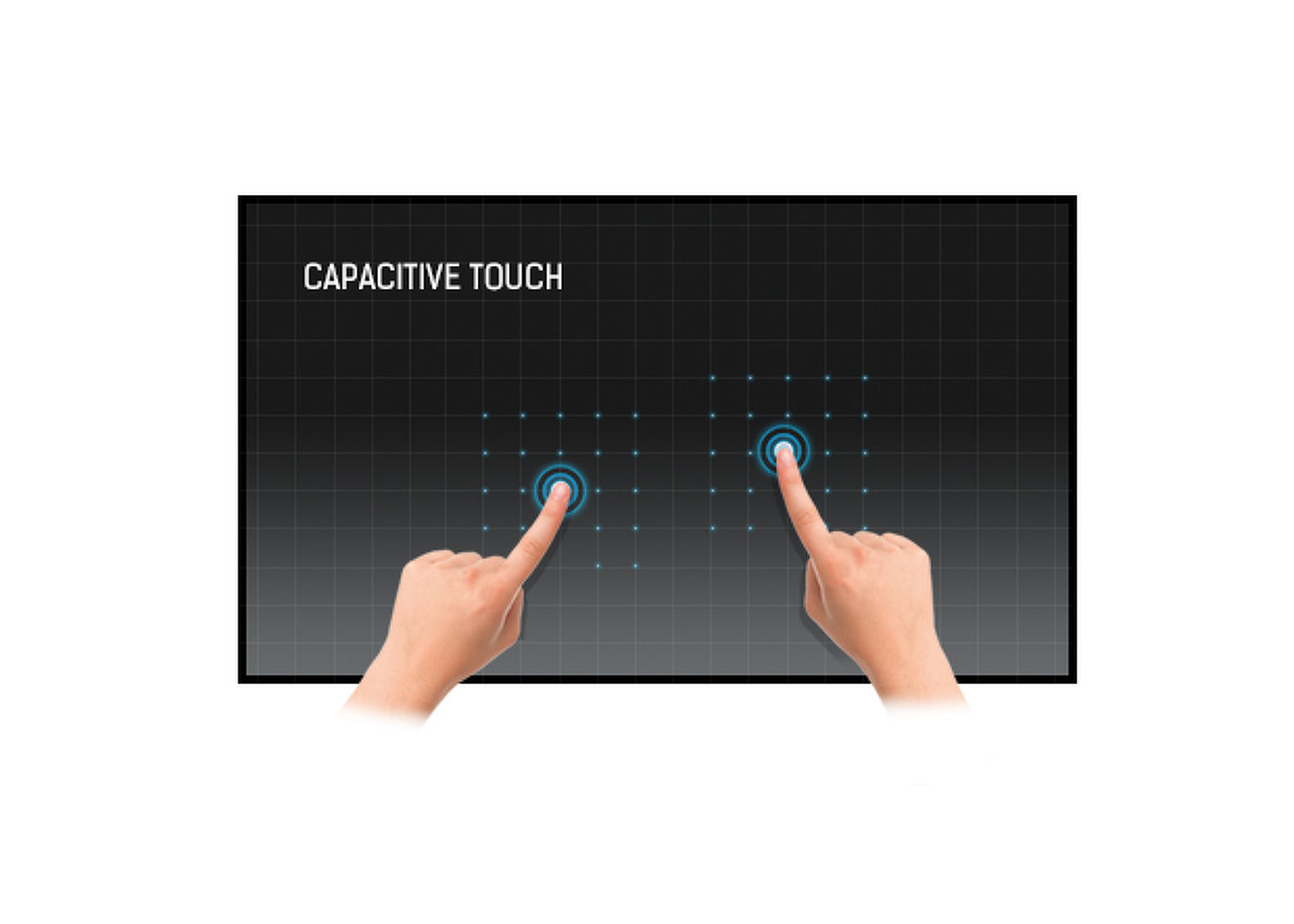

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.





Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.





IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.





Built-in speakers

Front Facing Speakers support conferencing configurations with ultra clear sound quality from anywhere in the room.





Specifications:

DISPLAY CHARACTERISTICS
Design     Edge to edge glass
Diagonal     15.6", 39.5cm
Panel     IPS
Native resolution     1920 x 1080 @60Hz (2.0 megapixel)
Aspect ratio     16:9
Panel brightness     450 cd/m²
Brightness     385 cd/m² with touch
Light transmittance     85%
Static contrast     1000:1
Response time (GTG)     5ms
Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support     16.7mln
Horizontal Sync     30 - 68kHz
Viewable area W x H     344.2 x 193.6mm, 13.6 x 7.6"
Pixel pitch     0.179mm
Bezel colour and finish     black, matte

TOUCH
Touch technology     projective capacitive
Touch points     10 (HID, only with supported OS)
Touch method     stylus, finger, glove (latex)
Palm rejection     yes

INTERFACES / CONNECTORS / CONTROLS
Digital signal input     HDMI x1
DisplayPort x1
Audio output     Speakers 2 x 2W
HDCP     yes
USB HUB     x2 (2.0 (DC5V, 500mA))

FEATURES
Water and dust protection     IP54 (front)
OSD key lock     yes
GENERAL
OSD languages     EN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL
Control buttons     Power, Menu, Volume +, Volume -, Input
User controls     Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information)
Convenience     Kensington-lock™ prepared
Blue light reducer     yes
Plug&Play     DDC2B

MECHANICAL
Tilt angle     90° up; 5° down
Fanless design     yes
VESA mounting     100 x 100mm
Cable management system     yes
MTBF     50 000 hours (excluding backlight)

POWER MANAGEMENT
Power supply unit     external
Power supply     DC 12 V
Power usage     12W typical, 8W stand by, 0.5W off mode

SUSTAINABILITY
Regulations     CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)     C
REACH SVHC     above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D     389 x 246.5 x 45.5mm
Box dimensions W x H x D     475 x 343 x 169mm
Weight (without box)     2kg
Weight (with box)     3.9kg
