Монитор IIYAMA T2755MSC-B1, 27" (68.58cm) IPS сензорен панел, Full HD, 5ms, 400cd/m2, DisplayPort, HDMI, USB Hub

IIYAMA T2755MSC-B1

27” Optical Bonded PCAP 10pt touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and a flexible stand

The ProLite T2755MSC with its Full HD (1920x1080) resolution and with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of applications.

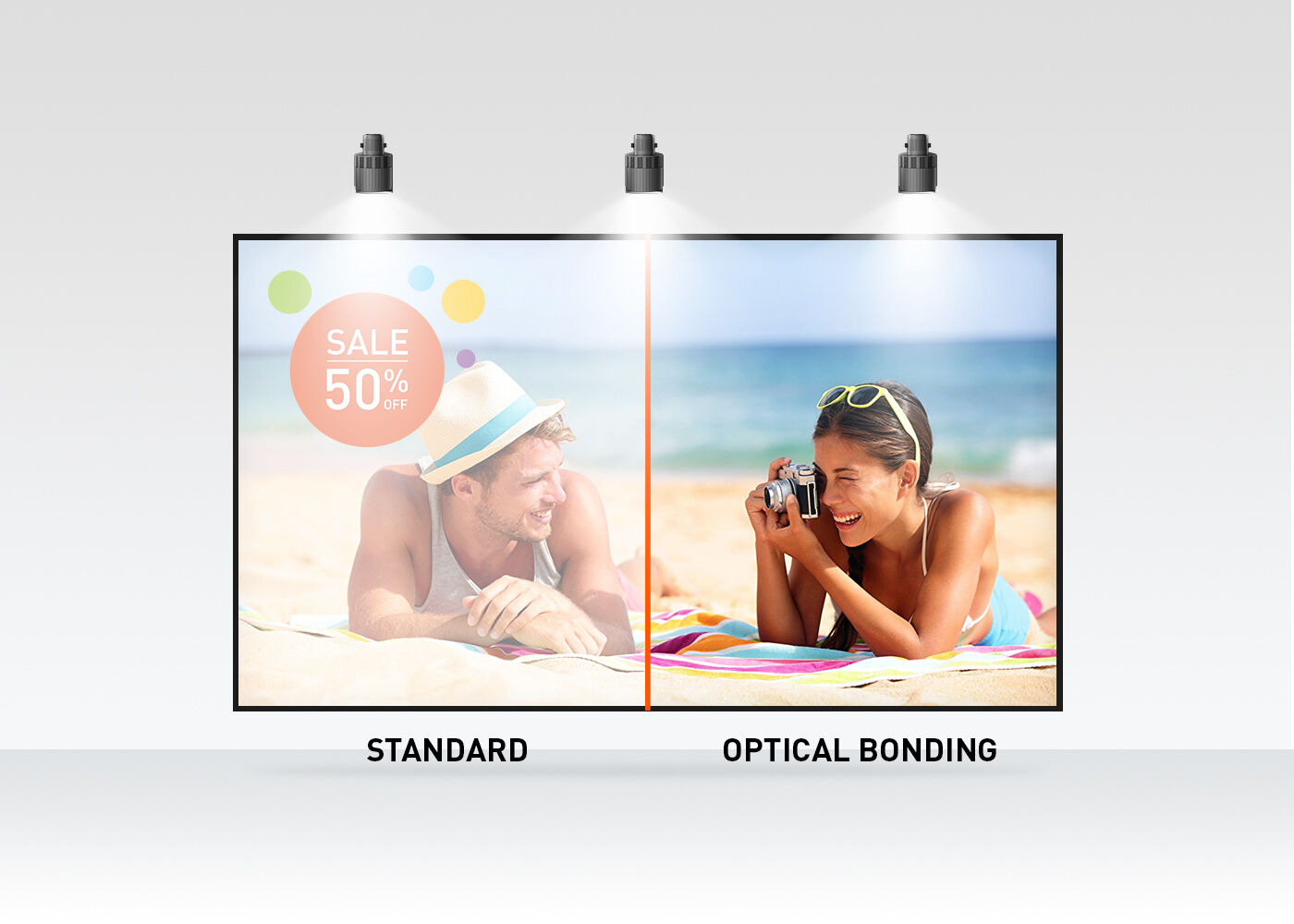

Optical bonded PCAP

The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

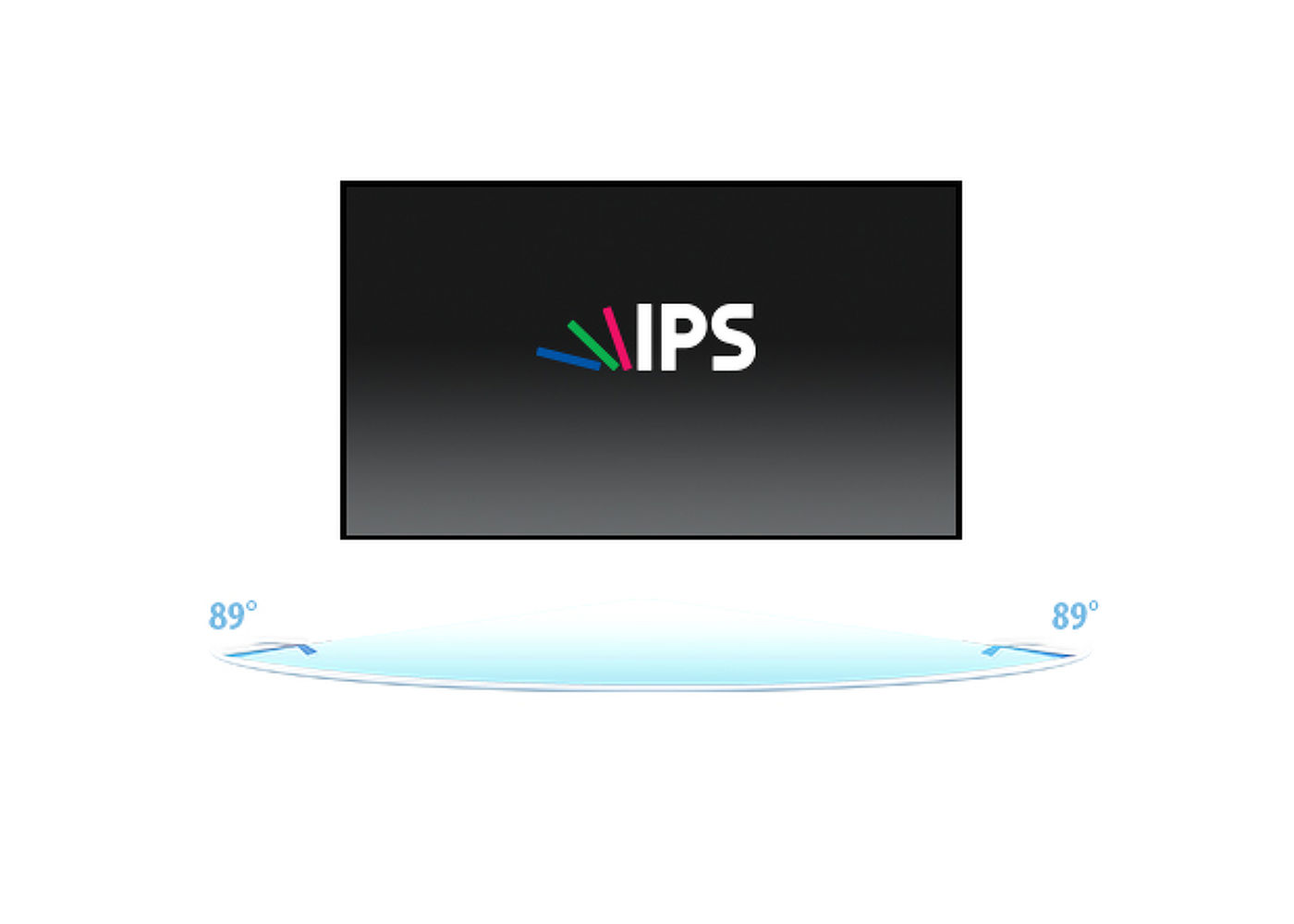

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

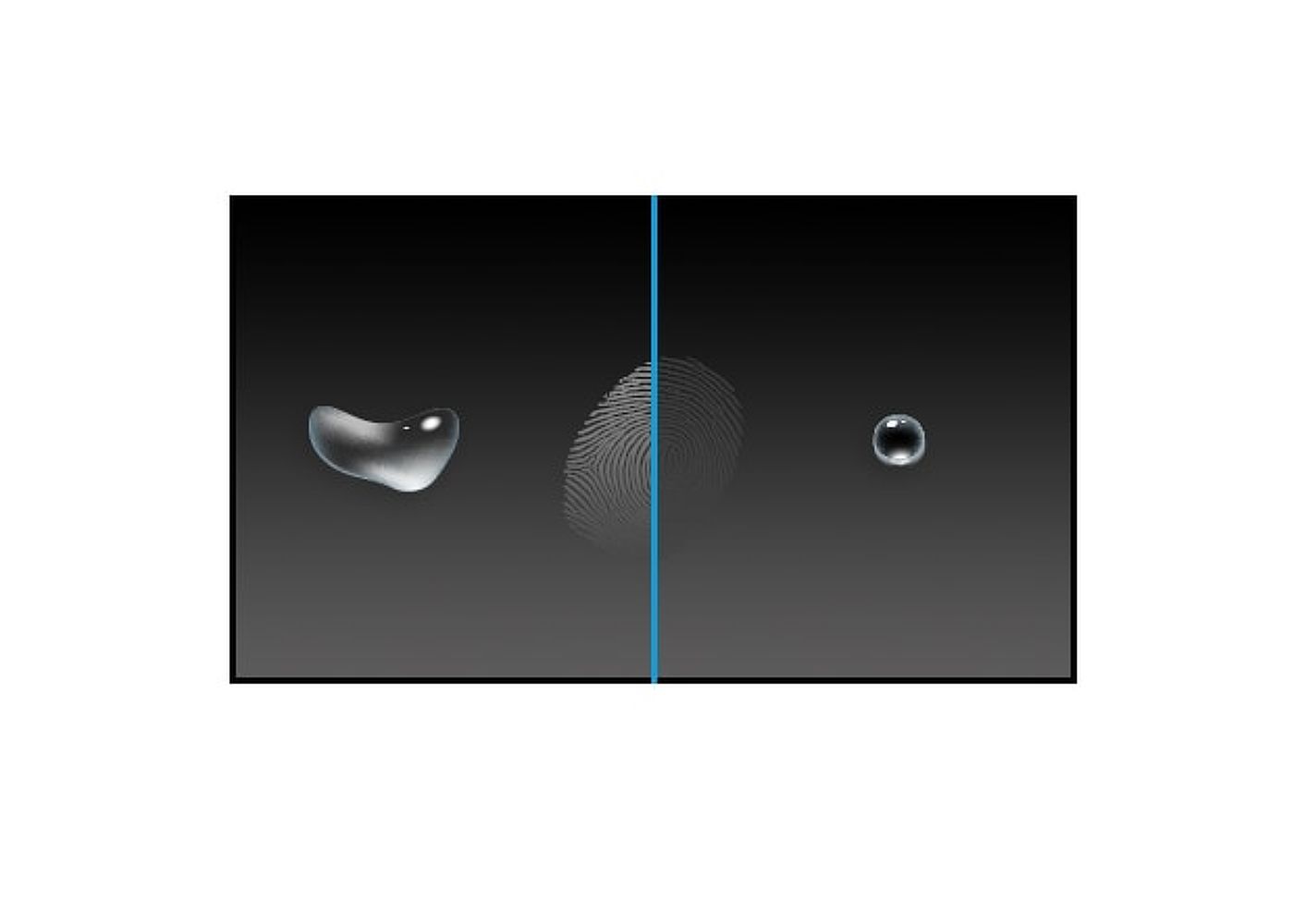

Anti-fingerprint coating

This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Speakers and headphones

Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

Specifications:

DISPLAY CHARACTERISTICS
Design     Edge to edge glass
Diagonal     27", 68.6cm
Panel     IPS
Native resolution     1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio     16:9
Panel brightness     400 cd/m²
Brightness     360 cd/m² with touch
Light transmittance     90%
Static contrast     1000:1
Response time (GTG)     5ms
Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support     16.2mln (6bit + Hi-FRC)
Horizontal Sync     30 - 83kHz
Viewable area W x H     597 x 336mm, 23.5 x 13.2"
Pixel pitch     0.311mm
Bezel colour and finish     black, matte

TOUCH
Touch technology     projective capacitive
Touch points     10 (HID, only with supported OS)
Touch accuracy     +- 2mm
Touch method     stylus, finger, glove (latex)
Touch interface     USB
Palm rejection     yes

INTERFACES / CONNECTORS / CONTROLS
Digital signal input     HDMI x1
DisplayPort x1
Audio output     Mini jack x1
Speakers 2 x 1W
HDCP     yes
USB HUB     x2 (v.3.2 (Gen 1, 5Gbit))

FEATURES
Extra     anti-fingerprint coating
Glass hardness     7H
OSD key lock     yes

GENERAL
OSD languages     EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control buttons     Press/enter, right/volume, left/eco/exit, up/signal select, down, power
User controls     Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, opening logo, led, touch switch)
Convenience     Kensington-lock™ prepared
Blue light reducer     yes
Flicker free     yes
Plug&Play     DDC2B
MECHANICAL
Tilt angle     15° up; 70° down
VESA mounting     100 x 100mm
MTBF     50000 hours (excluding backlight)

POWER MANAGEMENT
Power supply unit     internal
Power supply     AC 100 - 240V, 50/60Hz
Power usage     30W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations     CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)     E
REACH SVHC     above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D     614 x 364.5 x 49mm
Box dimensions W x H x D     710 x 460 x 130mm
Weight (without box)     5.8kg
Weight (with box)     7.3kg
