Дисплей IIYAMA T1932MSC-W1SAG, 19" (48.26 cm) SXGA IPS сензорен дисплей, 14ms, 1200:1, 250 cd/m2, DisplayPort, HDMI, VGA

ProLite T1932MSC-W1SAG

19’’ 10pt touch monitor featuring IPS panel and AG coating

The ProLite T1932MSC-W1SAG 19" 10tp touchscreen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS panel guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

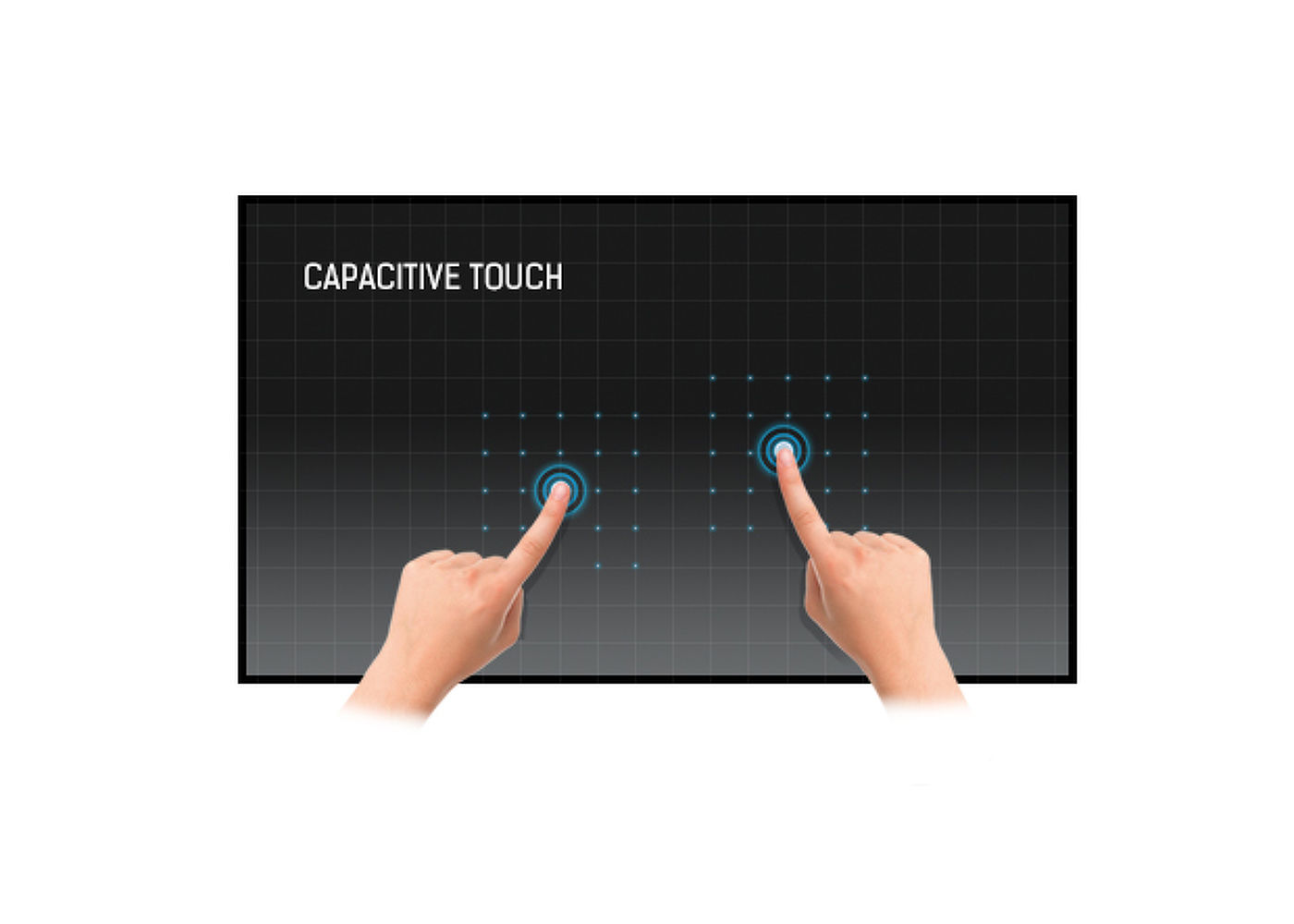

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

AG Coating

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

Specifications:

DISPLAY CHARACTERISTICS
Design     Edge to edge glass
Diagonal     19", 48cm
Panel     IPS
Native resolution     1280 x 1024 (1.3 megapixel)
Aspect ratio     5:4
Panel brightness     250 cd/m²
Brightness     215 cd/m² with touch
Light transmittance     85%
Static contrast     1000:1 with touch
Response time (GTG)     14ms
Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support     16.7mln
Horizontal Sync     31 - 80kHz
Viewable area W x H     374.8 x 300mm
Pixel pitch     0.2928mm
Bezel colour and finish     white, matte

TOUCH
Touch technology     projective capacitive
Touch points     10 (HID, only with supported OS)
Touch method     stylus, finger, glove
Touch interface     USB


INTERFACES / CONNECTORS / CONTROLS
Analog signal input     VGA x1
Digital signal input     HDMI x1
DisplayPort x1
Audio input     Mini jack x1
Audio output     Speakers 2 x 1W
HDCP     yes

FEATURES
Water and dust protection     IP54 (front)
OSD key lock     yes

GENERAL
OSD languages     EN, DE, FR, ES, IT, CN, JP
Control buttons     Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls     Picture (contrast, brightness,, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, factory)
Convenience     Kensington-lock™ prepared
Plug&Play     DDC2B

MECHANICAL
Tilt angle     90° up; 5° down
VESA mounting     100 x 100mm
Cable management system     yes

POWER MANAGEMENT
Power supply unit     internal
Power supply     AC 100 - 240V, 50/60Hz
Power usage     20W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations     CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)     E
REACH SVHC     above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D     432 x 413.5 x 239.5mm
Weight (without box)     5.4kg
