Публичен дисплей IIYAMA LE4341S-B2, 42.5"(108.0 cm) Full HD IPS дисплей, HDMI, VGA, USB, RS232, RCA, LAN

ProLite LE4341S-B2

43" Flexible Full HD professional large format display with USB media playback

Set in a slim bezel, the iiyama LE4341S is a professional digital signage display offering 18/7 operating time in landscape orientation.

This Full HD and fanless IPS display guarantees great viewing from all angles, high brightness and exceptional colour clarity. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

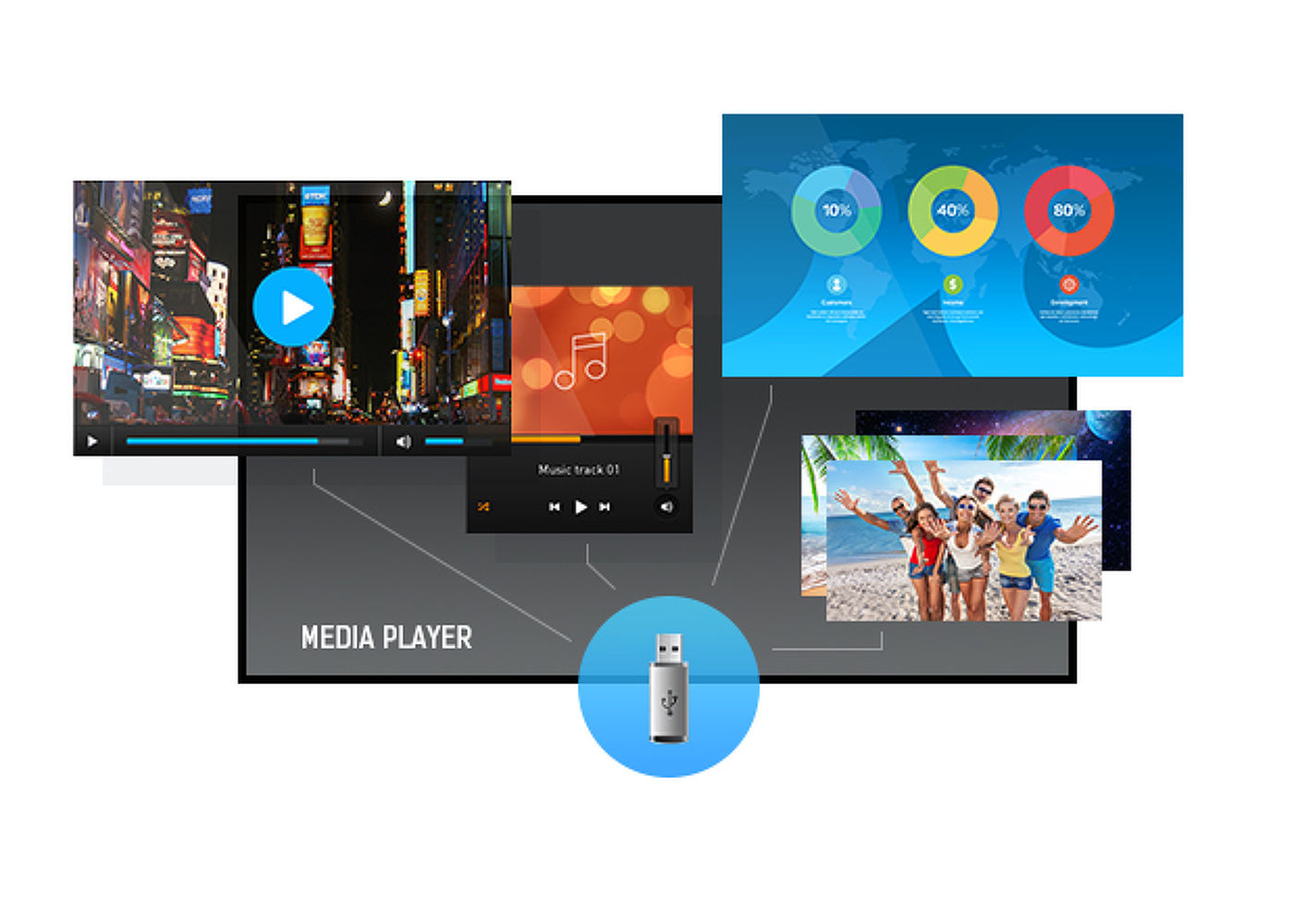

Media player

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

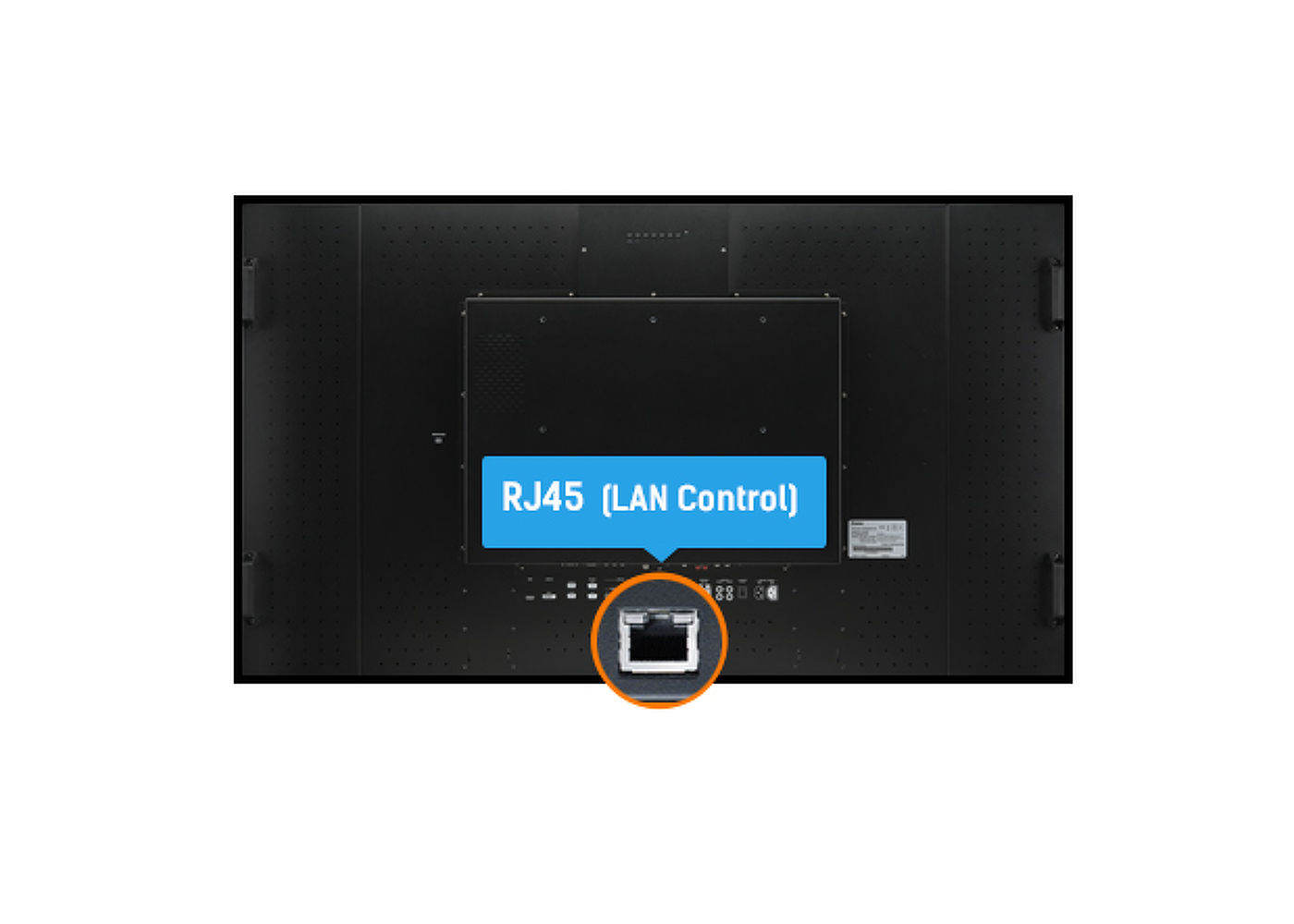

LAN Control

LAN control enables making adjustments in the display OSD menu through your network (software not included).

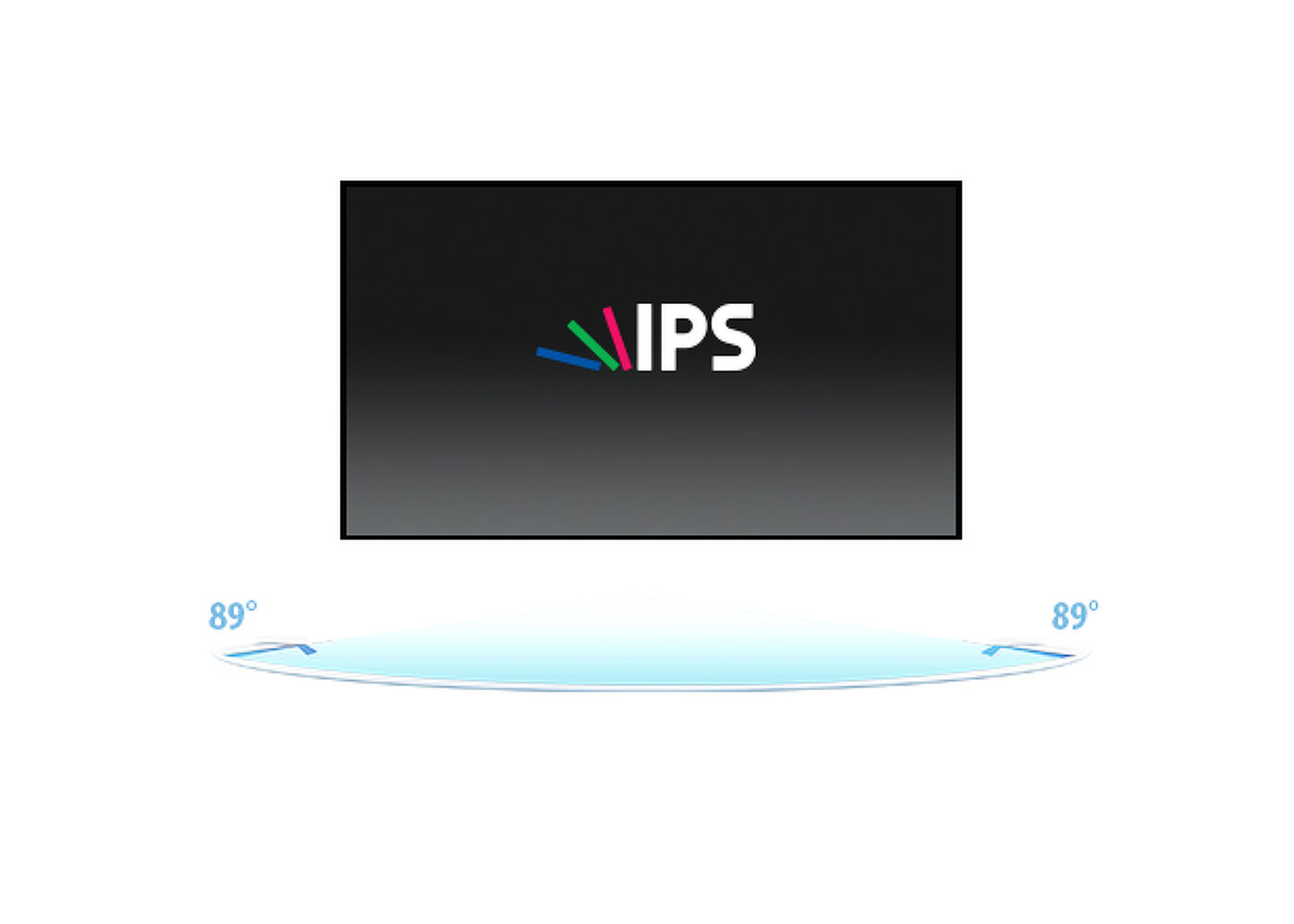

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Full HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

Specifications:

DISPLAY CHARACTERISTICS
Design     Thin bezel
Diagonal     42.5", 108cm
Panel     IPS, haze 1%
Native resolution     1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio     16:9
Panel brightness     350 cd/m²
Static contrast     1200:1
Response time (GTG)     8ms
Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support     1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync     30 - 83kHz
Viewable area W x H     940.9 x 529.3mm, 37 x 20.8"
Bezel width (sides, top, bottom)     14mm, 14mm, 14mm
Pixel pitch     0.490mm
Bezel colour and finish     black, glossy

INTERFACES / CONNECTORS / CONTROLS
Analog signal input     VGA x1 (max. 1920x1080 @60Hz)
Digital signal input     HDMI x3 (v2.0, max. 1920x1080 @60Hz)
Audio input     Mini jack x1
Monitor control input     RS-232c x1
RJ45 (LAN) x1
IR x1
Audio output     RCA (L/R) x1
Speakers 2 x 10W
Monitor control output     RS-232c x1
IR loop through x1
HDCP     2.2
USB ports     x1 (2.0, FW update support)

FEATURES
Max. non-stop operating time     18/7
Media playback     yes
Housing (bezel)     plastic

GENERAL
OSD languages     EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL
Control buttons     Power
User controls     picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, colour, contrast, hue, sharpness, RGB range, reset), Sound (treble, bass, balance, speaker, audio output, reset), general settings 1 (menu languages, clock, schedule, HDMI CEC link, HDMI modes, communication setting), screen (auto adjust, clock, phase, H. position, V. position, reset), general settings 2 (auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)

MECHANICAL
Orientation     landscape
Fanless design     yes
VESA mounting     200 x 200mm
Operation temperature range     0°C - 40°C
Storage temperature range     - 20°C - 60°C
MTBF     50000 hours (excluding backlight)

POWER MANAGEMENT
Power supply unit     internal
Power supply     AC 100 - 240V, 50/60Hz
Power usage     53W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations     CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369)     G
REACH SVHC     above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D     968 x 557.5 x 54mm
Box dimensions W x H x D     1075 x 683 x 127mm
Weight (without box)     8.4kg
