Main Technical Indicators

1. Service conditions:

Environment temperature: -400C—+800C

Barometric press: 86—106 KPa

Relative humidity: 10%—95%

Environment voice: <=60 dB(A)

2. Alarm of sound level:> =30dB(A)

3. Work voltage: 9V~16Vdc(12Vdc/400mA)

4. Size of product: 14x85x147 (mm)

5. Weight of product: 320g

Инструкции преди включване:

1. Know the type of your vehicle. When purchasing HUD, you need to choose the type of vehicle that meets the OBDII standards for normal use. Open the engine hood and find the paster below it (see the picture below), if it has words like OBDII CERTIFIED, then it can be installed. Check if there is a test diagnostic communication link (TDCL) under the steering wheel.

2. Find out the diagnostic link (see the picture below) of vehicle 16 pin and connect it well with OBDII connecting line. As different types of vehicles have different positions for diagnostic link and some are relatively narrow, patch cord can be purchased.

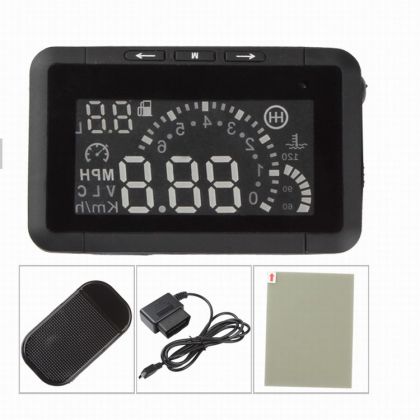

3. Put the give-away non-slip mat at the flat place in front of the navigation bridge, then you can place the host machine of HUD on it and adjust its location at any time.

4. The reflecting film should be pasted right above the H101 host machine and it should be able to reflect the mainframe screen.

Methods of pasting the film:

A . equably water the place that the film will be pasted on ;

B . rip off the covering layer of the film , and water both sides of it , and paste it to the right place.

C. After you have adjusted the location well, you can use a scratch board or something else flat to slick the film and squeeze the water inside out until there is no bubble or water in it.

D. A few minutes later, the moisture inside the film totally evaporates , then you can finish this by wiping away the water and dust around .
