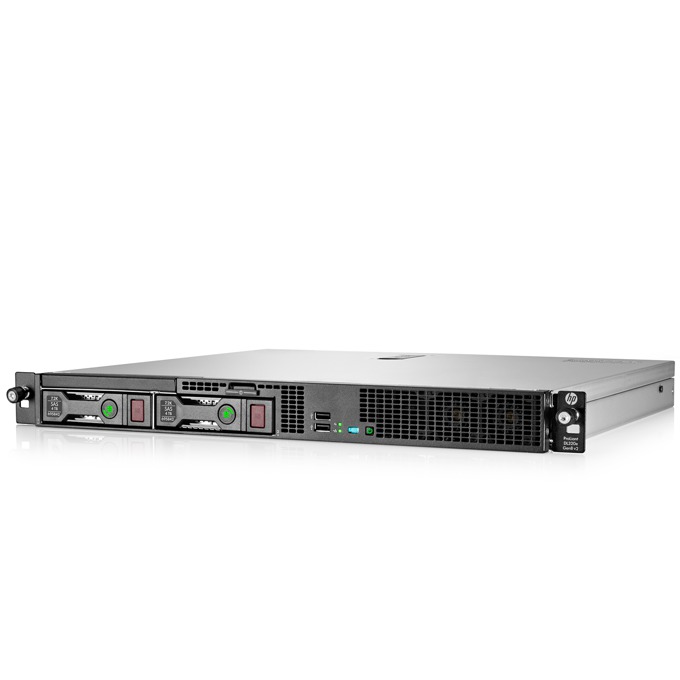

DL320e-Gen8
(768646-425)

Compact, Affordable, Powerful and Flexible

The HP ProLiant DL320e Gen8 v2 Server provides a short 15.07 inch chassis depth for mobility and space requirements while tool-less access to system components enhances serviceability.

The latest Intel Xeon E3-1200 v3 series processors, supporting up to 3.7 GHz and four (4) cores, provide the processing power needed to handle a variety of workloads. Low cost Pentium® and Core series processors enable the most affordable configurations.

Offers outstanding configuration flexibility with support for up to two Large Form Factor (LFF) or four Small Form Factor (SFF) drives, four DDR3 UDIMMs, 250W/300W (depending on region) or 750W power supplies, and optimal deployment options via two PCIe slots and seven USB ports.

Supports the 24-port HP 1810 Switch Series, extending the benefits of HP Converged Infrastructure. HP 1810 Switch Series devices enhance both connectivity and data availability, with features such as a browser-based management interface and link aggregation.

Increase System Uptime with Built-in Gen8 Technologies

The HP ProLiant DL320e Gen8v2 Server supports HP SmartMemory, preventing data loss and downtime with enhanced error handling while also improving workload performance and power efficiency.

HP SmartDrive technology improves serviceability and prevents data loss with features such as icon-based status display and Do Not Remove LED.

HP Smart Array options provide businesses RAID mirroring and striping capability to protect critical data while Flash-backed write cache (FBWC) captures and holds data indefinitely in the event of a power loss, equipment failure, human error or virus attacks.

Dedicated iLO connection for faster and more secure data transmission.

NEBS compliance verifies high product quality and reliability for the telecommunications environment. Note that a 750W power supply is required.

Unlock Your Infrastructure’s Potential with Easy-to-Use Integrated Management and Support

HP iLO Management Engine is a complete set of embedded features, standard on all HP ProLiant Gen8 Server series. It includes HP iLO, HP Agentless Management, HP Active Health System, HP Intelligent Provisioning, and HP Embedded Remote Support.

HP Insight Control provides advanced management capabilities across the lifecycle of your HP ProLiant server infrastructure. HP iLO Advanced, a key component, provides enhanced remote server functions that reduce IT travel costs, while decreasing time-to-resolution.

HP Insight Online with HP Insight Remote Support provides 24X7 remote monitoring and anywhere, anytime personalized access to your IT and support status.

HP Smart Update reduces deployment time and update complexity by systematically updating server infrastructure in the data center. It includes HP Smart Update Manager (HP SUM), and Service Pack for ProLiant (SPP), and other products.

Energy Efficiency for Power Savings and a Green Environment

The high efficiency, optional 750W DC power supply available with the four Small Form Factor (SFF) disk drive configuration provides up to 94% efficiency.

First in industry to include 3D array of temperature sensors to help precisely control server fans to direct cooling and reduce unnecessary fan power, saving on cooling costs.

Processor
Intel® Xeon® E3-1231 v3 (4 core, 3.4 GHz, 8MB, 80W)

Number of processors
1

Processor core available
4

Form factor (fully configured)
1U

Power supply type
(1) 250W factory integrated power supply kit Multi-output

Expansion slots
(2) Maximum - For detail descriptions reference the QuickSpec

Memory, standard
4GB (1x4GB) UDIMM

Memory slots
4 DIMM slots; Maximum

Memory type
2R x8 PC3-12800E-11

Included hard drives
None ship standard; Supports up to (2) LFF SAS/SATA/SSD non-hot plug or hot plug drives

1 Serial
1 Video (Rear)
1 SD slot (Internal)
5 USB 2.0 Ports total (2 rear, 2 front, 1 internal (optional)),
2 USB 3.0 ports (rear)

Optical drive type
None ship standard

Network controller
1Gb 332i Ethernet Adapter 2 Ports per controller

Storage controller
(1) Dynamic Smart Array B120i/ZM

Dimensions (W x D x H)
43.5 x 38.3 x 4.3 cm

Infrastructure management
iLO Management Engine, Insight Control (optional)
