UPS Hikvision DS-UPS1000, 1000VA/600W, Online, LCD дисплей, Tower

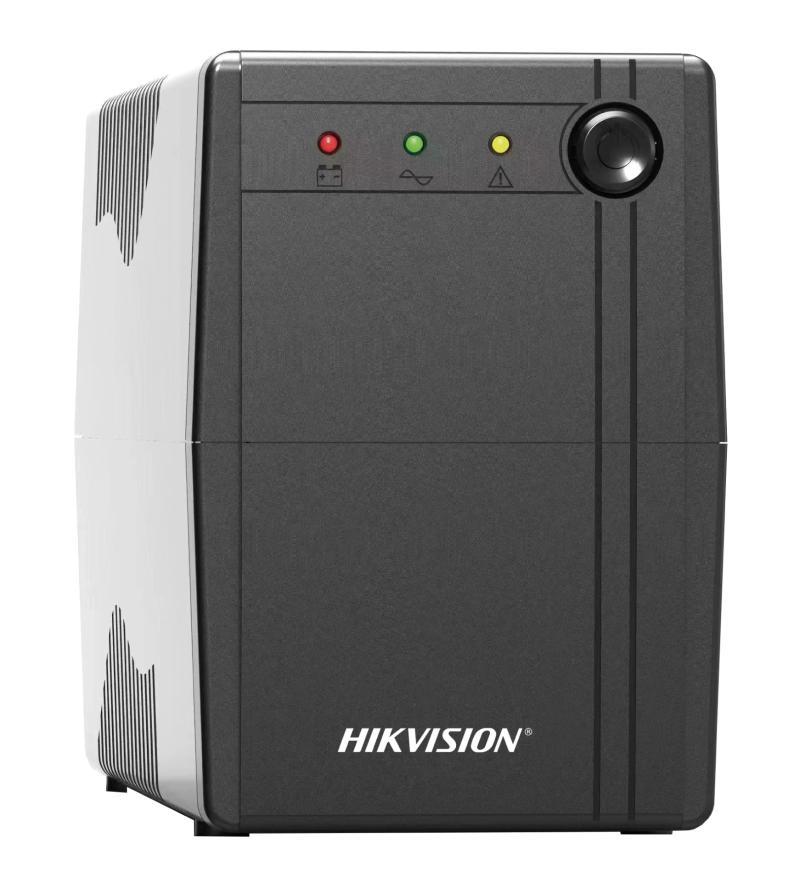

Hikvision DS-UPS1000

Oversea UPS

• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection

Power

• UPS Capacity 1000 VA / 600 W

Input

• Input Voltage Range 140 VAC to 290 VAC; 85 VAC to 150 VAC
• Input Frequency 50/60 Hz self-adaptive
• Plug TypeUK TYPE G;Type B (NEMA 5-15);Schuko

Output

• Output Frequency 50/60 Hz ± 0.5 Hz self-adaptive
• Output Voltage Range 210 VAC to 235 VAC;110 VAC to 125 VAC
• Transfer Time≤ 10 ms
• Waveform PWM

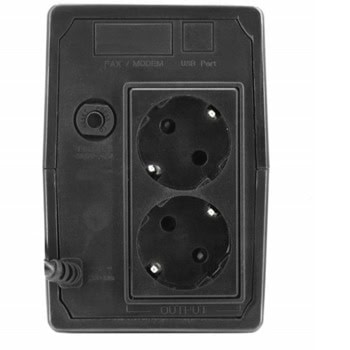

• Outlet Type Universal
• Outlet Number 2

Battery

• Battery Type 12 V/9 Ah, lead-acid battery
• Recharge Time 4-6 hours recover to 90% capacity

• Typical Backup Time

  Run time at 60w: 60 min

  Run time at 150w: 15 min

  Run time at 300w: 2 min

Interface

• Communicate Ports No

Protection

• Full Protection Surge protection, Overload protection, Discharge protection, Short circuit protection

Indicator

• Display

  LED indicator

  Working Mode (AC Mode): Solid green

  Charging Mode (DC Mode): Solid red

  Overloading Mode: Flashing yellow

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding

General

• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
• Weight Approx. 5.4 kg (11.9 lb)
