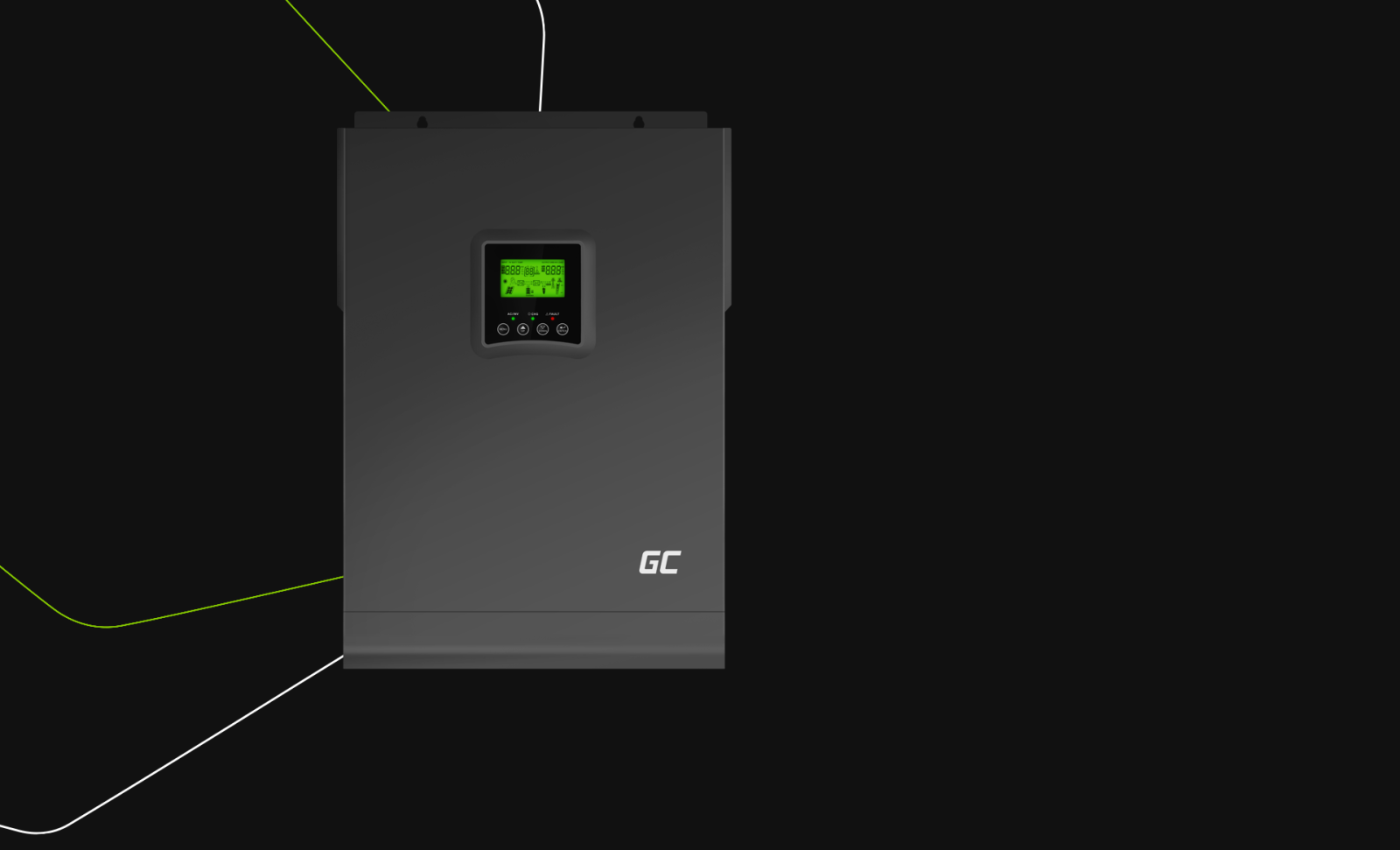

Green Cell INVSOL04
- Green Cell solar inverter combines three devices: MPPT controller, inverter and battery charger , thanks to which it is able to provide continuous energy to your devices
- The built-in MPPT controller allows you to convert the energy obtained from solar panels into electricity with appropriate parameters needed to charge the batteries and power devices in your home.
- Intuitive and easy to use, the software provides comprehensive inverter management , providing a real-time view of all relevant charging parameters.
- The inverter, the brain of solar installations , is the perfect solution when you want to take care of the environment and save money by using renewable energy as a power source in your home.
Specification:
| Battery voltage | 48V |
| Effectiveness | 98% |
| Colour | Black |
| Dimensions | 467 x 318 x 125 mm |
| Weight | 13.3kg |
| Output Voltage | 230V AC |
| Output frequency | 50Hz or 60Hz (automatic detection) |
| Usable power (continuous) | 3000W |
| Sine wave type | Pure sine wave |
| Instantaneous power (impulsive) | 6000W |
| No-load power consumption | 2W |
| Maximum charging current | 140A |
| Maximum PV Voltage (VOC): | 145VDC |
| Maximum PV power | 4000W |
| Efficiency of the inverter | 90% - 93% |
| Wechselspannungsregelung (Batteriemodus) | 220VAC - 240VAC (possibility of setting) |
| Charging voltage | 54.8VDC |
| PV voltage range for MPPT | 60 - 130VDC |
| Maximum MPPT output current | 80A |
Виж още Инвертори за фотоволтаици Green Cell
Виж всички Инвертори за фотоволтаици в категорията
Технически характеристики
| Тип: | Монофазен |
|---|---|
| Изходна мощност: | 3000 W |
