Дънна платка Gigabyte Z890 GAMING X WIFI7, Z890, LGA1851, DDR5, PCI-E 5.0 (Thunderbolt&DP), 4x SATA 6Gb/s, 4x M.2, 2x USB 3.2 Gen 2, 2.5G LAN, Wi-Fi 7, Bluetooth 5.4, ATX

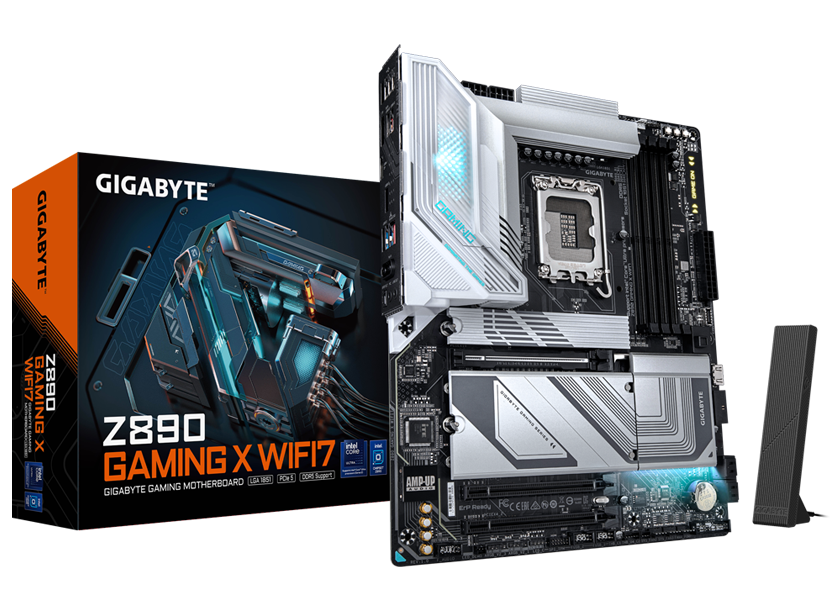

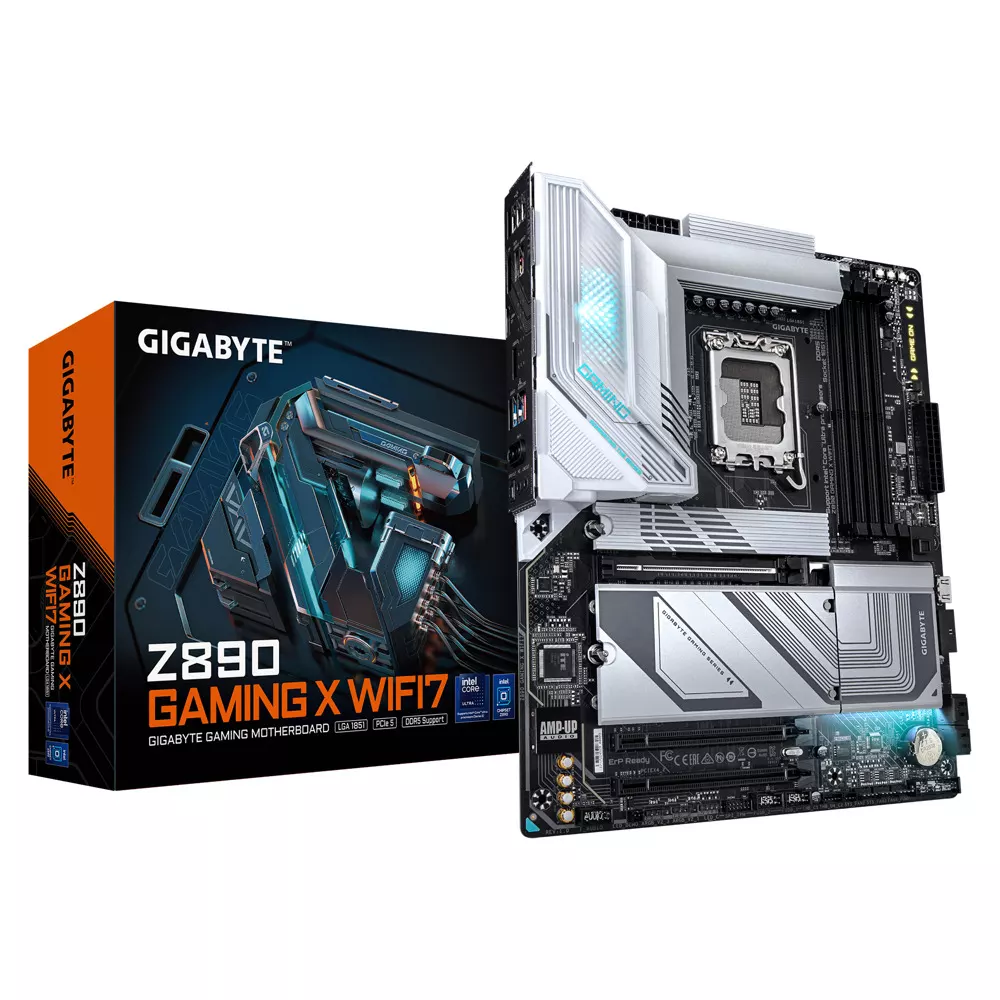

Gigabyte Z890 GAMING X WIFI7

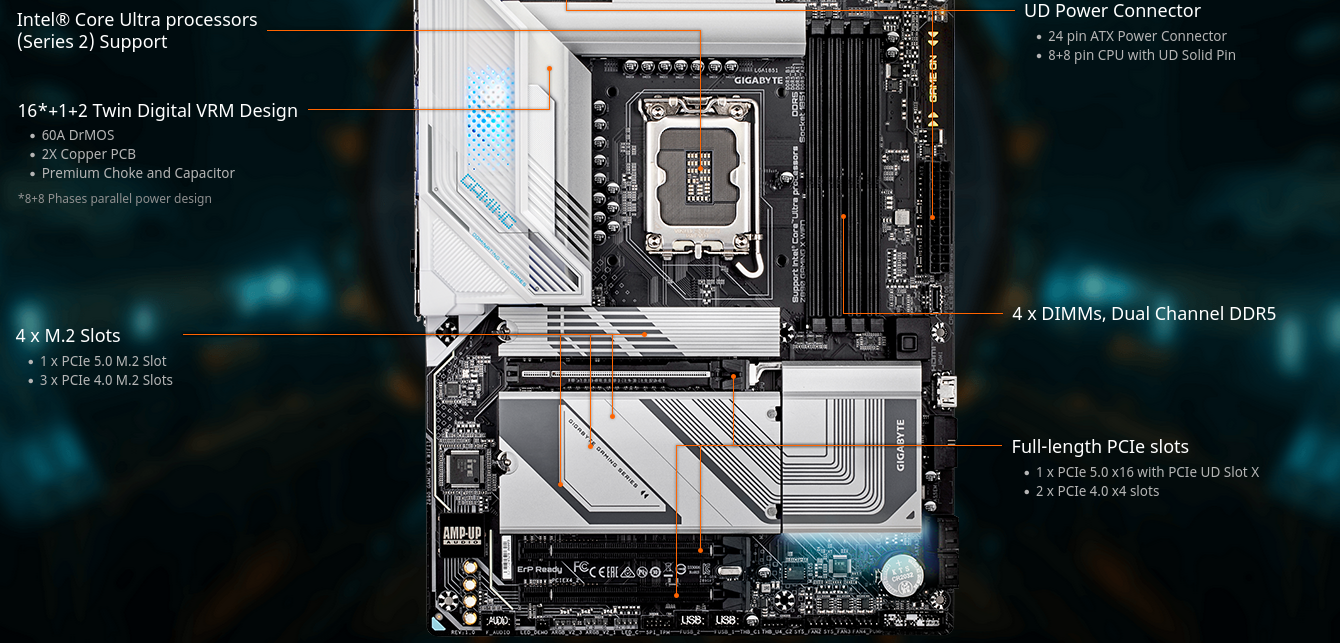

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)

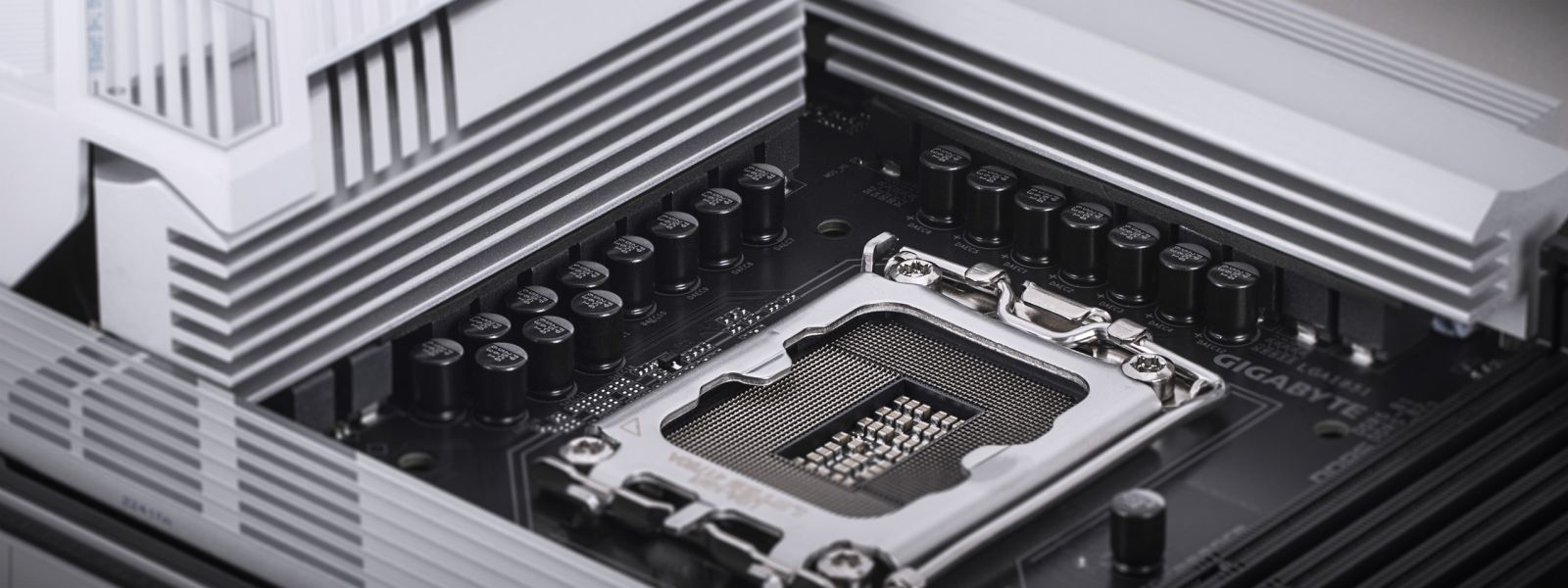

• Digital twin 16+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced  & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Specifications:

• CPU

  LGA1851 socket: Support for Intel® Core™ Ultra Processors
  L3 cache varies with CPU
  * Please refer to "CPU Support List" for more information.

• Chipset

  Intel® Z890 Express Chipset

• Memory

  Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  Support CUDIMM memory module
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version


  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version


  - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz


  * Support for HDMI 1.4 version


  (Graphics specifications may vary depending on CPU support.)
  Support for up to 3 displays at the same time

• Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• LAN

  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module
  Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

• Storage Interface

  CPU:
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  CPU:
  - 1 x USB4® USB Type-C® port on the back panel
  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x HDMI port (Note)
  1 x power button
  1 x Q-Flash Plus button
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper

  (Note) Actual support may vary by CPU.

• Back Panel Connectors

  1 x USB4® USB Type-C® port (DisplayPort (Note))
  2 x USB 3.2 Gen 2 Type-A ports (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x DisplayPort (Note)
  2 x antenna connectors (2T2R)
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks

  (Note) Actual support may vary by CPU.

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  ater cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

• Form Factor
