Дънна платка Gigabyte Z890 EAGLE WIFI7, Z890, LGA1851, DDR5, PCI-E 5.0 (Thunderbolt&DP), 4x SATA 6Gb/s, 4x M.2, 2x USB 3.2 Gen 2, 2.5G LAN, Wi-Fi 7, Bluetooth 5.4, ATX

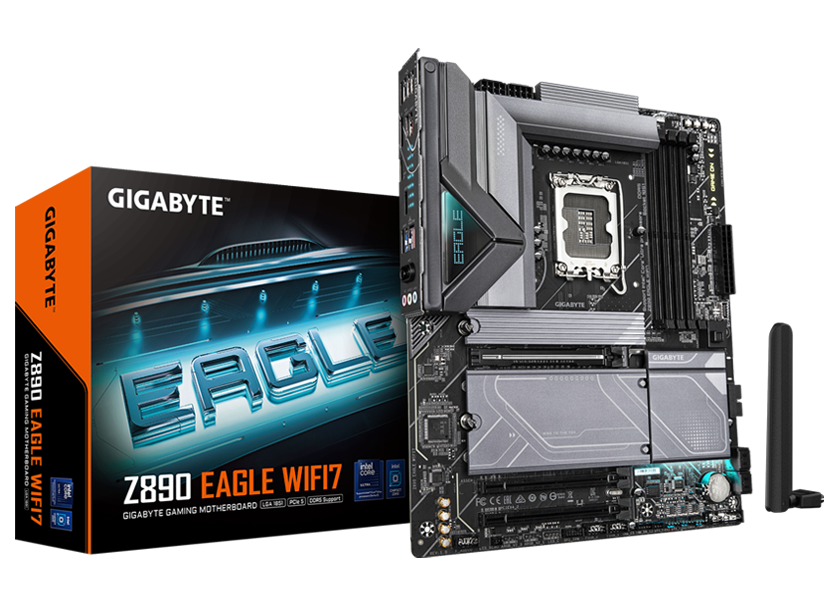

Gigabyte Z890 EAGLE WIFI7

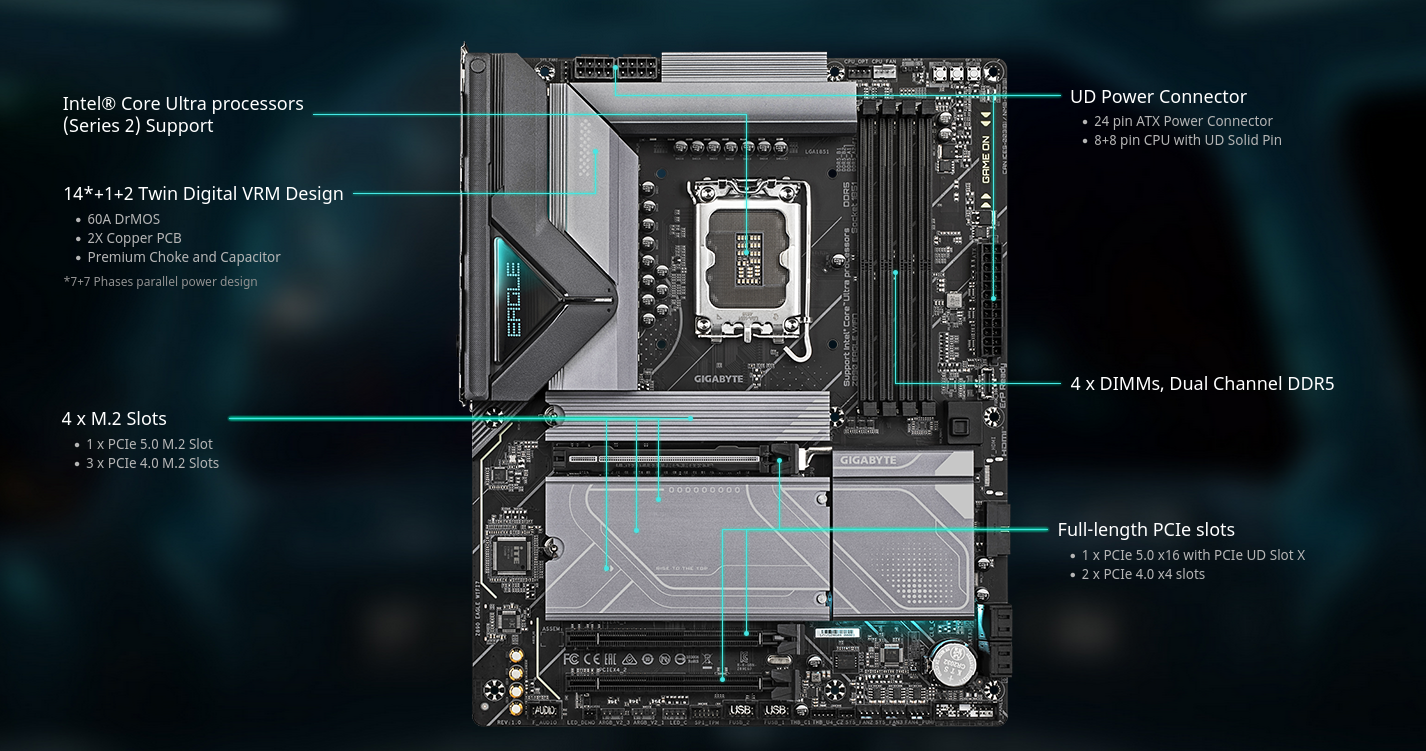

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 14+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 7
• Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

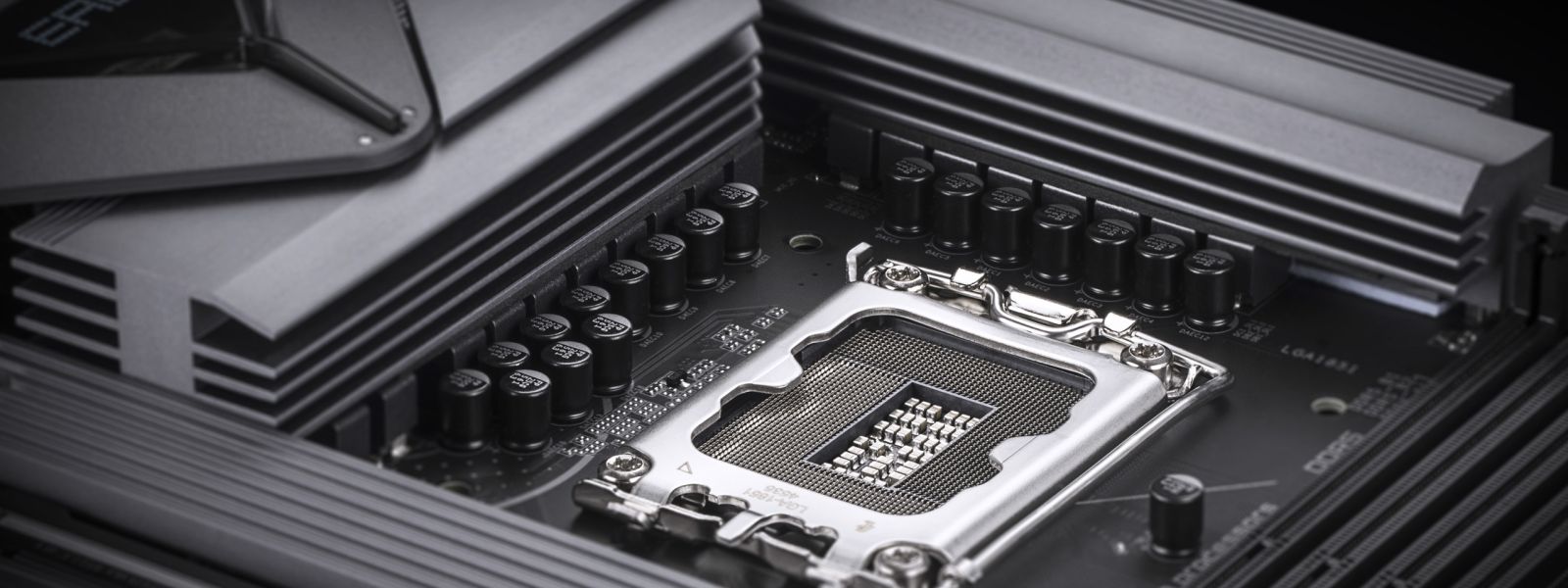

Sturdy VRM Design

Steady Power

Better Play EAGLE Series, steady power keeps your computing smooth.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Specifications:

• CPU

  LGA1851 socket: Support for Intel® Core™ Ultra Processors
  L3 cache varies with CPU
  * Please refer to "CPU Support List" for more information.

• Chipset

  Intel® Z890 Express Chipset

• Memory

  Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  Support CUDIMM memory module


• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version


  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz


  * Support for DisplayPort 2.1 version


  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

• Storage Interface

  CPU:
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  CPU:
  - 1 x USB4® USB Type-C® port on the back panel
  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

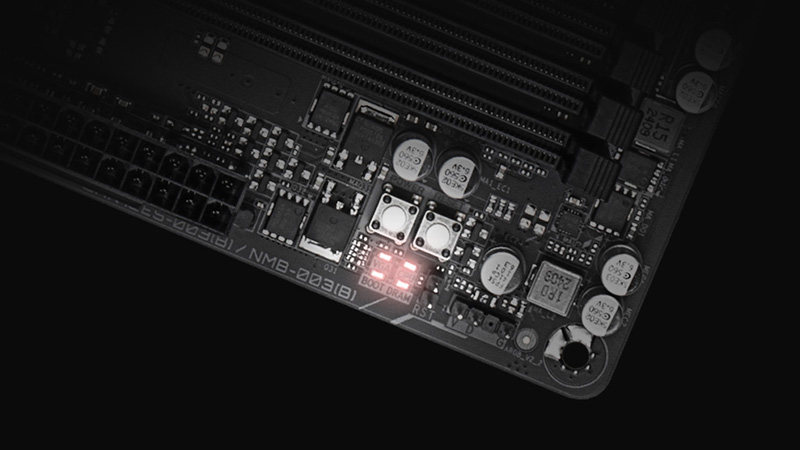

  1 x power button
  1 x Q-Flash Plus button
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper

• Back Panel Connectors

  1 x USB4® USB Type-C® port (DisplayPort (Note))
  2 x USB 3.2 Gen 2 Type-A ports (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x DisplayPort (Note)
  2 x antenna connectors (2T2R)
  1 x RJ-45 port
  3 x audio jacks

  (Note) Actual support may vary by CPU.

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
