Name: Дънна платка Gigabyte X570S AORUS Pro AX, X570S, AM4, DDR4, PCI-E 4.0, (HDMI)(CF), 6x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2, ATX
Brand: Gigabyte
SKU: MBAGIGABYTEX570SAORUSPROAX
Availability: OutOfStock
Rating: 5.00 (1 reviews)

id 227972 Код: MBAGIGABYTEX570SAORUSPROAX

5.00 от 1 ревюта

Добави ревю | Задай въпрос

Модел: X570S AORUS Pro AX
Марка: Gigabyte
Гаранция: 36 месеца
Код на продукта: X570S AORUS Pro AX
Процесор сокет: AM4
Чипсет: X570S
Брой слотове за RAM памет: 4
Storage интерфейси: SATA 6Gbit/s, M.2
Видео изход: HDMI
Форм фактор: ATX
Наличност: Стар продукт

Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

Печат

Открита грешка/Запитване

Изпрати на приятел

Сравни

Описание Характеристики Ревюта / Въпроси

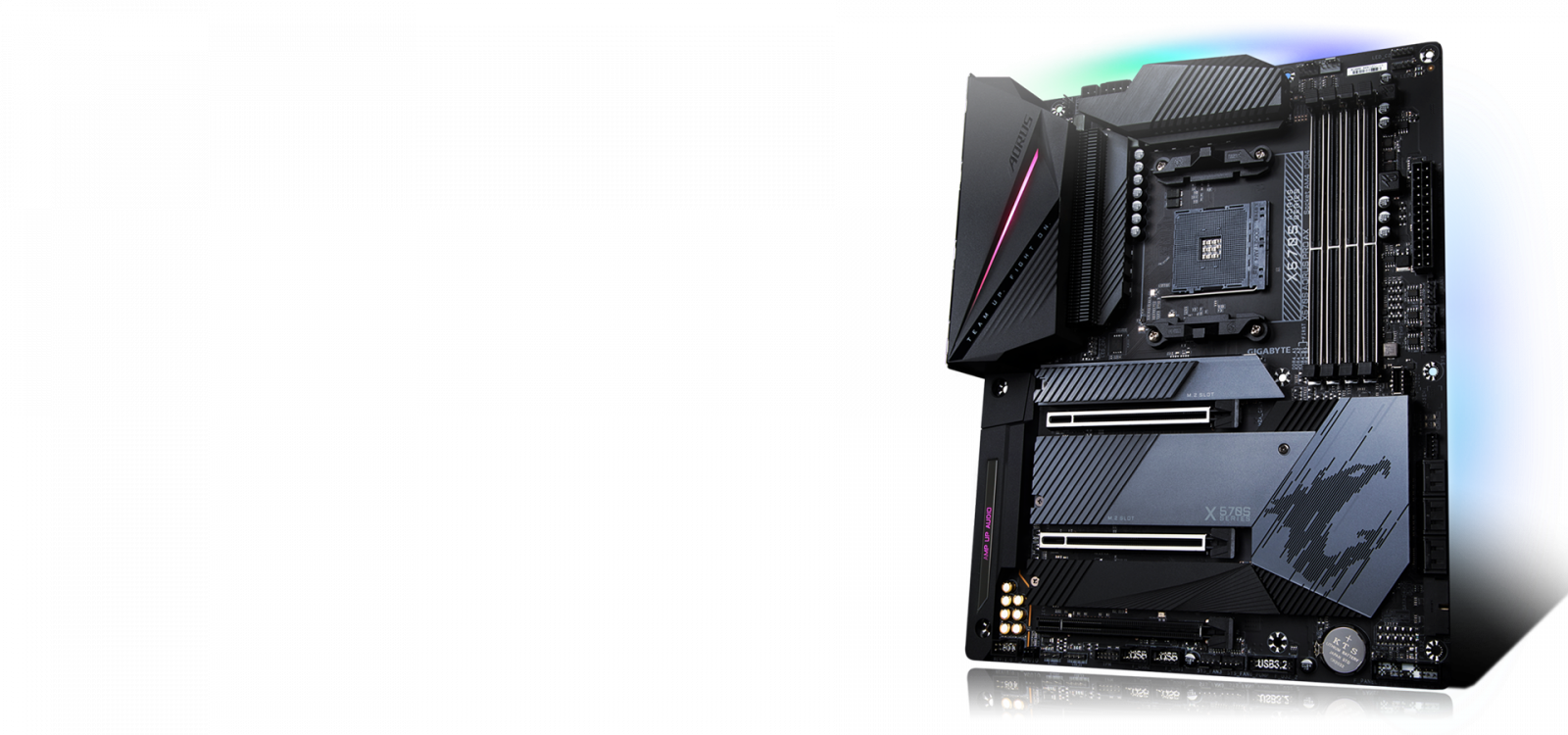

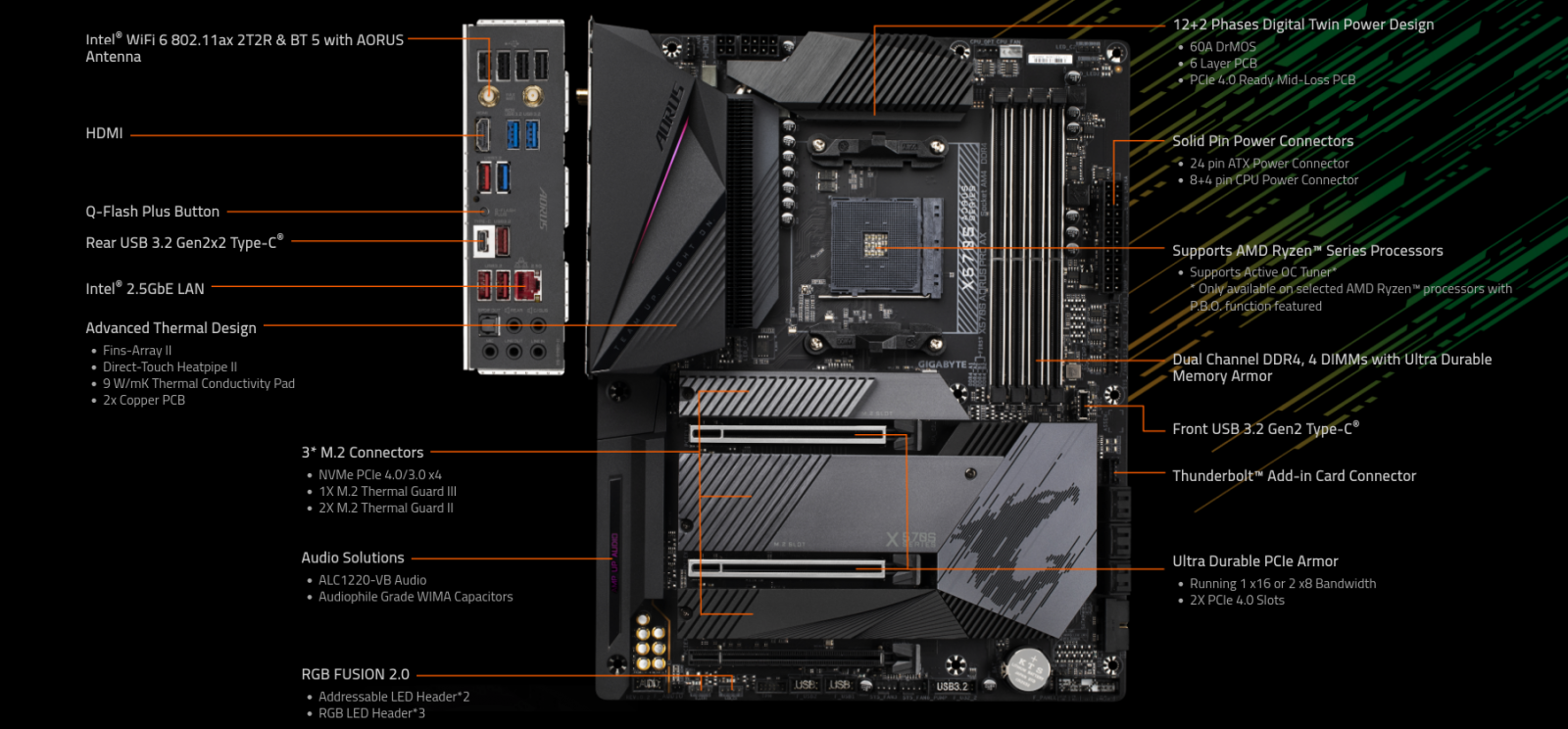

Gigabyte X570S AORUS Pro AX

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.

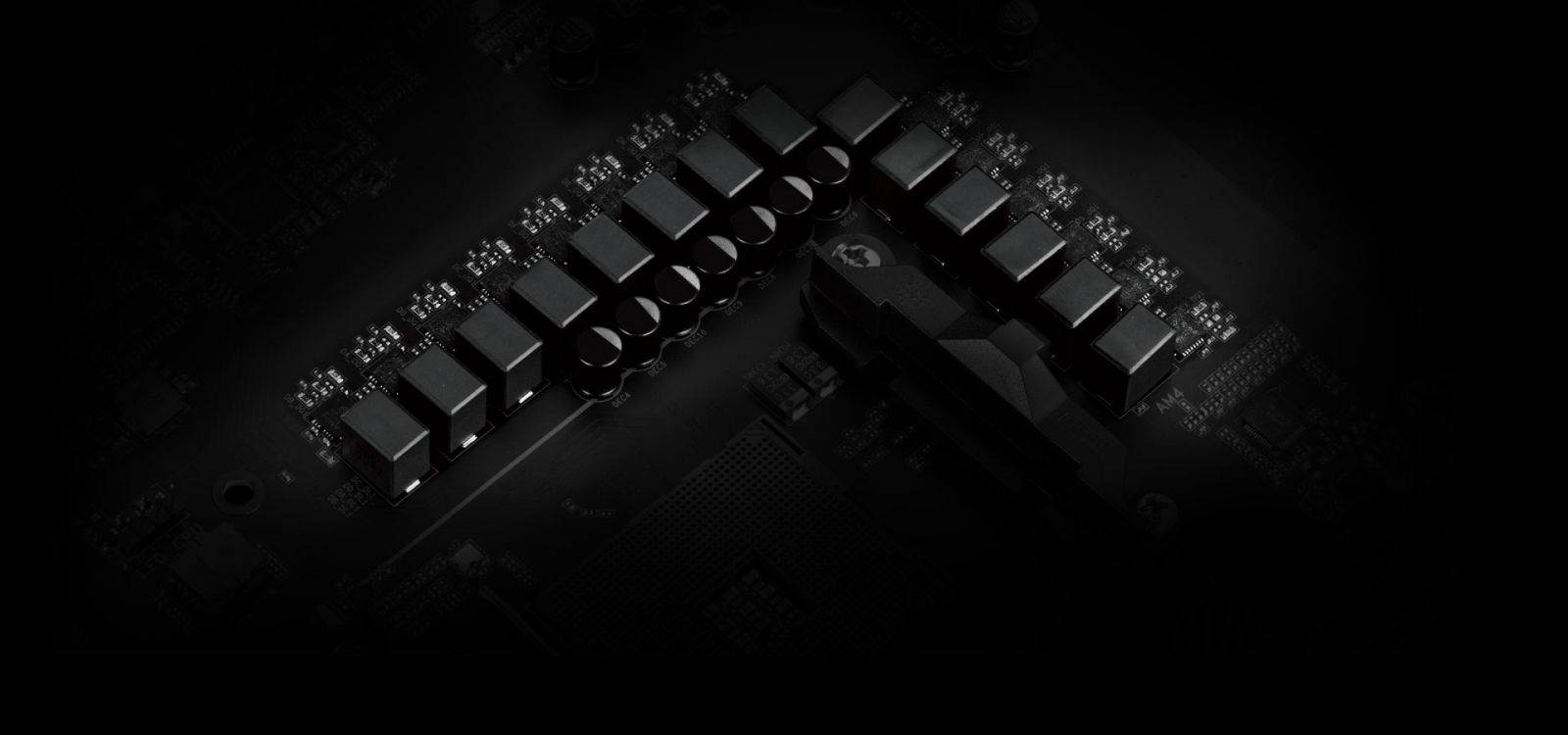

UNPARALLELED PERFORMANCE
To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS PRO AX is a true beast among motherboards.

NEXT GENERATION CONNECTIVITY
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS PRO AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

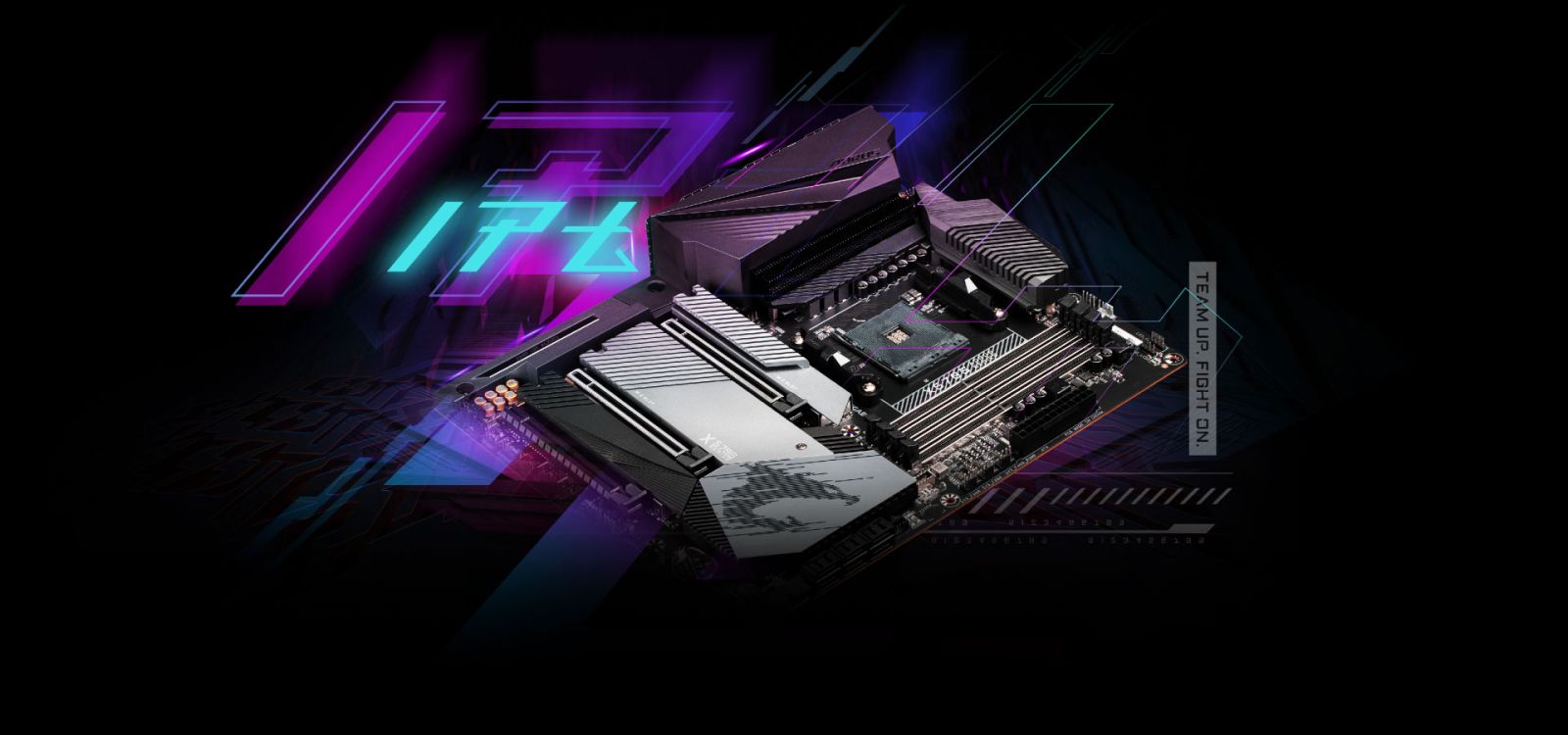

DEFINITIVE AESTHETICS
X570S AORUS PRO AX features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

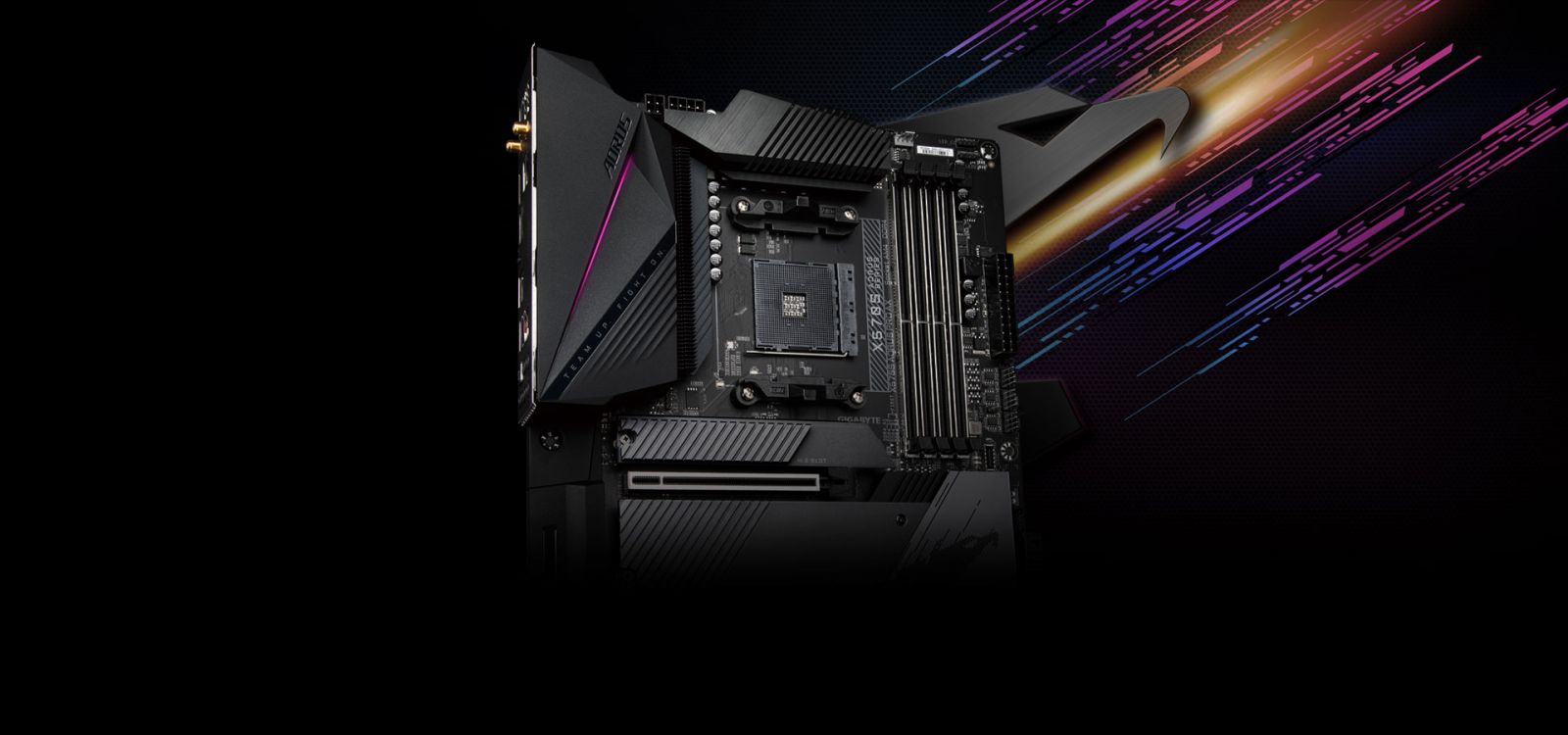

ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE Motherboard and reinforce every slot to make each of them solid and durable.

Specifications:

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
Chipset
1. AMD X570
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® ALC1220-VB Audio CODEC
  * The back panel line out jack supports DSD audio.
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out
LAN
1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel^® Wi-Fi 6 AX200
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 5000 Series/3000 Series Processors
  support PCIe 4.0 x16 mode
2. AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
  support PCIe 3.0 x16 mode
3. AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
  support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
1. AMD Ryzen™ 5000 Series/3000 Series Processors
  support PCIe 4.0 x8 mode
2. AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
  support PCIe 3.0 x8 mode
3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot.
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
1. Supporting PCIe 4.0*/3.0 x4 mode
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.
Multi-Graphics Technology
1. Support forAMDQuad-GPU CrossFire™ and 2-WayAMD CrossFire™ technologies
* For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. AMD Ryzen™ 5000-Series/3000 Series Processors
  support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
  support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. Supporting PCIe 4.0*/3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
1. Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. 3 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia^® USB 3.2 Gen 2x2 Controller:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 3 x M.2 Socket 3 connectors
12. 6 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
16. 2 x USB 3.2 Gen 1 headers
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Clear CMOS jumper
21. 2 x temperature sensor headers

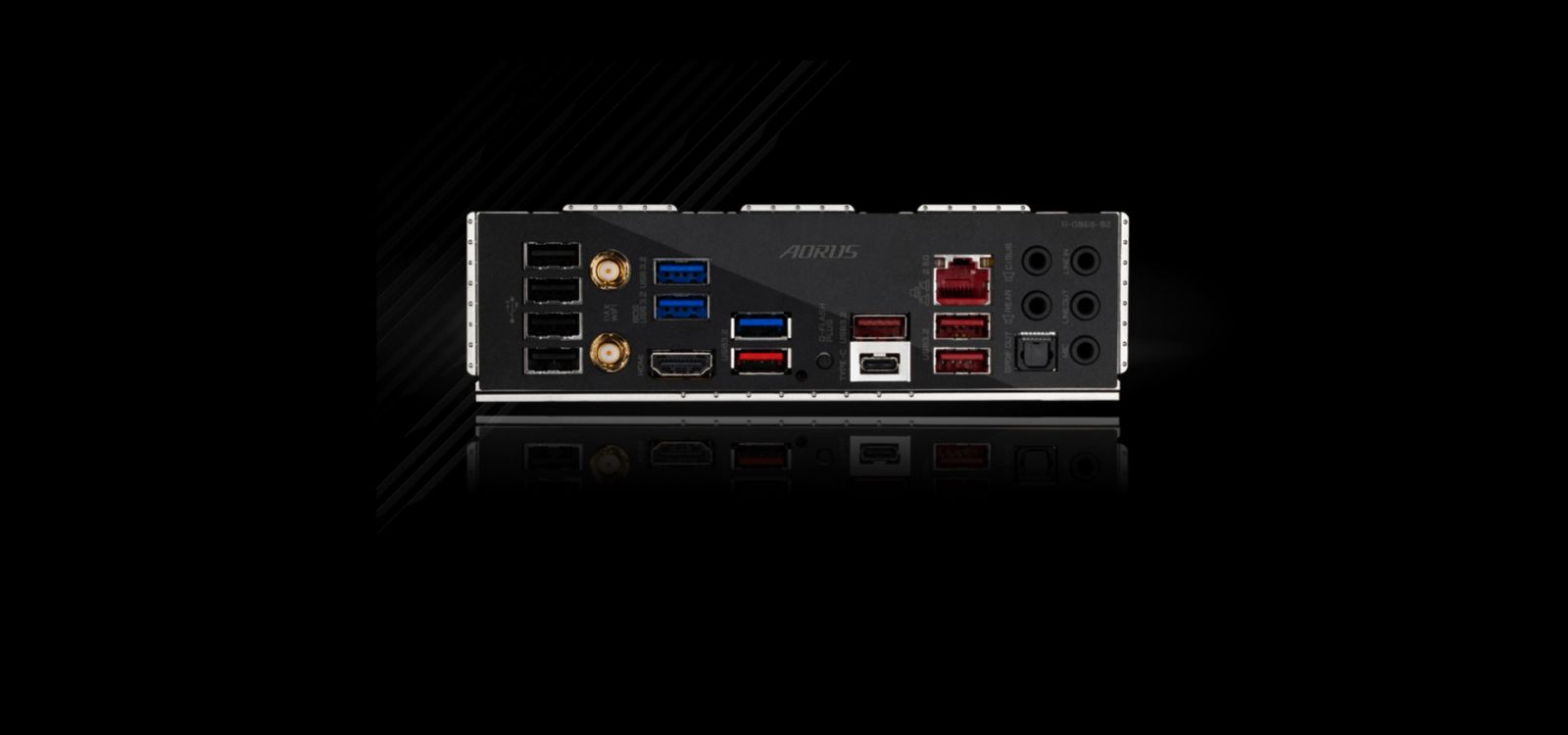

Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI port
4. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
5. 4 x USB 3.2 Gen 2 Type-A ports (red)
6. 3 x USB 3.2 Gen 1 ports
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Виж още Дънни платки за AMD процесори Gigabyte
Виж всички Дънни платки за AMD процесори в категорията

Технически характеристики

Процесор сокет:	AM4
Чипсет:	X570S
Поддържана памет:	DDR4
Брой слотове за RAM памет:	4
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Wi-Fi 6 (802.11ax)
Bluetooth:	Да
Видео слот:	PCI-E
Multi-Graphics технология:	CrossFire
Видео изход:	HDMI
Форм фактор:	ATX
Видеокарта:	Вградена
