Дънна платка Gigabyte TRX40 AORUS MASTER, TRX40, sTRX4, DDR4, PCI-E 4.0 (CF&SLI), 8x SATA 6Gb/s, 3x M.2 slots, 4x USB 3.2 Gen 2, Wi-Fi, Bluetooth, E-ATX

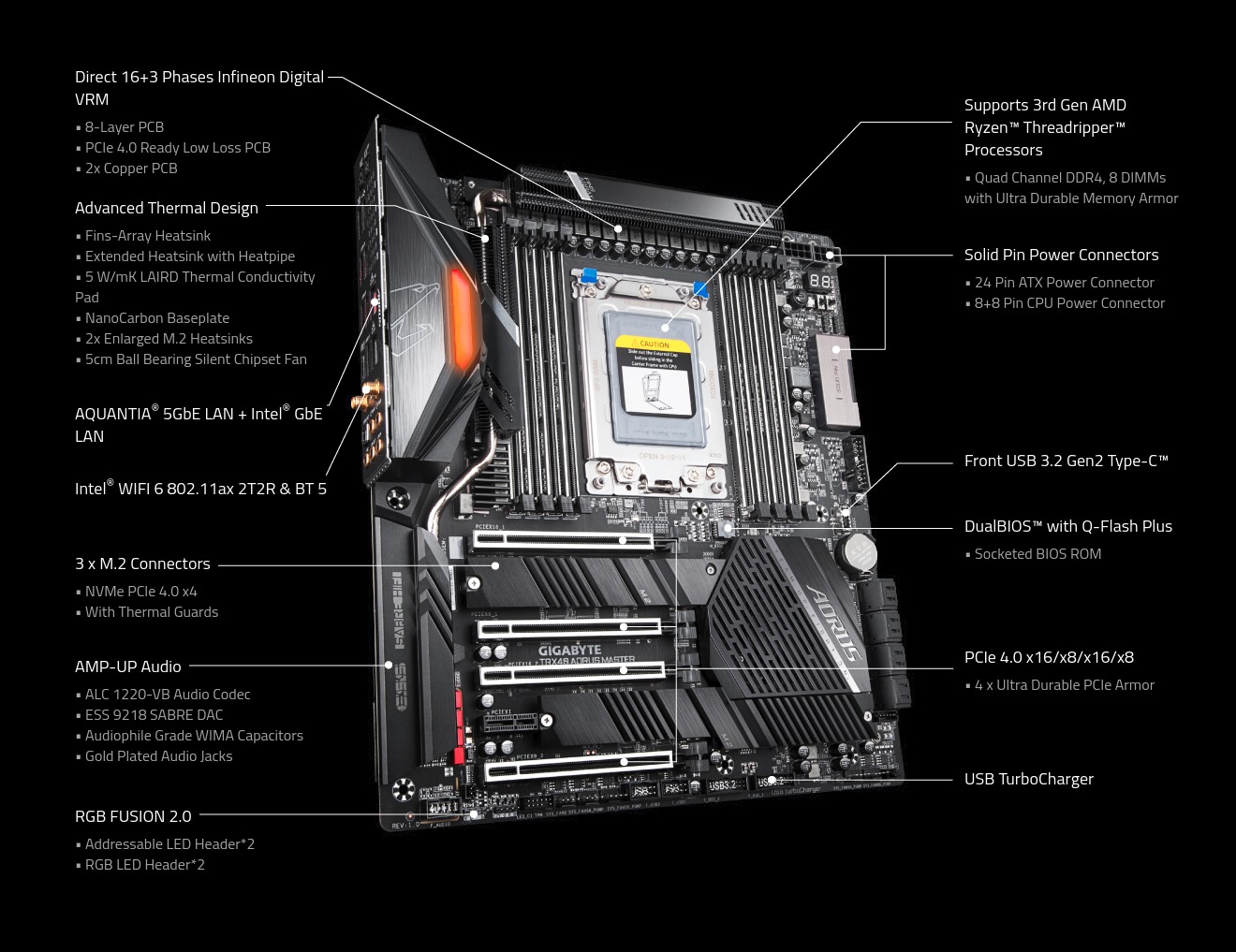

AMD TRX40 AORUS Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, 5GbE+1GbE LAN, 3 PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, RGB FUSION 2.0

• Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors

• Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs

• 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage

• Advanced Thermal Design with Fins-Array Heatsink, Heatpipe with Extended Heatsink and NanoCarbon Baseplate

• AQUANTIA® 5GbE LAN and Intel® GbE LAN with cFosSpeed

• 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards

• Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5

• 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and WIMA Audio Capacitors

• USB TurboCharger for Mobile Device Fast Charge Support

• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

• Front & Rear USB 3.2 Gen 2 Type-C™ Header

• Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Specification

CPU
AMD Socket sTRX4:
Support 3rd Generation AMD Ryzen™ Threadripper™ processors
(Please refer "CPU Support List" for more information.)

Chipset
AMD TRX40

Memory
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Quad Channel memory architecture
Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Audio
1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio)
1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)
Wireless Communication module
Intel® Wi-Fi 6 AX200
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 4.0 standard.)

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

Storage Interface
Integrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Integrated in the Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB
Integrated in the CPU:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Integrated in the Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x GIGABYTE add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x power button
1 x reset button
2 x BIOS switches
2 x temperature sensor headers
1 x Clear CMOS jumper
Voltage Measurement Points

Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection

BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Operating System
Support for Windows 10 64-bit

Form Factor
E-ATX Form Factor; 30.5cm x 26.9cm
