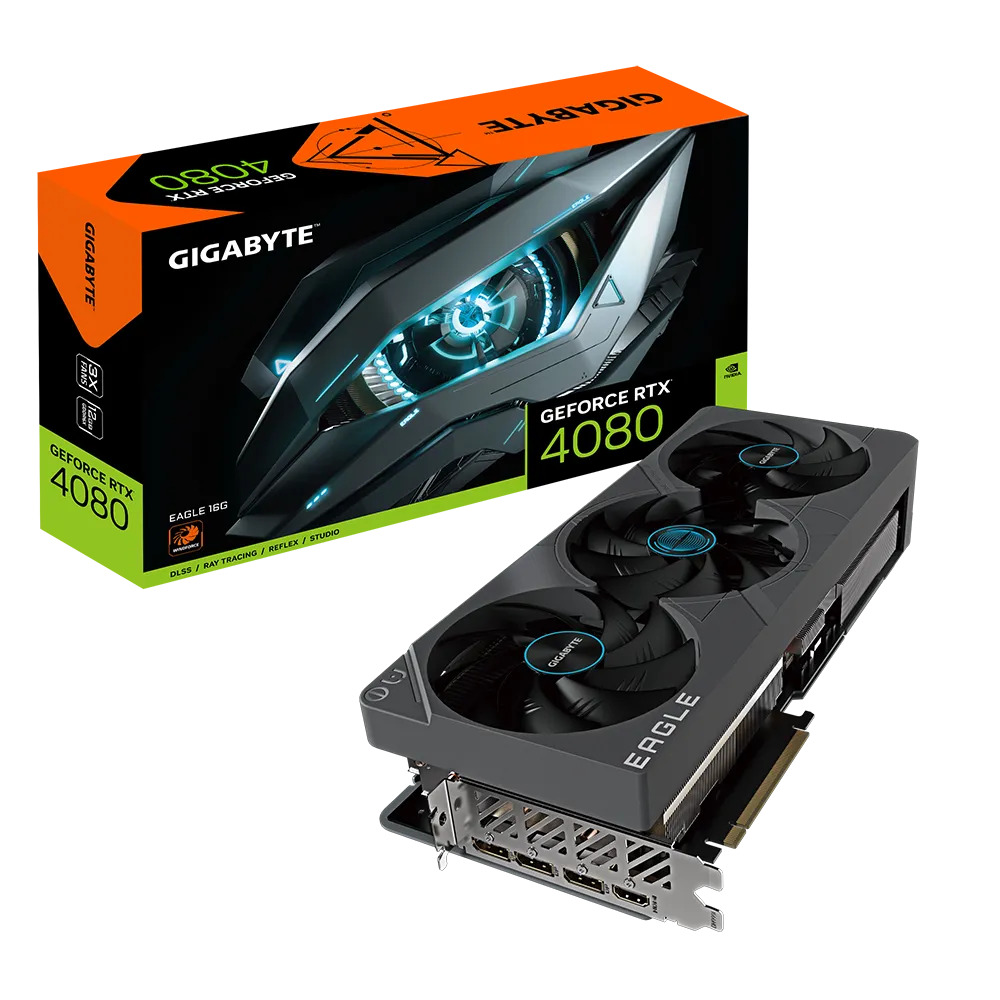

GeForce RTX 4080 16GB EAGLE
KEY FEATURE
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4080 16GB
- Integrated with 16GB GDDR6X 256-bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENT IN ESSENTIAL
PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. |
![]() |
DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. |
![]() |
POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light. |
![]() |
ANTI-SAG BRACKETThe new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance. |
![]() |
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications:
-
Graphics ProcessingGeForce RTX™ 4080
-
Core Clock2505 MHz
-
CUDA® Cores9728
-
Memory Clock22.4 Gbps
-
Memory Size16 GB
-
Memory TypeGDDR6X
-
Memory Bus256 bit
-
Card BusPCI-E 4.0 x 16
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=342 W=150 H=70 mm
-
PCB FormATX
-
DirectX12 Ultimate
-
OpenGL4.6
-
Recommended PSU850W
-
Power Connectors16 Pin*1
-
OutputDisplayPort 1.4a *3
HDMI 2.1 *1 -
Accessories1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
4. One 16 pin to triple 8-pin power adaptor
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти Gigabyte
Виж всички Видео карти в категорията
GPU производител: | nVidia |
---|---|
Капацитет: | 16 GB |
Тип памет на видеокарта: | GDDR6X |
Битове (BUS памет): | 256 Bit |
Интерфейс: | DP HDMI |
