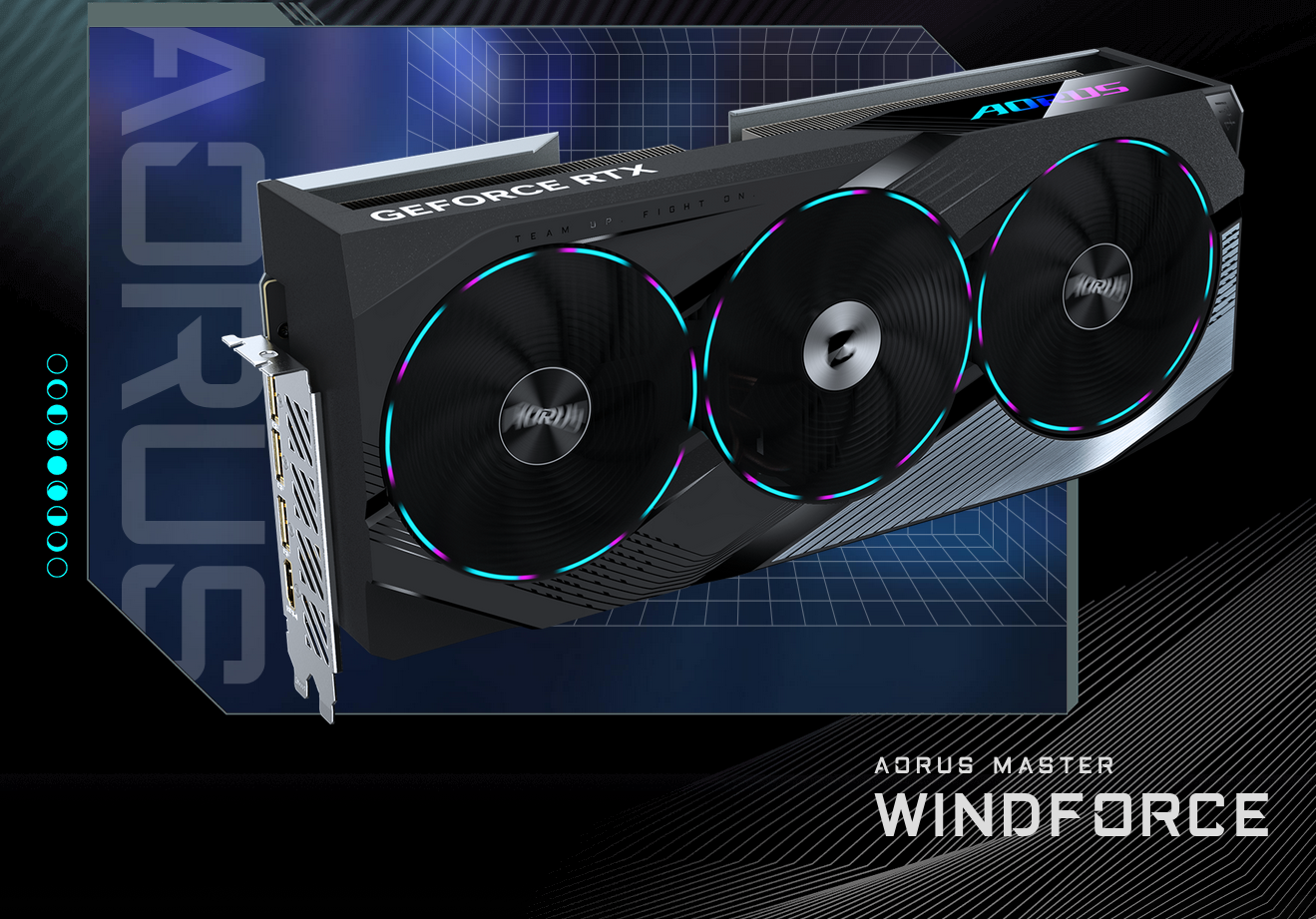

Gigabyte GeForce RTX™ 4070 12GB AORUS MASTER
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
CORE CLOCK
2595 MHz (Reference Card: 2475 MHz)
![](/images/custom/site/screenshot-www_gigabyte_com-2023_11_28-10_54_53.png)
![](/images/custom/site/Screenshot%202022-11-18%20at%2009-47-58%20GeForce%20RTX%E2%84%A2%204080%2016GB%20AERO%20OC%20Key%20Features%20Graphics%20Card%20-%20GIGABYTE%20Global.png)

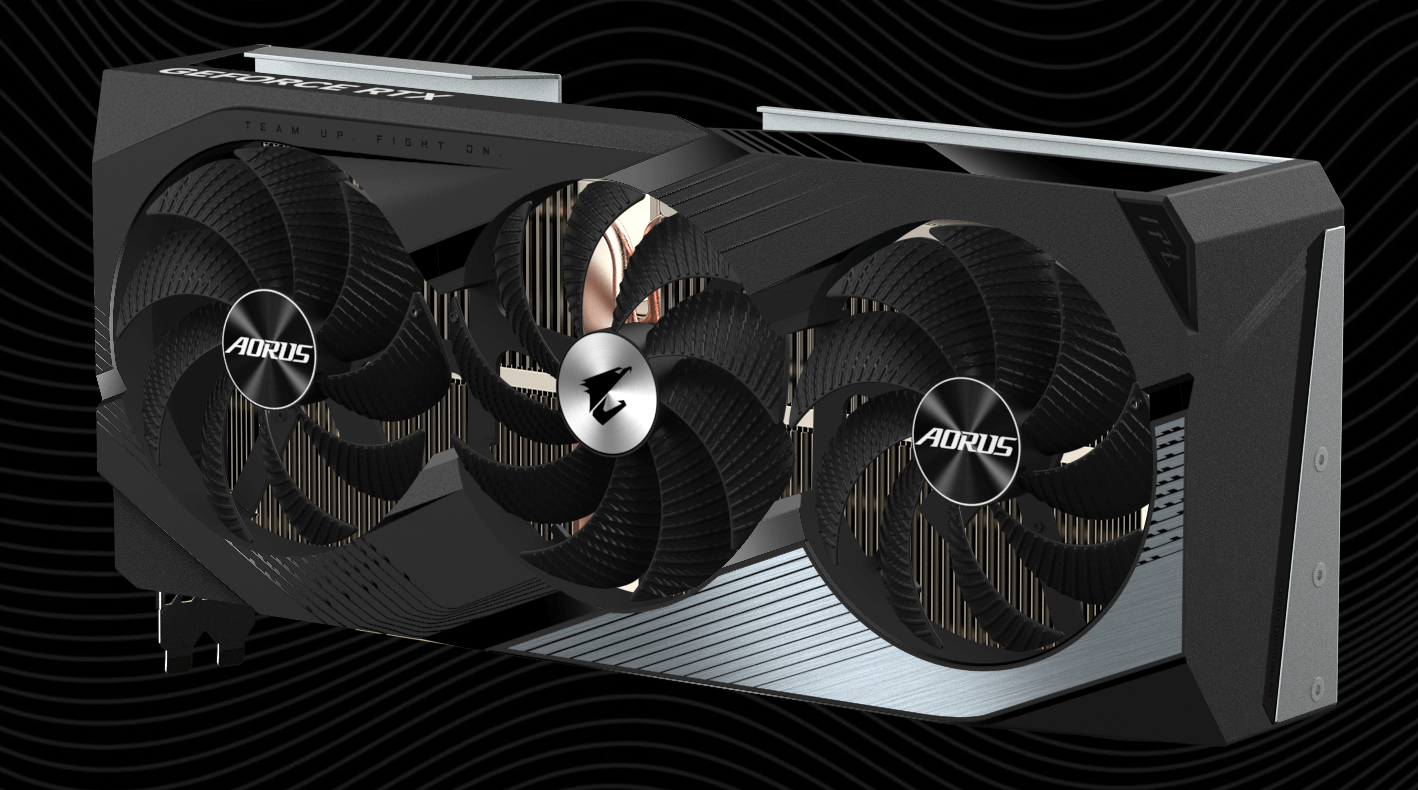

WINDFORCE COOLING SYSTEM
![](/images/custom/site/2023-11-28_10_56_54.png)
THE EVOLVING POWER OF WINDFORCE
The WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
![](/images/custom/site/Screenshot%202023-11-28%20at%2010-58-38%20AORUS%20GeForce%20RTX%E2%84%A2%204070%20MASTER%2012G%20Key%20Features%20Graphics%20Card%20-%20GIGABYTE%20Global.png)
DIRECTLY. SO FAST.
![](/images/custom/site/2023-11-28_10_59_18.png)

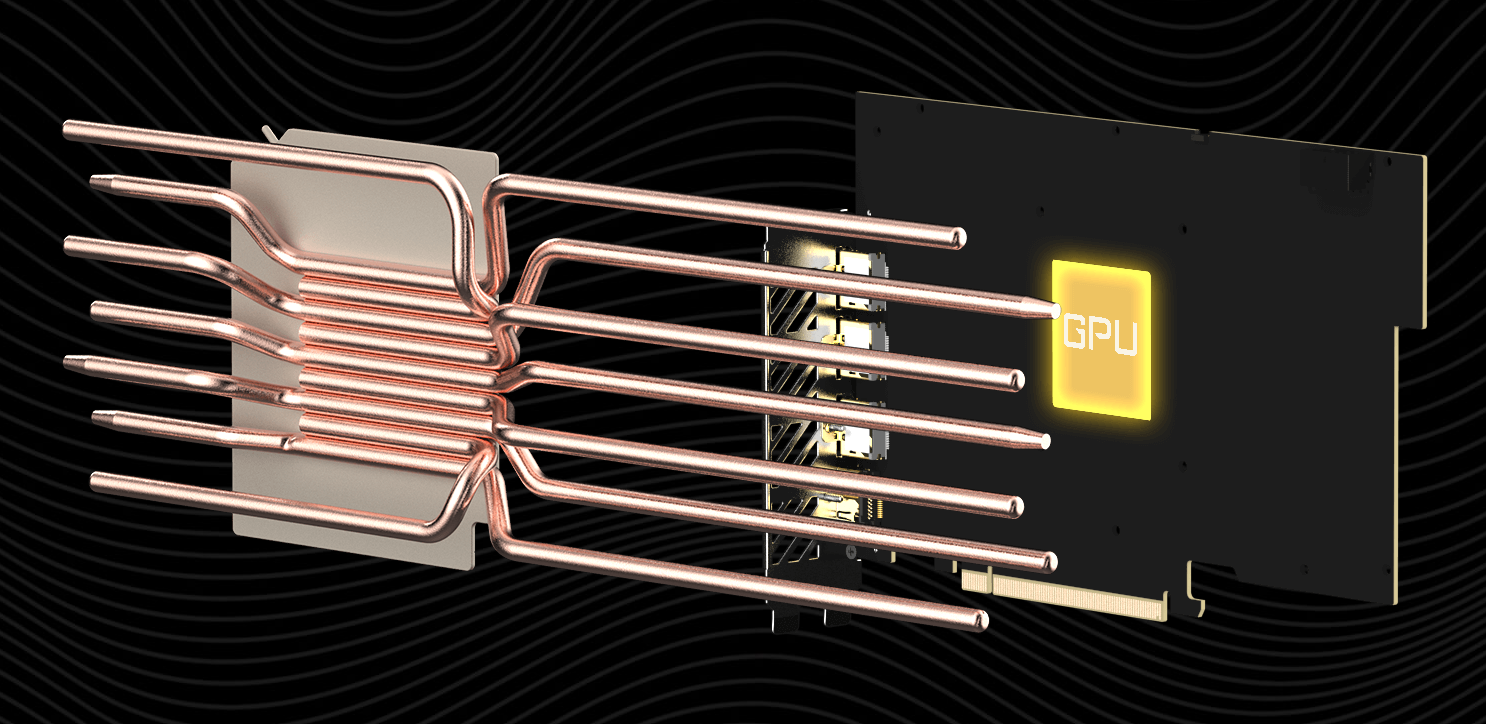

LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
![](/images/custom/site/Screenshot%202023-11-28%20at%2010-59-47%20AORUS%20GeForce%20RTX%E2%84%A2%204070%20MASTER%2012G%20Key%20Features%20Graphics%20Card%20-%20GIGABYTE%20Global.png)
MAKE ROOM FOR THE AIRFLOW.
![](/images/custom/site/2023-11-28_10_59_18(2).png)

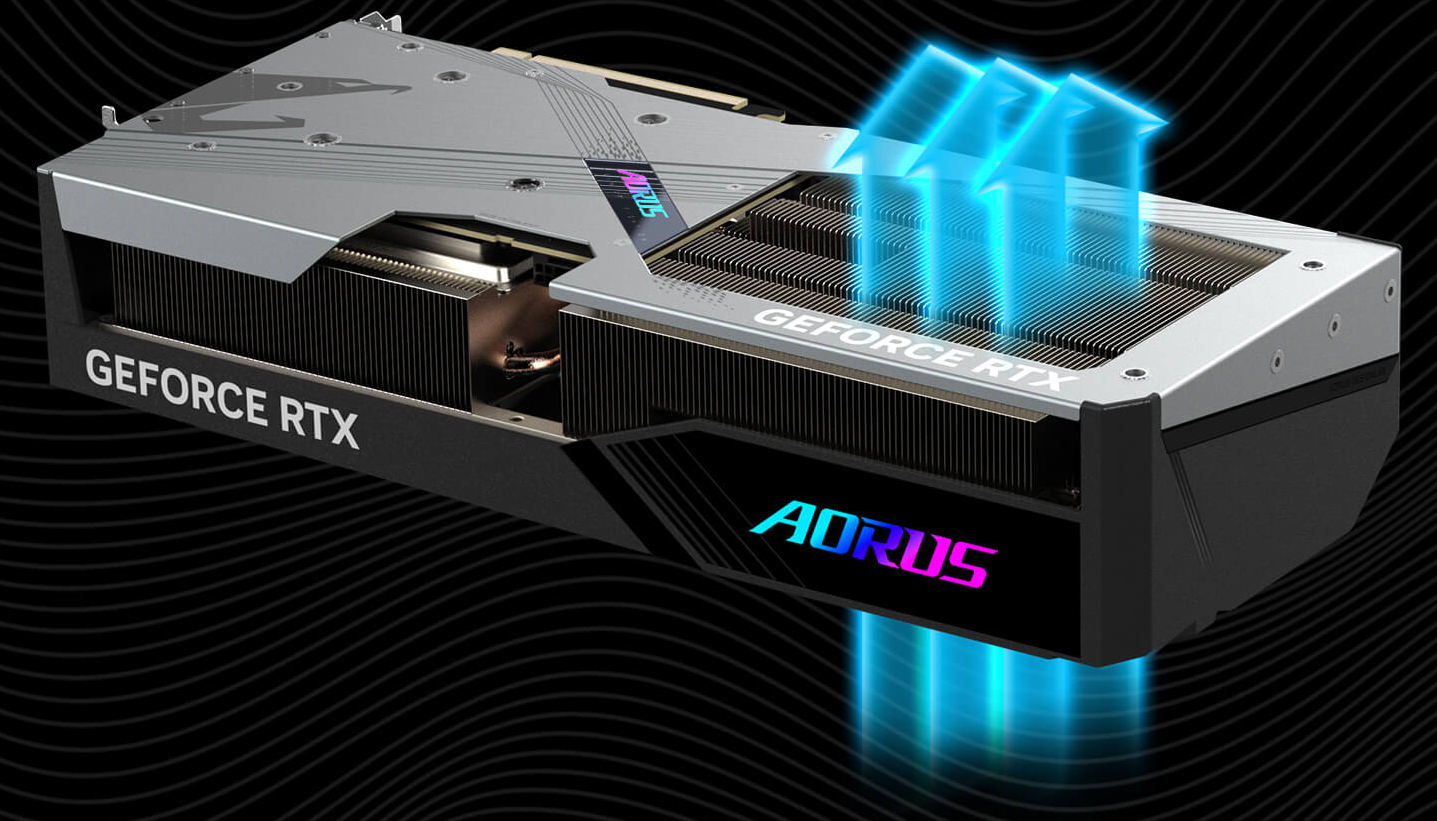

SCREEN COOLING
To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.
![](/images/custom/site/Screenshot%202023-11-28%20at%2011-00-35%20AORUS%20GeForce%20RTX%E2%84%A2%204070%20MASTER%2012G%20Key%20Features%20Graphics%20Card%20-%20GIGABYTE%20Global.png)
Specifications:
Graphics Processing
GeForce RTX™ 4070
Core Clock
2595 MHz (Reference Card: 2475 MHz)
CUDA® Cores
5888
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=342 W=153 H=70.6 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
16 pin*1
Output
DisplayPort 1.4a *3
HDMI 2.1a *1
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти Gigabyte
Виж всички Видео карти в категорията
Технически характеристики
GPU производител: | nVidia |
---|---|
Капацитет: | 12 GB |
Тип памет на видеокарта: | GDDR6X |
Битове (BUS памет): | 192 Bit |
Интерфейс: | DP HDMI |
