Видео карта Nvidia GF RTX 2060, 6GB, Gigabyte D6 rev 2.0, PCI-E 3.0, GDDR6, 192-bit, DisplayPort, HDMI

GeForce RTX 2060 D6 6G (rev. 2.0)

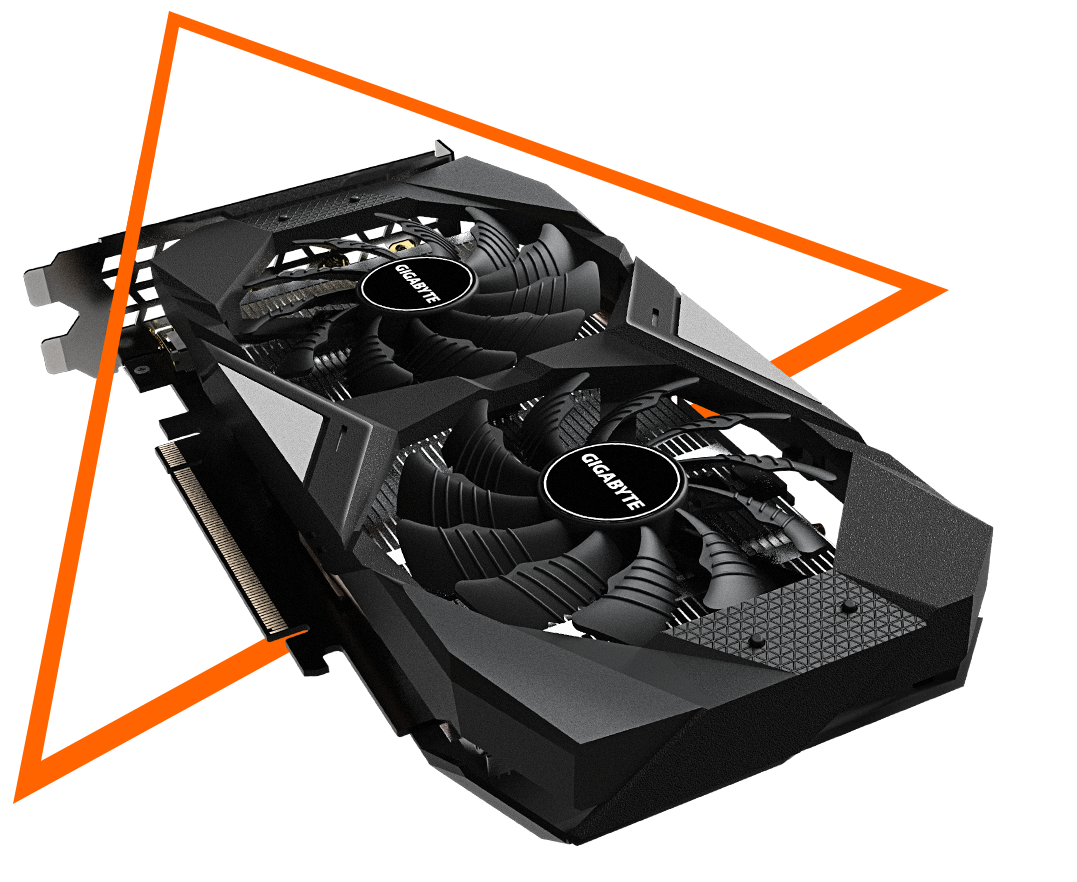

WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, one composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

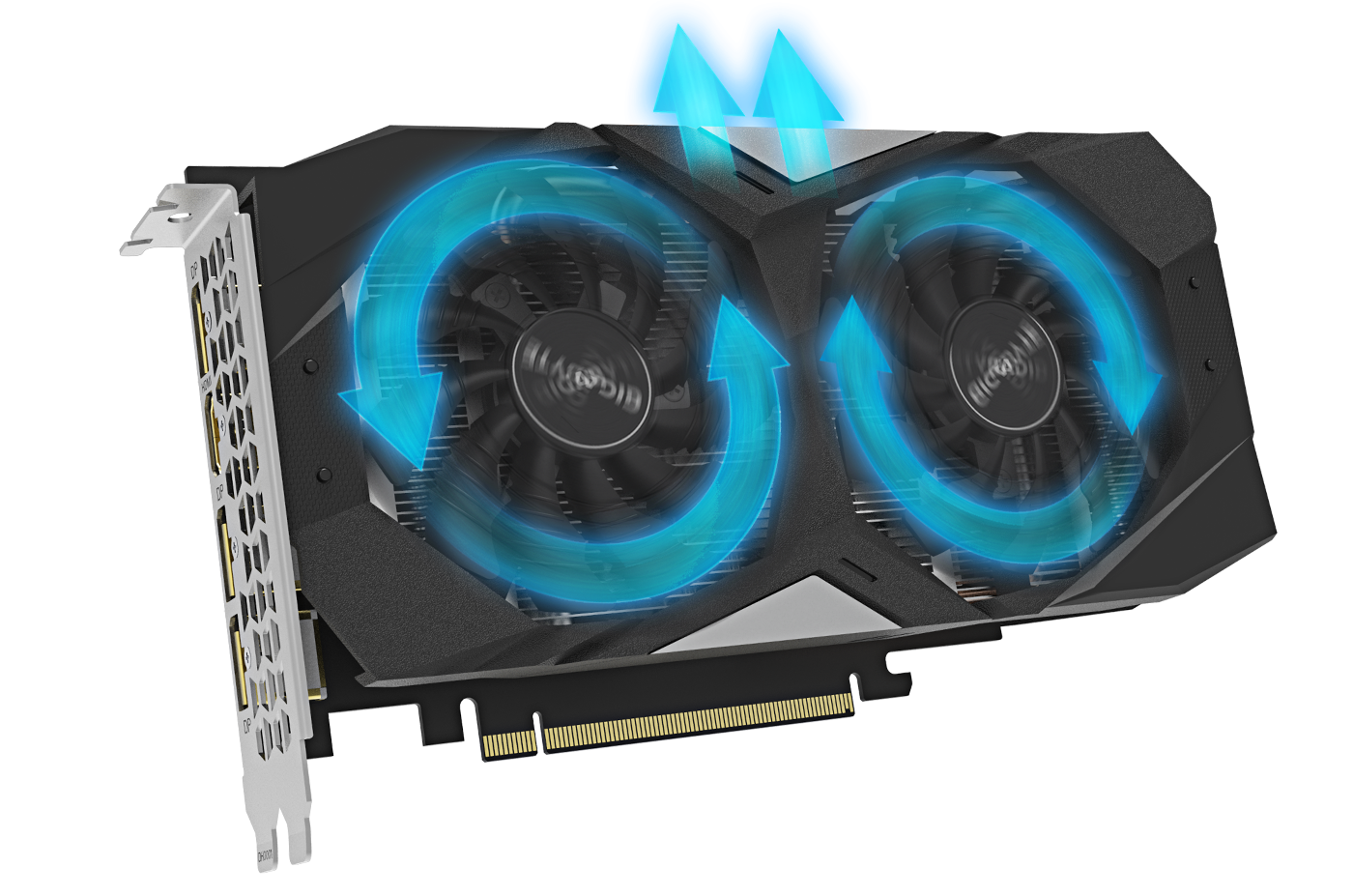

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.



Specifications:

Graphics Processing
GeForce RTX™ 2060
Core Clock
1680 MHz
RTX-OPS
36
CUDA® Cores
1920
Memory Clock
14000 MHz
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
336 GB/s
Card Bus
PCI-E 3.0 x 16
Digital max resolution
7680x4320
Multi-view
4
Card size
L=225.65 W=122.02 H=40.5 mm
PCB Form
ATX
DirectX
12
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 Pin*1
Output
DisplayPort 1.4 *3
HDMI 2.0b *1





JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
