Захранване Gigabyte Aorus GP-AP1200PM, 1200W, Active PFC, 80 Plus Platinum, 140mm вентилатор

Gigabyte Aorus GP-AP1200PM

DESIGN CONCEPT

In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.

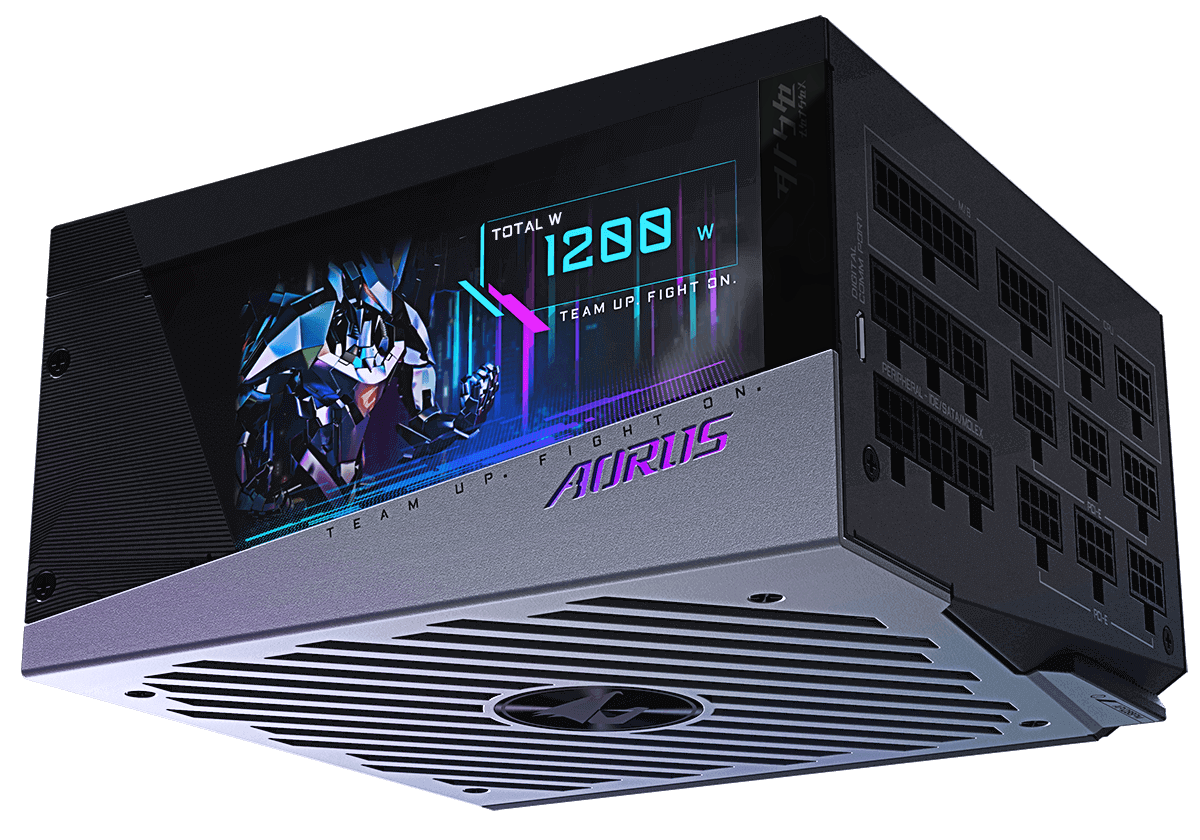

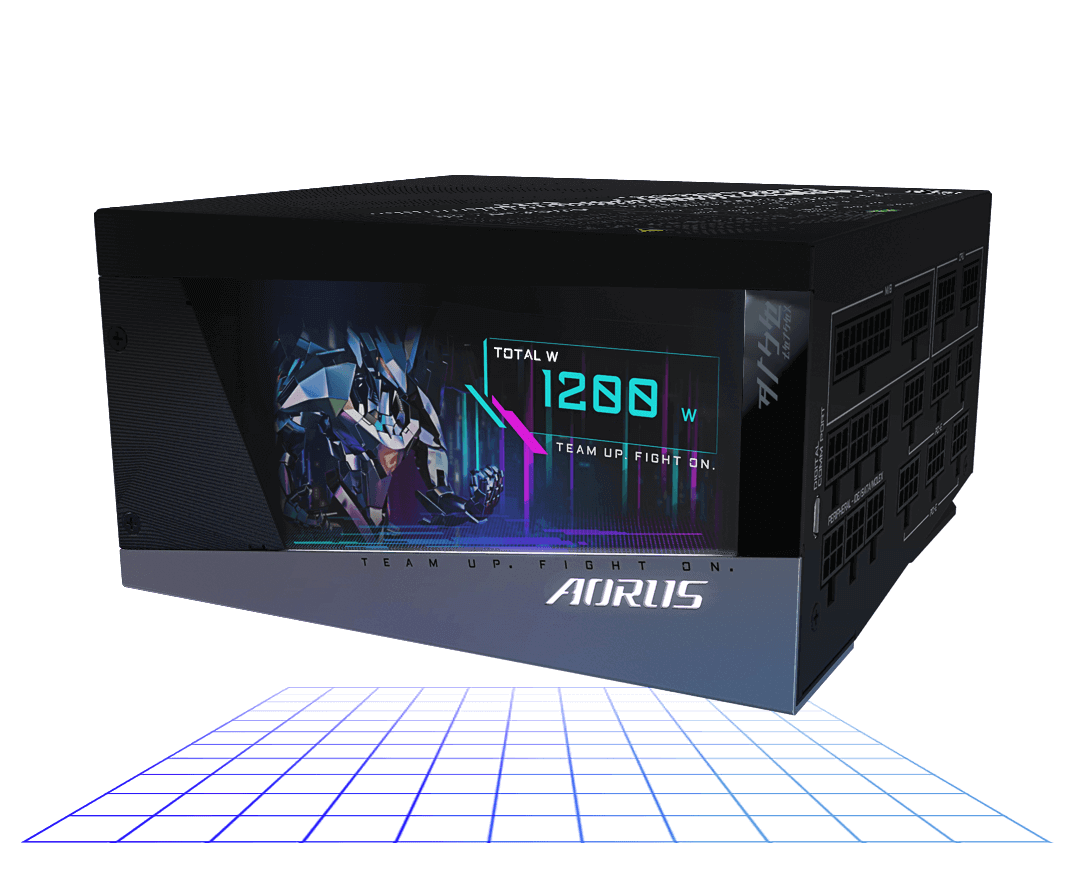

DIGITAL LCD MONITOR

The Digital LCD Monitor can not only display the health status of the power supply in real time, but also display various texts, pictures, GIFs and MP4. You can also adjust the lighting effect through RGB FUSION 2.0 software.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

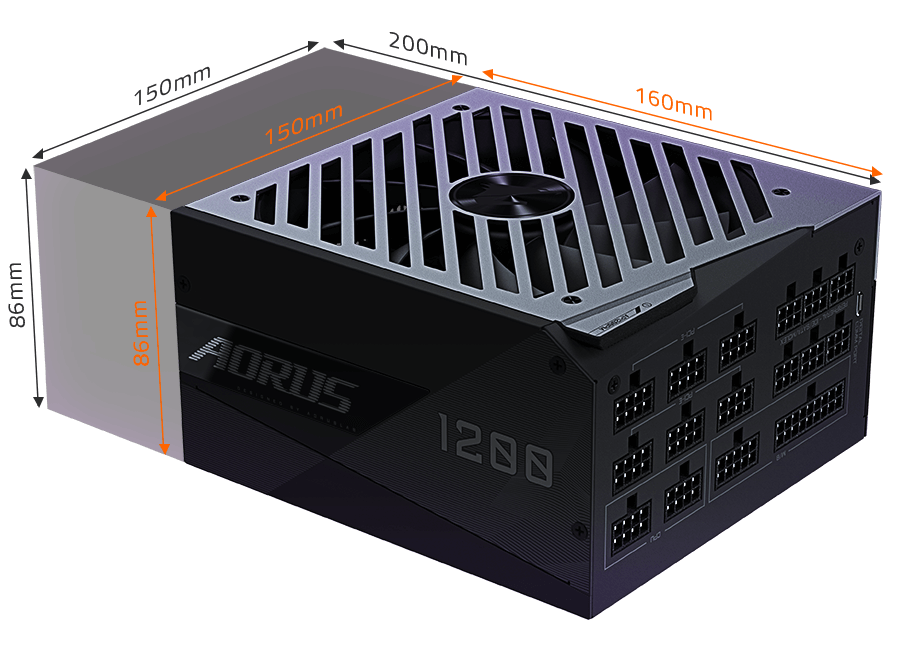

COMPACT SIZE DESIGN

With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, AORUS has reduced the size of a 1200W power supply that is generally designed to be 200 mm long to an amazing 160 mm, so it can be easily installed in any chassis without space constraints.

Specifications:

• Type
  Intel Form Factor ATX 12V v2.31
• PFC
  Active PFC (>0.9 typical)
• Input Voltage
  100-240 Vac (full range)
• Input Current
  15-7.5A
• Input Frequency
  60-50 Hz
• Output Capacity
  1200W
• Dimension
  150 x 160 x 86mm
• Fan Type
  140mm Double ball bearing Fan
• 80 PLUS
  Platinum
• Efficiency
  92% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-500ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black
• Connectors
  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 650mm*2
  PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
  SATA x 16 : 650mm+150mm+150mm+150mm*4
  4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
