Памет SSD 1TB Gigabyte AORUS, NVMe PCIe GEN4, M.2 2280, скорост на четене 5000 MB/s, скорост на запис 4400 MB/s

Key Features

• Form Factor: M.2 2280

• Interface: PCI-Express 4.0 x4, NVMe 1.3

• Total Capacity: 1000GB*

• Sequential Read Speed : up to 5000 MB/s**

• Sequential Write speed : up to 4400 MB/s**

• Wear Leveling, Over-Provision technologies

• TRIM & S.M.A.R.T supported

• Fully Body Copper Heat Spreader

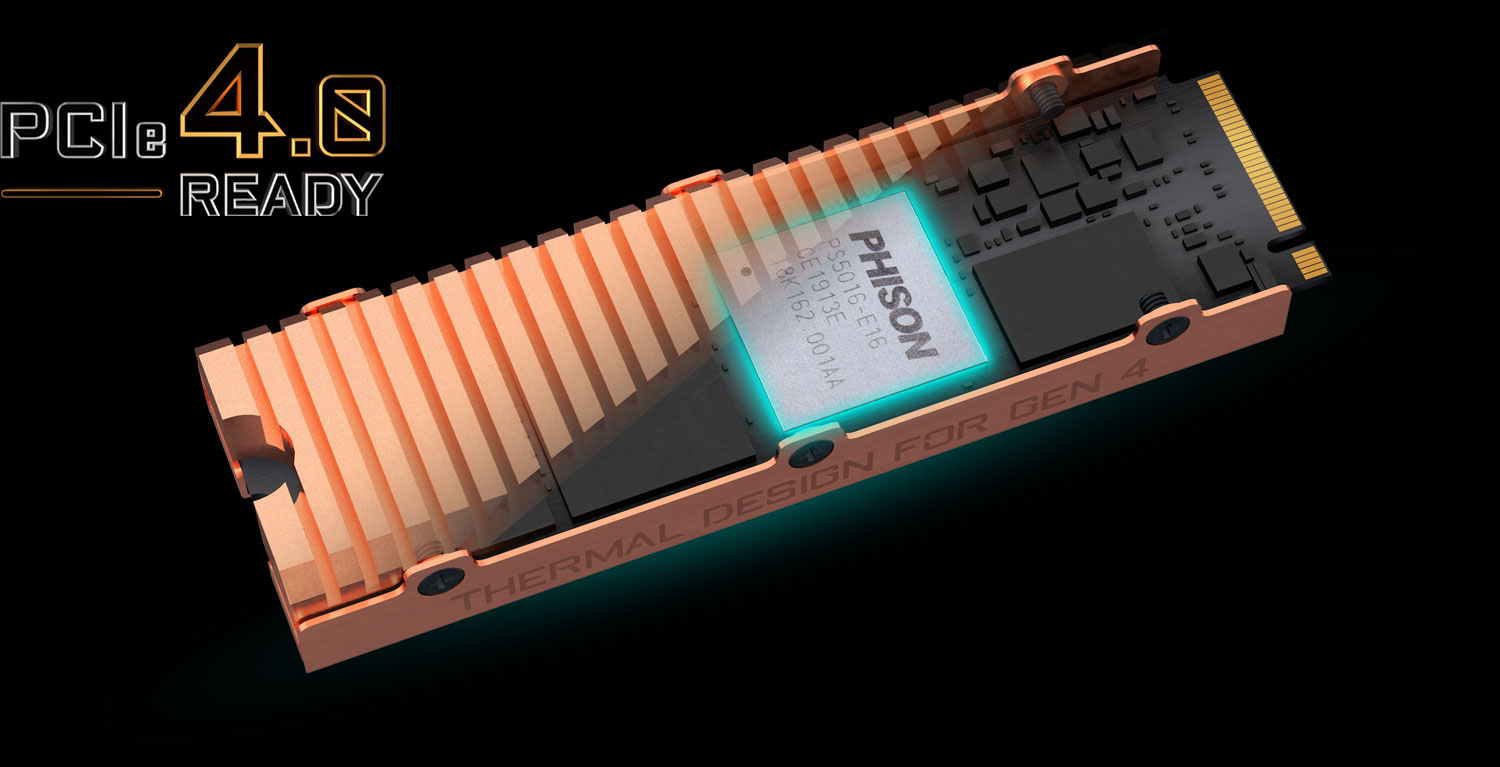

World First PCIe 4.0x4 Controller

The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

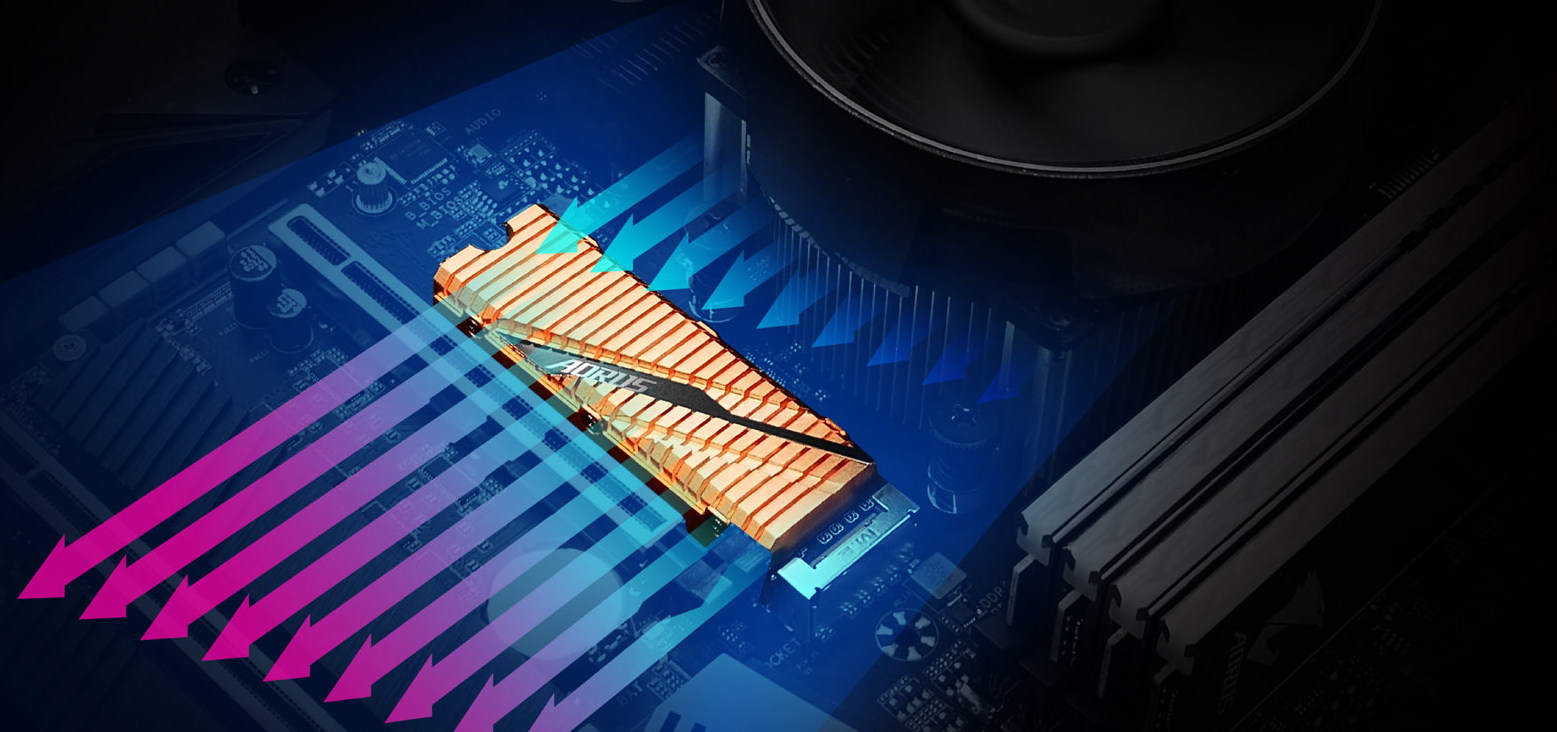

Efficient Copper Heat Spreader Design

Compared with a plated M.2 heat spreader, new efficient copper heat spreaders with 27 fins add more surface area which improve thermal transfer from heating sources to obtain thermal balance sooner. Moreover, Optimized fin array design does great heat exchange with any direction of air flow. Both unique design make sure key components of PCIe 4.0 SSD to keep suitable working temperature under ultra high transfer rate.

Specification

Interface:  PCI-Express 4.0x4, NVMe 1.3

Form Factor:  M.2 2280

Total Capacity:  1000GB

NAND:  3D TLC Toshiba BiCS4

External DDR Cache:  DDR4 1GB

Sequential Read speed:  Up to 5000 MB/s

Sequential Write speed:  Up to 4400 MB/s

Random Read IOPS:  up to 750k

Random Write IOPS:  up to 700k

Dimension:  80.5 x 11.25 x 23.5 mm

Mean time between failure (MTBF):  1.77 million hours

Power Consumption (Active):  Average: R : 6.6W; W : 6.4W

Power Consumption (Idle):  18.8mw

Temperature (Operating):  0°C to 70°C

Temperature (Storage):  -40°C to 85°C
