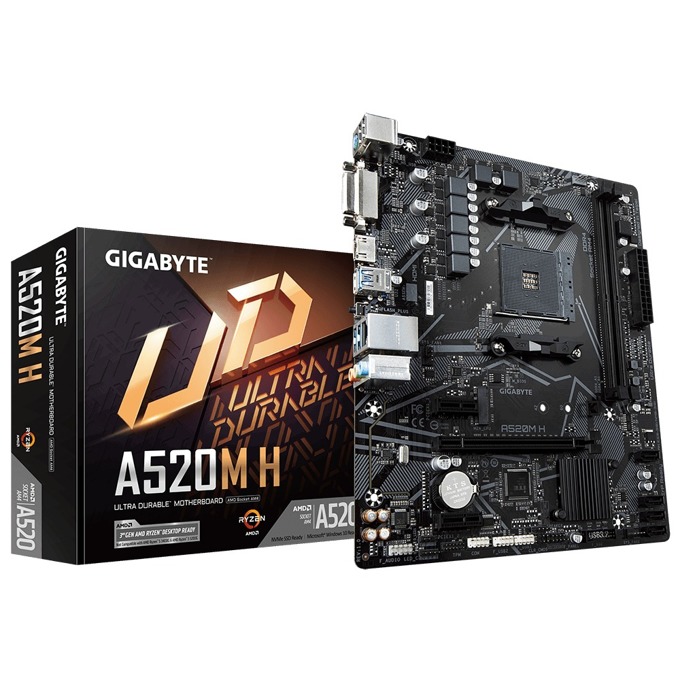

Дънна платка Gigabyte A520M-H, AM4, A520, DDR4, PCI-E 3.0, 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen1, Micro ATX

Name: Дънна платка Gigabyte A520M-H, AM4, A520, DDR4, PCI-E 3.0, 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen1, Micro ATX
Brand: Gigabyte
SKU: MBAGIGABYTEA520MH
Availability: OutOfStock

id 190481 Код: MBAGIGABYTEA520MH

0.00 от 0 ревюта

Добави ревю | Задай въпрос

Модел: A520M-H
Марка: Gigabyte
Гаранция: 36 месеца
Код на продукта: A520M-H
Процесор сокет: AM4
Чипсет: A520
Брой слотове за RAM памет: 2
Storage интерфейси: SATA 6Gbit/s, M.2
Видео изход: HDMI DVI
Форм фактор: Micro ATX
Наличност: Стар продукт

Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

Печат

Открита грешка/Запитване

Изпрати на приятел

Сравни

Описание Характеристики Ревюта / Въпроси

AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

CPU
1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD A520
Memory
1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors:
  Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1. 2 x PCI Express x1 slots, supporting PCIe 3.0
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
1. 4 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x speaker header
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
15. 1 x serial port header
16. 1 x chassis intrusion header
17. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x Q-Flash Plus button
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 20.5cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Виж още Дънни платки за AMD процесори Gigabyte
Виж всички Дънни платки за AMD процесори в категорията

Технически характеристики

Процесор сокет:	AM4
Чипсет:	A520
Поддържана памет:	DDR4
Брой слотове за RAM памет:	2
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	HDMI DVI
Форм фактор:	Micro ATX
Видеокарта:	Вградена
