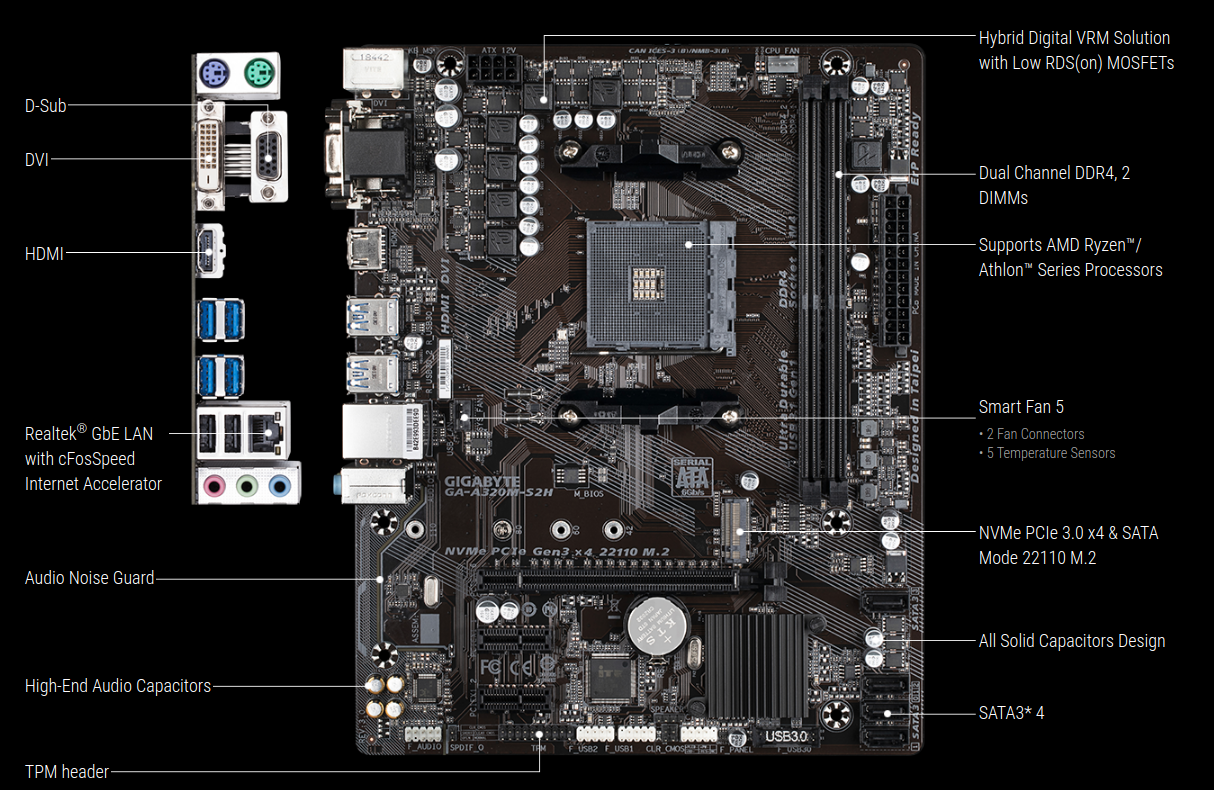

AMD A320 Ultra Durable Motherboard with Hybrid Digital VRM Solution, NVMe PCIe 3.0 x4 22110 M.2, Realtek GbE LAN with cFosSpeed, Smart Fan 5, 3 Display Interfaces, Anti-Sulfur Resistors Design
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 & SATA Mode M.2
- Multiple Display with HDMI, DVI and D-Sub
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- Anti-Sulfur Resistors Design
Specifications:
-
CPU
- AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
-
Chipset
- AMD A320
-
Memory
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
* Actual support may vary by CPU. - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
-
Onboard GraphicsIntegrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
* Actual support may vary by CPU. -
Audio
- Realtek® audio codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. - Support for S/PDIF Out
-
LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)
-
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
-
Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
* Actual support may vary by CPU. - 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
-
USBChipset:
- 2 x USB 3.1 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- 4 x USB 3.1 Gen 1 ports on the back panel
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
-
Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Bundled Software
- Norton® Internet Security (OEM version)
- cFosSpeed
-
Operating System
- Support for Windows 10 64-bit
- Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
-
Form Factor
- Micro ATX Form Factor; 24.4cm x 19.5cm
-
Remark
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
