Кутия Genesis Diaxid 605F, ATX/mATX/Mini-ITX, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, с прозорец, черна, без захранване



Genesis Diaxid 605F









Durable, elegant, efficient. In a nutshell? GENESIS Diaxid 605F. Meet the case we created for fans of low temperatures and high performance. Compatibility with AIO 420 coolers, up to 5 GENESIS Oxal 120 fans and full dust filtering. On top of that, extensive mounting options for components. Take up the challenge and see how easy it is to build your dream computer with GENESIS Diaxid 605F.









UP TO 5 GENESIS OXAL 120 FANS

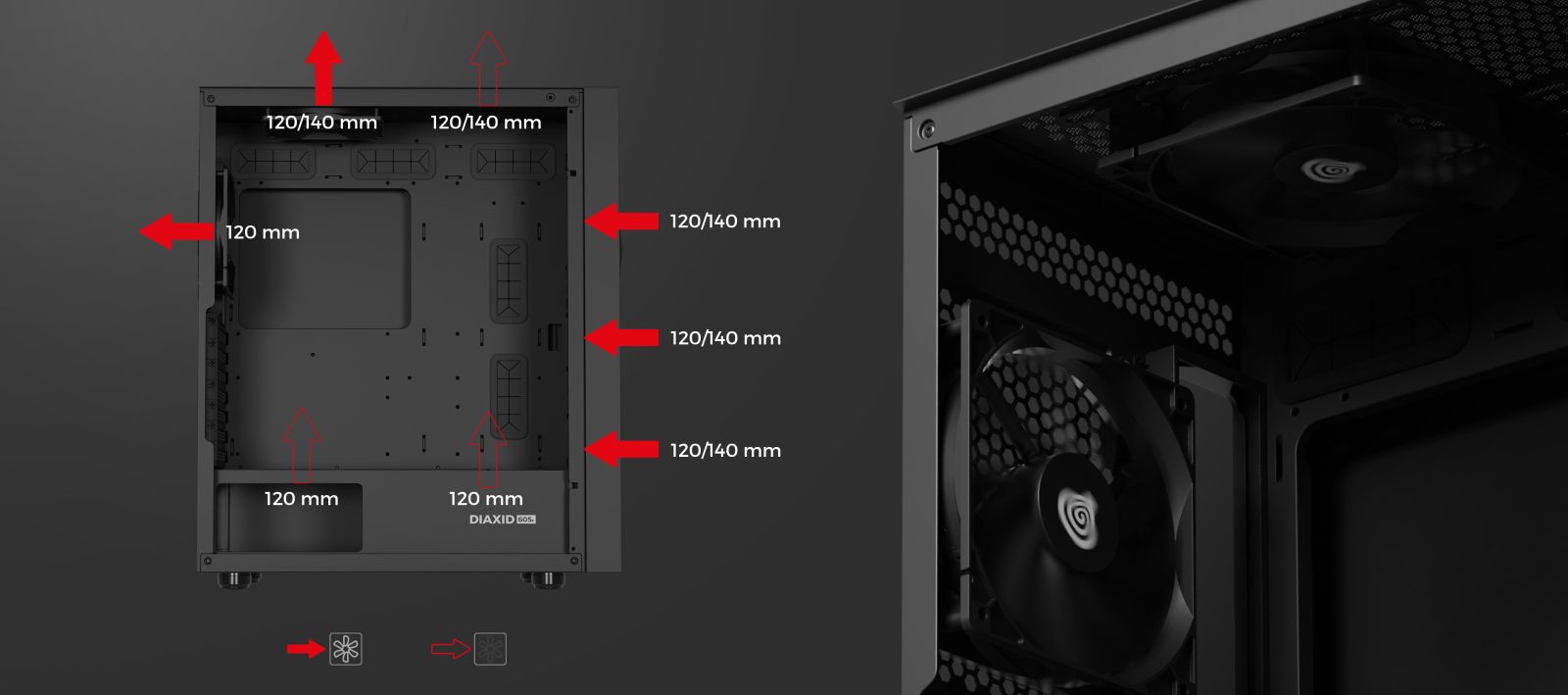

Meet the GENESIS Oxal 120 - our most efficient fans, which will provide the performance of a standard fan (1400 RPM) already at much lower speeds. What does this mean for you? Silence and optimal temperatures even on the hottest days. You'll find as many as 3 of them (pumping air inside) in the front, while the other 2 (exhausting) in the back. Thanks to this configuration, you can count on positive pressure inside the case, which, combined with full filtering, protects even better against dust. Not enough? Additional space on the top and 2 spaces on the bottom of the case will allow you to easily expand the unit as you wish (including mounting up to 3 140 mm fans on the front).









COMPATIBILITY WITH AIO 420

Are you looking for a case that gives you full freedom to mount a one-piece water cooler? With GENESIS Diaxid 605F you will see how easy it is. The front of the case will allow you to mount AIO 420/360/280/240/120 kits (including a radiator thickness of up to ~27 mm on the front in the case of AIO 420). On the top, in turn, you can count on mounting AIO 280 with a standard radiator (~27 mm) or "thicker" AIO 240/140/120 (with ~38 mm radiator). Also, the back will allow you to mount a classic AIO 120, simply and quickly.







Technical data
Type of casing Mini Tower
Motherboard form factor ATX, Micro-ATX, Mini-ITX
Compatible power supply standard ATX
Power supply mounting Bottom
Maximum PSU length 215 mm
Maximum CPU cooling height 168 mm
Maximum length of the GPU graphics card 351 mm
I/O panel Mini Jack x2, USB 3.0 Typ-A x2, USB 3.1 Gen2 Typ-C x1
Type of side panel Tempered glass
Type of front panel Mesh
Number of installed fans 5
Installed fans Top 1x 120 mm, Front 3x 120 mm, Rear 1x 120 mm
Max number of fans 8
Support for installation of fans - bottom 2x 120 mm
Support for installation of fans - top 2x 120 mm, 2x 140 mm
Support for installation of fans - front 3x 120 mm, 3x 140 mm
Support for installation of fans - rear 1x 120 mm
Fan rotational speed +/-10% 1300 RPM
Fan lifetime 50000 h
Fan airflow 46.10 CFM
Fan static pressure 1.05 mmH2O
Fan noise level 22.10 dB
Liquid Cooling Support Yes
Support for installation of liquid cooling - top 120 mm, 140 mm, 240 mm, 280 mm
Support for installation of liquid cooling - front 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
Support for installation of liquid cooling - rear 120 mm
Illumination No
Number of expansion slots 7
Number of 2.5" drive bays (SSD/HDD) 3
Number of 3.5" drive bays (SSD/HDD) 2
PSU shroud Yes
Power supply included No
Protections Magnetic dust filters
Material ABS, Steel, Tempered Glass
Colour Black

Physical data
Length 420 mm
Width 217 mm
Height 466 mm
Weight 7.2 kg
