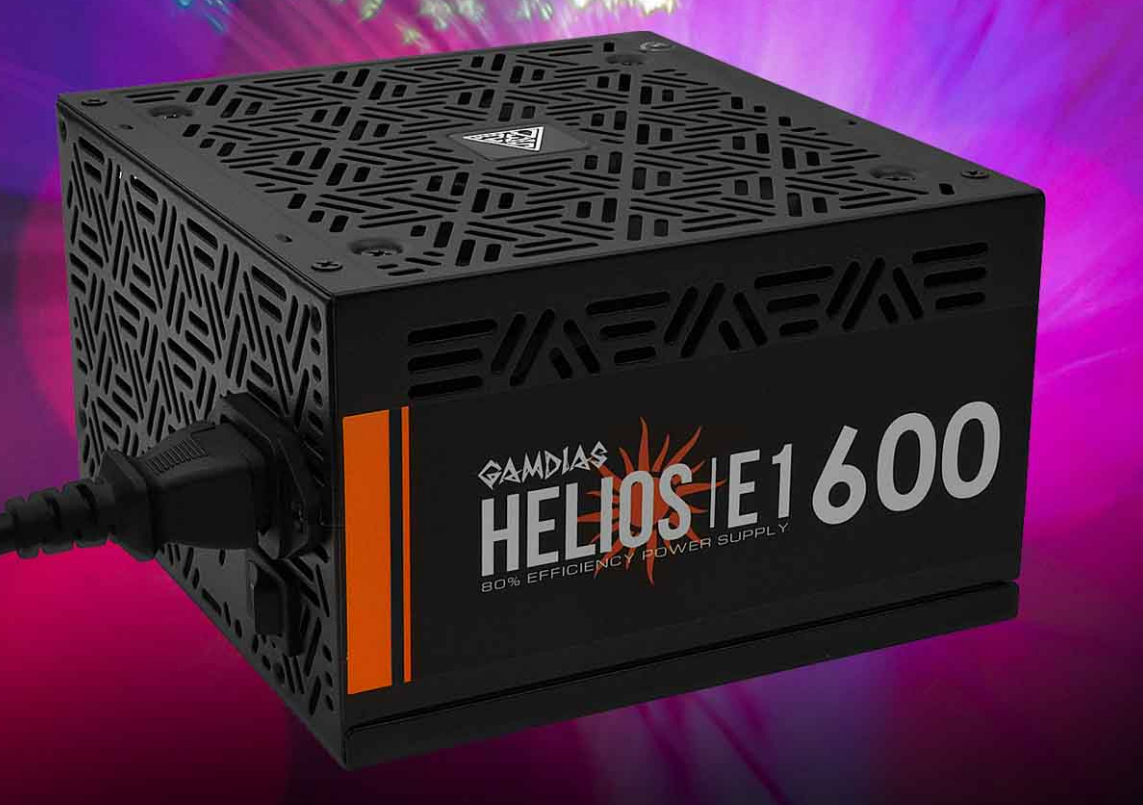

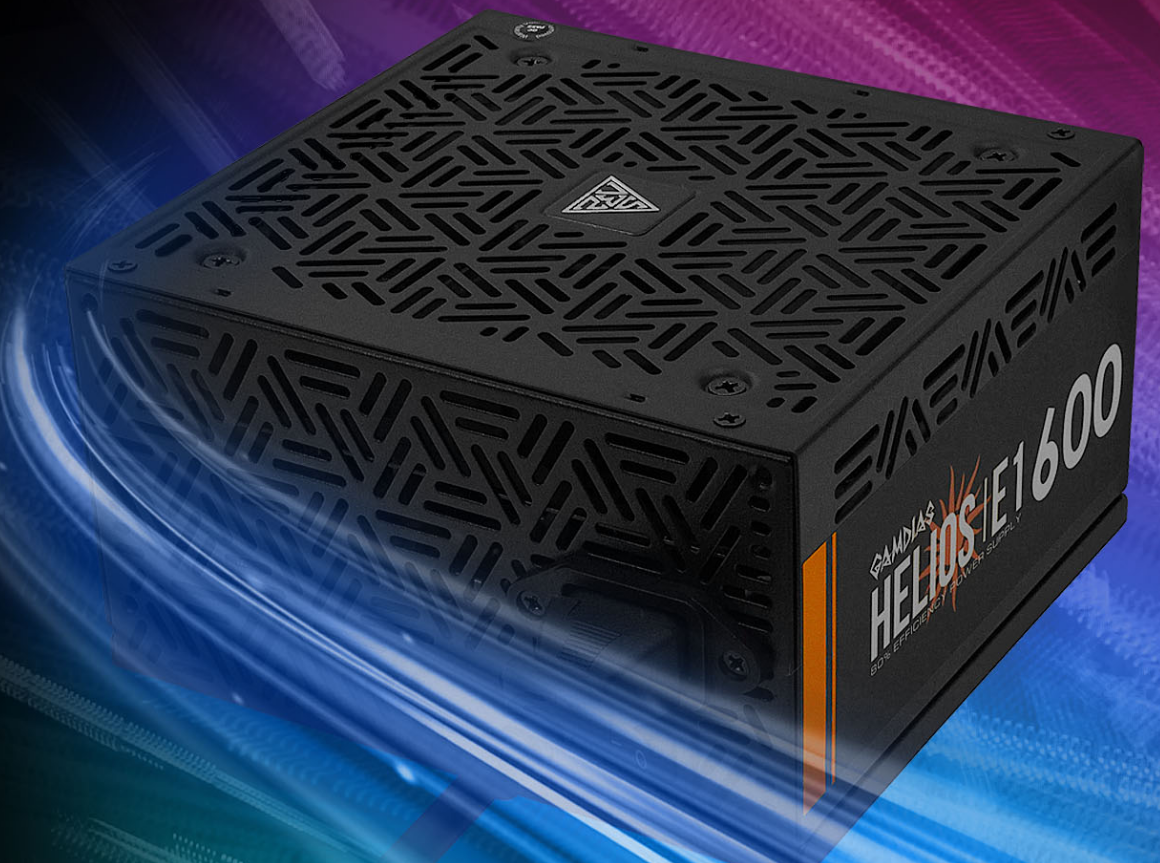

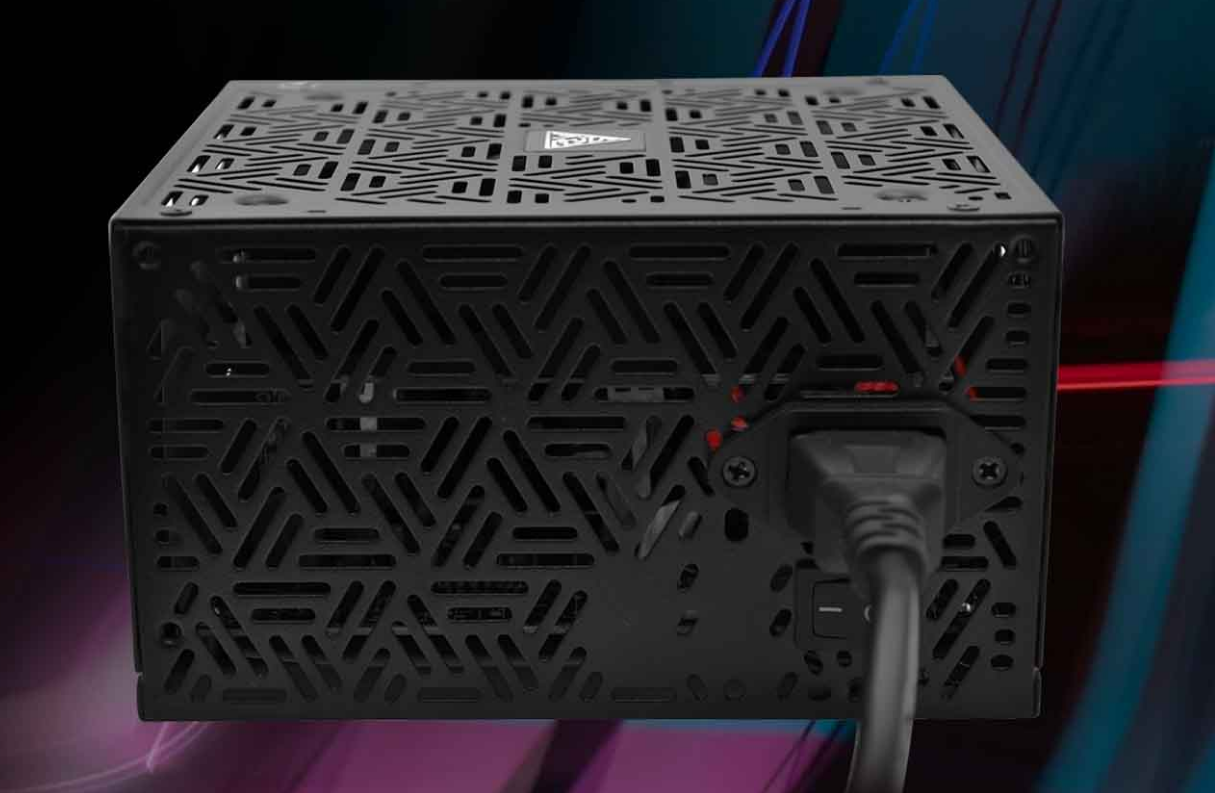

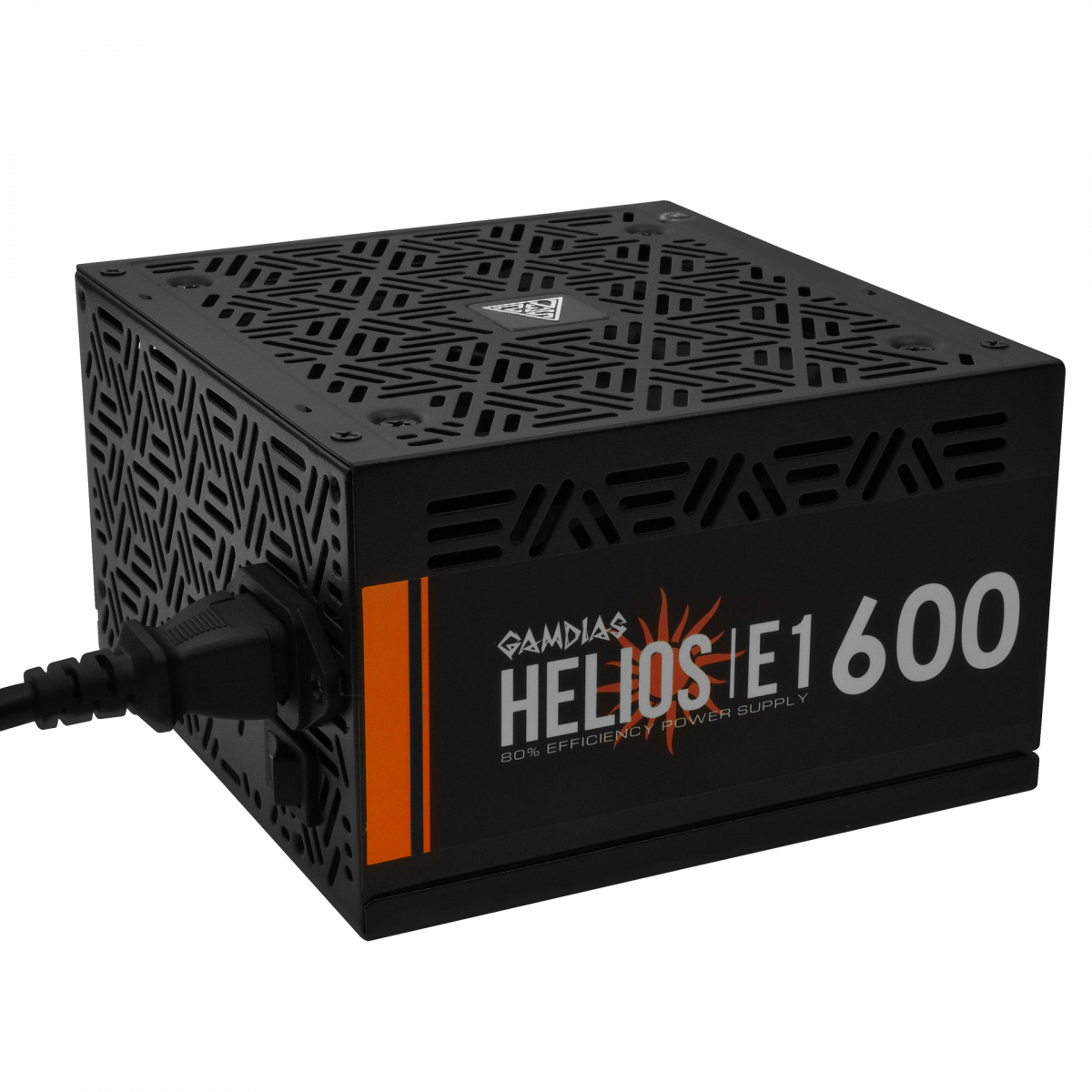

Захранване Gamdias HELIOS-E1-600, 600W, Active PFC, 80 Plus CE, 120mm вентилатор







SMART AND DURABLE Meets 80% Efficiency 620mm EPS Cable Automatic Fan Speed Optimization Stealth Black Support C6/C7 Power States











The HELIOS E1-600W can deliver up to 80%+ efficiency reliably while automatically adjusting its fan speed according to temperature. The stealthy PSU provides durability and luxury while being exceptionally economically competent.
	EXTRAORDINARY EFFICIENCY HELIOS E1-600W can perfectly draw power at 80% efficiency while releasing minimal heat. With less heat generated, less noise arises
SMART VENTILATION The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load.









SPECIFICATIONS

Model
HELIOS E1-600

POWER

Type:  ATX12V v2.4

Efficiency:  Meeting up to 80% efficiency

Dimension (L x W x H):  140 x 150 x 86 mm

Support C6/C7 power state:  Yes

AC Input:  220-240V / 6A / 47-63Hz

DC Output:  +3.3V / +5V / +12V / -12V / +5Vsb

Max. Output Current:  16A / 16A / 40.5A / 0.3A / 2.5A

Max. Output Power:  100W / 486W / 3.6W / 12.5W

Total Power:  600W

Protection:  OVP / UVP / OPP / SCP

Main Power:  1 (20+4 Pin)

CPU:  1 (4+4 Pin)

PCI-E:  2 (6+2 Pin)

SATA:  5 (5 Pin)

Molex:  2 (4 Pin

Floppy:  1 (4 Pin)

Silent Mode:  No

DC to DC:  No



JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
