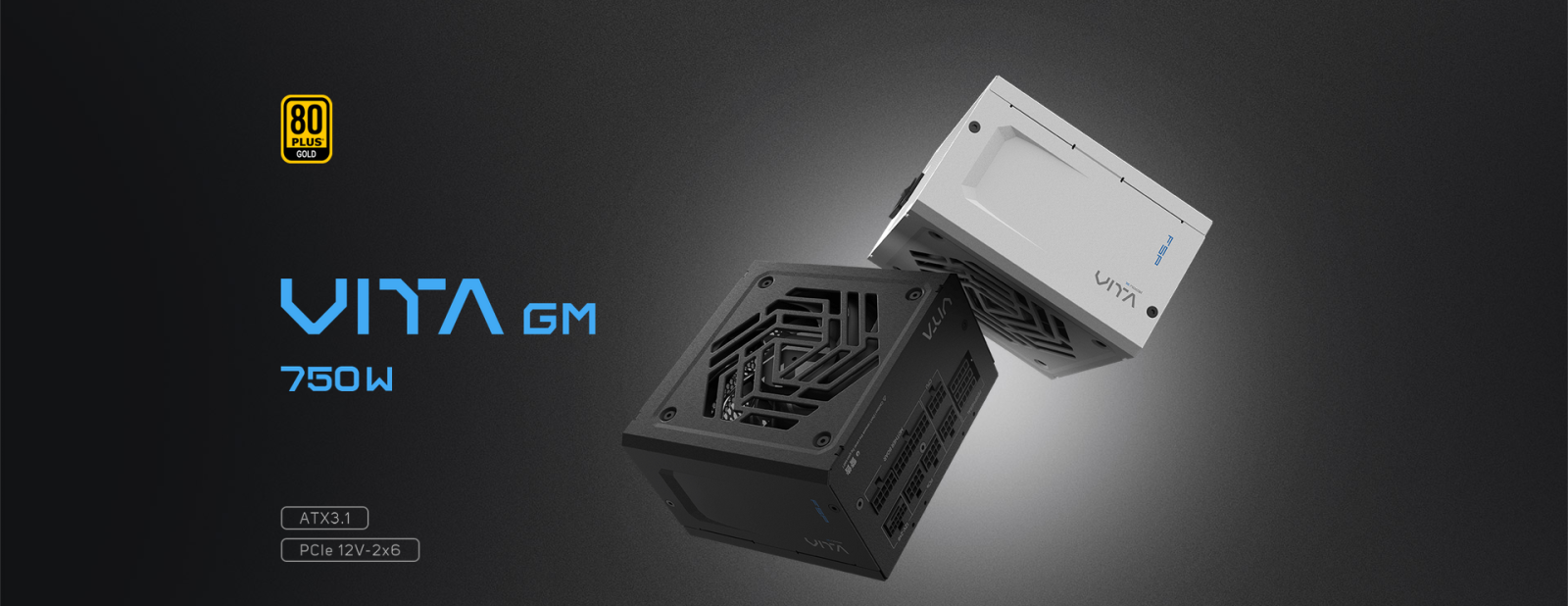

FSP VITA GM 750W

Complies with Intel Power Design Guide ATX 3.1

Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.

We Follow ATX 3.1 Recommended Level

Some changes in the new spec. from ATX3.0 to ATX3.1, FSP follows Intel recommended criteria to keep it on the latest version and focus on user benefits.

High Efficiency in Gold-certified

Certified by world-class organizations 80 PLUS gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.

120 mm hydraulic bearing (HYB) fan

Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.

Specs:

	MB 20+4 PIN	CPU 4+4 PIN	PCIe 12V-2x6	PCIe 6+2 PIN	SATA	MOLEX
Connectors	1	2	1	4	8	4

AC Input	100-240V~ 10-5A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	62.5A	0.3A	3A
Max Combined Power	100W		750W	3.6W	15W
Total Power	750W

Model	VITA-750GM
Rated Output Power	750W
Form Factor	ATX12V V3.1
80 PLUS Certification	Gold
Input Voltage	100-240V
Input Current	10-5A
Input Frequency	50-60Hz
PFC	Active ≧ 0.9
Efficiency(at typical load)	≥90% at typical load
Fan Type	HYB fan, 120mm
Dimensions(L x W x H)	140×150×86 mm
Operation Temp.	40°C
Protection	OCP, OVP, SCP, OPP, UVP, OTP
