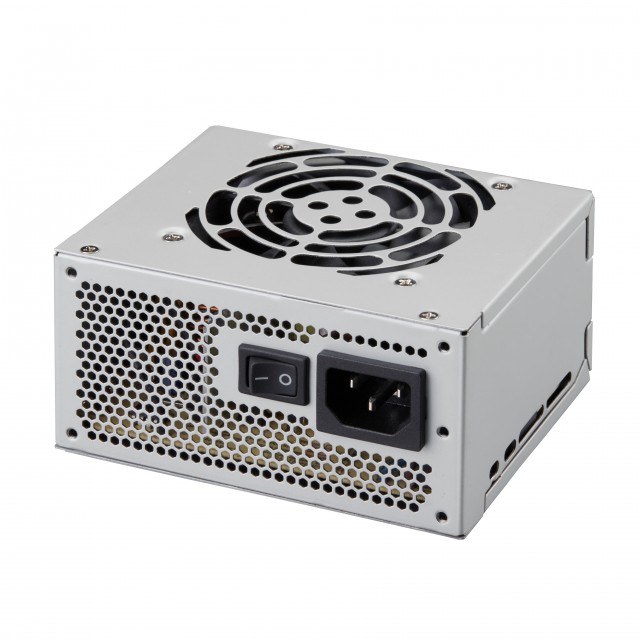

FSP FSP350-50SAC
FSP SAC Series features with eco-friendly design, which allows SAC series to reach up to 85% efficiency. SAC series also equipped with complete protection to prevent your system from damage. SAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
- Intel PSDG SFX 12V V3.42 version
- 80 PLUS BRONZE Certification
- Worldwide Input Voltage 100Vac-240Vac
- Single 12V Rails Fulfill all System Demand
- Active PFC Within 0.99 Power Factor Correction
- DC to DC Design for Better System Compatiblity
- Forward & D2D To Offer High Performance and Efficiency
- Smart Fan Speed Control Provide Ultra Silent Working Environment
- National Safety Regulations Certification: CB 62368, CB 60950, CE, TUV, CUL
Specifications:
| Dimension: (L x W x H) |
100 x 125 x 63.5 (mm) 3.94 x 4.92 x 2.50 (inch) |
Environment | |
| Efficiency: | 80 Plus Bronze | Working temperature: | 0°C to 40°C |
| Hold-up time: | 115V / 60Hz: ≥ 16ms 230V / 50Hz: ≥ 16ms |
Storage temperature: | -20°C to + 80°C |
| Operating altitude | 2,000 meters above sea level | Working humidity: | 90% RH non-condensing |
| MTBF: | 100,000 hours of continuous operation at 25°C, Max. output load | Storage humidity: | 90% RH non-condensing |
| Outputs | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max | 20A | 20A | 29.2A | 0.3A | 2.5A |
| Min. | 0A | 0A | 0.1A | 0A | 0A |
| Regulation | ±5% | ±5% | ±5% | ±5% | ±5% |
| Ripple/Noise | 50 mV | 50 mV | 120 mV | 120 mV | 50 mV |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри FSP
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
| Изходна мощност: | 350 W |
|---|---|
| Модулен блок: | Не |
| Форм фактор: | SFX |
