Command attention

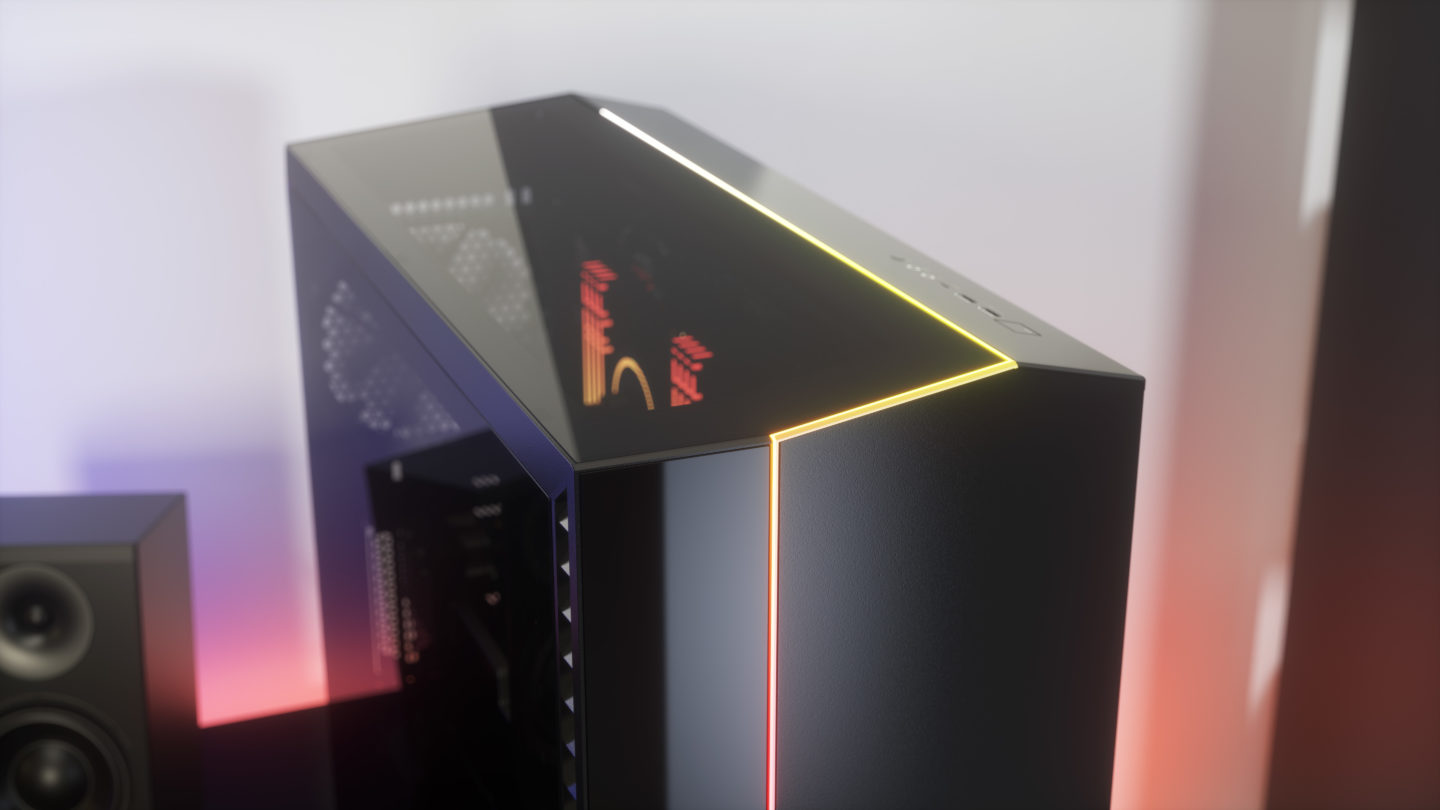

Sharp angles, uncompromising design and a no-nonsense attitude combine to create a case quite unlike any other. Just look at the expressive ARGB strip or the counter-angled air intakes designed to trap noise without restricting airflow, giving you a case that breathes like it’s open – but sounds like it’s closed.
Attractive aesthetics
|
![]() |
![]() |

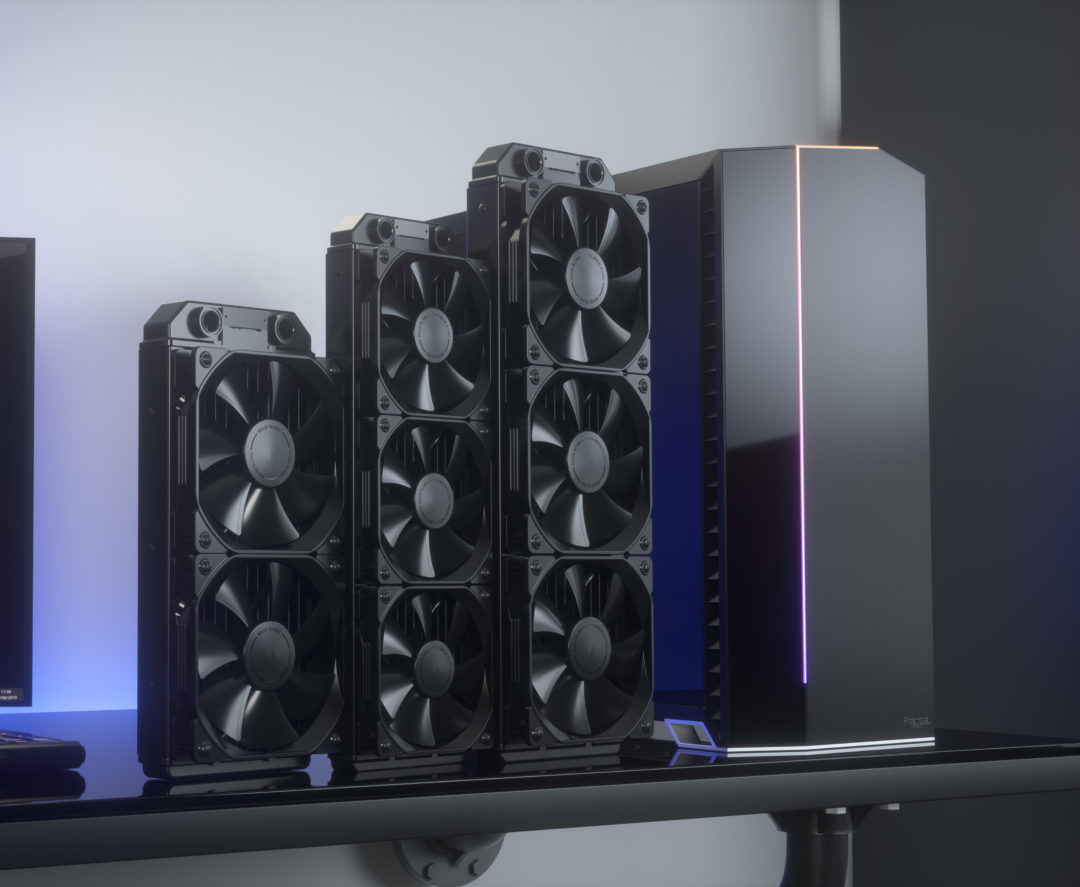

Extensive water-cooling support The Vector RS is designed to offer you a wide range of options for your water-cooling setup.
|
![]() |
![]() |
![]() |
Vertically inclined Vertical 2.5 slot GPU support via Flex vertical PCIe riser (sold separately) |

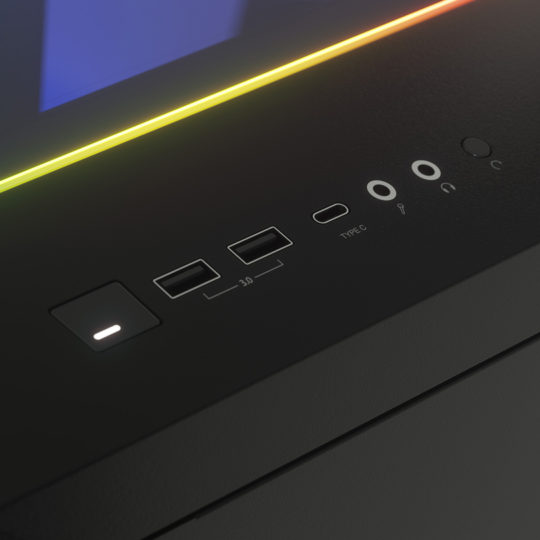

Full speed ahead USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps |

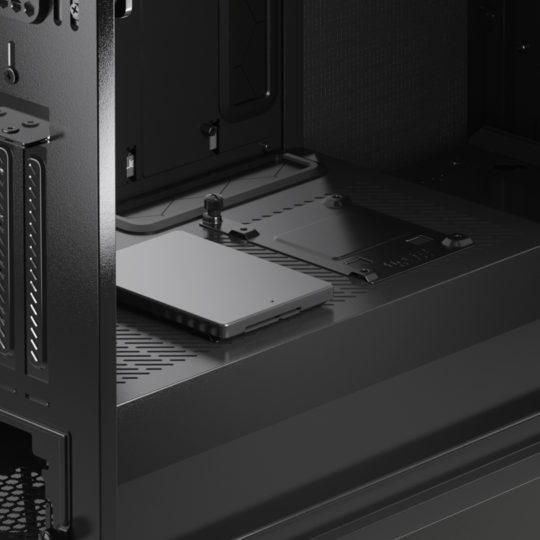

Conceal and expand Ventilated PSU shroud conceals cables and provides additional SSD mounting options |

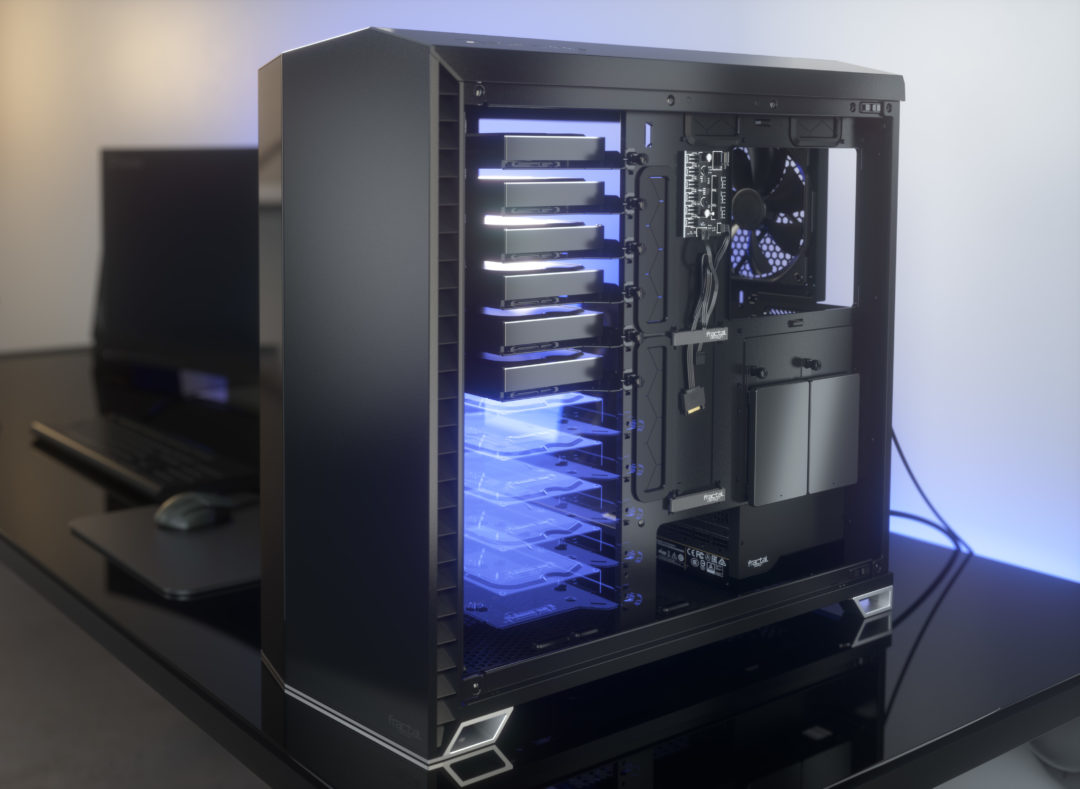

Dual layout design Converting between Open and Storage layout is both fast and easy, ensuring you always get the very most out of your Vector RS.
|
![]() |
![]() |

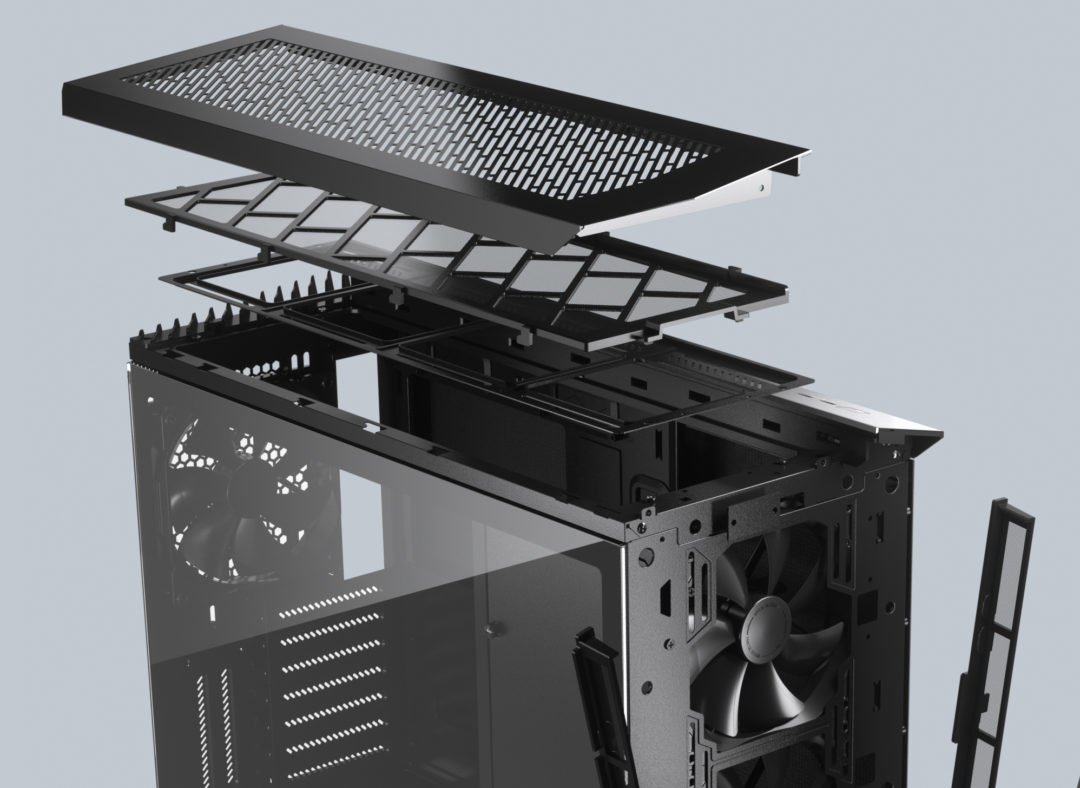

A new cooling angle Thanks to the counter-angled intake vents, the Vector RS is a case that can breathe like it's open, but sound like it's closed.
|
Specifications
3.5"/2.5" Universal drive brackets: 6 included, 11 positions total
Dedicated 2.5" drive brackets: 2 included, 4 positions total
Expansion slots: 7 + 2 vertical
Front ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio
Total fan mounts: 9 (6 + 3 with included bracket)
Front fan: 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan: 3 x 120/140 mm (with cooling bracket installed)
Rear fan: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan: 2 x 120/140 mm
Dust filters: Bottom fan + PSU - Front fans - Top panel (with cooling bracket installed)
Fixed velcro straps: Yes
Cable routing grommets: Yes
Captive thumbscrews: HDD brackets, SSD brackets
Additional Lighting: Integrated front/top panel ARGB
Left side panel: Dark tint tempered glass
Right side panel: Steel with bitumen sound damping
Compatibility
Motherboard compatibility: EATX (up to 285 mm wide) / ATX / mATX / ITX
Power supply type: ATX
PSU max length: 300 mm
GPU max length: 440 mm with front fan installed
CPU cooler max height: 185 mm
Front radiator: 120/240/360 mm - 140/280 mm
Top radiator: With cooling bracket installed: - 120/240/360 mm - 140/280/420 mm (max 35 mm motherboard component height)
Rear radiator: 120 mm
Bottom radiator: 120/240 mm - 140/280 mm
Cable routing space: 23 mm
Dimensions
Case dimensions (LxWxH): 552 x 233 x 498 mm
Case dimensions w/o feet/protrusions/screws: 540 x 233 x 475 mm
Package dimensions (LxWxH): 568 x 328 x 673 mm
Net weight: 12.64 kg
Package weight: 13.98 kg
