Fractal Design Prisma AL-18 PWM
The Prisma AL-18 is a powerful 180 mm ARGB fan that packs a mean punch in the airflow department. Massive blades, stout 38 mm thickness, and wide 300-1200 RPM range with PWM control allow the AL-18 to yield remarkably high airflow while remaining exceptionally quiet.
Manually Controllable
Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern

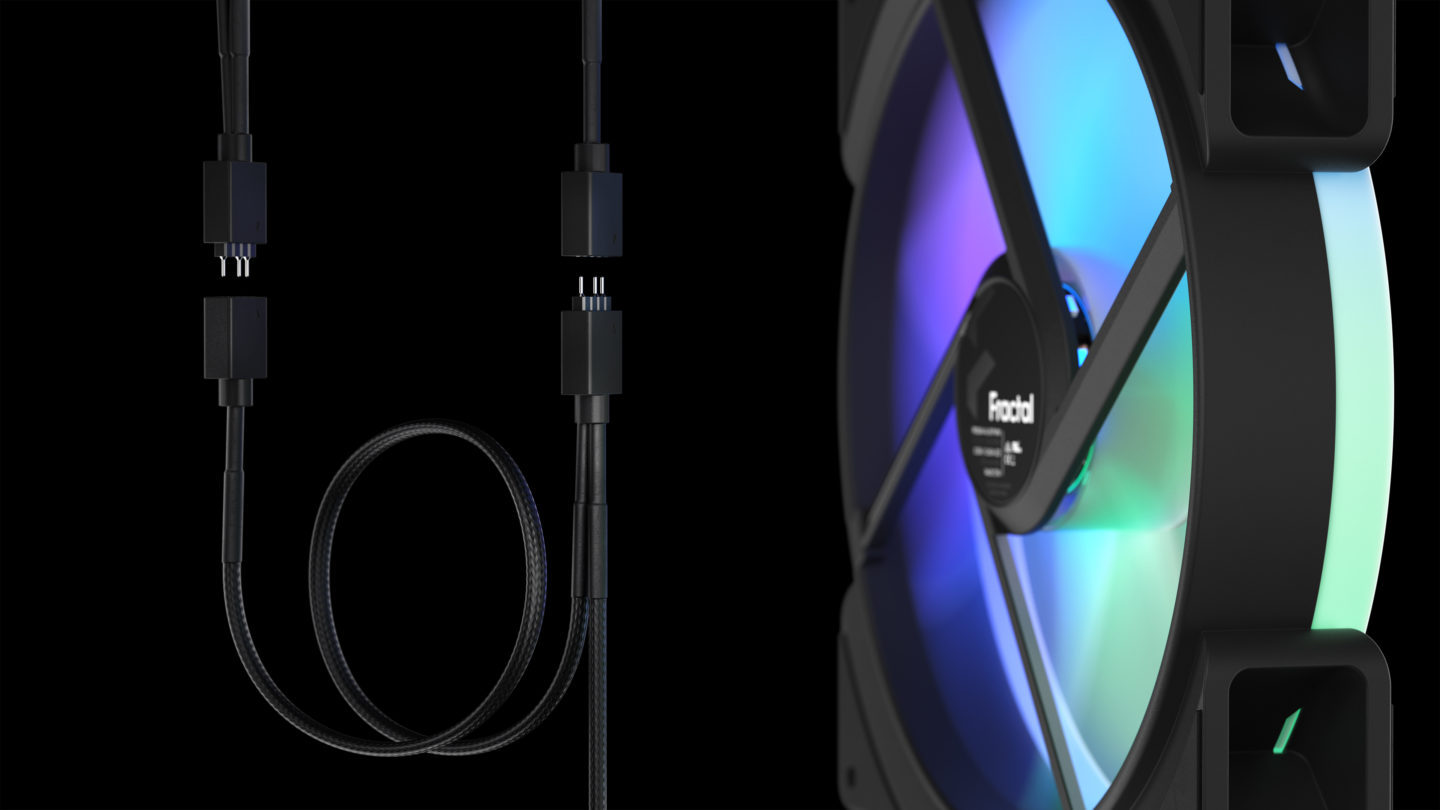

Black sleeved power cables offer an extra touch of style
PWM precision
PWM control with a wide 300-1200 RPM speed range ideal for radiators
Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
Aerodynamic stator struts with embedded wiring reduce noise and turbulence
Specifications
-
Size180 x 180 x 38 mm
-
ColorBlack frame, white blades
-
Screw hole pattern165 x 165 mm
-

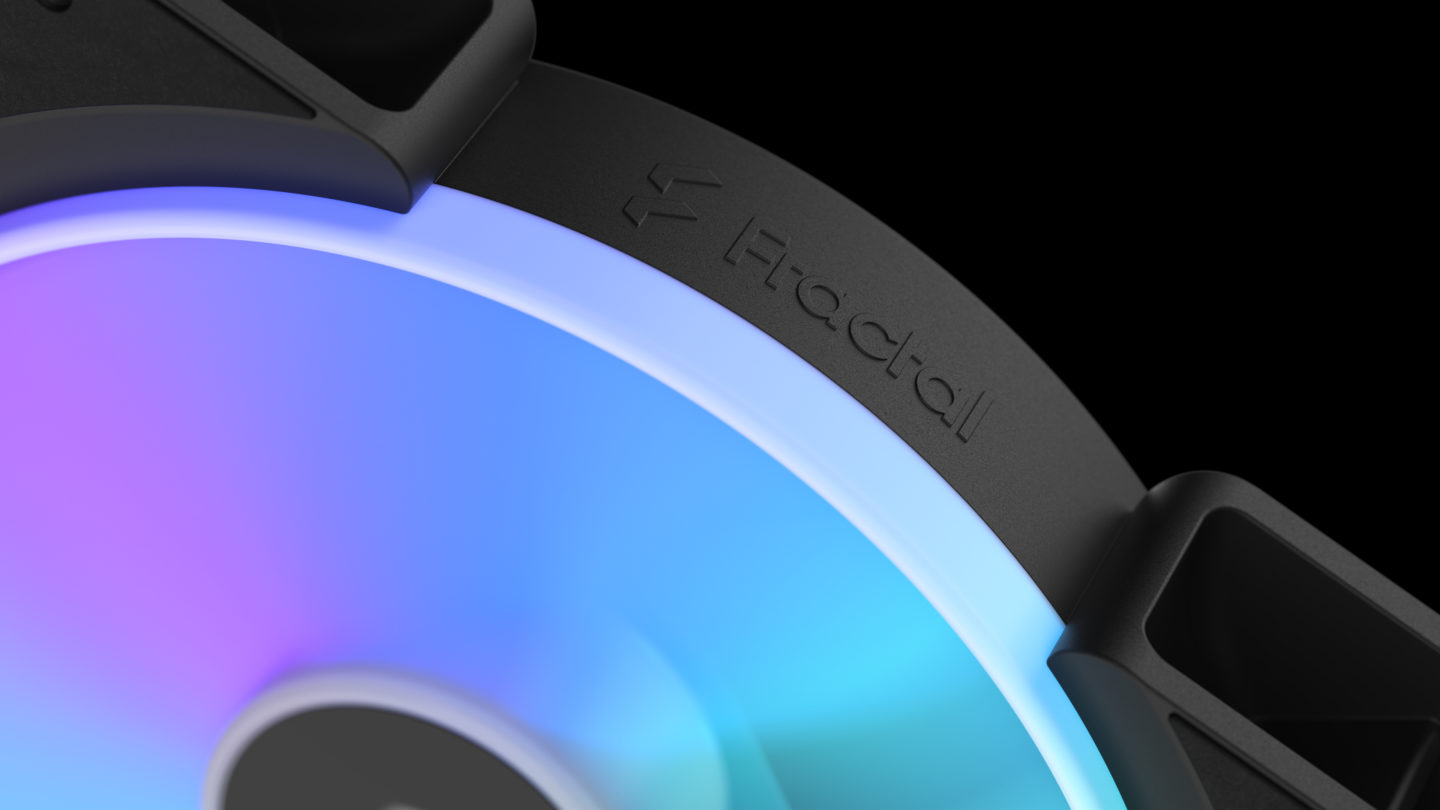

LED typeAddressable RGB
-
Power connector4-pin
-
BearingLLS
-
Number of blades7
-
Rotational speed300 – 1200 RPM
-
Noise level14.9 – 37.4 dB(A)
-
Max airflow (CFM)43.1 – 146.8 CFM
-
Max airflow (m3/h)73.27 – 249.56 m³/h
-
Max pressure0.44 – 2.50 mmH2O
-
Fan input power4.2W at 12VDC
-
Fan max input current0.35A
-
Fan input voltage12V
-
Minimum startup voltage6V
-
LED rated voltage5V
-
LED rated current0.6A
-
LED Rated input power3.0W
-
MTTF90,000 hrs
-
Fan weight521 g (1.043 kg 2-pack)
-
Cable length1000 mm
-
Cable typeBlack sleeved
