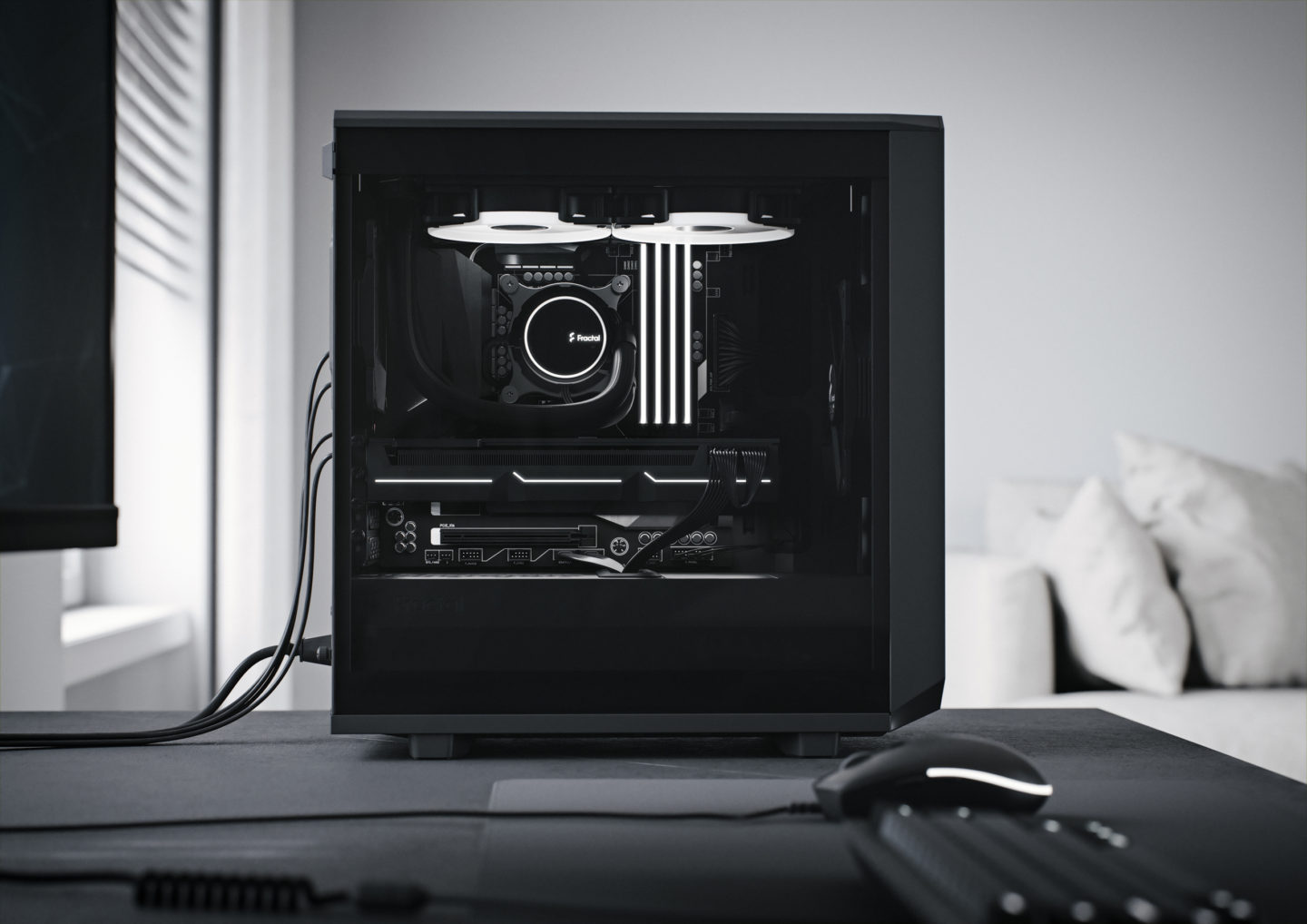

Fractal Design Meshify 2 Mini Black TG
The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top.
Detachable front filter
Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
Double layered front filter with detachable nylon for increased airflow
Specifications:
-
3.5"/2.5" drive mounts2 (included)
-
Dedicated 2.5" drive mounts4 (2 included)* max 8 mm drive height for mounts behind motherboard plate
-
Expansion slots4
-
Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
-
Total fan mounts7x 120 mm or 4x 140 mm
-
Front fan3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
-
Top fan2x 120/140 mm
-
Rear fan1x 120 mm (1x Dynamic X2 GP-12 included)
-
Bottom fan1x 120 mm (requires removal of HDD cage)
-
Dust filtersTop, front and bottom
-
Cable routing space15-25 mm
-
Cable routing grommetsYes
-
Fixed cable strapsYes
-
Tool-less push-to-lockTop, front and side panels
-
Captive thumbscrewsHDD, SSD and, PSU brackets
-
Left side panelTempered glass
-
Right side panelSteel
Compatibility
-
Motherboard compatibilitymATX / DTX / Mini-DTX / Mini ITX
-
Power supply typeATX
-
Front radiatorUp to 240/280 mm
-
Top radiatorUp to 240 mm
-
Rear radiator120 mm
-
Bottom radiator120 mm (without HDD Cage)
-
PSU max length165 mm recommended with HDD cage (200 mm without HDD cage)
-
GPU max length331 mm, 306 mm with front fan
-
CPU cooler max height167 mm
Dimensions
-
Case dimensions (LxWxH)396 x 205 x 406 mm
-
Case dimensions w/o feet/protrusions/screws384 x 205 x 390 mm
-
Net weight6,62 kg
-
Package dimensions (LxWxH)457 x 277 x 462 mm
-
Gross weight7,68 kg
